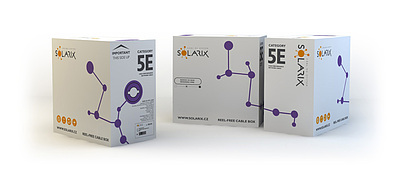

Installation cable Solarix CAT5E UTP LSOH Dca-s1,d2,a1 350 MHz 305m/box SXKD-5E-UTP-LSOH
Brand:
Solarix
Guarantee period:
5 years
Order code:
27724119
Unit of measurement (UoM):
box305m
Min. purchase amount (UoM):
1
High quality unshielded category 5E installation cable tested up to 350 MHz, LSOH sheath with Dca-s1,d2,a1 reaction to fire class, 305 m box, Component Level certification.
140,60 EUR excluding VAT
Info about product:
+420 533 338 803

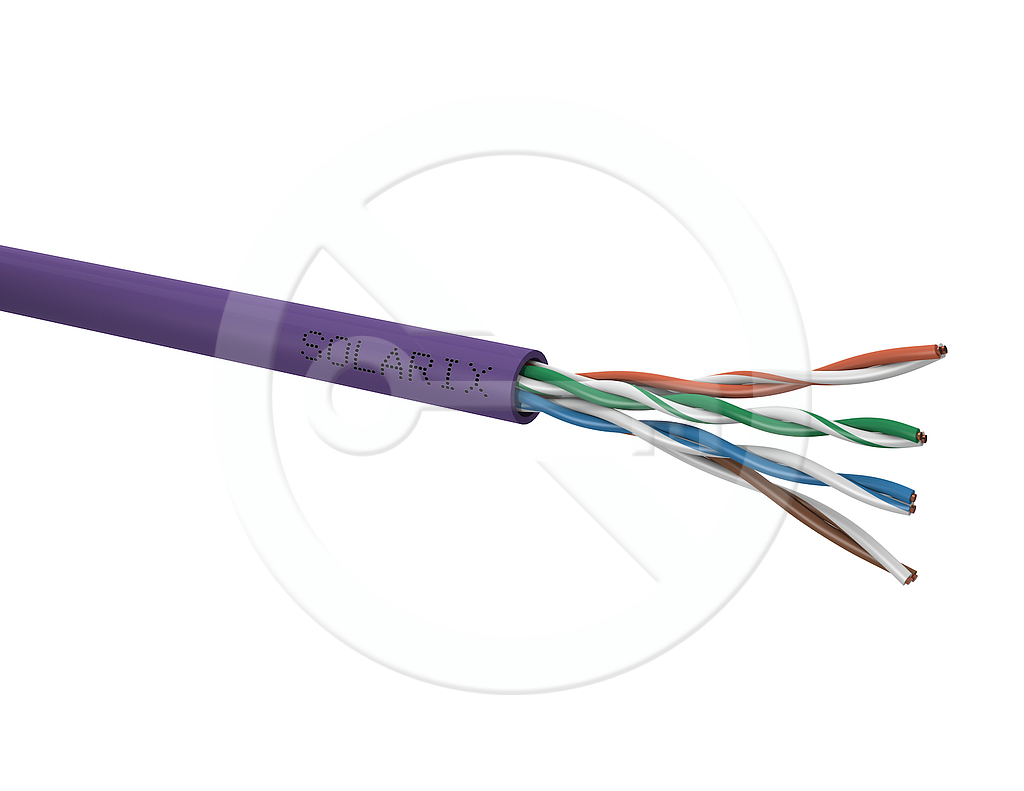

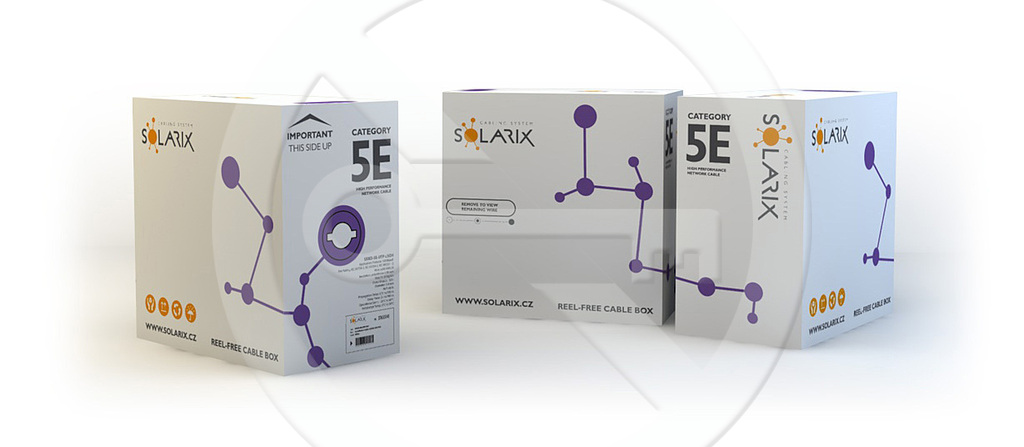

The Solarix installation cable with the designation SXKD-5E-UTP-LSOH is a reliable unshielded Category 5E cable that has been tested up to a bandwidth of 350 MHz and is designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The cable construction is U/UTP, LSOH jacket type with Dca-s1,d2,a1 reaction to fire class. The cable conductors are made of high-quality copper wire with 99.97% copper purity. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. The performance parameters of this cable have been tested by the independent testing laboratory FORCE TECHNOLOGY as part of the EC Verified program, at the highest level, known as Component Level. The certificate is available here on the website under the "Downloads" tab or directly on the FORCE laboratory website. In the case of CPR (EU Regulation No. 305/2011), the cable is tested in the AVCP 3 property assessment system. Like other Solarix cables, the SXKD-5E-UTP-LSOH cable is marked in 1 m increments from 0 to 305 m. The cable is supplied in a highly durable three-layer polished cardboard box (always color-coded according to cable type), which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters.
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Shielded: No
- Bandwidth: tested up to 350 MHz
- Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm
- Insulation and Wire Diameter with Insulation: HDPE 0.88 mm
- Reaction to fire; Sheath: Dca-s1,d2,a1; LSOH
- Colour: purple RAL 4005
- Nominall Cable Diameter: 5.0 mm
- Weight: 30.2 kg/km
- NVP: 68 %
- Propagation Delay: 535 ns/100 m
- Delay Skew: ≤45 ns/100 m
- Storage Temperature: -20 °C to 60 °C
- Operational Temperature: -20 °C to 60 °C
- Installation Temperature: 0 °C to 50 °C

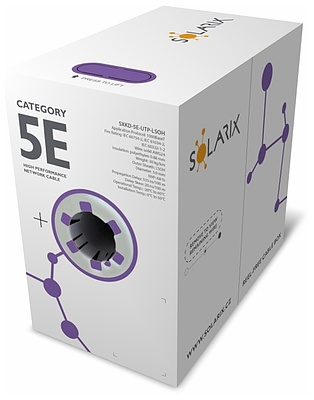

- Packaging: 305 m/box,
- Packaging Size (height x depth x width): 360 mm x 360 mm x 205 mm
- Number of Items on a Pallet: 45 boxes
Datasheets
- EN datasheet Solarix installation cable SXKD-5E-UTP-LSOH 305m (411.85 KB, pdf)
- CZ, EN, PL, SK DoP M103-SXKD-5E-UTP-LSOH-Dca-01 (233.88 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN certificate component level SXKD-5E-UTP-LSOH (171.09 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
