French Style Module Solarix 45x45mm for 2 keystones SXF-M-2-45-WH-P
Brand:
Solarix
Guarantee period:
5 years
Order code:
23100203
Unit of measurement (UoM):
piece
Min. purchase amount (UoM):
1

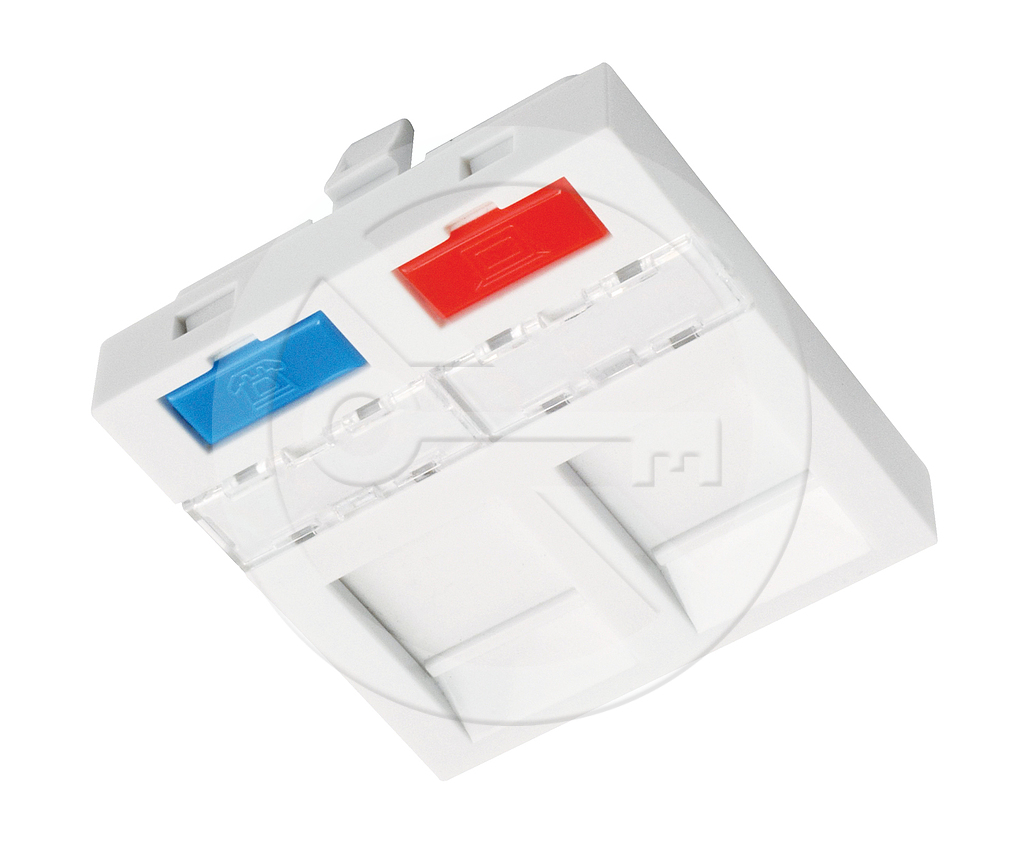

French Style Module Solarix 45x45mm for 2 keystones, white
1,43 EUR ecluding VAT
Info about product:
+420 533 338 803
This Solarix French Style straight module is designed for installation in modular sockets and floor boxes with an opening size of 45x45mm. It can therefore be used in most common modular systems with this size. This module is also compatible with all Solarix keystones. The module color is white (RAL 9003). The delivery includes replaceable label fields and colored plastic labels (always red and blue with a PC and telephone icon) used to mark individual ports. All Solarix French style modules are equipped with a spring-loaded dust cover and can also be installed in the Solarix SXF-R-2-WH frame frame, creating a complete modular flush-mounted socket (e.g. for use with the KO 68 box) and surface-mounted socket (with the Solarix SX9-0-WH box).
- Number of Ports: 2
- Port Angle: 90°
- Modular: Yes
- Housing Material: FR acc. to UL94-0
- Color: White,
- Dimensions: 45 x 45 mm
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Datasheets
- EN datasheet solarix modular outlets (241.42 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
