Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-WH-SA

Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-WH-SA - Solarix - Keystone Jacks

Order code: 25286705

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 2,19 EUR

pc
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-WH-SA - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-WH-SA - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-WH-SA - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-WH-SA - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-WH-SA - Solarix - Keystone Jacks
By product
Copper Cabling \ Keystone Jacks \ Category 5E \ Unshielded

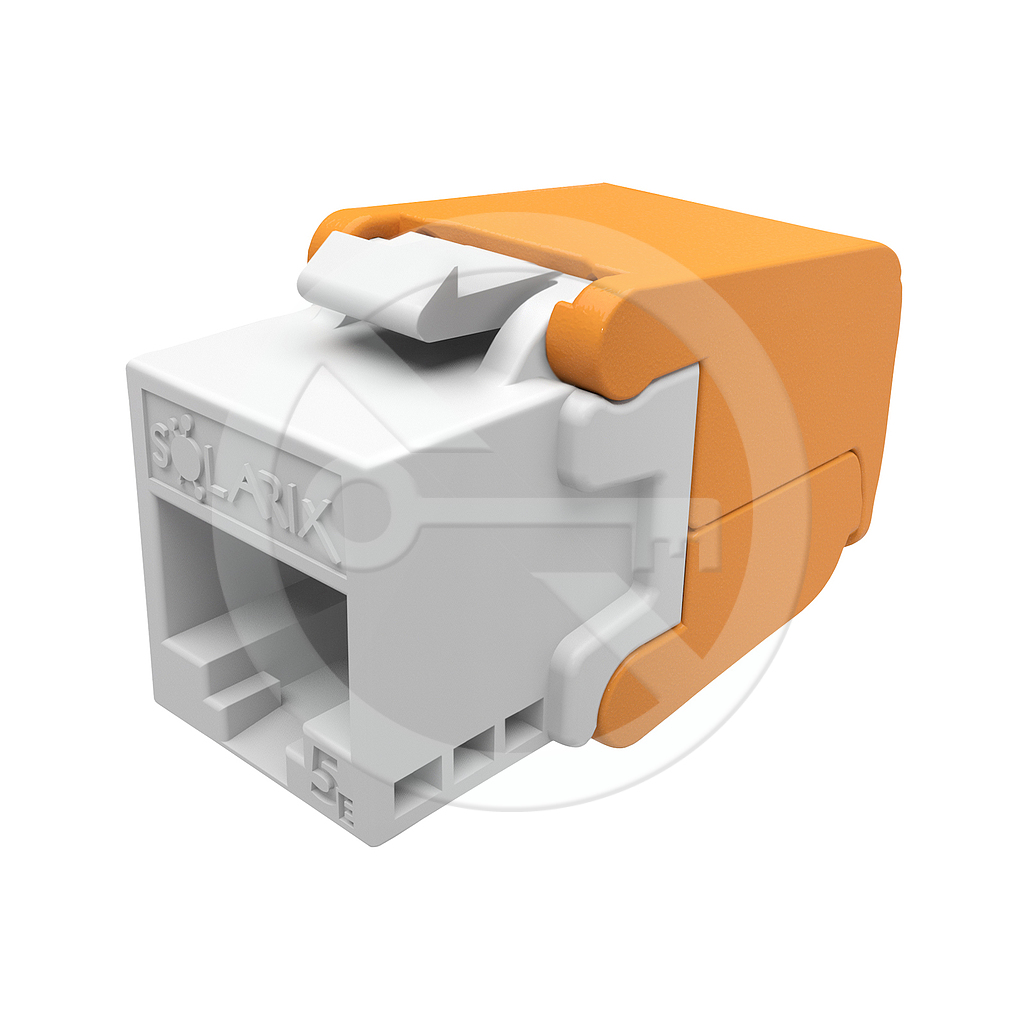

Unshielded category 5E keystone toolless, white.
recommend | print
Technical Parameters
  • Category: CAT5E
  • Highest Supported Protocol: 2.5G/5GBASE-T and lower
  • Shielded: No
  • Min. Port Life: 1000 cycles
  • Contact Plating: 50 µ gold

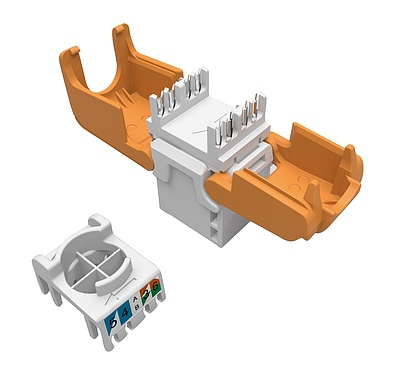

  • Termination Module: toolless
  • Conductor Size and Type: AWG 26 - 22, solid
  • Housing Material: FR acc. to UL94-0

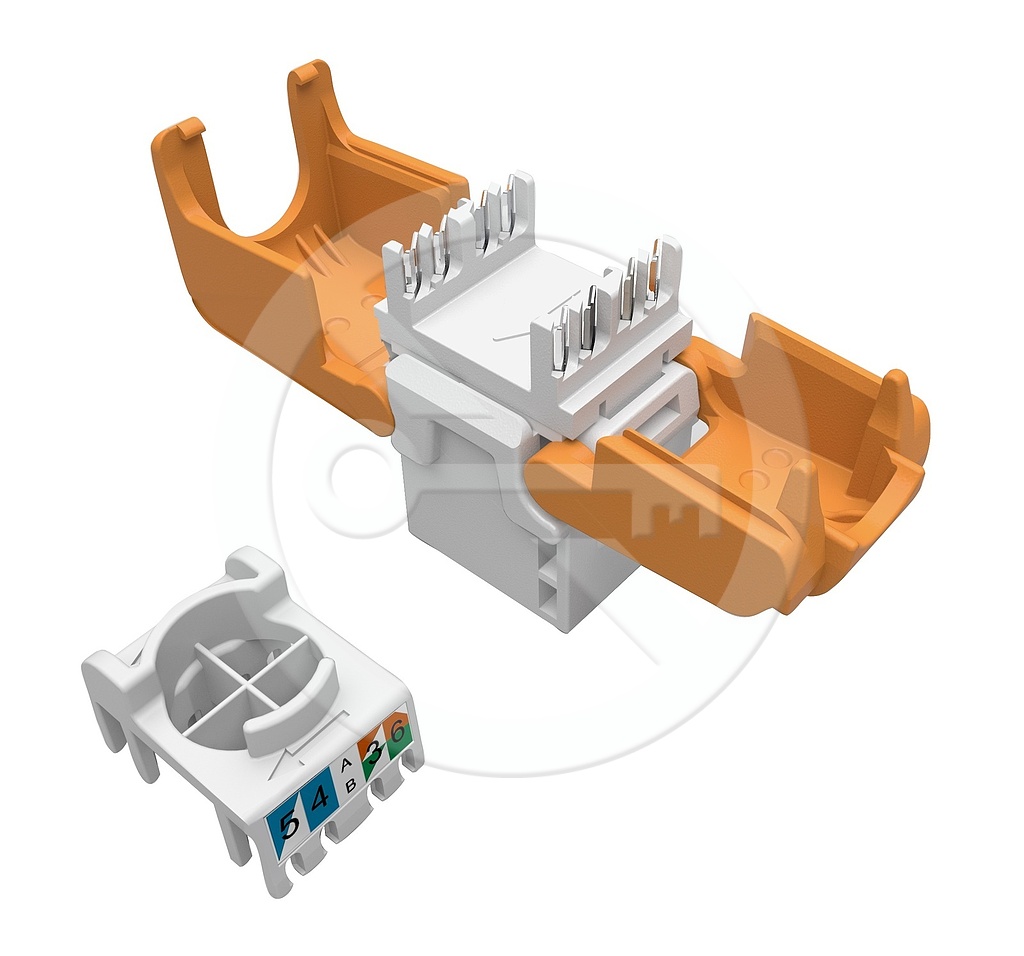

  • Color: white (body) and orange (toolless part)
  • Storage Temperature: -40 °C to 70 °C
  • Operational Temperature: -10 °C to 60 °C
  • Max. Operational Humidity: 93 %
Product Description
  • Quality unshielded category 5E/Class D keystone
  • Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T
  • Very easy toolless installation
  • 50 µin gold contact plating
  • The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568

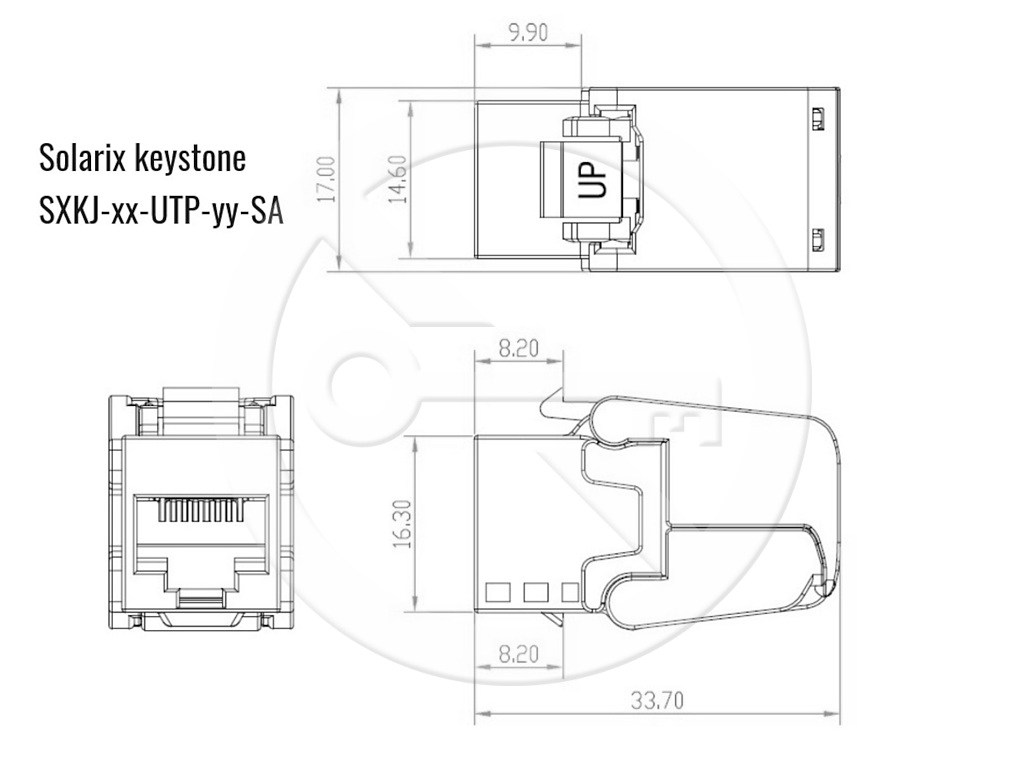

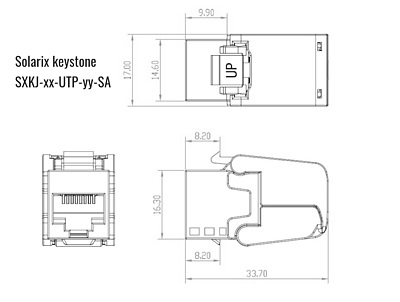

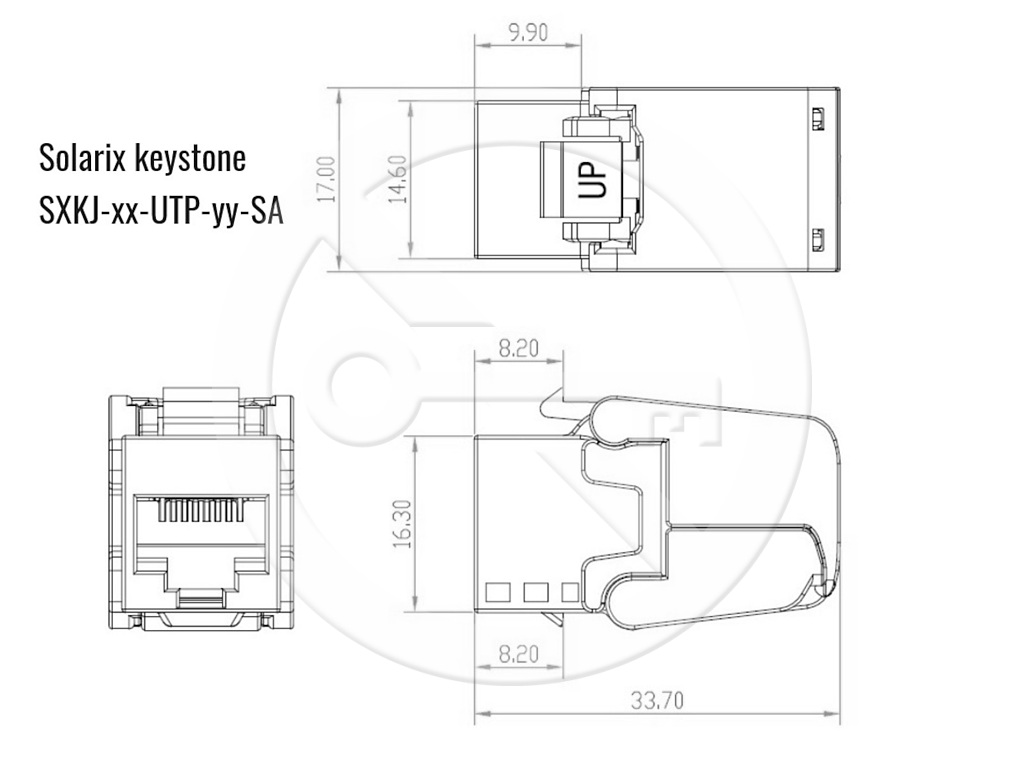

  • Its form factor complies with the requirements of the EN 60603-7 specifications with other manufacturers‘ modular outlets that meet this standard)

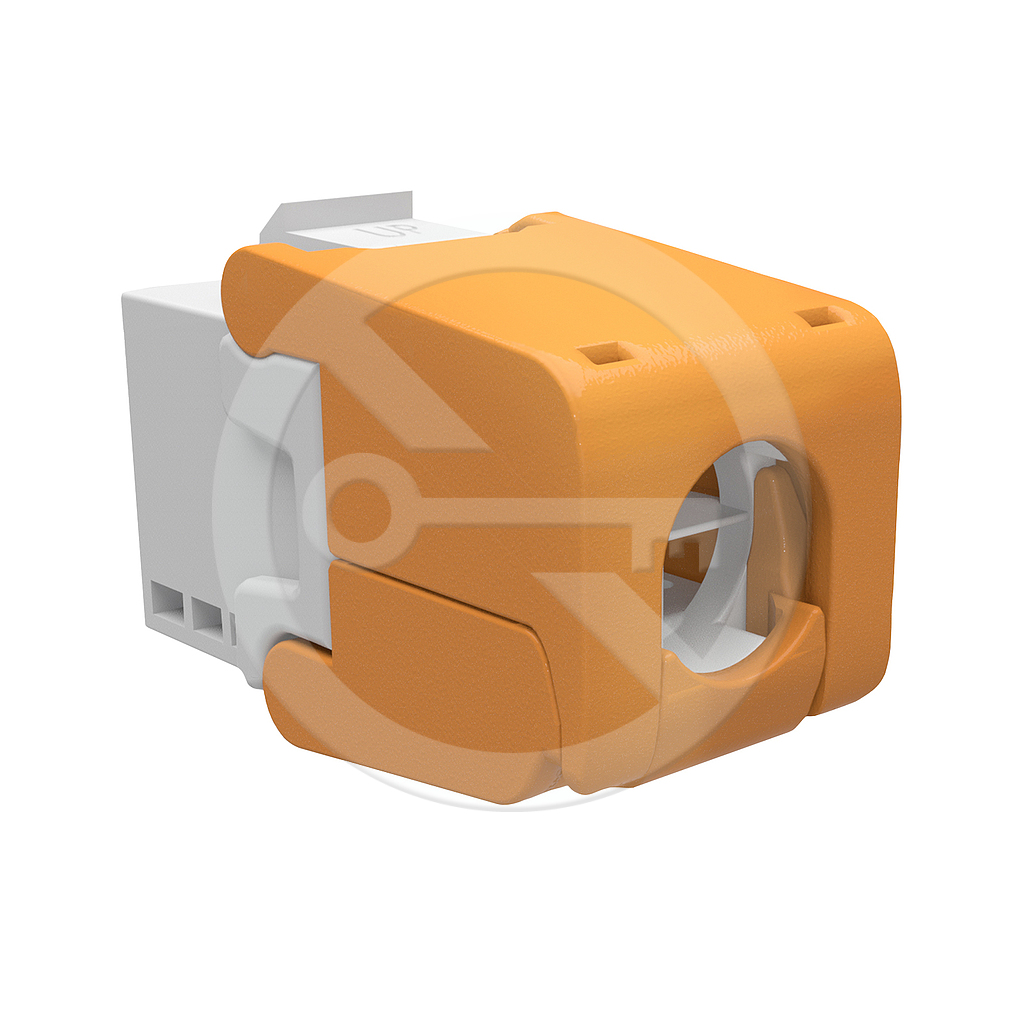

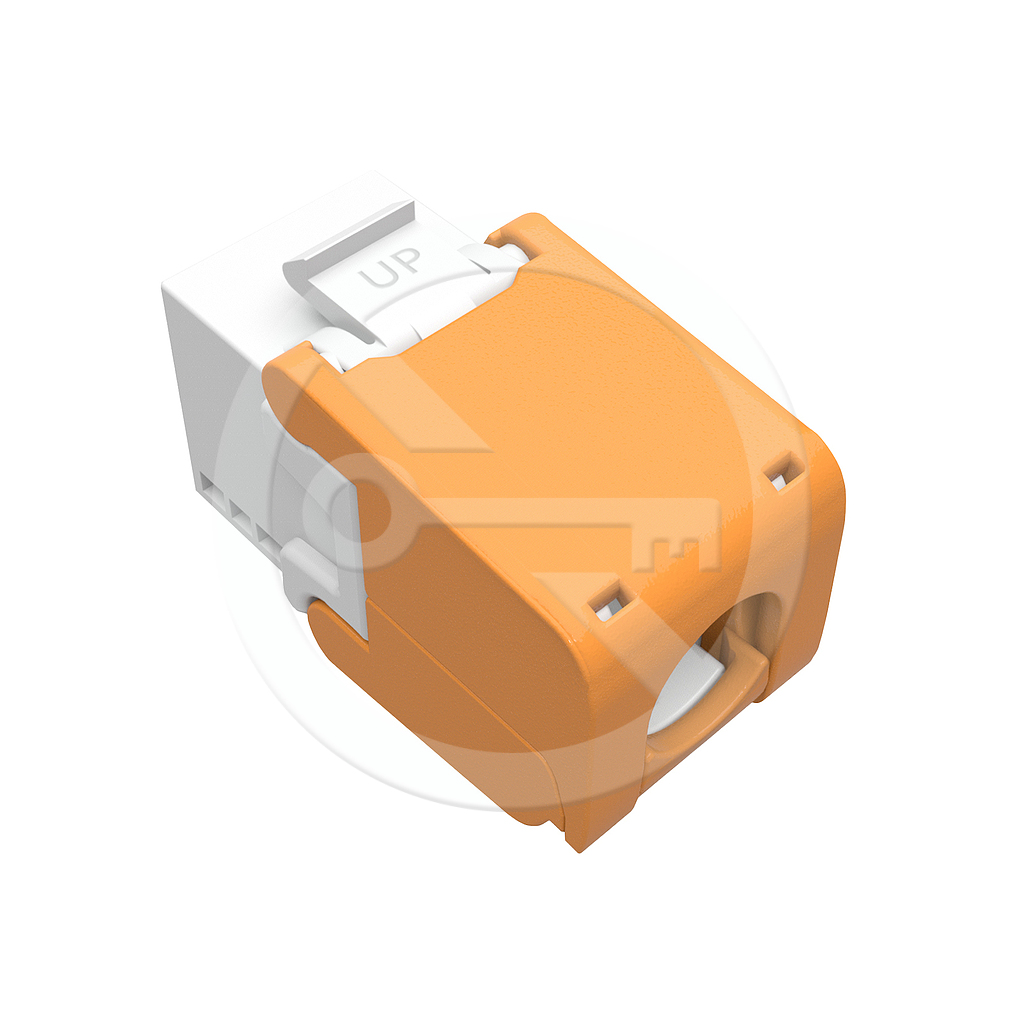

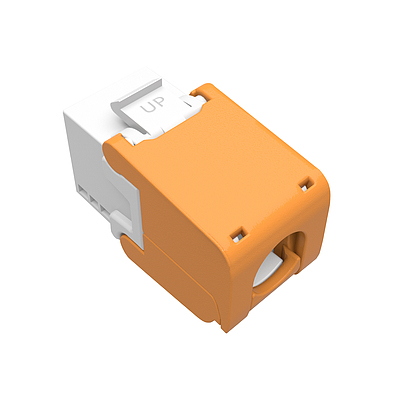

  • The colour of the keystone is white (body) and orange (toolless part)
