High quality unshielded category 6 installation cable tested up to 450 MHz, LSOH sheath with Dca-s2,d2,a1 reaction to fire class, 500 m reel, Component Level certification.
Highest Supported Protocol: 2.5/5GBASE-T and lower
Shielded: No
Bandwidth: tested up to 450 MHz
Conductor Type and Size: copper wire 0.55 mm ± 0.005 mm, ,
Insulation and Wire Diameter with Insulation: HDPE 0.98 mm,
Reaction to fire; Sheath: Dca-s2, d2, a1; LSOH
Colour: purple RAL 4005
Nominall Cable Diameter: 6.1 mm,
Weight: 42.8 kg/km,
NVP: 69 %
Propagation Delay: 535 ns/100 m
Delay Skew: ≤45 ns/100 m
Storage Temperature: -20 °C to 60 °C
Operational Temperature: -20 °C to 60 °C
Installation Temperature: 0 °C to 50 °C

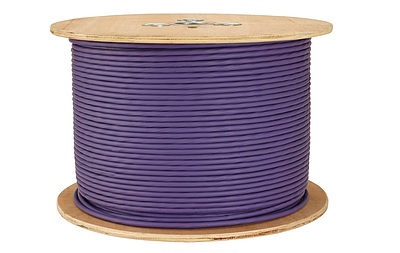

Packaging: 500 m/reel,
Packaging Size (diameter x height): 370 mm x 320 mm
Number of Items on a Pallet: 36 reels (large pallet), 27 reels (small pallet)
Product Description

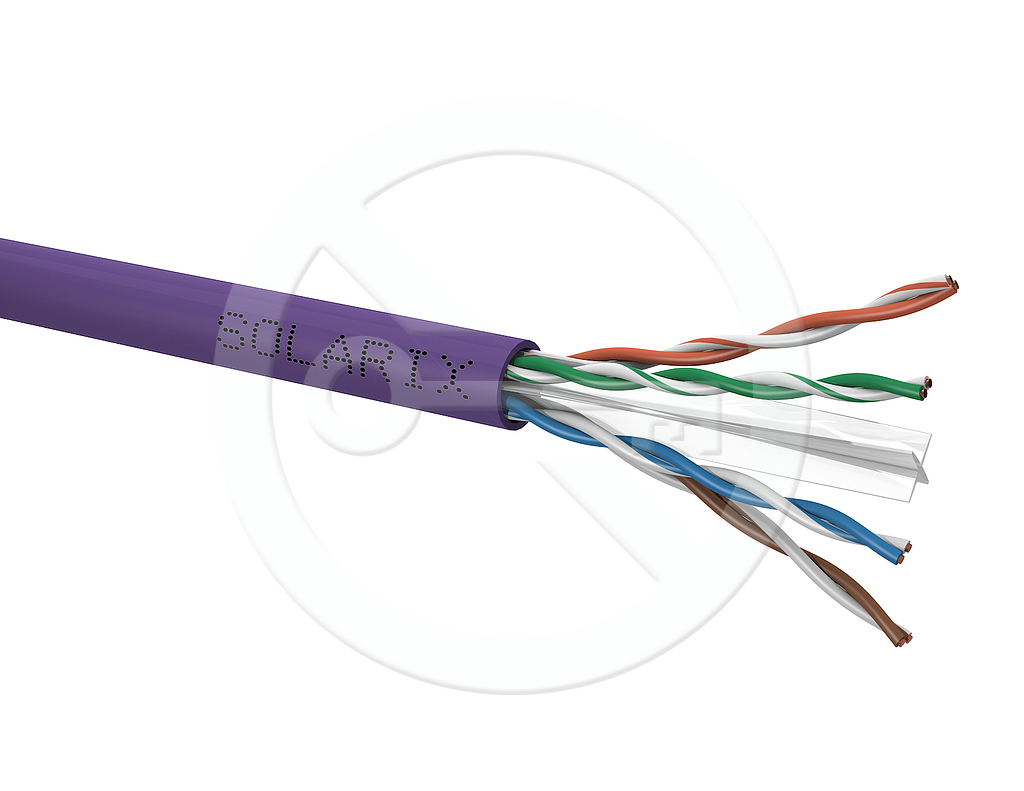

The Solarix SXKD-6-UTP-LSOH installation cable is a reliable unshielded Category 6 cable tested up to a bandwidth of 450 MHz and designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T. The cable construction is U/UTP with a plastic cross, which ensures maximum separation of pairs along the entire length of the cable. The sheath type is LSOH with Dca-s2,d2,a1 reaction to fire class. The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. The performance parameters of this cable have been tested by the independent testing laboratory FORCE TECHNOLOGY as part of the EC Verified program, at the highest level, known as Component Level. The certificate is available here on the website under the "Downloads" tab or directly on the FORCE laboratory website. In the case of CPR (EU Regulation No. 305/2011), the cable is tested in the AVCP 3 property assessment system. Like other Solarix cables, the SXKD-6-UTP-LSOH cable is marked in 1 m increments from 0 to 500 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters.
