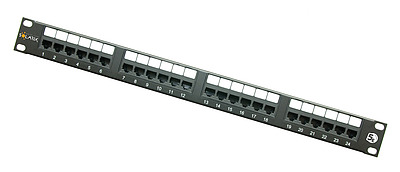

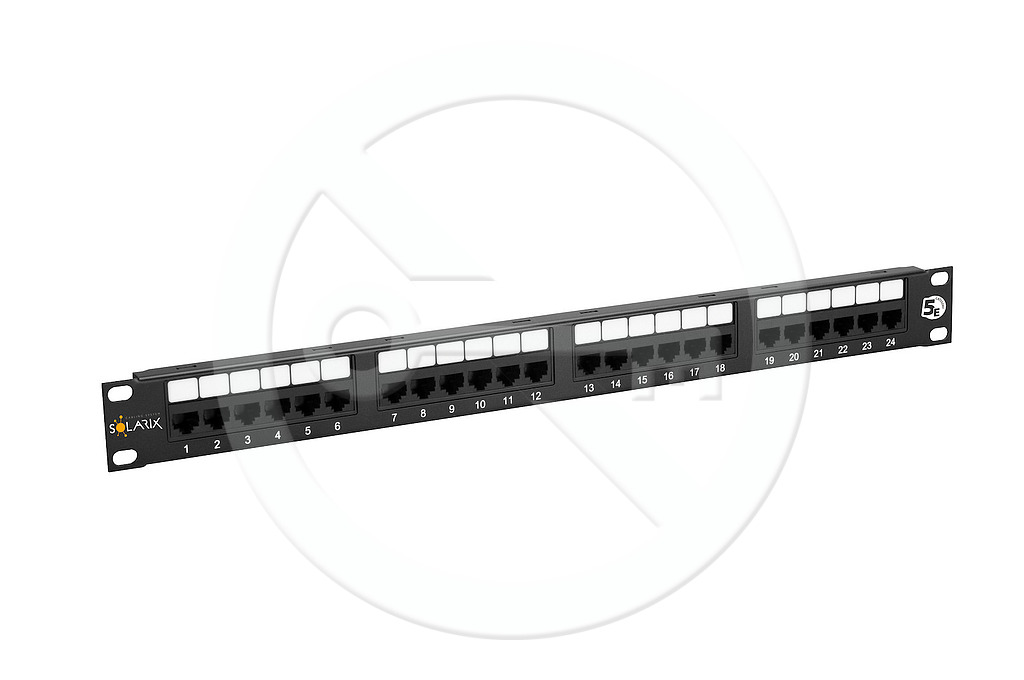

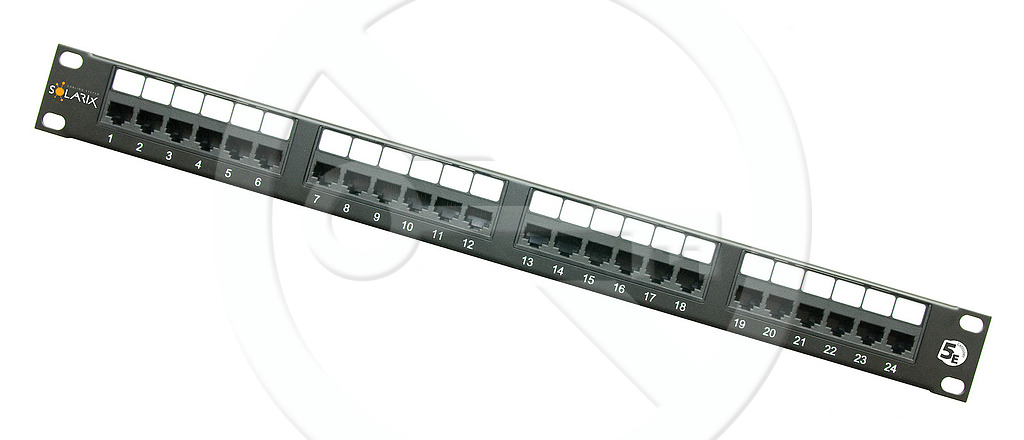

19" patch panel Solarix 24x RJ45 CAT5E UTP 150 MHz Black 1U SX24-5E-UTP-BK
|
Order code: 24000240 Brand: Solarix Guarantee period: 5 years Unit of measurement (UoM): piece Min. purchase amount (UoM): 1 Delivery date: immediately Recommended price excluding VAT: 51,72 EUR | |||
|
By product
Unshielded patch panel CAT5E 24 ports tested up to 150 MHz, black.
Technical Parameters
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Number of Ports: 24
- Shielded: No
- Support Bar: No
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: 110/Krone 8p8c
- Min. Termination Module Life: 200 terminations
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: Black
- Unit Size: 1U
- Height: 44 mm
- Width: 484 mm
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Product Description

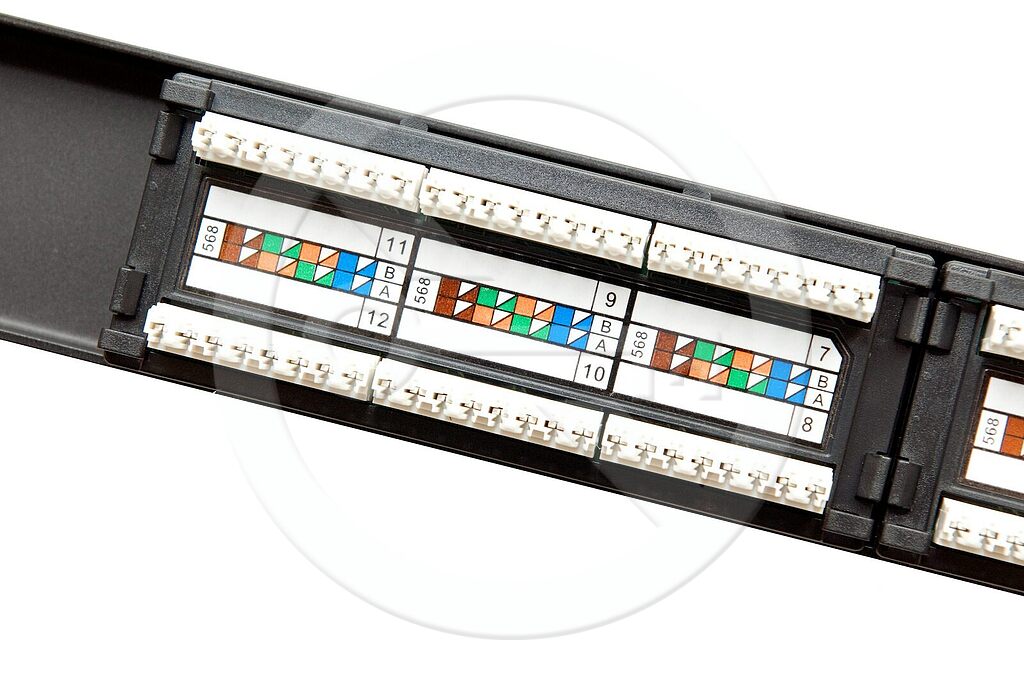

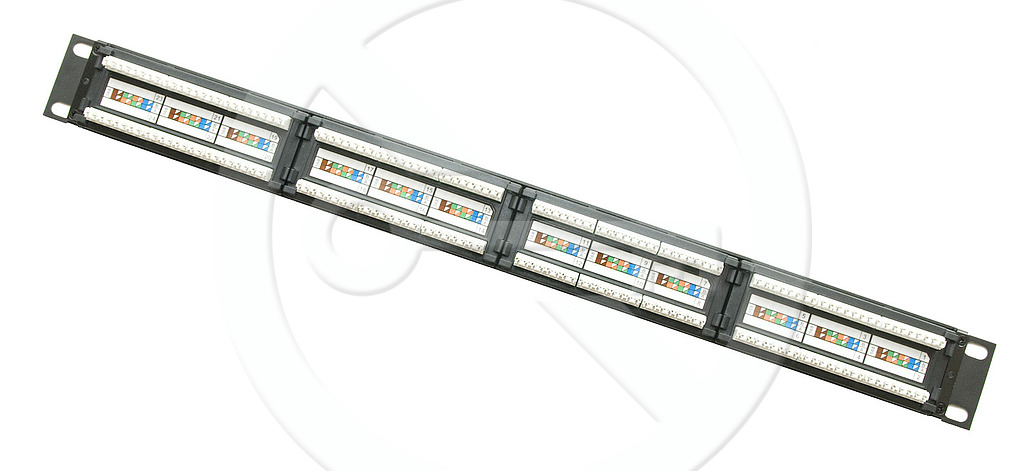

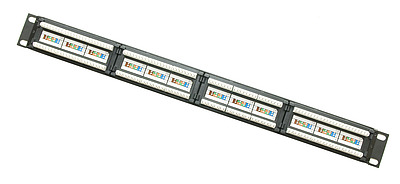

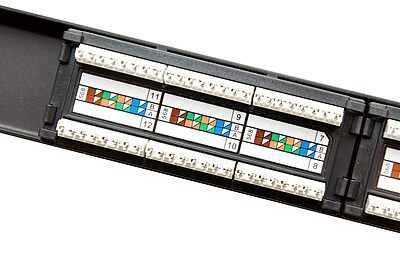

Solarix Category 5E unshielded patch panels are designed to exceed the ANSI/TIA 568C.2, ISO/IEC 11801, and EN 50173 performance specifications providing usable bandwidth up to 150 MHz. These high-density panels are available in 24-port versions and feature enhanced front and rear labeling for easy circuit identification. Solarix Category 5E unshielded panels support both T568A and T568B wiring configurations using an easy to read colour-coded wiring labels. These panels are constructed for maximum durability and feature a fully enclosed, 6-port module design, which provides flexibility and protection of printed circuitry during termination. A newly designed RJ45 contact configuration provides enhanced plug to jack connection integrity for superior reliability. Rear termination is made quick and easy using a 4-pair dual 110/Krone type connector compatible with industry standard 110 or Krone termination tools. These Solarix panels are supplied in black colour.
Can't download a file?Technical support
If you are not able to download a file please right click on the download link and select "Save link as..". (Internet Explorer, FireFox) or a similar menu item depending on the browser you are using (it may differ in different browsers and versions).
Case study- EN significant installations of Solarix cabling (2.16 MB) download file (pdf)
- CZ, EN, PL, SK Solarix DoC - copper (345.56 KB) download file (pdf)
- CZ, EN, PL, SK Solarix REACH - copper (302.36 KB) download file (pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (333.0 KB) download file (pdf)
- EN datasheet Solarix patch panel category 5E UTP 150 MHz (385.55 KB) download file (pdf)
- EN maintenance and use of Solarix cabling (147.49 KB) download file (pdf)
- DWG Solarix (8.9 MB) download file (zip)
- EN profile structured cabling Solarix (1.66 MB) download file (pdf)
