Solarix CAT5E UTP 2x RJ45 flush-mounted outlet, white SX9-2-5E-UTP-WH

Product Solarix CAT5E UTP 2x RJ45 flush-mounted outlet, white SX9-2-5E-UTP-WH - Solarix - Outlets

Order code: 23100091

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 5,90 EUR

pc
Product Solarix CAT5E UTP 2x RJ45 flush-mounted outlet, white SX9-2-5E-UTP-WH - Solarix - Outlets
Product Solarix CAT5E UTP 2x RJ45 flush-mounted outlet, white SX9-2-5E-UTP-WH - Solarix - Outlets
Product Solarix CAT5E UTP 2x RJ45 flush-mounted outlet, white SX9-2-5E-UTP-WH - Solarix - Outlets
By product
Copper Cabling \ Outlets \ Category 5E \ Unshielded
Unshielded dual-port SX9 Category 5E outlet, white.
recommend | print
Technical Parameters
  • Category: CAT5E
  • Highest Supported Protocol: 2.5/5GBASE-T and lower
  • Number of Ports: 2
  • Shielded: No
  • Mount: Wall-mount, with box also surface-mount
  • Port Angle: 45°
  • Modular: No
  • Min. Port Life: 1000 cycles
  • Contact Plating: 50 µ gold
  • Termination Module: Krone 8p8c
  • Min. Termination Module Life: 200 terminations
  • Conductor Size and Type: AWG 26 - 22, solid
  • Housing Material: FR acc. to UL94-0
  • Color: White,

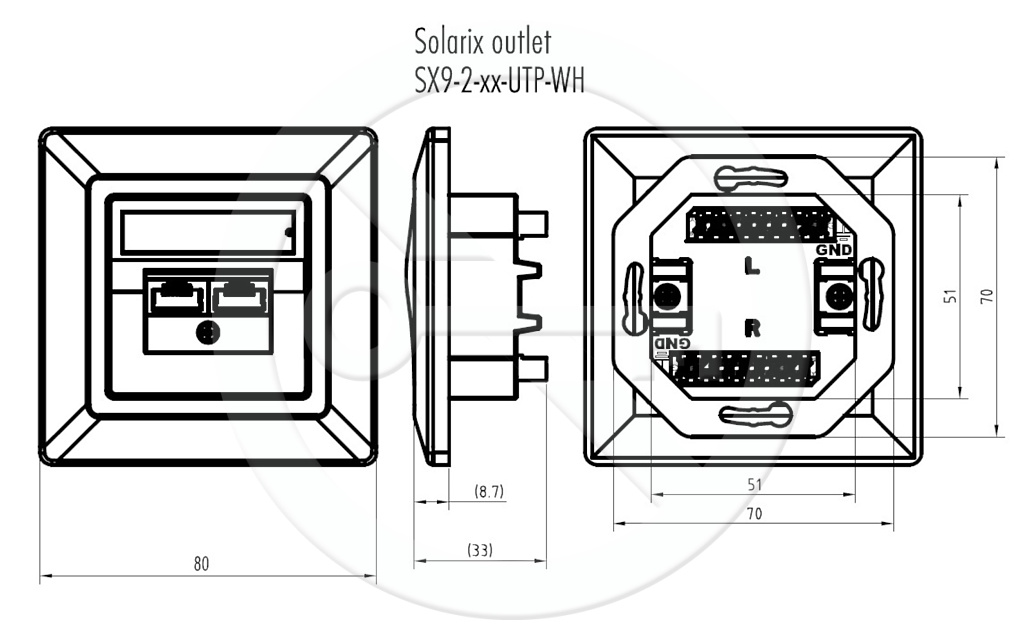

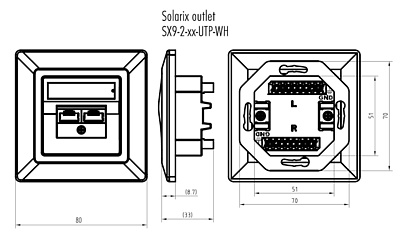

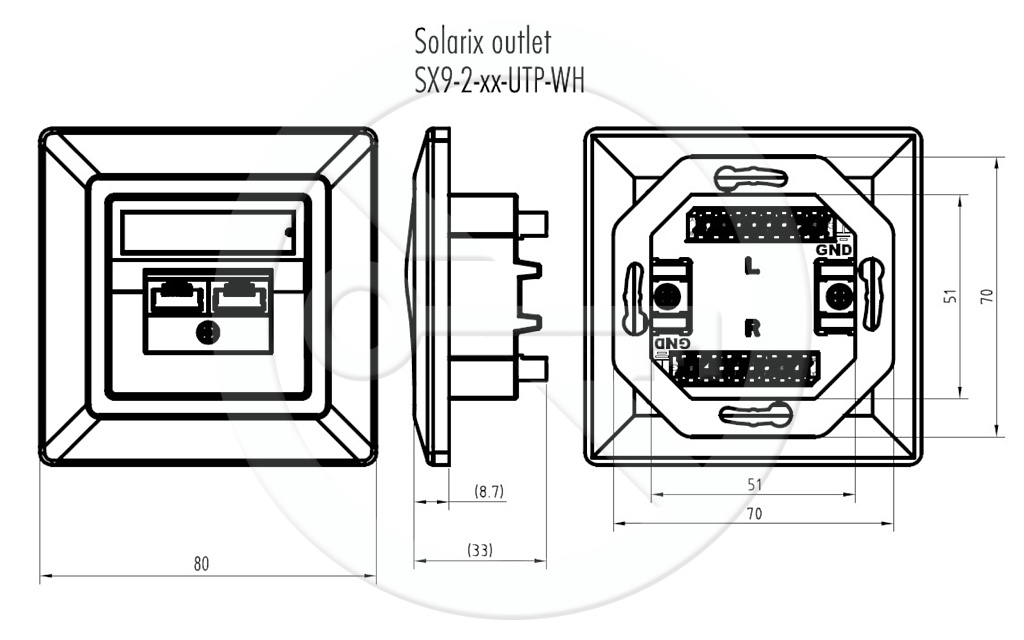

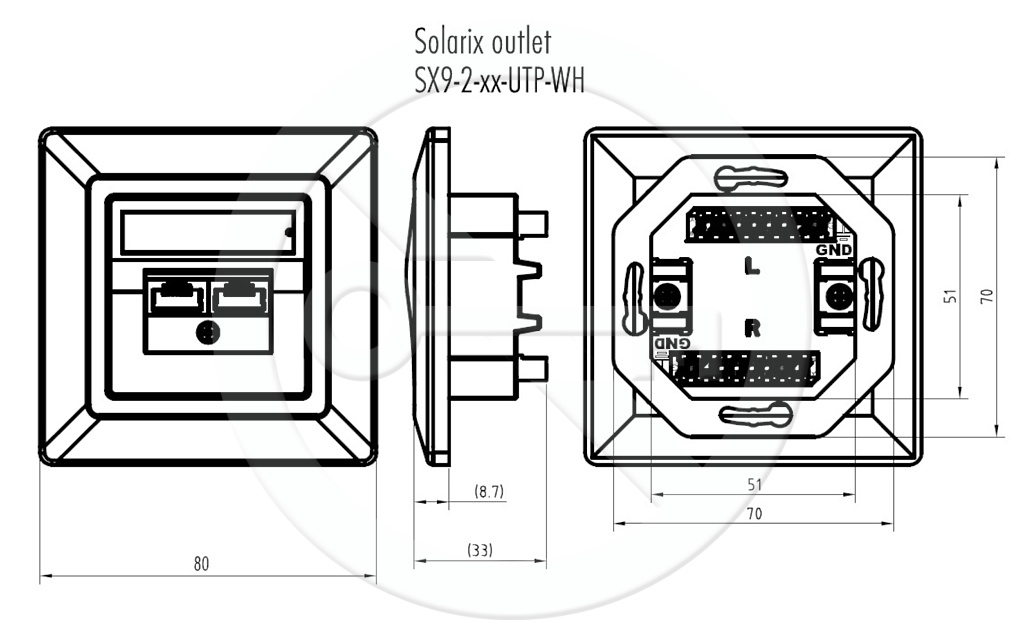

  • Dimensions: 80 x 80 mm
  • Storage Temperature: -40 °C to 70 °C
  • Operational Temperature: -10 °C to 60 °C
  • Max. Operational Humidity: 93 %
Product Description

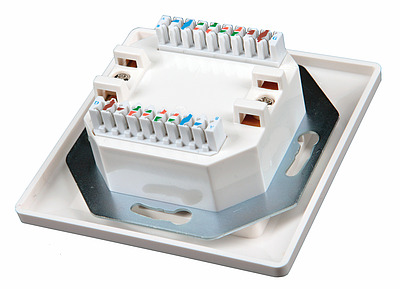

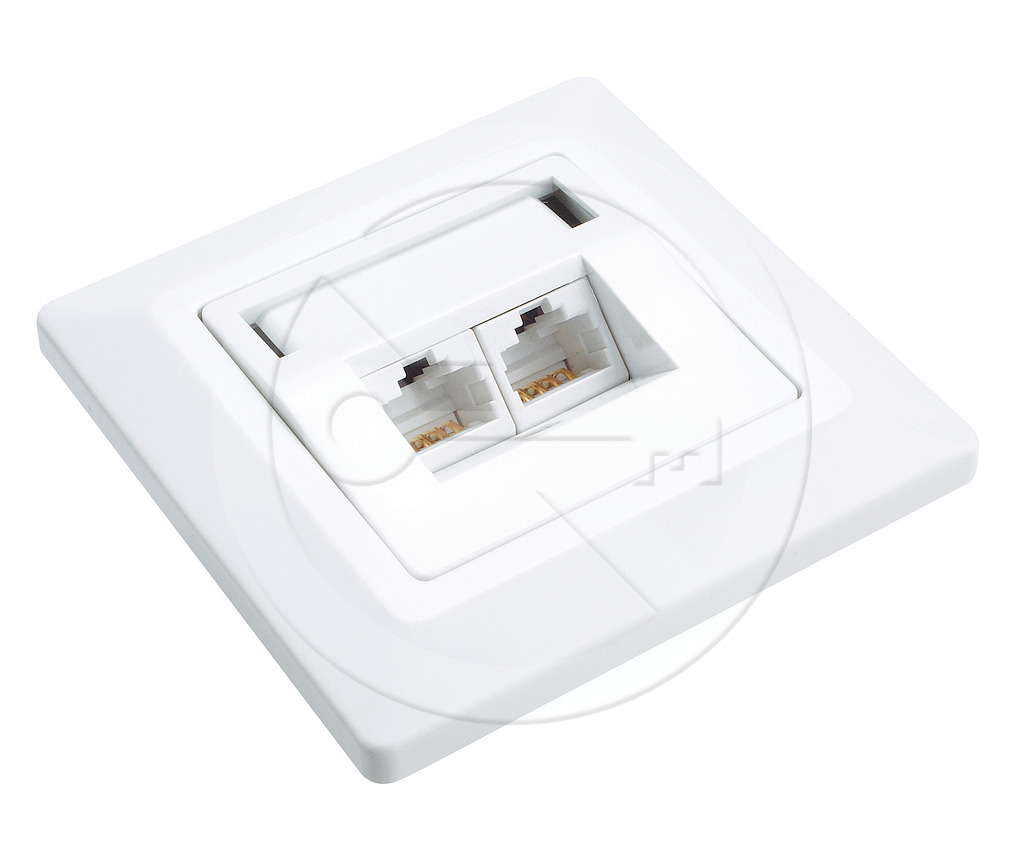

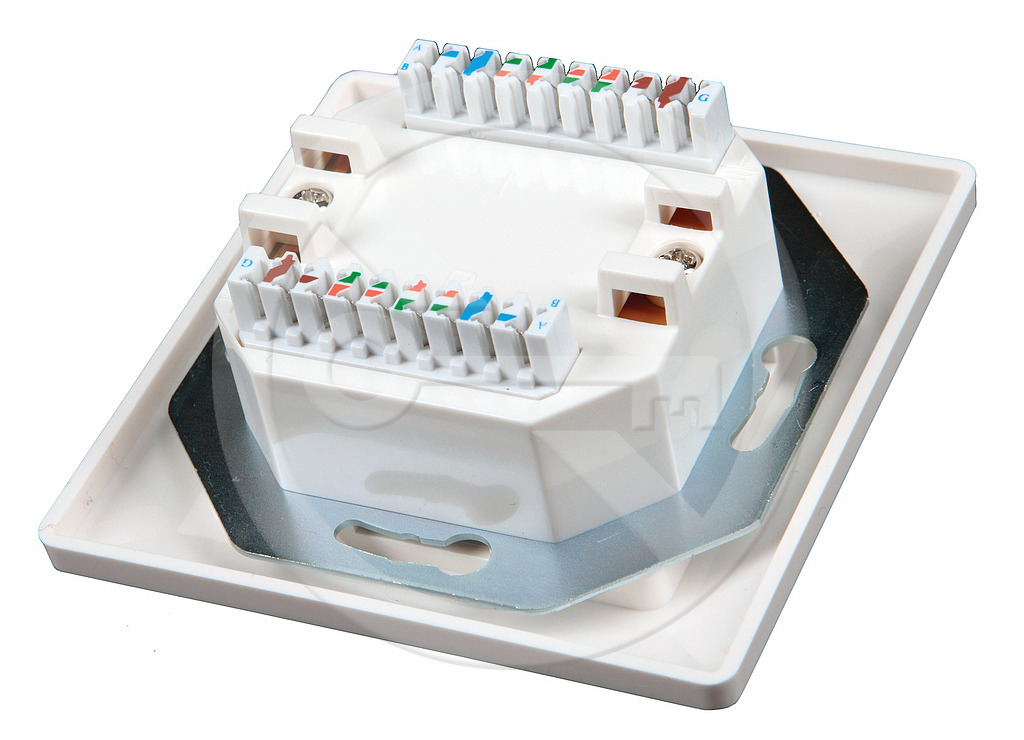

The SX9 outlets from the Solarix product group – Category 5E easily meet all requirements defined in the ANSI/TIA 568, ISO/IEC 11801, and EN 50173 standards for structured cabling for Category 5E and Class D, including all the latest amendments. The outlets are German style and are equipped with one or two RJ45 ports with a 45° angle. AWG 26–22 wire-type conductors can be cut into the Krone-type IDC terminal block. The contacts are marked on the terminal block with a color scheme according to the type of connection, either according to the T568A or T568B standard. SX9 outlets are designed to provide maximum performance, long life, reliability, and easy installation. The outlets are available in both unshielded and shielded versions and are designed for flush mounting or installation in window sill channels. When using the SX9-0-WH box, this type of outlet can be used for surface mount installation. The color of the outlet and box is white (RAL 9003).
