19" patch panel Solarix 12x RJ45 CAT5E UTP 150 MHz Black 1U SX12-5E-UTP-BK

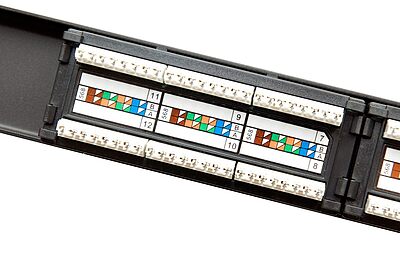

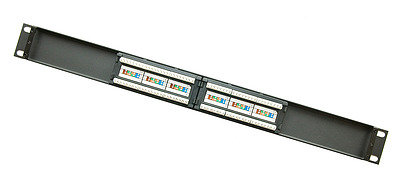

Solarix Category 5E unshielded patch panels are designed to exceed the ANSI/TIA 568C.2, ISO/IEC 11801, and EN 50173 performance specifications providing usable bandwidth up to 150 MHz. These high-density panels are available in 12-port versions and feature enhanced front and rear labeling for easy circuit identification. Solarix Category 5E unshielded panels support both T568A and T568B wiring configurations using an easy to read colour-coded wiring labels. These panels are constructed for maximum durability and feature a fully enclosed, 6-port module design, which provides flexibility and protection of printed circuitry during termination. A newly designed RJ45 contact configuration provides enhanced plug to jack connection integrity for superior reliability. Rear termination is made quick and easy using a 4-pair dual 110/Krone type connector compatible with industry standard 110 or Krone termination tools. These Solarix panels are supplied in black colour.
