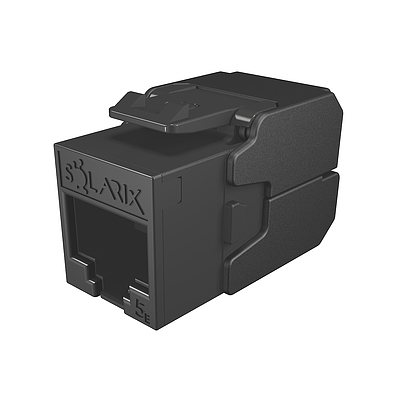

Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP

Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP - Solarix - Keystone Jacks

Order code: 25286706

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 2,36 EUR

pc
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP - Solarix - Keystone Jacks
Product Keystone Solarix CAT5E UTP RJ45 toolless SXKJ-5E-UTP-RAL-SA, RAL FIT, SECURE CAP - Solarix - Keystone Jacks
By product
Copper Cabling \ Keystone Jacks \ Category 5E \ Unshielded
Compact HD toolless unshielded keystone CAT5E with RAL FIT colour modules and SECURE CAP
recommend | print
Technical Parameters
  • Category: CAT5E
  • Highest Supported Protocol: 2.5G/5GBASE-T and lower
  • Shielded: No
  • Min. Port Life: 1000 cycles
  • Contact Plating: 50 µ gold
  • Termination Module: toolless
  • Conductor Size and Type: AWG 26 - 22, solid
  • Housing Material: FR acc. to UL94-0
  • Color: Black
  • Storage Temperature: -40 °C to 70 °C
  • Operational Temperature: -10 °C to 60 °C
  • Max. Operational Humidity: 93 %
Product Description
  • Quality unshielded category 5E/Class D keystone
  • Designed for high-speed ethernet protocols, including 2.5GBASE-T and 5GBASE-T*
  • Very easy toolless installation

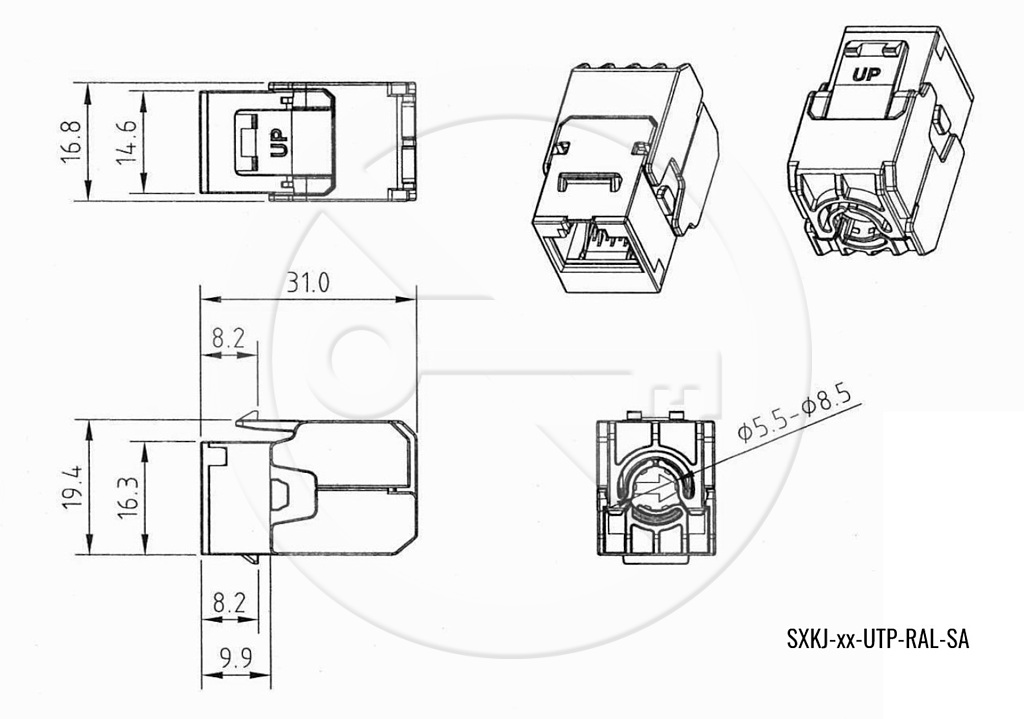

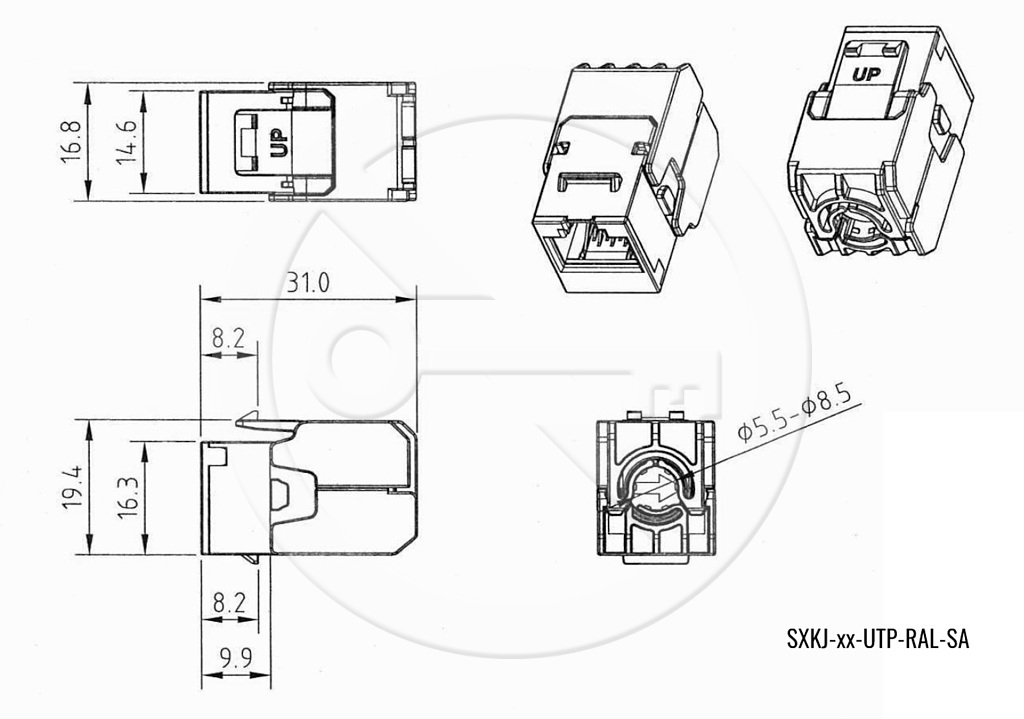

  • The shortened COMPACT HD keystone design is suitable for even the most demanding applications, including modular high-density patch panels and outlets (keystone depth is only 31.0 mm)

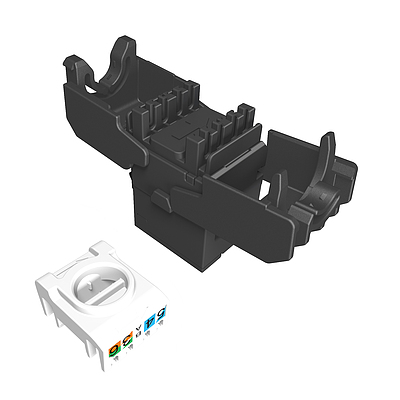

  • The newly developed SECURE CAP includes an integrated cable stopping feature as well as the T568A and T568B colour wiring schemes
  • The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
  • The colour of the keystone is black

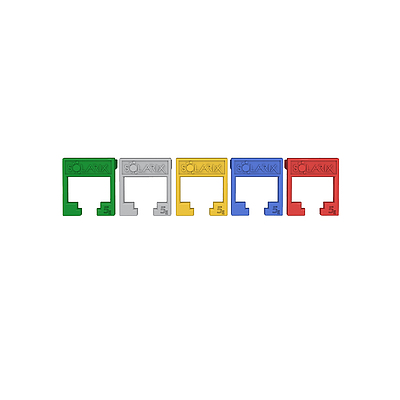

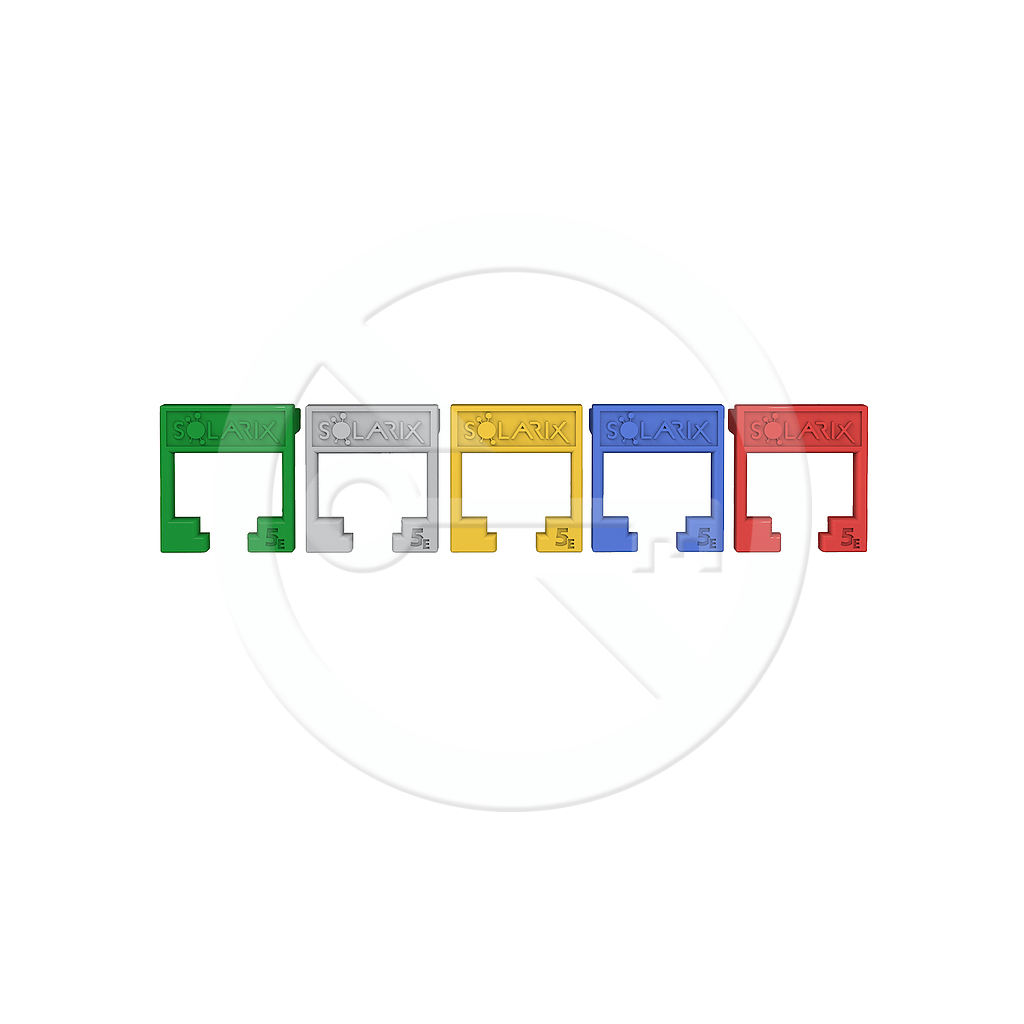

  • For better port identification and easier management in the rack, it is possible to choose the colour of the front module of the keystone thanks to its unique RAL FIT system
  • A black module is available as default, there are also modules with patch cable colours in the packaging – i.e. red, blue, yellow, green, and grey
