MULTIPACK 24 pcs - keystones Solarix CAT5E UTP RJ45 quick tool SXKJ-5E-UTP-BK-NA

Product MULTIPACK 24 pcs - keystones Solarix CAT5E UTP RJ45 quick tool SXKJ-5E-UTP-BK-NA - Solarix - Keystone Jacks

Order code: 25286713

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): 24 kusů v balení

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 48,94 EUR

bal24
Product MULTIPACK 24 pcs - keystones Solarix CAT5E UTP RJ45 quick tool SXKJ-5E-UTP-BK-NA - Solarix - Keystone Jacks
Product MULTIPACK 24 pcs - keystones Solarix CAT5E UTP RJ45 quick tool SXKJ-5E-UTP-BK-NA - Solarix - Keystone Jacks
Product MULTIPACK 24 pcs - keystones Solarix CAT5E UTP RJ45 quick tool SXKJ-5E-UTP-BK-NA - Solarix - Keystone Jacks
Product MULTIPACK 24 pcs - keystones Solarix CAT5E UTP RJ45 quick tool SXKJ-5E-UTP-BK-NA - Solarix - Keystone Jacks
Product MULTIPACK 24 pcs - keystones Solarix CAT5E UTP RJ45 quick tool SXKJ-5E-UTP-BK-NA - Solarix - Keystone Jacks
By product
Copper Cabling \ Keystone Jacks \ Category 5E \ Unshielded

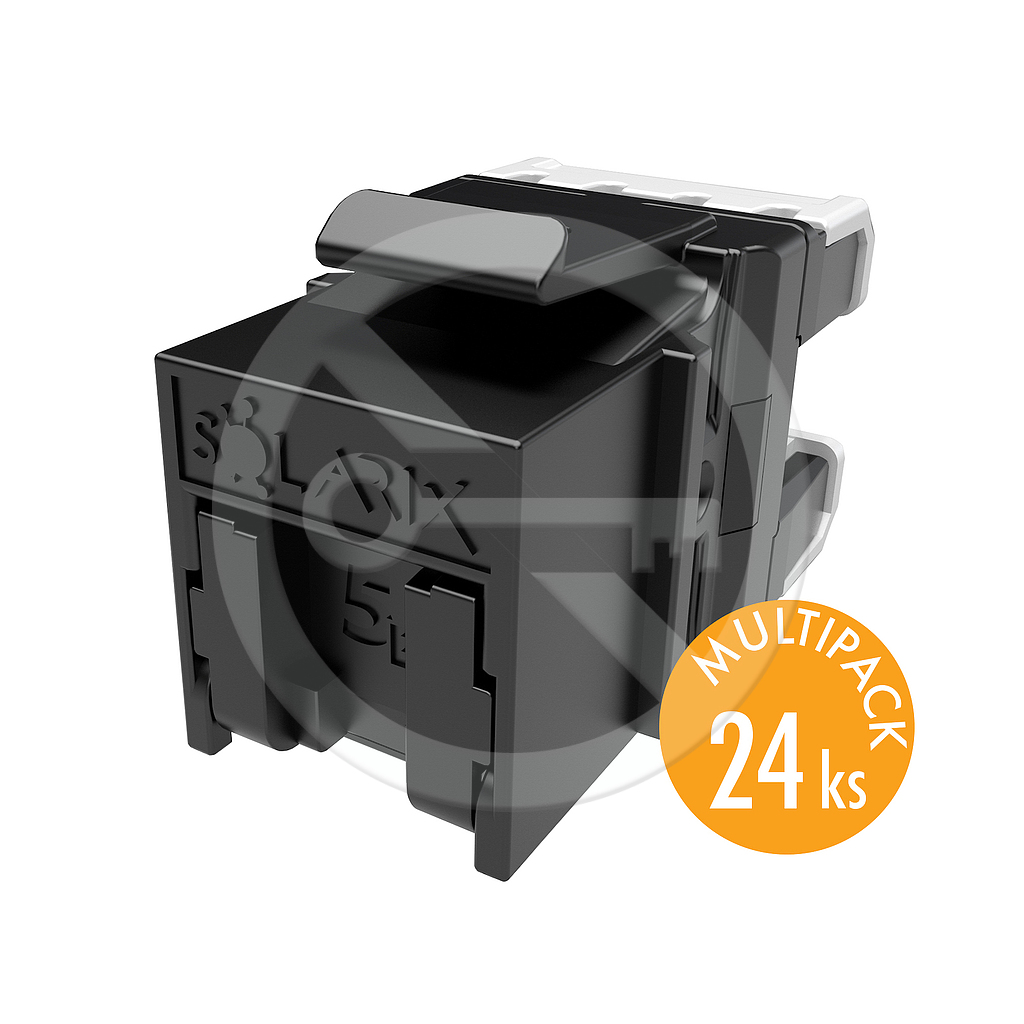

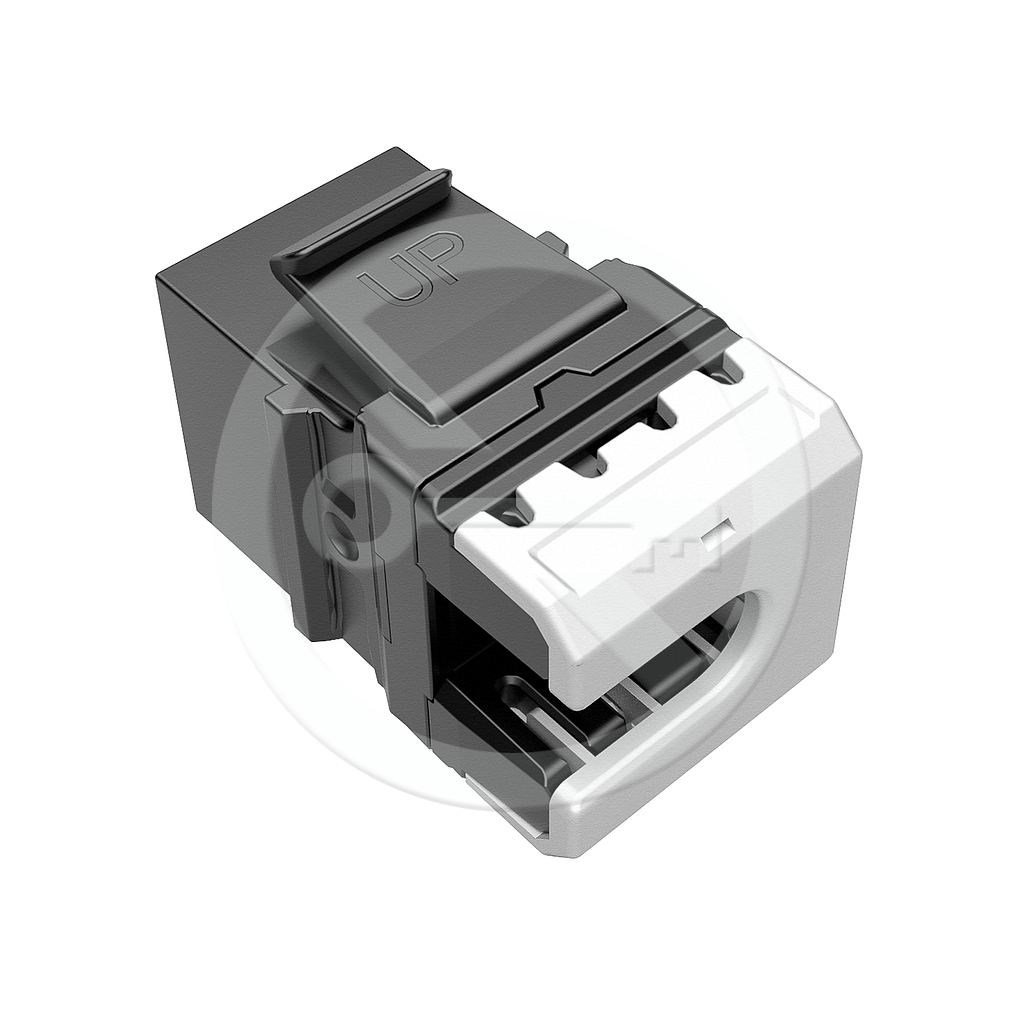

Multipack 24 pcs, quality unshielded CAT5E RJ45 keystone, black.
recommend | print
Technical Parameters
  • Category: CAT5E
  • Highest Supported Protocol: 2.5G/5GBASE-T and lower
  • Shielded: No
  • Min. Port Life: 1000 cycles
  • Contact Plating: 50 µ gold
  • Termination Module: quick tool
  • Conductor Size and Type: AWG 26 - 22, solid
  • Housing Material: FR acc. to UL94-0
  • Color: Black
  • Storage Temperature: -40 °C to 70 °C
  • Operational Temperature: -10 °C to 60 °C
  • Max. Operational Humidity: 93 %
Product Description
  • Quality unshielded category 5E/Class D keystones
  • Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T*

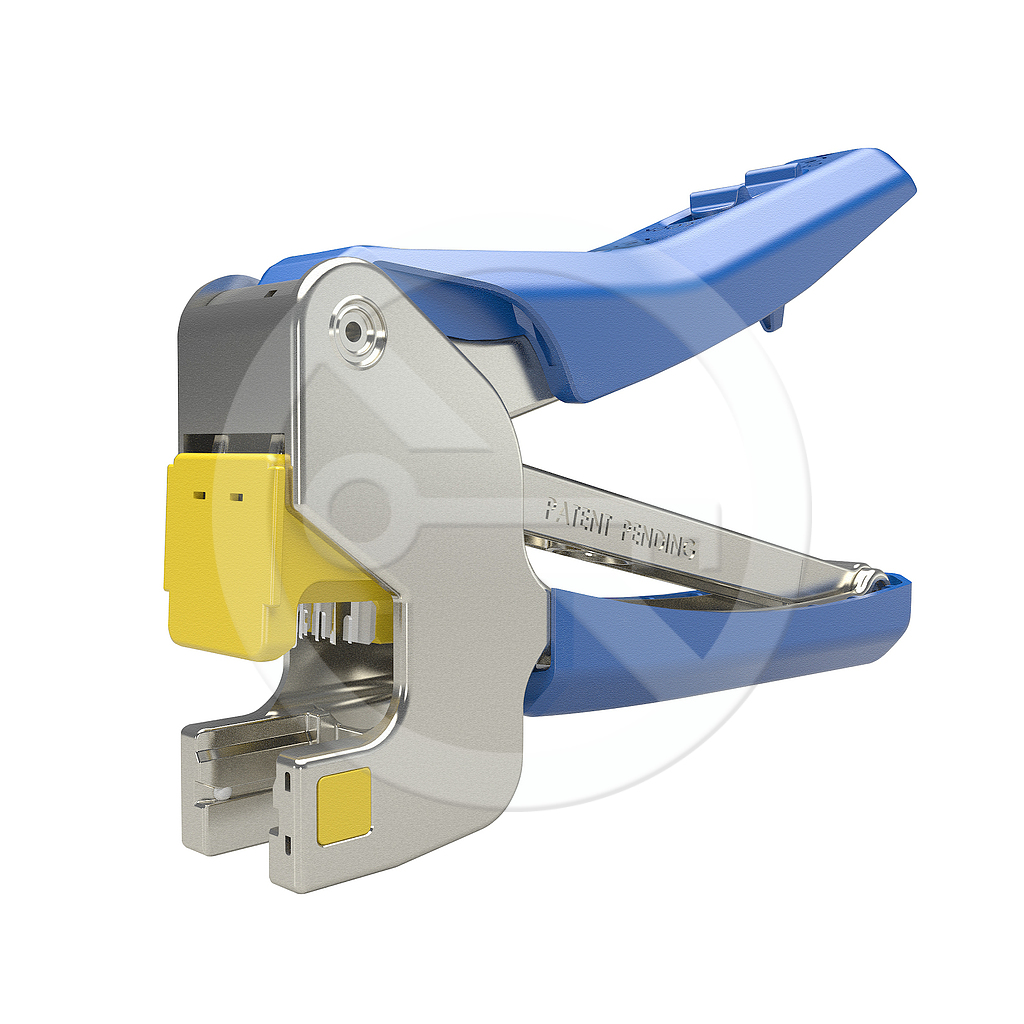

  • Very easy installation with the quick tool pliers SXKJ-NA-BU
  • 50 µin gold contact plating
  • Dust cover
  • The keystones meet the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
  • Their form factor complies with the requirements of the EN 60603-7 specifications (i.e. the keystones are compatible with other manufacturers‘ modular outlets that meet this standard)
  • The colour of the keystones is black

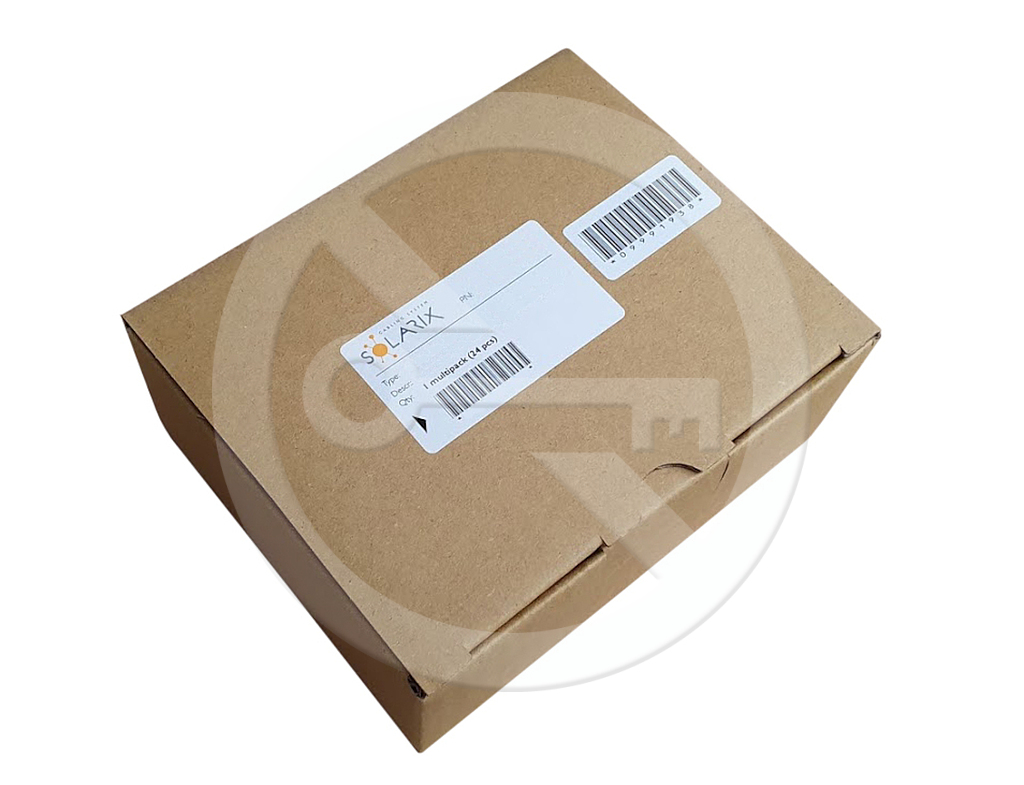

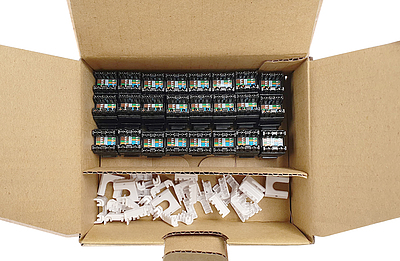

  • The multipack packaging significantly speeds up the installation of these Solarix keystones and also is more environmentally friendly (i.e. without any plastic packaging)
