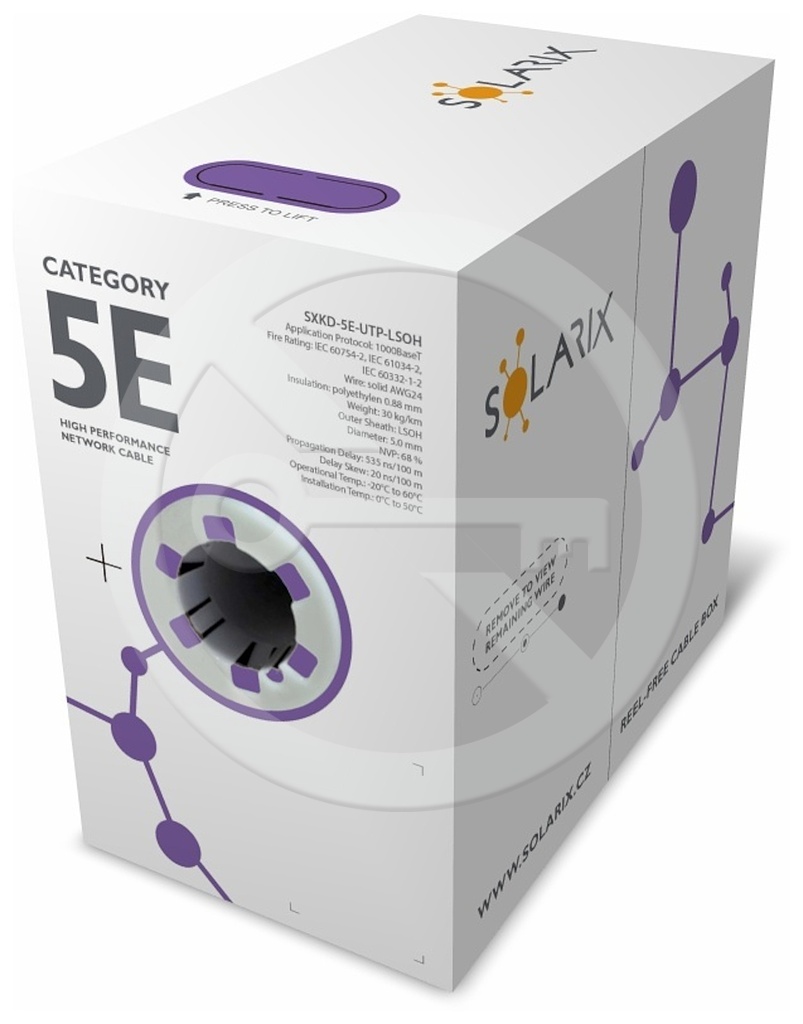

Installation cable Solarix CAT5E UTP LSOH Dca-s1,d2,a1 350 MHz 305m/box SXKD-5E-UTP-LSOH
Brand:
Solarix
Warranty period:
5 years
Order code:
27724119
Unit of measurement (UoM):
box305m
Minimum order quantity (MOQ):
1
Transport Packaging (UoM):
45 (pallet)
High quality unshielded category 5E installation cable tested up to 350 MHz, LSOH sheath with Dca-s1,d2,a1 reaction to fire class, 305 m box, Component Level certification.
141,82 EUR excluding VAT
Info about product:
+420 533 338 803
- High quality unshielded category 5E/Class D installation cable tested up to 350 MHz
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T*
- U/UTP cable construction
- LSOH sheath with Dca-s1,d2,a1 reaction to fire class
- Cable conductors are made of high-quality copper wire with 99.97% purity
- The cable meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-E cabling standards
- As for the EU CPR regulation (i.e. no. 305/2011), the cable has been tested by the FORCE TECHNOLOGY laboratory in the AVCP 3 system
Solarixpedia: 10 principles how to install data cables
*) For the 2.5GBASE-T and 5GBASE-T protocols, the operability success and distance achieved may vary depending on the type and quality of installation, primarily depending on the influence of so-called Alien CrossTalk.
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Shielded: No
- Bandwidth: tested up to 350 MHz
- Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm
- Insulation and Wire Diameter with Insulation: HDPE 0.88 mm
- Reaction to fire; Sheath: Dca-s1,d2,a1; LSOH
- Colour: purple RAL 4005
- Nominall Cable Diameter: 5.0 mm
- Weight: 30.2 kg/km
- NVP: 68 %
- Propagation Delay: 535 ns/100 m
- Delay Skew: ≤45 ns/100 m
- Storage Temperature: -20 °C to 60 °C
- Operational Temperature: -20 °C to 60 °C
- Installation Temperature: 0 °C to 50 °C
- Packaging: 305 m/box,
- Packaging Size (height x depth x width): 360 mm x 360 mm x 205 mm
- Number of Items on a Pallet: 45 boxes
Datasheets
- EN datasheet Solarix installation cable SXKD-5E-UTP-LSOH 305m (411.85 KB, pdf)
- CZ, EN, PL, SK DoP M103-SXKD-5E-UTP-LSOH-Dca-01 (233.88 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (285.97 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN certificate component level SXKD-5E-UTP-LSOH (171.09 KB, pdf)
- EN Installation Guide: Calculating the segregation of power and data cables (428.84 KB, pdf)
- EN Installation Guide: How to install cables Solarix (172.92 KB, pdf)
- EN Installation Guide: How to install data cables directly under the plaster (88.42 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
- EN Solarixpedia: What you will find on the CPR label of Solarix cables (78.43 KB, pdf)
