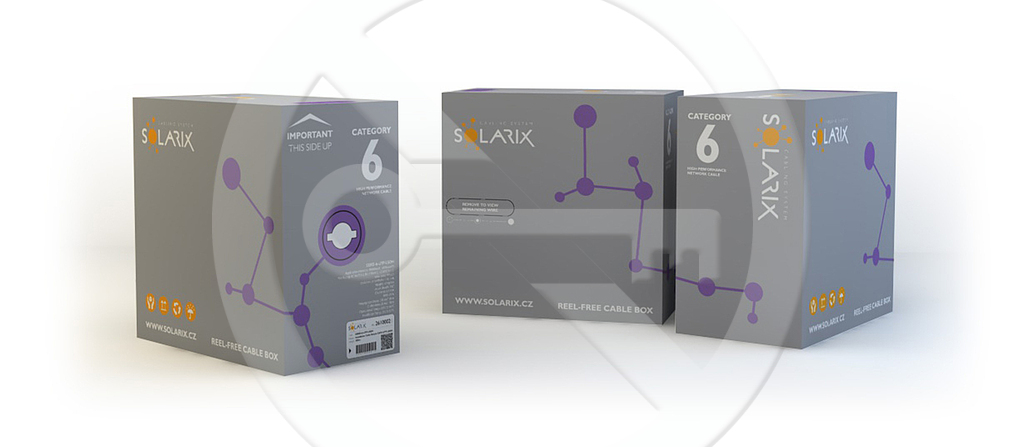

Installation cable Solarix CAT6 UTP LSOH Dca-s2,d2,a1 450 MHz 305m/box SXKD-6-UTP-LSOH
Brand:
Solarix
Warranty period:
5 years
Order code:
26100021
Unit of measurement (UoM):
box305m
Minimum order quantity (MOQ):
1
High quality unshielded category 6 installation cable tested up to 450 MHz, LSOH sheath with Dca-s2,d2,a1 reaction to fire class, 305 m box, Component Level certification.
191,54 EUR excluding VAT
Info about product:
+420 533 338 803

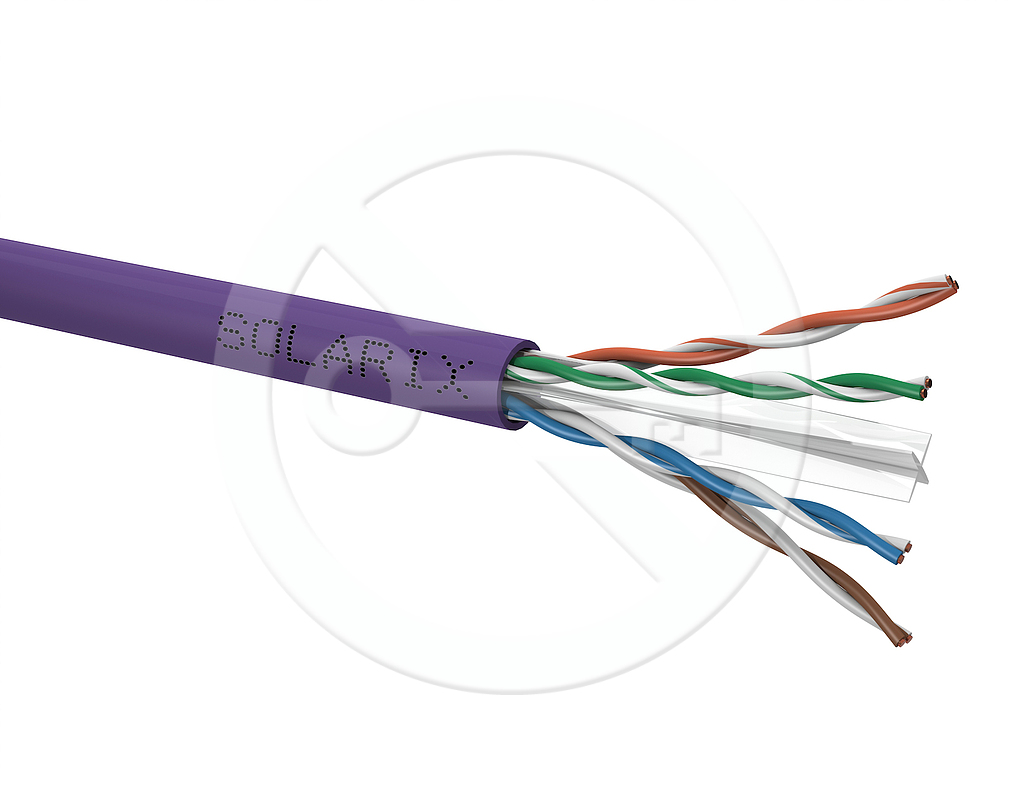

- High quality unshielded category 6/Class E installation cable tested up to 450 MHz
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T
- U/UTP cable construction
- Due to the plastic cross separator excellent resistance to crosstalk between pairs
- LSOH sheath with Dca-s2,d2,a1 reaction to fire class
- Cable conductors are made of high-quality copper wire with 99.97% purity
- The cable meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-E cabling standards
- Its electrical performance has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program
- As for the EU CPR regulation (i.e. no. 305/2011), the cable has been tested by the FORCE TECHNOLOGY laboratory in the AVCP 3 system
Solarixpedia: 10 principles how to install data cables
- Category: CAT6
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Shielded: No
- Bandwidth: tested up to 450 MHz
- Conductor Type and Size: copper wire 0.55 mm ± 0.005 mm
- Insulation and Wire Diameter with Insulation: HDPE 0.98 mm
- Reaction to fire; Sheath: Dca-s2,d2,a1; LSOH
- Colour: purple RAL 4005
- Nominall Cable Diameter: 6.1 mm
- Weight: 42.8 kg/km
- NVP: 69 %
- Propagation Delay: 535 ns/100 m
- Delay Skew: ≤45 ns/100 m
- Storage Temperature: -20 °C to 60 °C
- Operational Temperature: -20 °C to 60 °C
- Installation Temperature: 0 °C to 50 °C

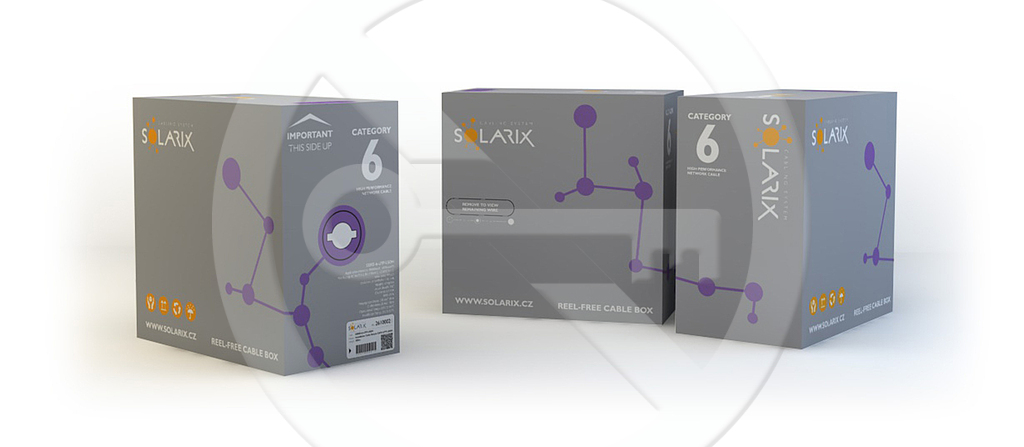

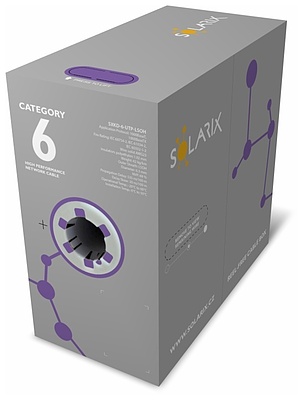

- Packaging: 305 m/box,
- Packaging Size (height x depth x width): 420 mm x 420 mm x 215 mm
- Number of Items on a Pallet: 30 boxes (large pallet), 24 boxes (small pallet)
