Industrial DIN rail module for a single keystone SXKJ-DIN-GY

Copper Cabling \ Outlets \ Modular \ DIN Rail

Number of Ports: 1

Shielded: No

Mount: DIN rail

Port Angle: 45°

Modular: Yes

Color: grey

Storage Temperature: -40 °C to 70 °C

Operational Temperature: -10 °C to 60 °C

Max. Operational Humidity: 93 %

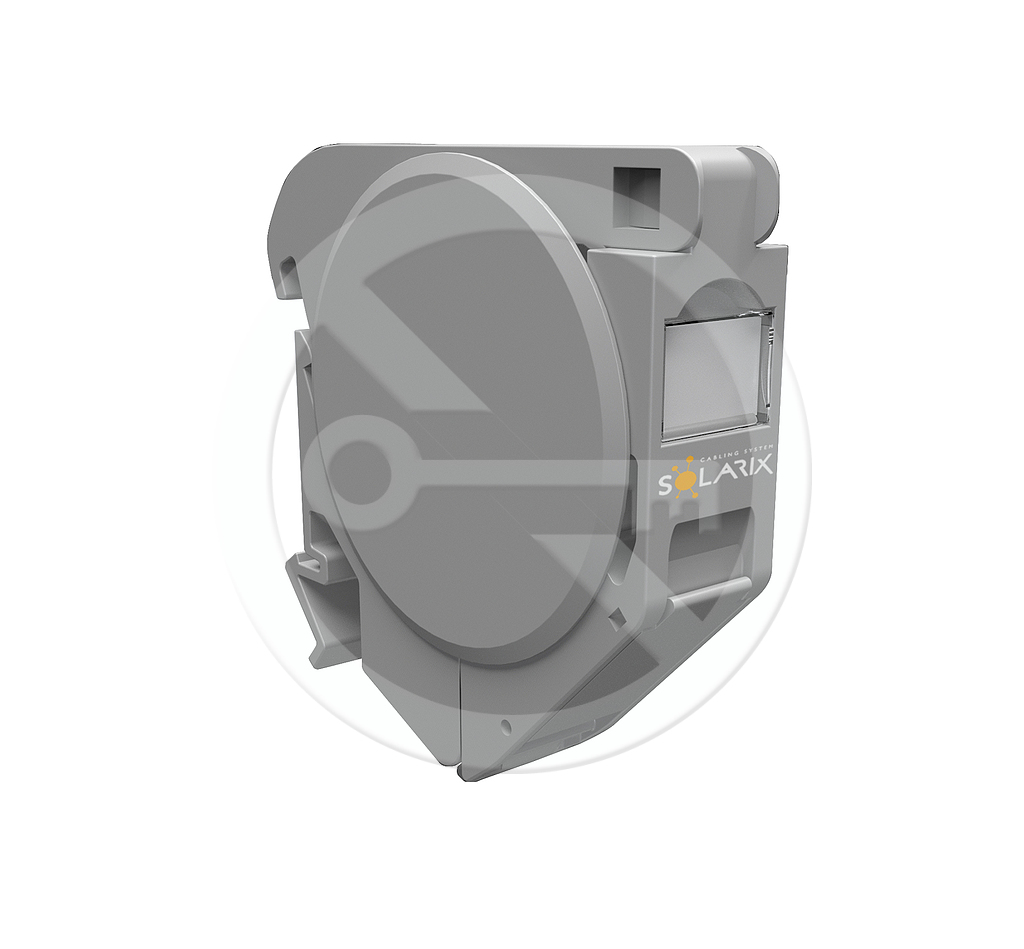

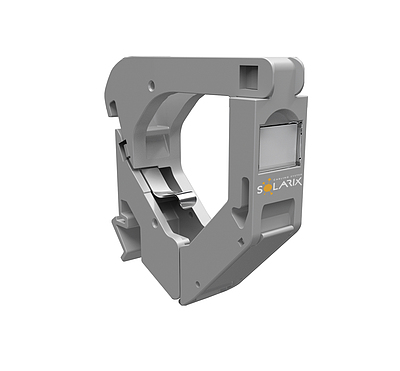

This Solarix module for one keystone is designed for mounting connection points on a DIN rail. It is suitable for installations of all sizes and fully compatible with all Solarix CAT5E, CAT6, and CAT6A keystones (keystones are not included and must be purchased separately). The holder is made of high-quality hardened plastic with high strength and long service life. The color of the Solarix DIN rail holder for one keystone is gray.

• Unloaded snap-in DIN rail module for a single keystone RJ45
• Compatible with Solarix -SA and -NA series keystones
• Very easy and quick installation
• Thanks to the removable blank side plugs, the modules can be installed next to each other in any number

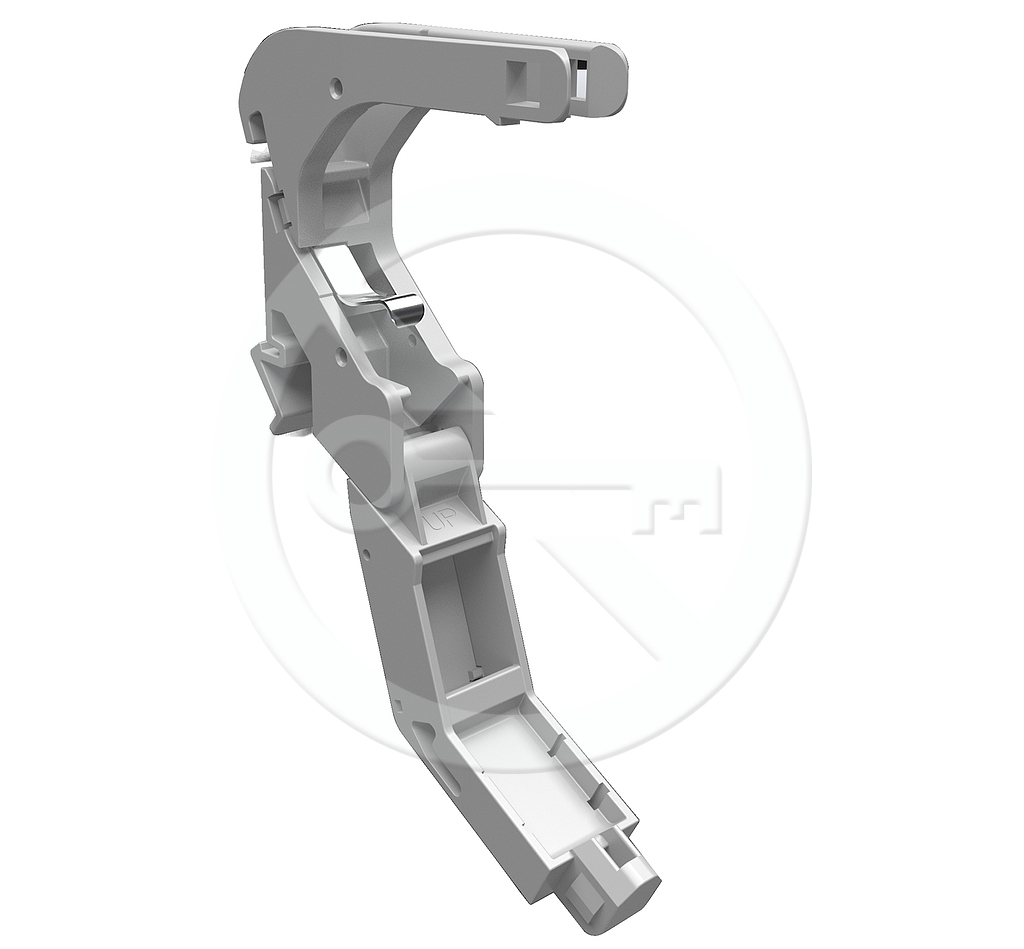

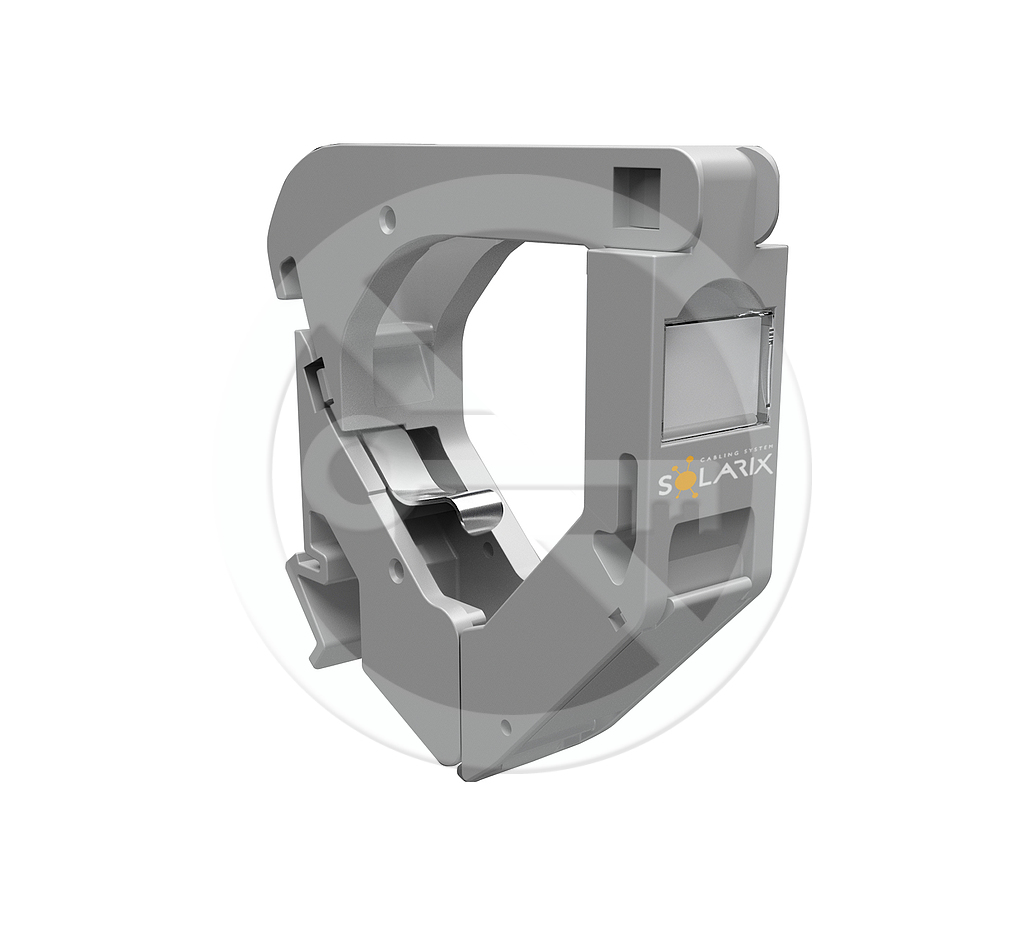

• The metal spring of the module is used to hold it firmly in place and, in case of shielded cabling, to connect the keystone shielding with the DIN rail for proper ground termination
• The module is equipped with a label field, which allows for clear marking, and a protective RJ45 port blinder
• The colour of the module is grey

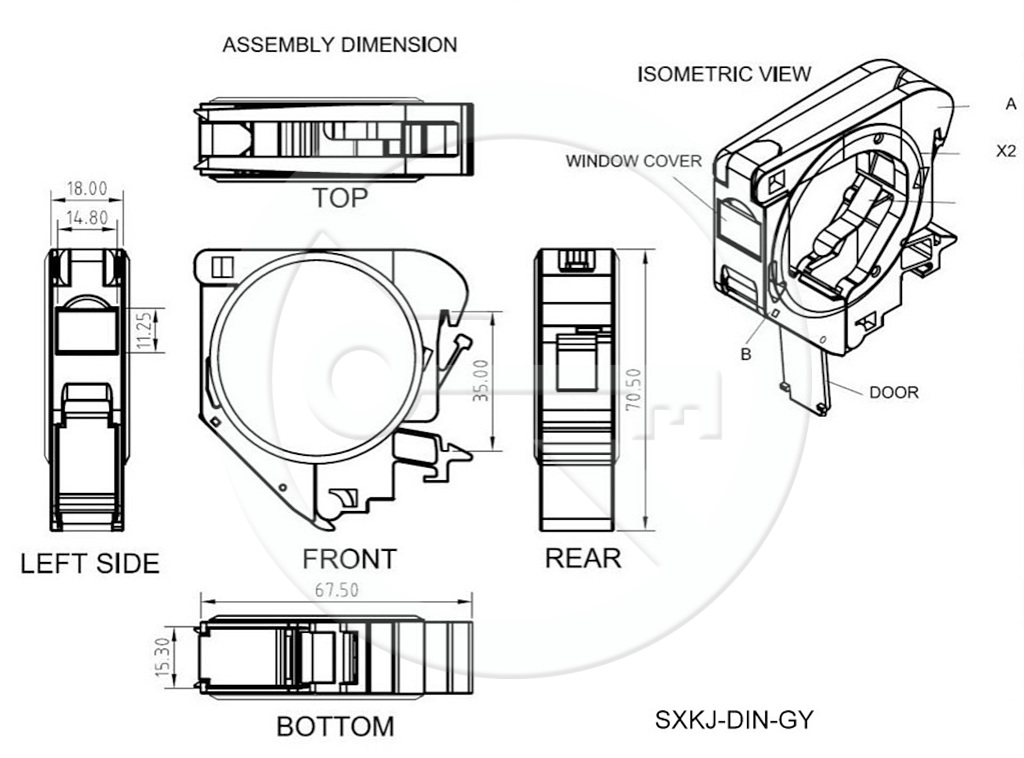

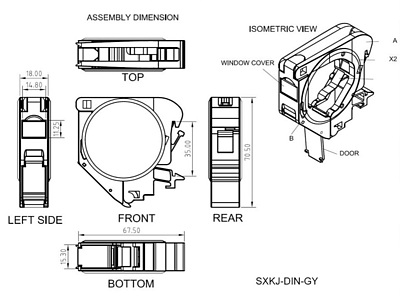

• ATTENTION: In terms of dimensions, this DIN rail mount exceeds the depth of the circuit breaker, i.e., it is not fully compatible with enclosed circuit breaker enclosures
• To mount this bracket to 19" rails, you can use this Solarix DIN rail
