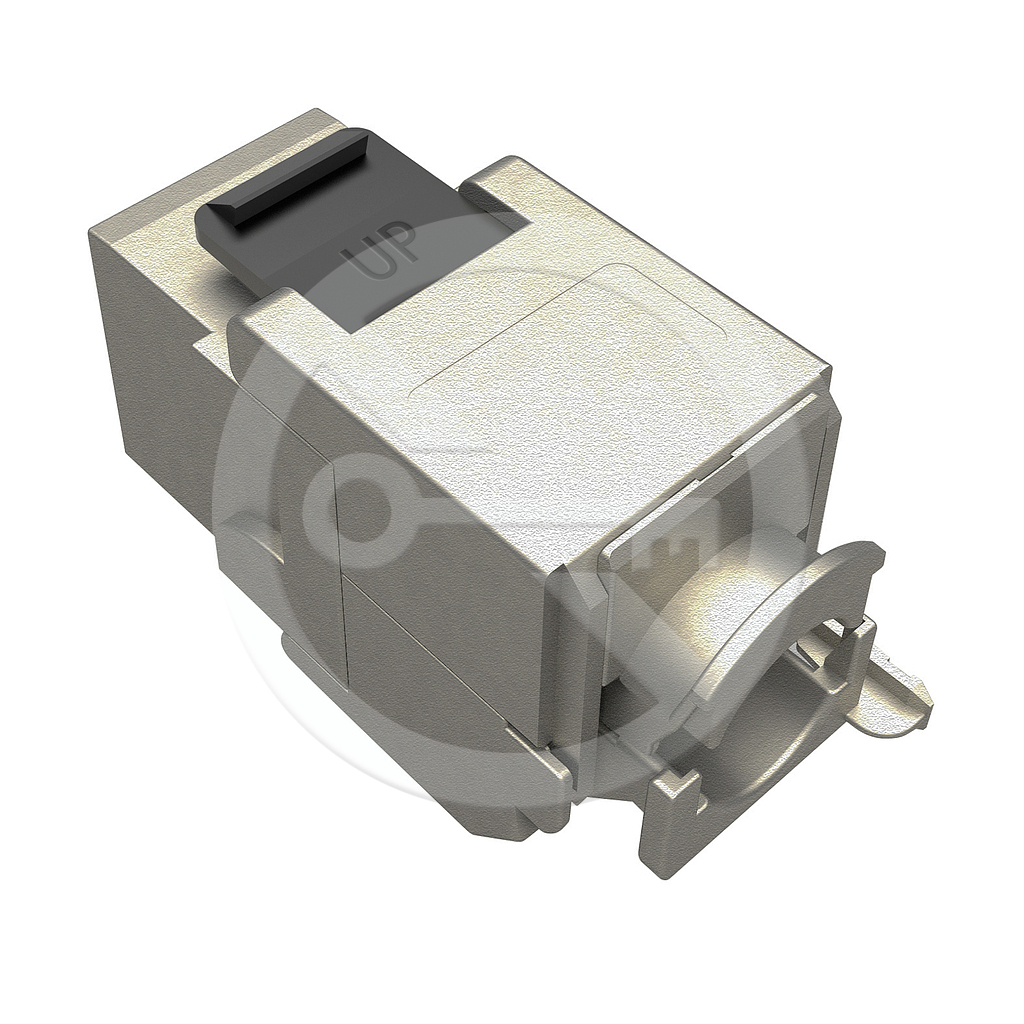

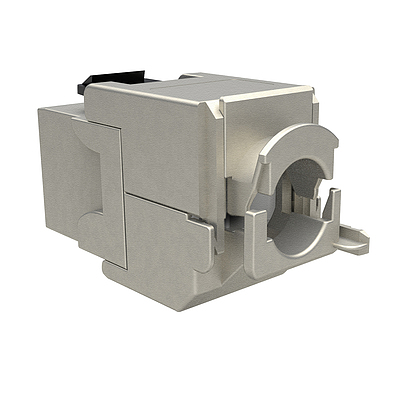

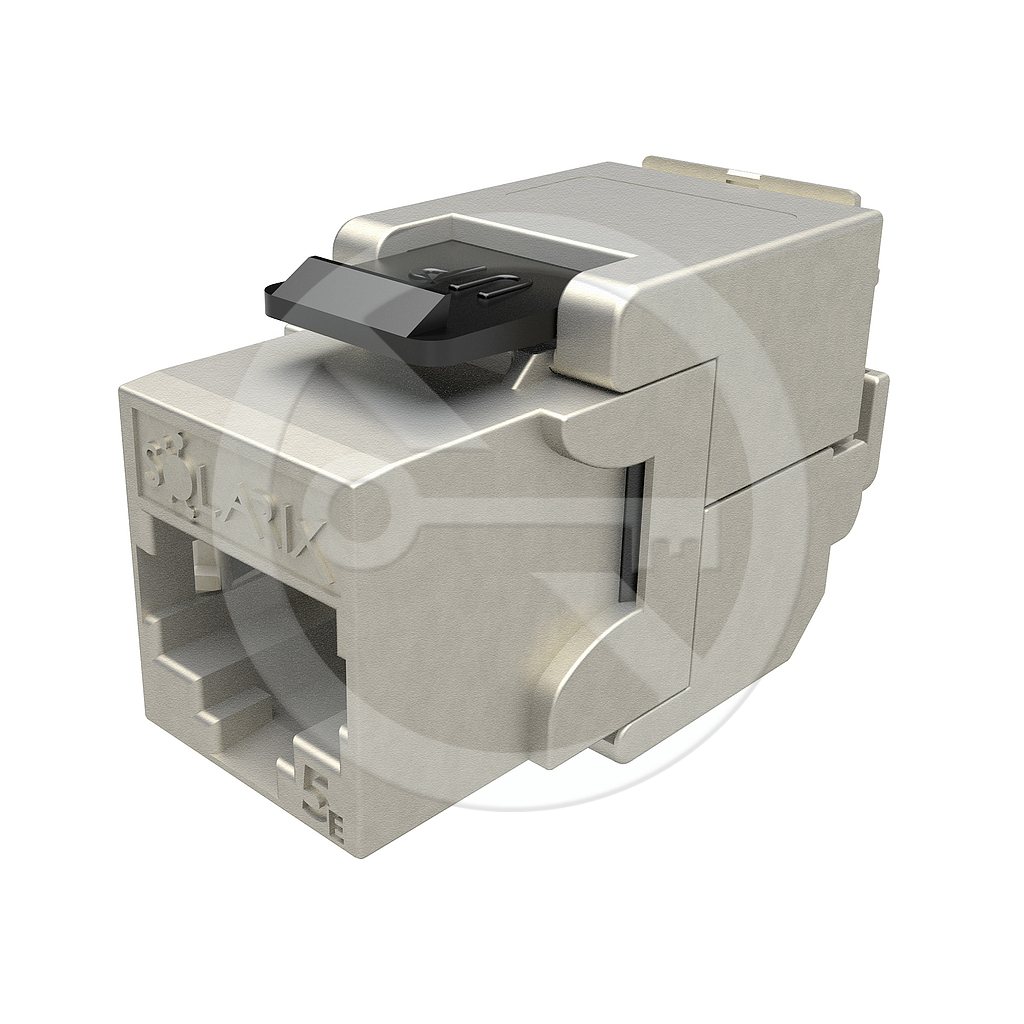

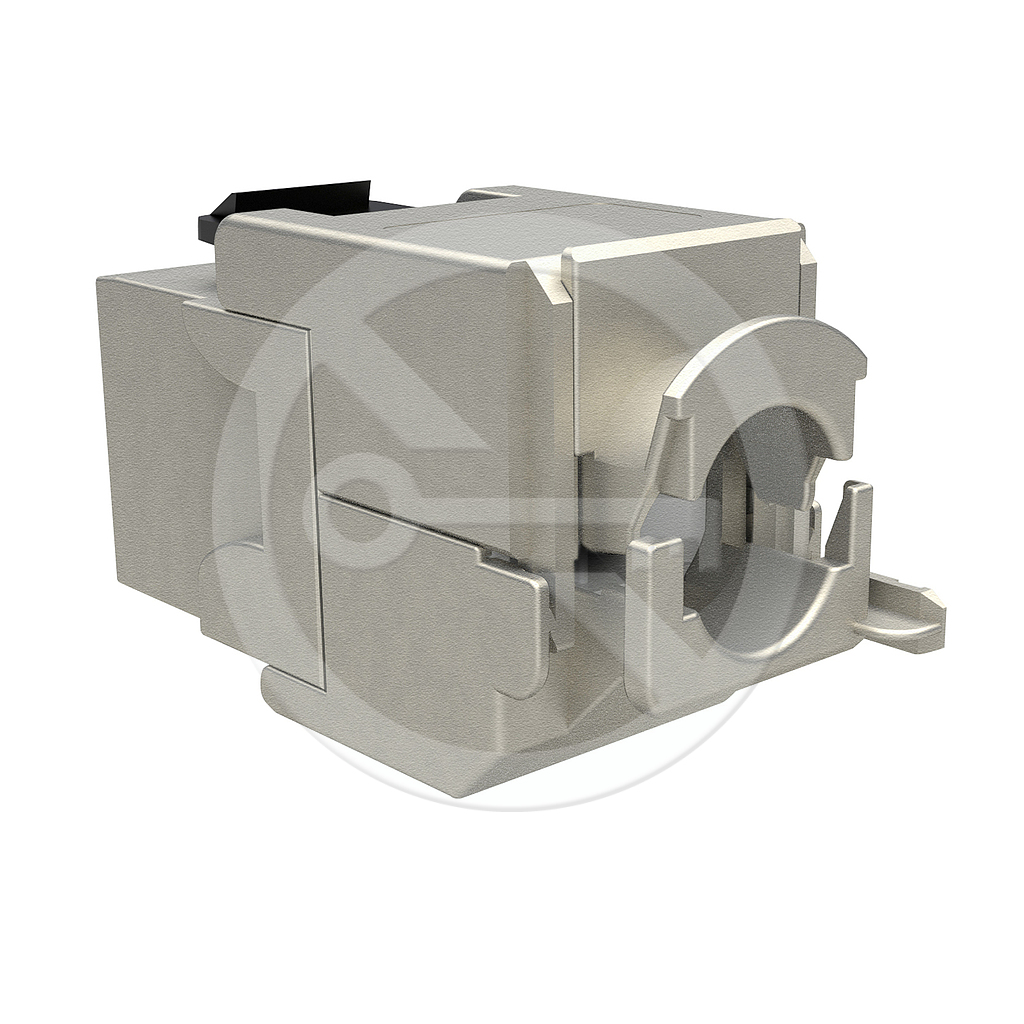

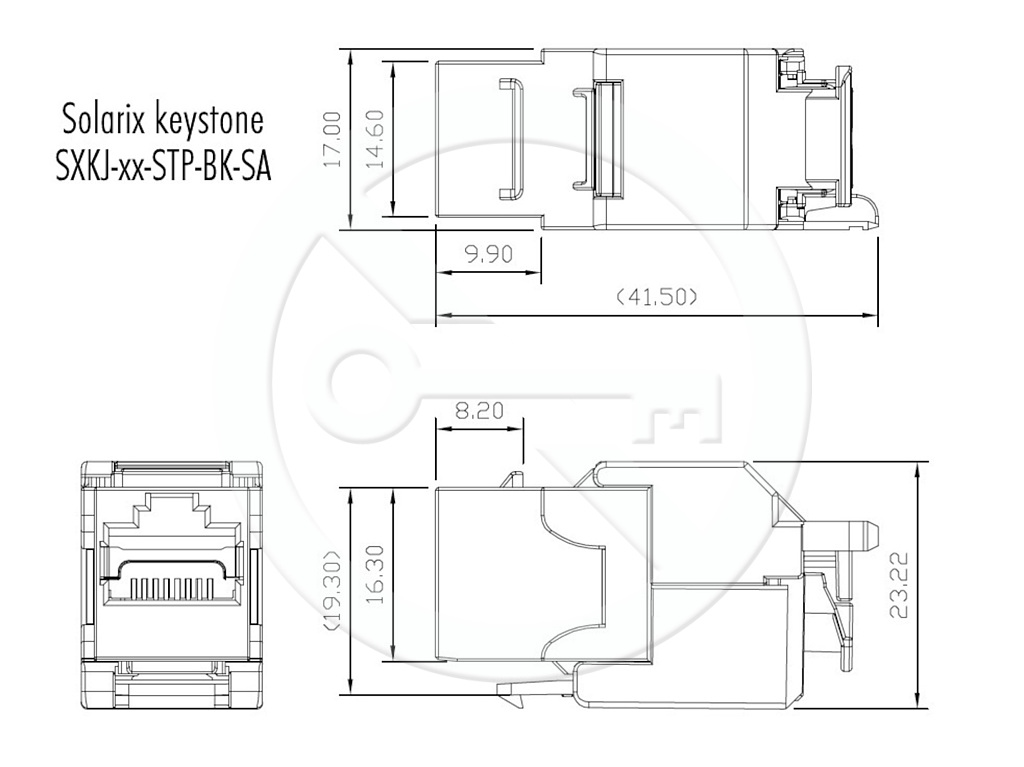

Keystone Solarix CAT5E STP RJ45 toolless SXKJ-5E-STP-BK-SA
Brand:
Solarix
Warranty period:
5 years
Order code:
25286702
Unit of measurement (UoM):
piece
Minimum order quantity (MOQ):
1
Transport Packaging (UoM):
280 (master), 70 (inner)
Shielded category 5E keystone toolless.
3,25 EUR excluding VAT
Info about product:
+420 533 338 803
- Quality shielded category 5E/Class D keystone
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T*

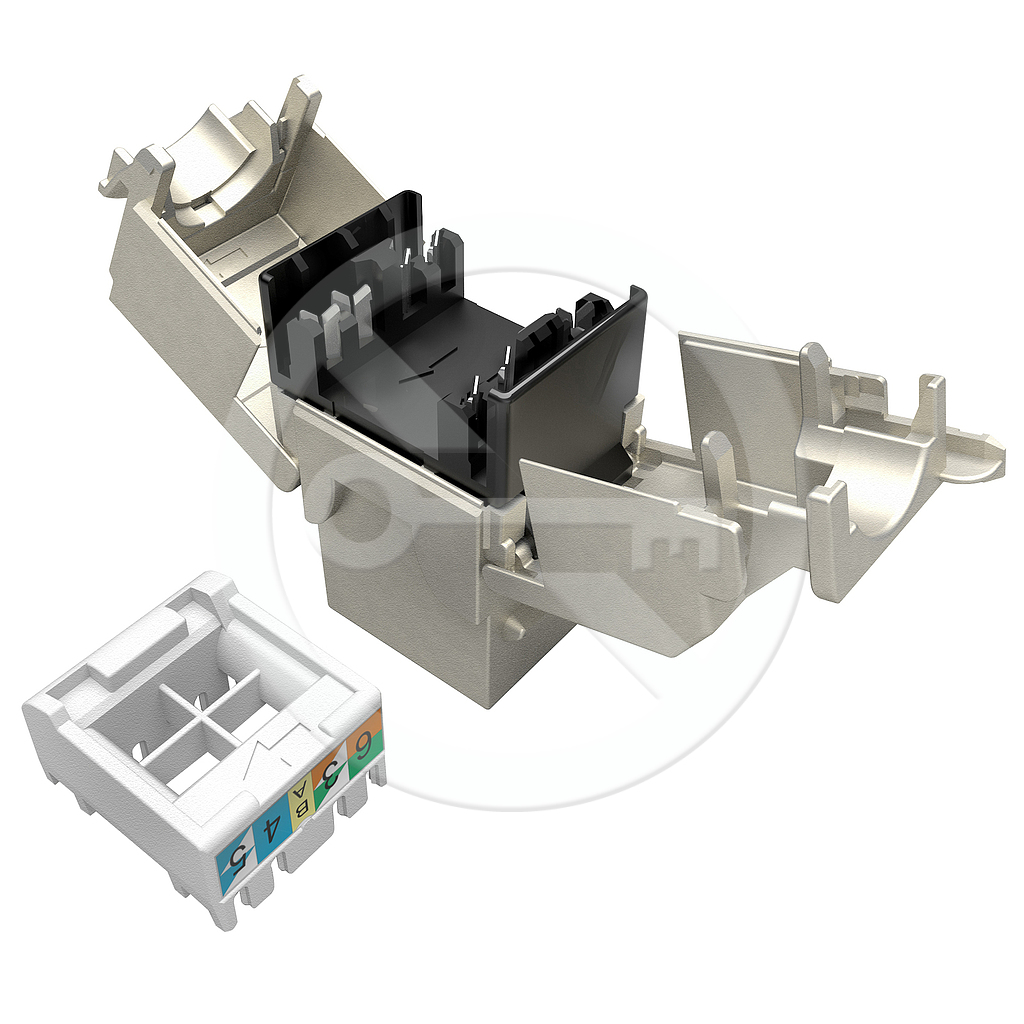

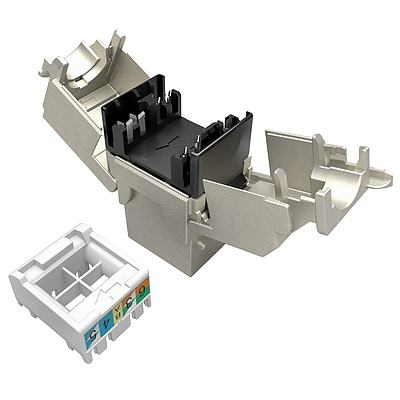

- Very easy toolless installation
- 50 µin gold contact plating
- The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-E cabling standards
- Its form factor complies with the requirements of the EN 60603-7 specifications (i.e. the keystone is compatible with other manufacturers‘ modular outlets
- The colour of the keystone is black (inner parts) and silver (metal body)
*) For the 2.5GBASE-T and 5GBASE-T protocols, the operability success and distance achieved may vary depending on the type and quality of installation.
- Category: CAT5E
- Highest Supported Protocol: 2.5G/5GBASE-T and lower
- Shielded: Yes
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: toolless
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: black (inner parts) and silver (metal body),
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
- Packaging: 1 pc, plastic bag
- Packaging Size (height x width x depth): 145 mm x 90 mm x 20 mm
- Master packaging: 280 pcs; carton box,
- Master packaging size (height x width x depth): 230 mm x 515 mm x 400 mm
Datasheets
- EN datasheet keystone Solarix SXKJ-5E-STP-BK-SA (467.35 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (285.97 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN Installation Guide: How to install Solarix components (190.92 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
