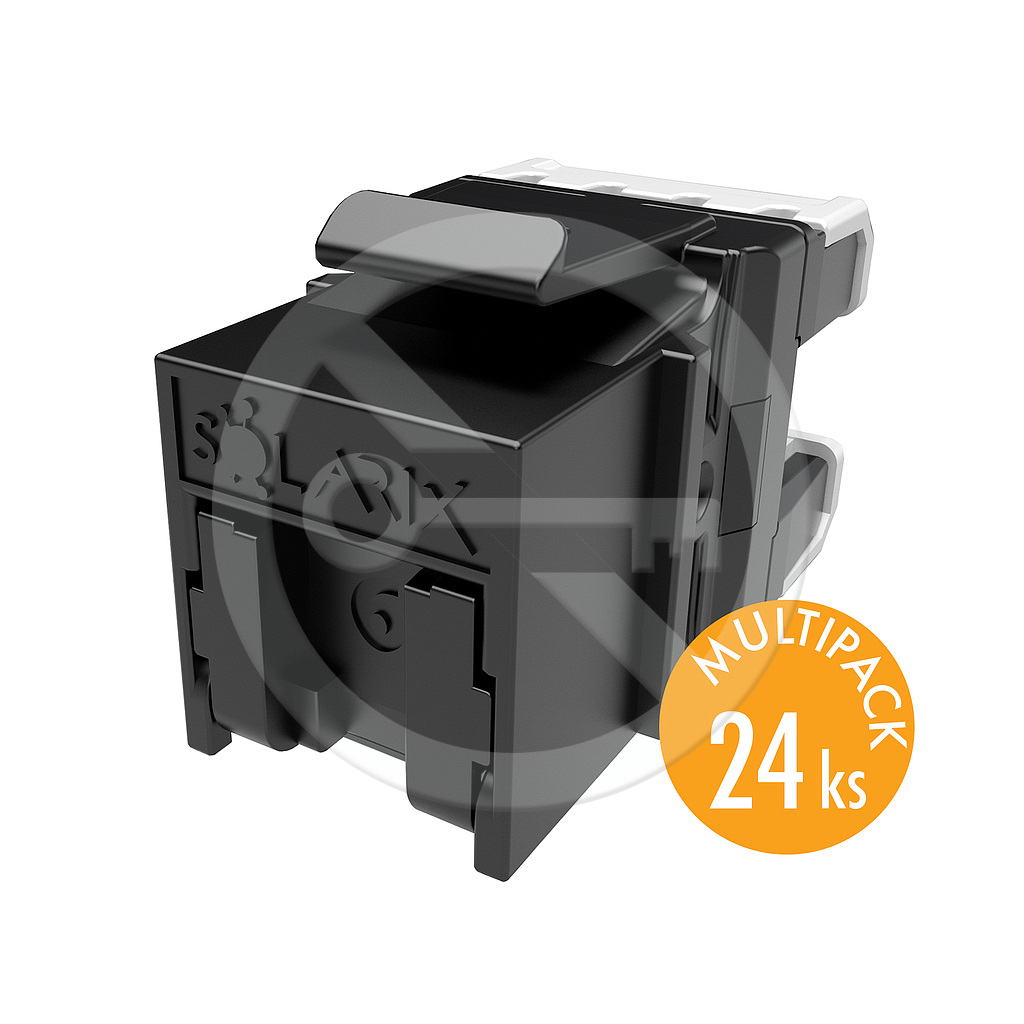

MULTIPACK 24 pcs – keystone Solarix CAT6 UTP RJ45 Black SXKJ-6-UTP-BK-NA
Brand:
Solarix
Warranty period:
5 years
Order code:
25286813
Unit of measurement (UoM):
24 pcs in a package
Minimum order quantity (MOQ):
1
Multipack 24 pcs, quality unshielded CAT6 RJ45 keystone, black with Component Level and 4PPoE certification.
75,67 EUR excluding VAT
Info about product:
+420 533 338 803

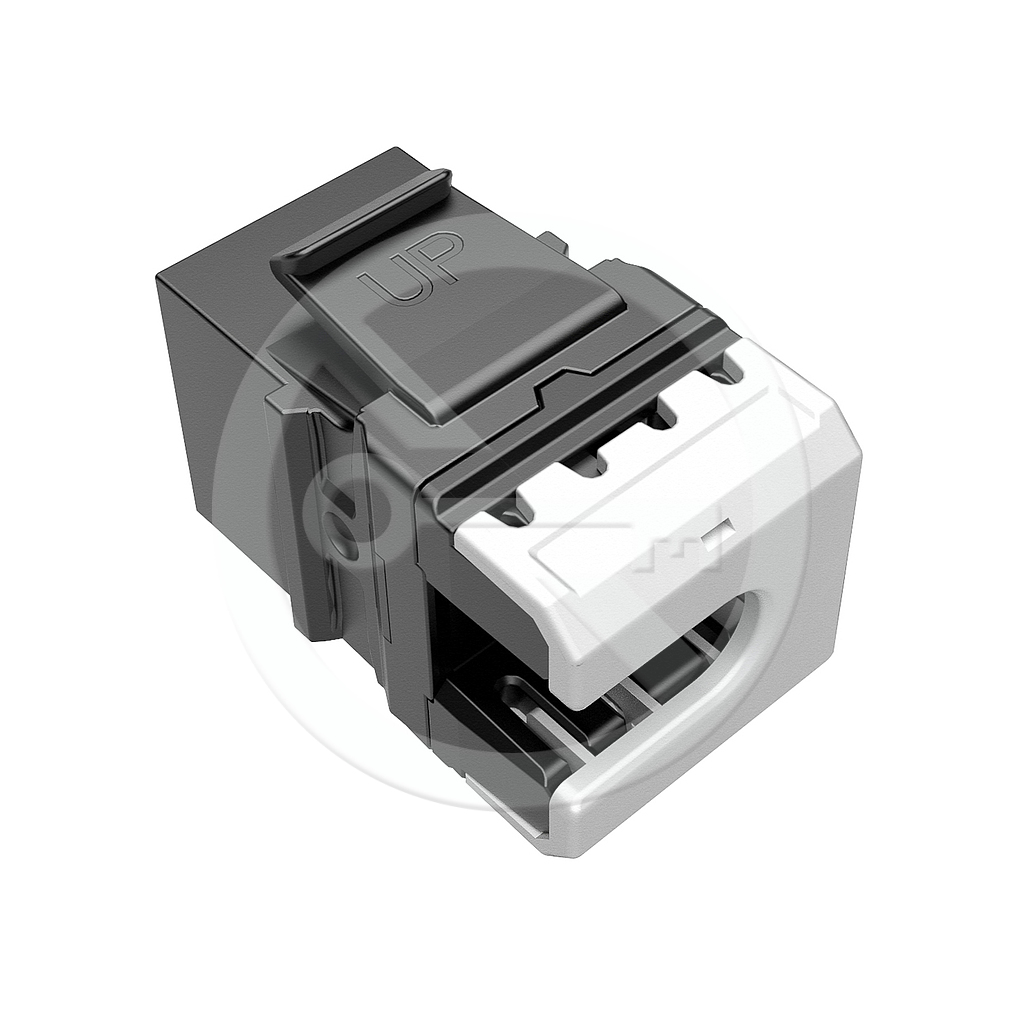

- Quality unshielded category 6/Class E keystones
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T

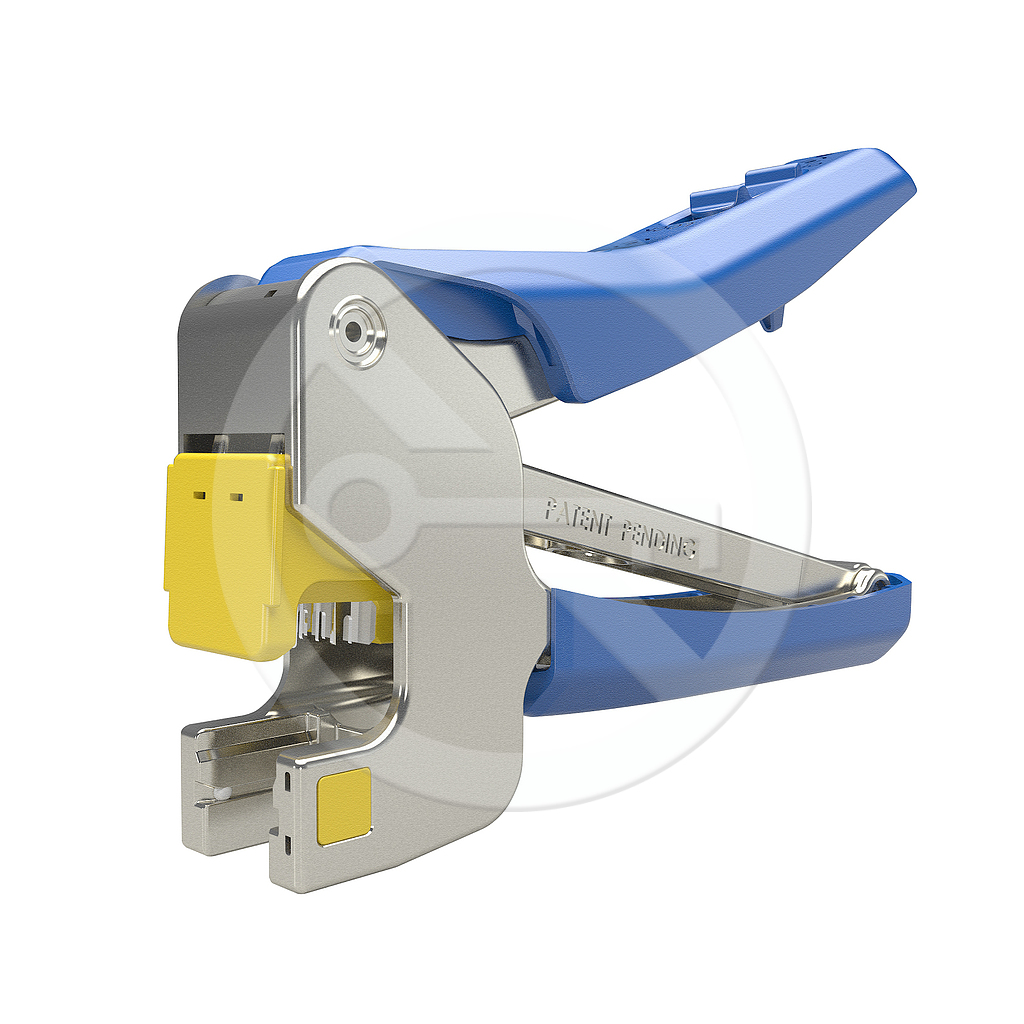

- Very easy installation with the quick tool pliers SXKJ-NA-BU
- 50 µin gold contact plating
- Dust cover
- The keystones meet the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards

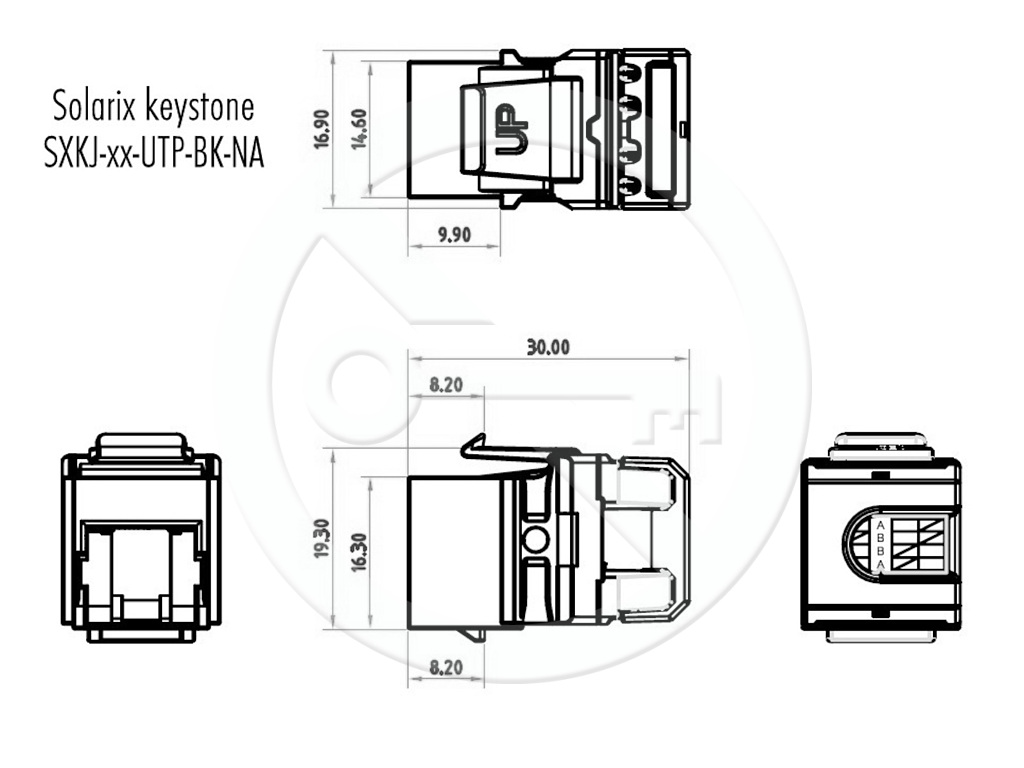

- Their form factor complies with the requirements of the EN 60603-7 specifications (i.e. the keystones are compatible with other manufacturers‘ modular outlets that meet this standard)
- The colour of the keystones is black
- The multipack packaging significantly speeds up the installation of these Solarix keystones and also is more environmentally friendly (i.e. without any plastic packaging)
- The electrical performance of these keystones has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program, including the 4PPoE standard (i.e. IEEE 802.3bt)
- Category: CAT6
- Highest Supported Protocol: 2.5G/5GBASE-T and lower
- Shielded: No
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: quick tool
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: Black
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %

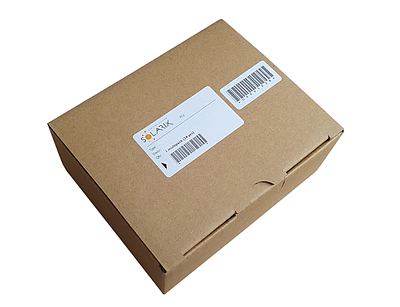

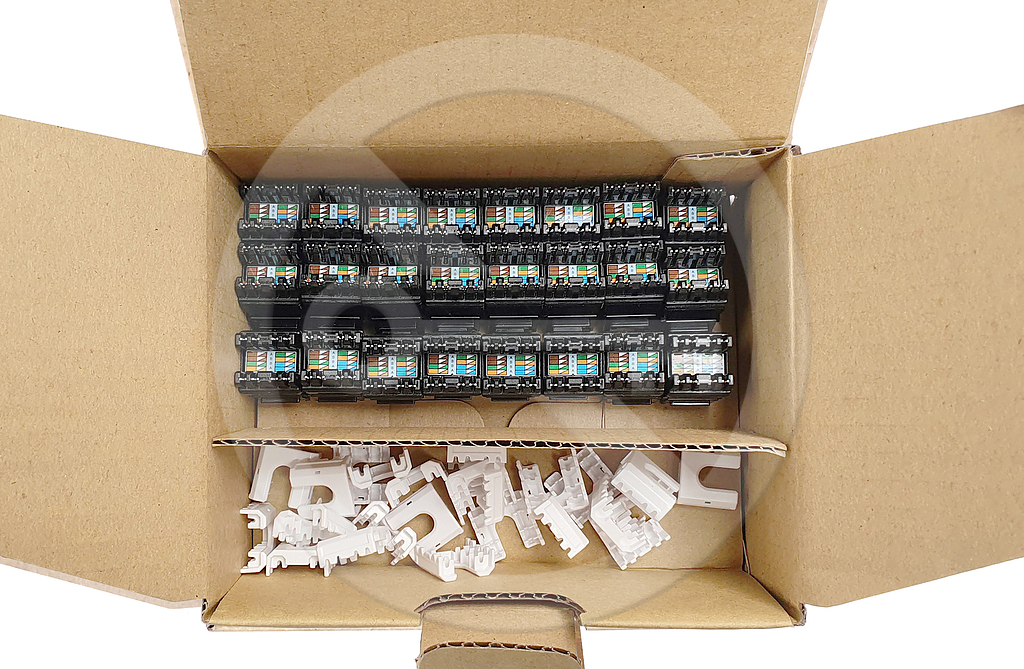

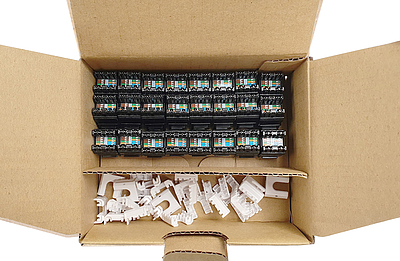

- Packaging: 24 pcs, carton box
- Packaging Size (height x width x depth): 60 mm x 148 mm x 120 mm
- Master packaging: 576 pcs (24x multipack)
- Master packaging size (height x width x depth): 270 mm x 370 mm x 320 mm
Datasheets
- EN datasheet multipack keystone Solarix SXKJ-6-UTP-BK-NA (426.41 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN certificate component level SXKJ-6-UTP-xx-SA/SXKJ-6-UTP-BK-NA (329.32 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
