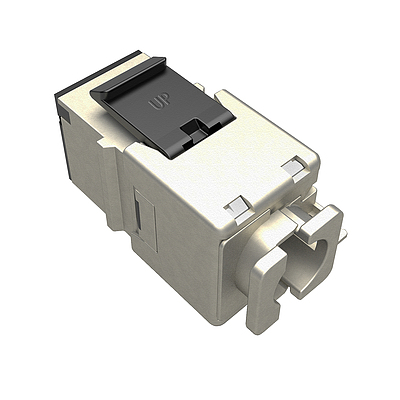

10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification

Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks

Order code: 25286903

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 5,30 EUR

pc
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
Product 10G keystone Solarix CAT6A STP quick tool SXKJ-10G-STP-BK-NA Component Level and 4PPoE certification - Solarix - Keystone Jacks
By product
Copper Cabling \ Keystone Jacks \ Category 6A \ Shielded

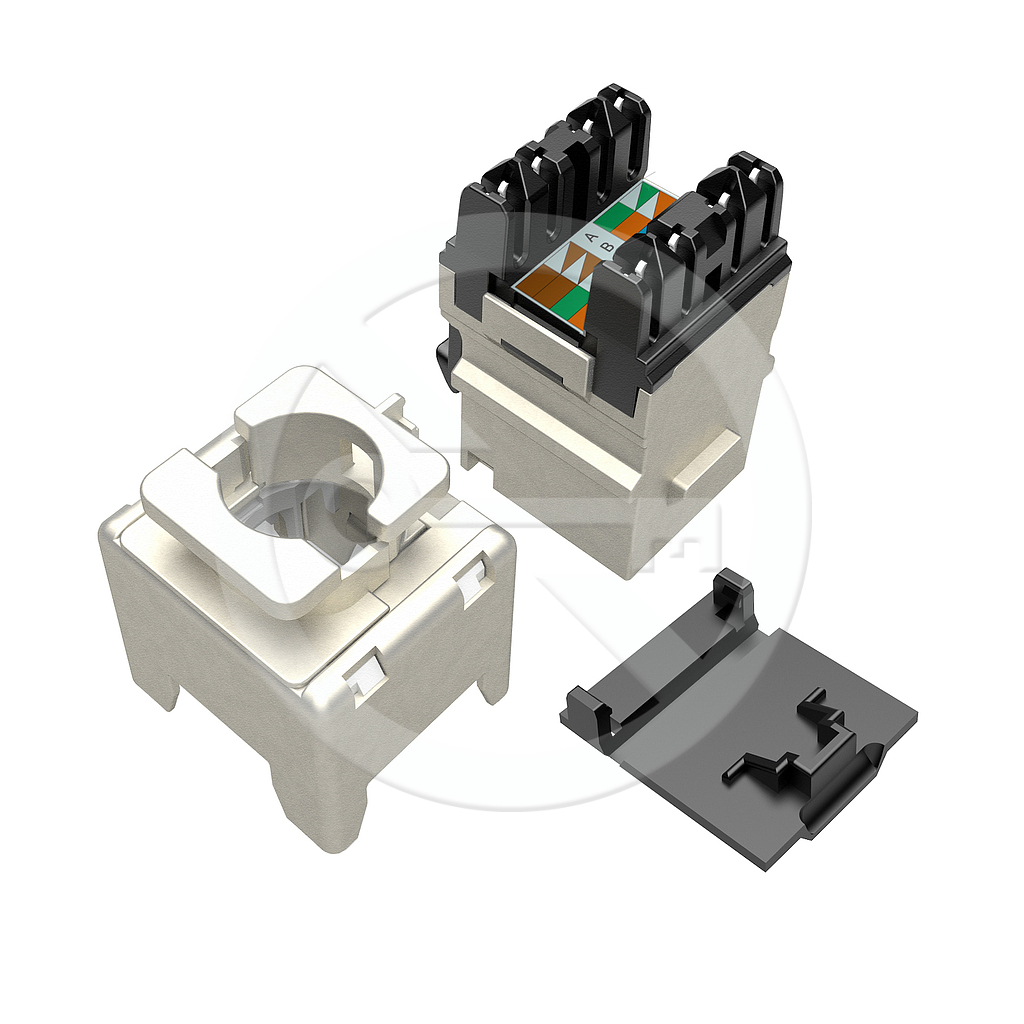

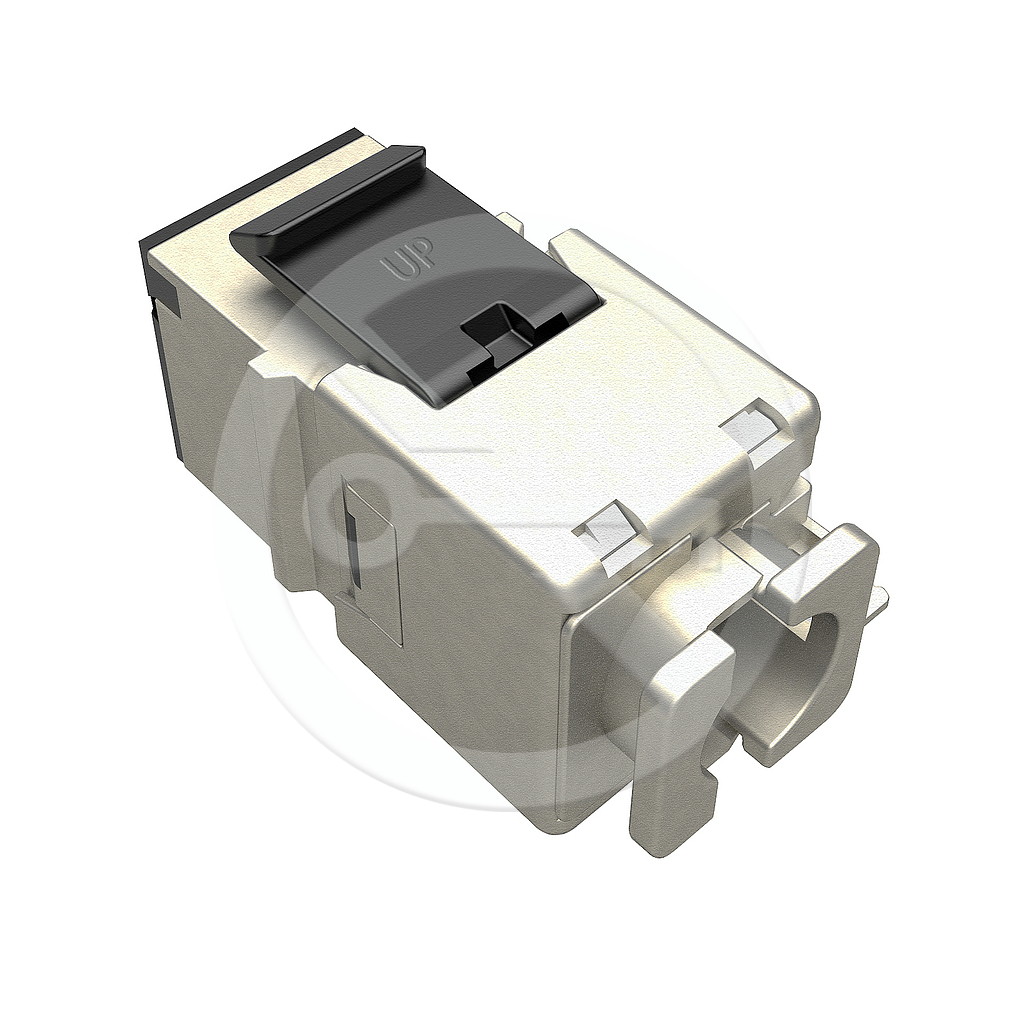

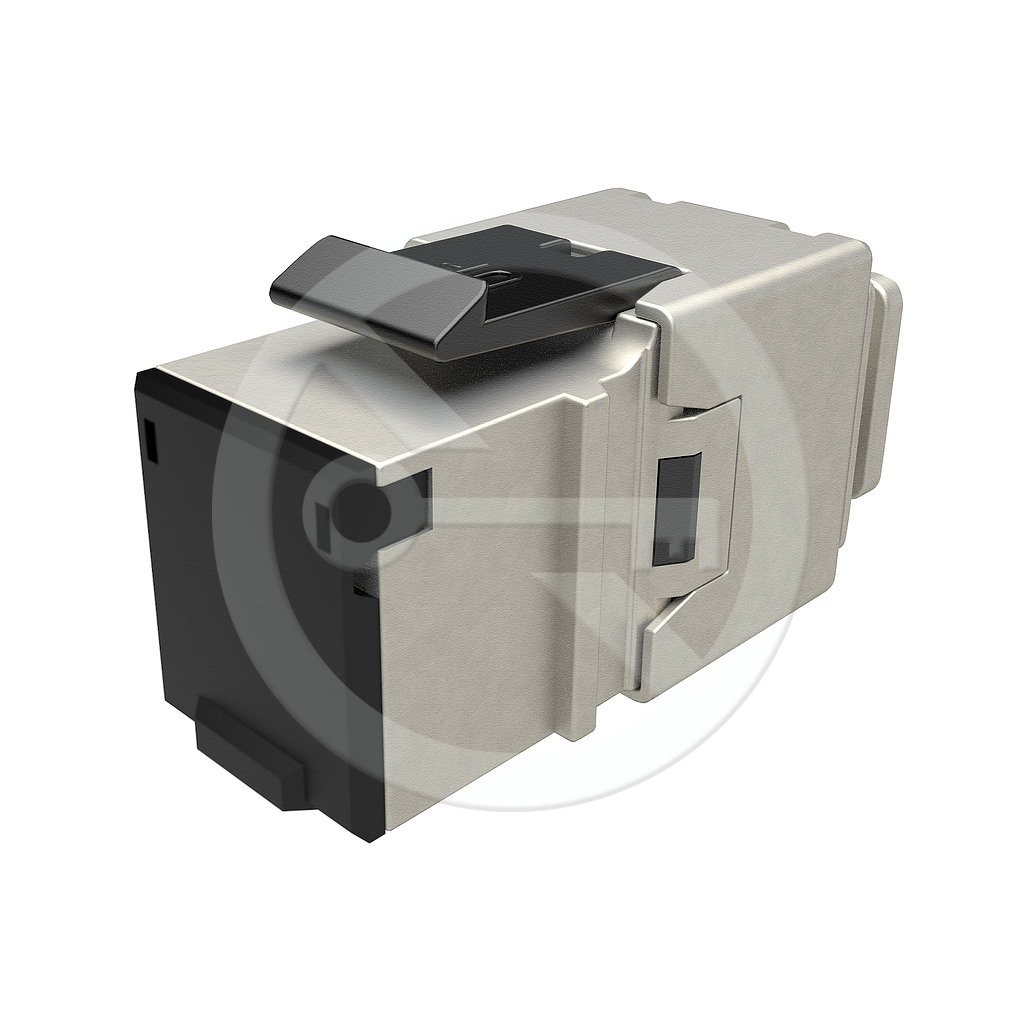

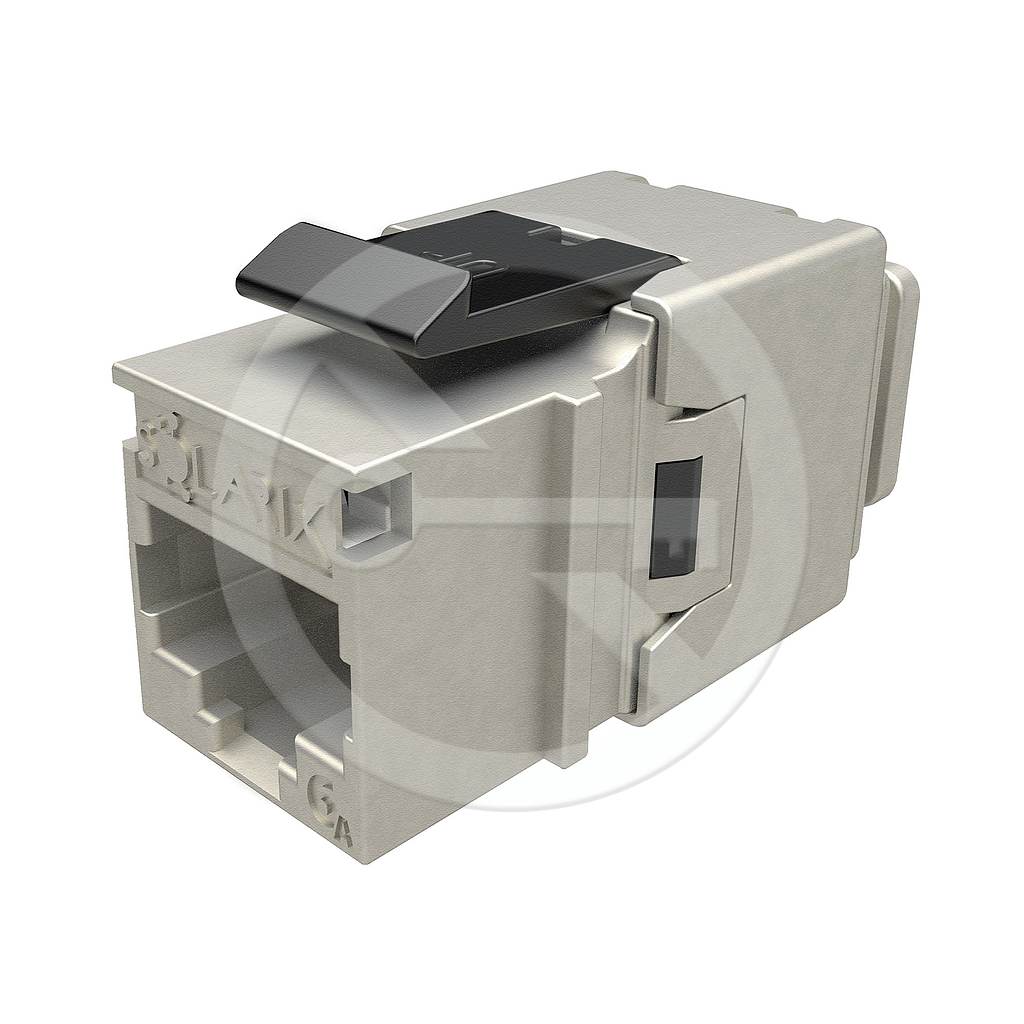

Quality shielded category 6A RJ45 keystone with Component Level and 4PPoE certification.
recommend | print
Technical Parameters
  • Category: CAT6A
  • Highest Supported Protocol: 10GBASE-T and lower
  • Shielded: Yes
  • Min. Port Life: 1000 cycles
  • Contact Plating: 50 µ gold
  • Termination Module: quick tool
  • Conductor Size and Type: AWG 26 - 22, solid
  • Housing Material: FR acc. to UL94-0
  • Color: black (inner and front parts) and silver (metal back part),
  • Storage Temperature: -40 °C to 70 °C
  • Operational Temperature: -10 °C to 60 °C
  • Max. Operational Humidity: 93 %
Product Description
  • Quality shielded category 6A/Class EA keystone
  • Designed for ethernet protocols, including 2.5GBASE-T, 5GBASE-T, and 10GBASE-T

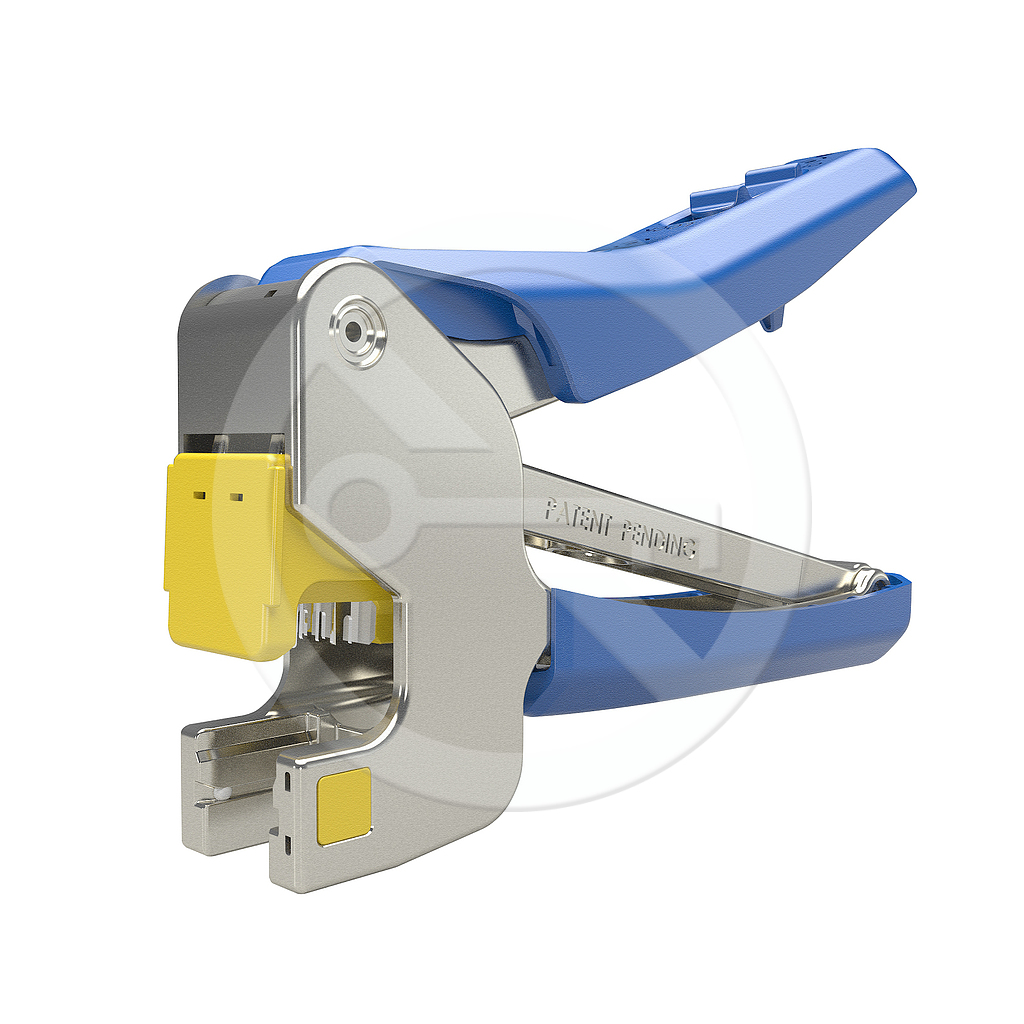

  • Very easy installation with the quick tool pliers SXKJ-NA-BU
  • 50 µin gold contact plating

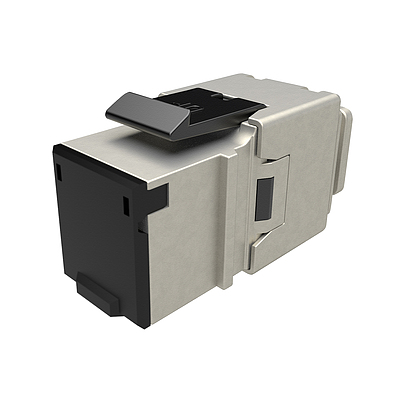

  • Dust cover
  • The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards

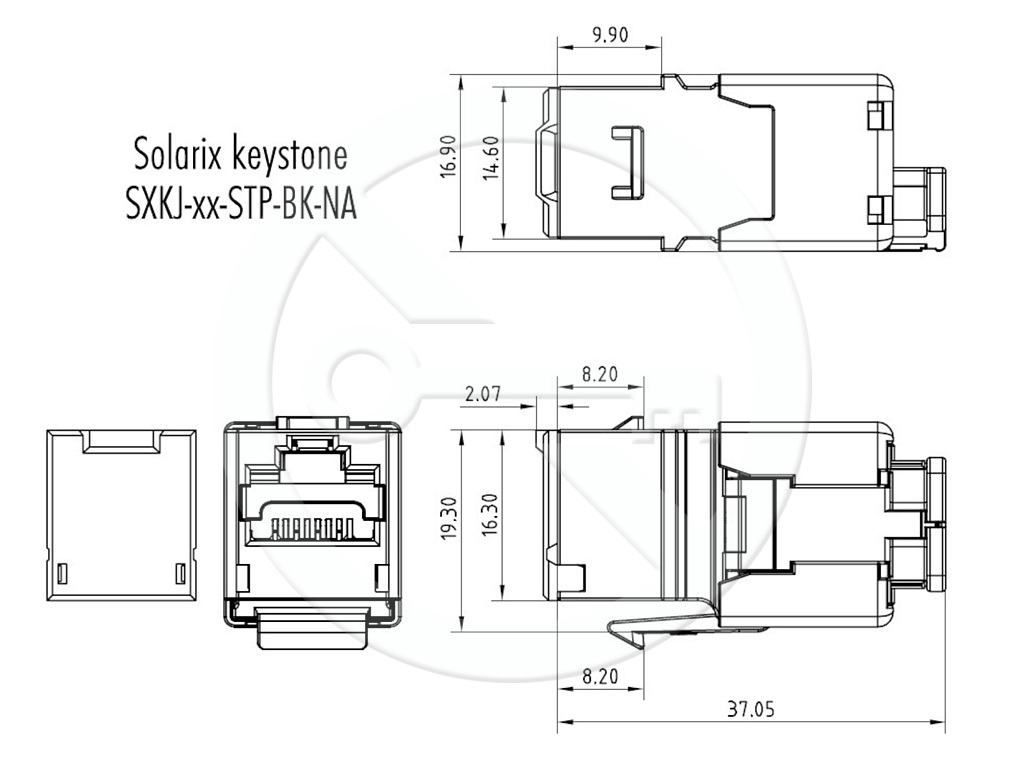

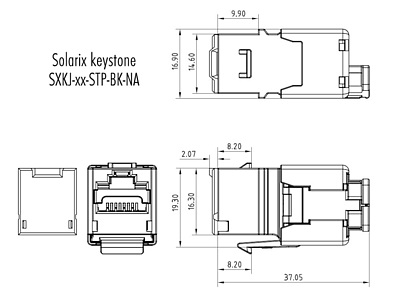

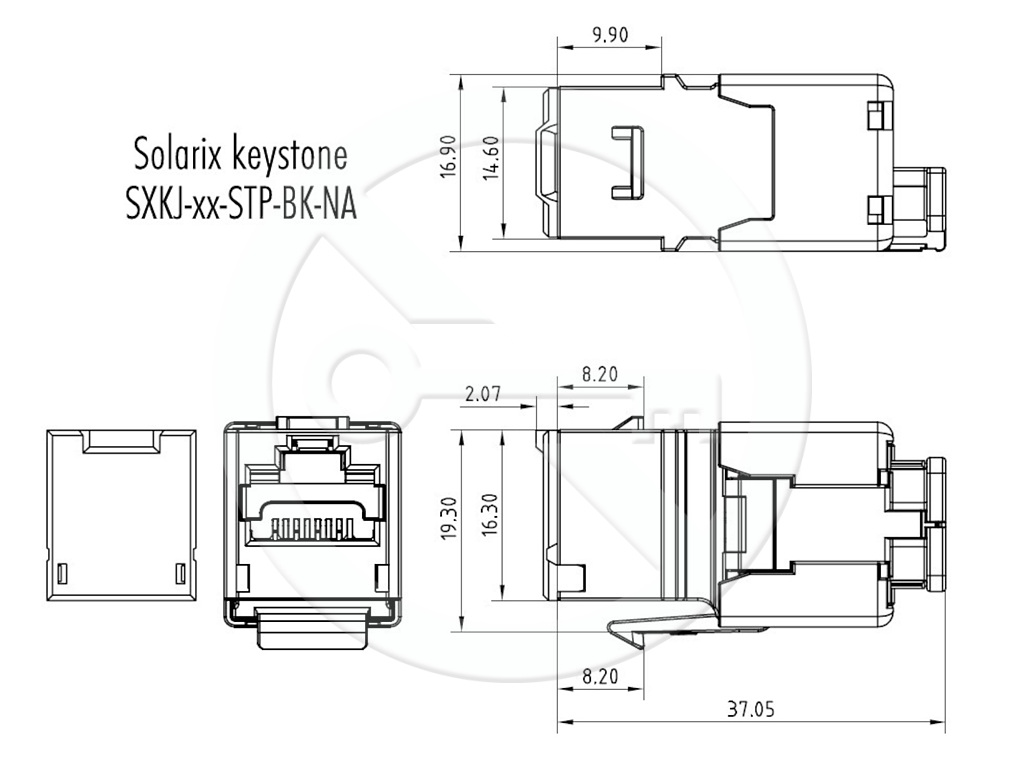

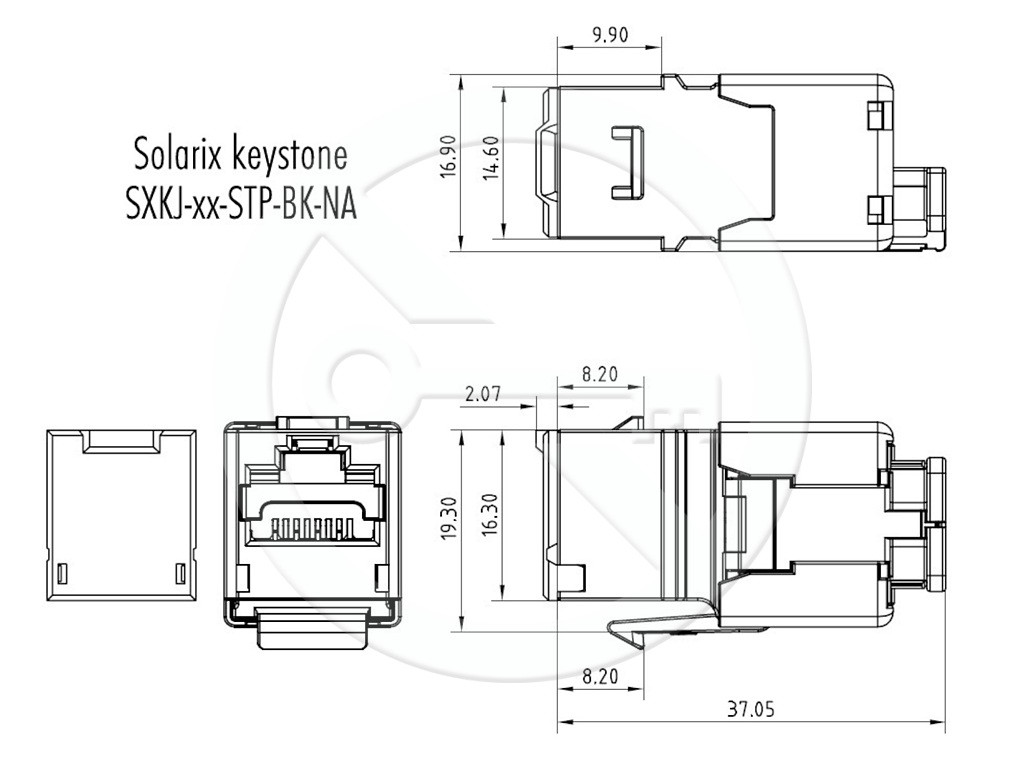

  • Its form factor complies with the requirements of the EN 60603-7 specifications (i.e. the keystone is compatible with other manufacturers‘ modular outlets that meet this standard)
  • The colour of the keystone is black (inner parts, dust cover) and silver (metal body)
  • Its electrical performance has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program, including the 4PPoE standard (i.e. IEEE 802.3bt)
