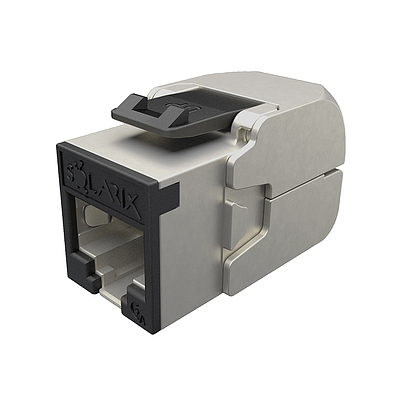

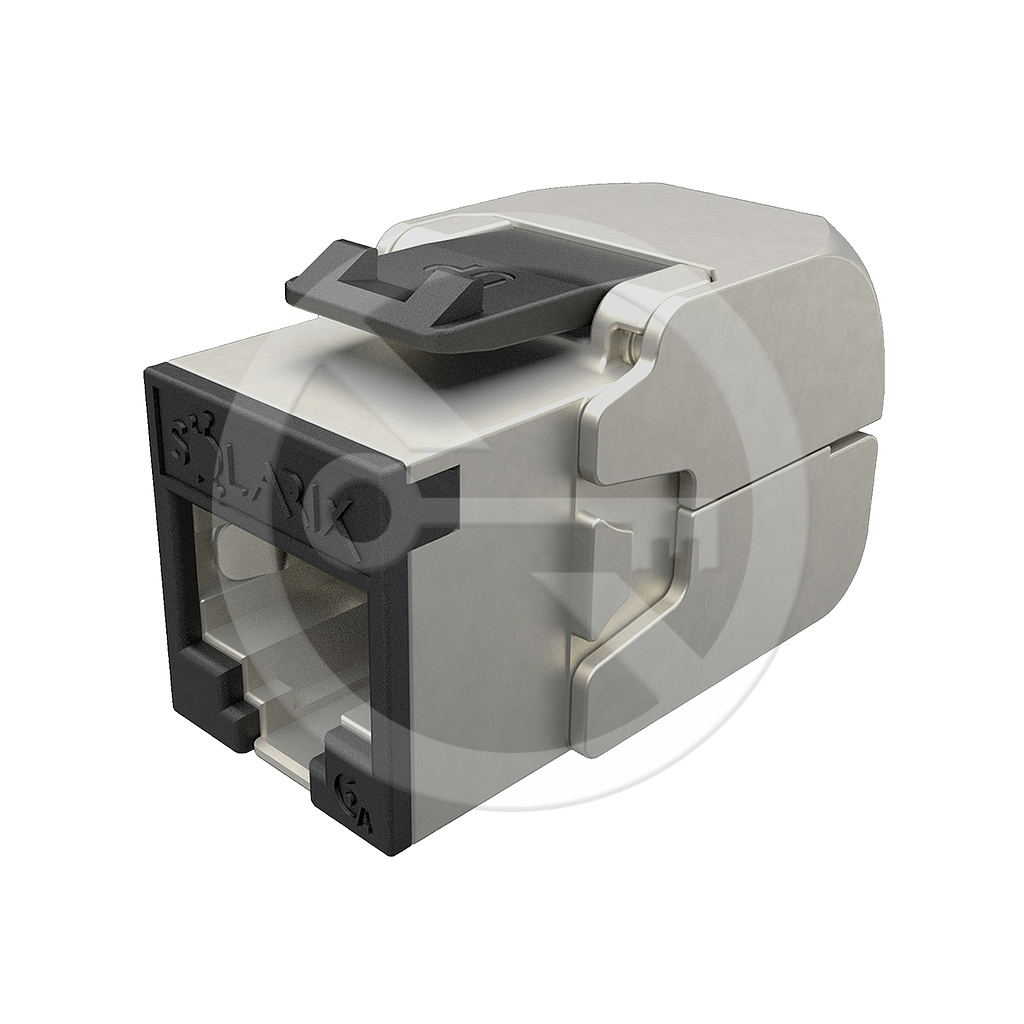

10G keystone Solarix CAT6A STP toolless SXKJ-10G-STP-RAL-SA, RAL FIT modules, Component Level and 4PPoE
Brand:
Solarix
Warranty period:
5 years
Order code:
25286907
Unit of measurement (UoM):
piece
Minimum order quantity (MOQ):
1
Quality shielded category 6A keystone with GROUND LOCK mechanaism, Component Level and 4PPoE certification.
5,71 EUR excluding VAT
Info about product:
+420 533 338 803
- Quality shielded category 6A/Class EA keystone with excellent all-round AxTALK protection
- Designed for high-speed ethernet protocols, including 10GBASE-T

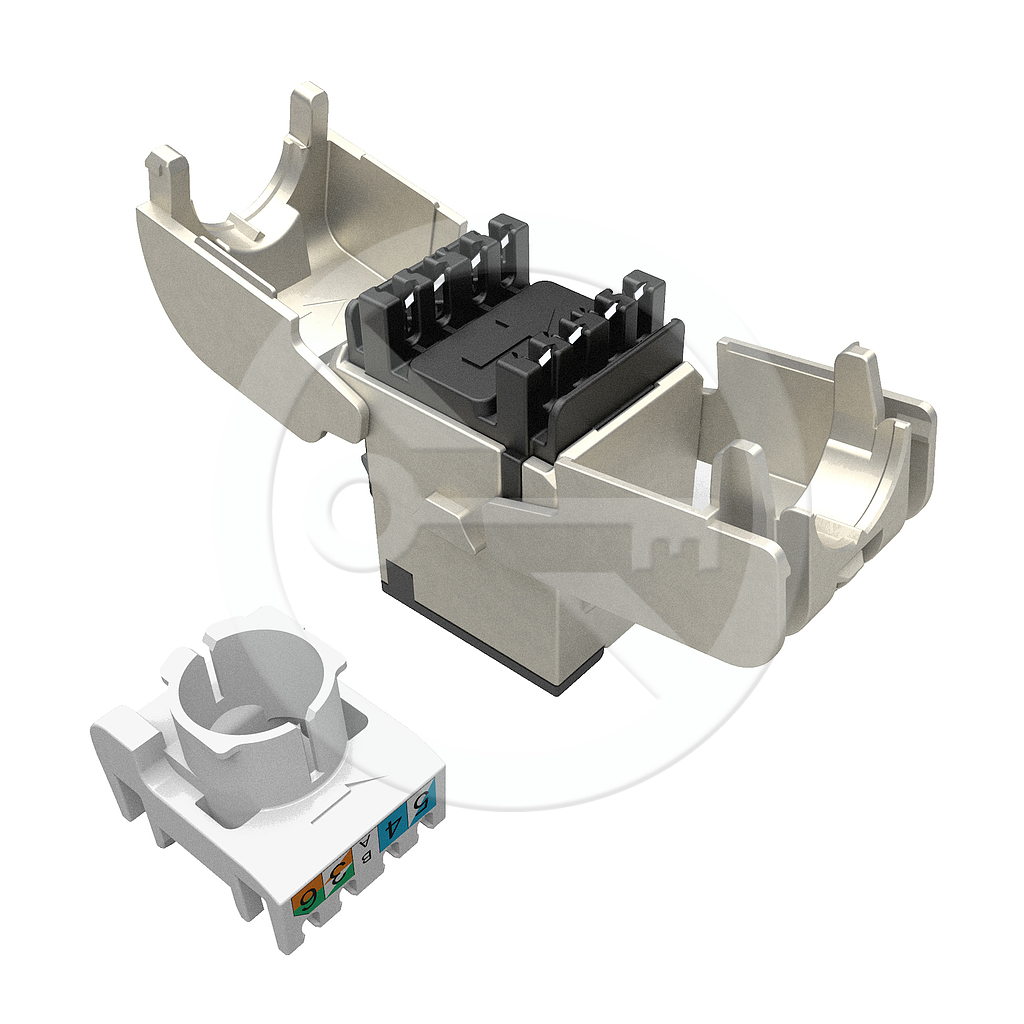

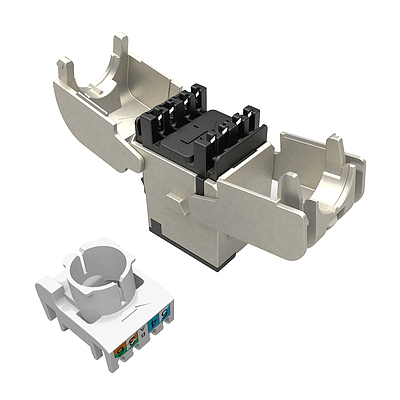

- Very easy toolless installation without the need of using a cable tie
- Innovative GROUND LOCK mechanism allows for a reliable connection of the keystone shielding with the grounding wire or braid of an installation cable

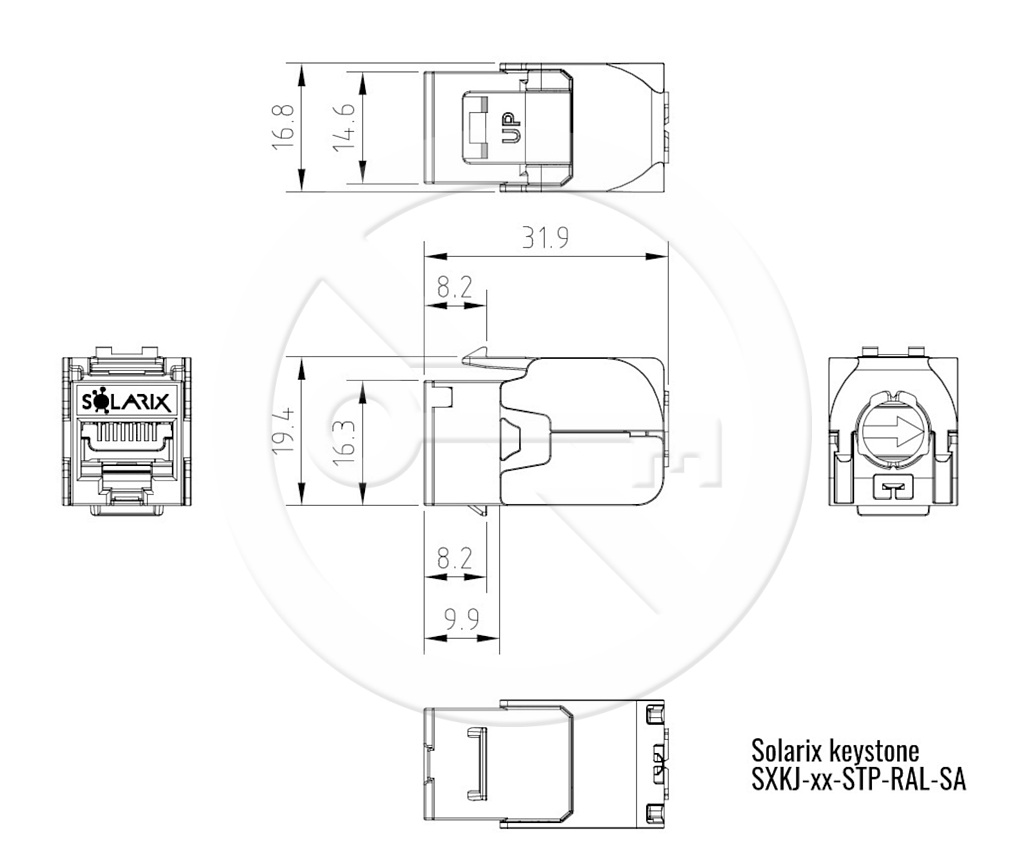

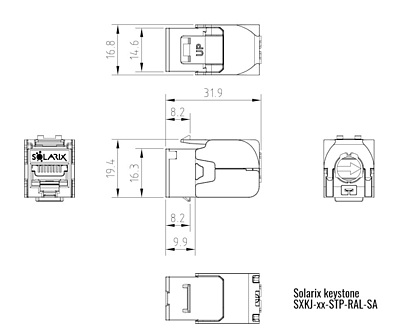

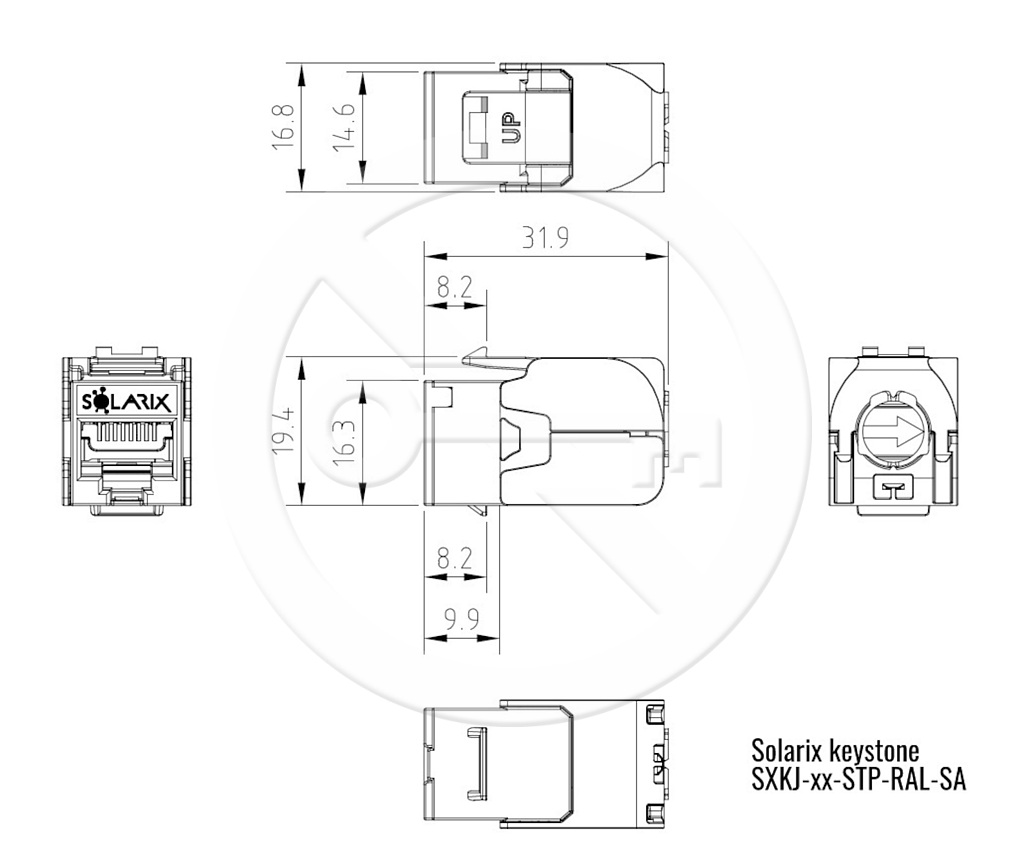

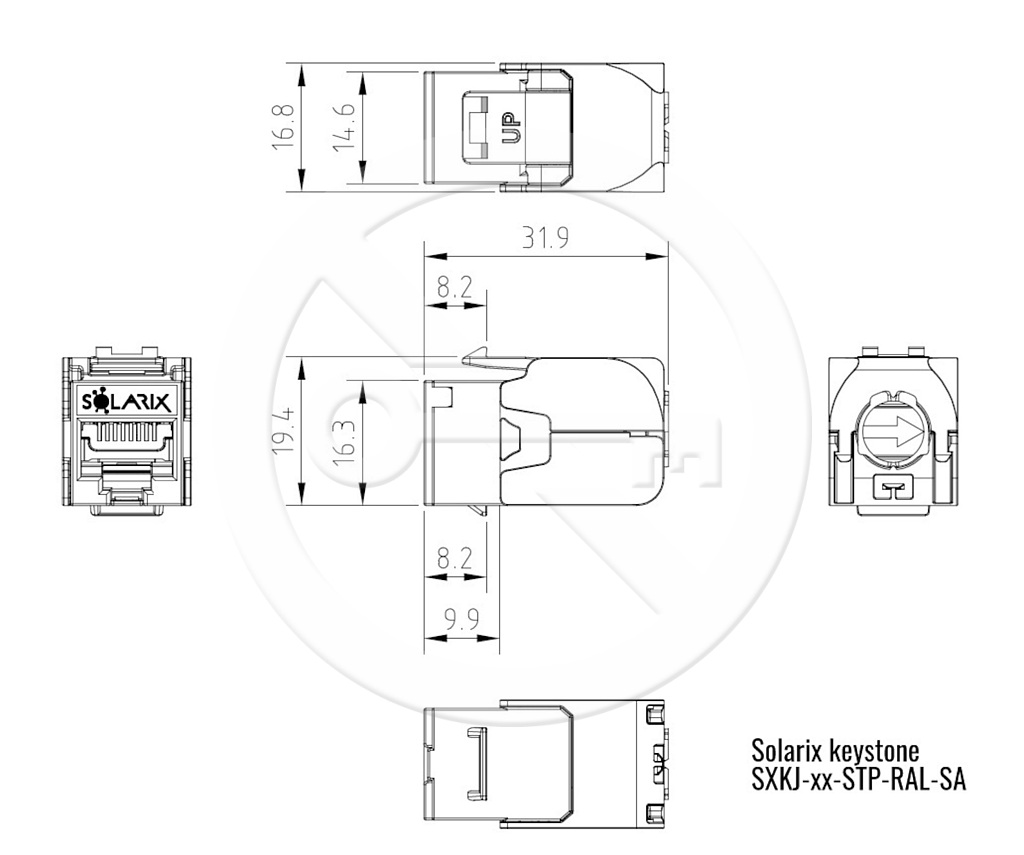

- The shortened COMPACT HD keystone design is suitable for even the most demanding applications, including modular high-density patch panels and outlets (keystone depth is only 31.9 mm)
- The newly developed SECURE CAP includes an integrated cable stopping feature as well as the T568A and T568B colour wiring schemes
- The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
- The colour of the keystone is black (inner parts) and silver (metal body)

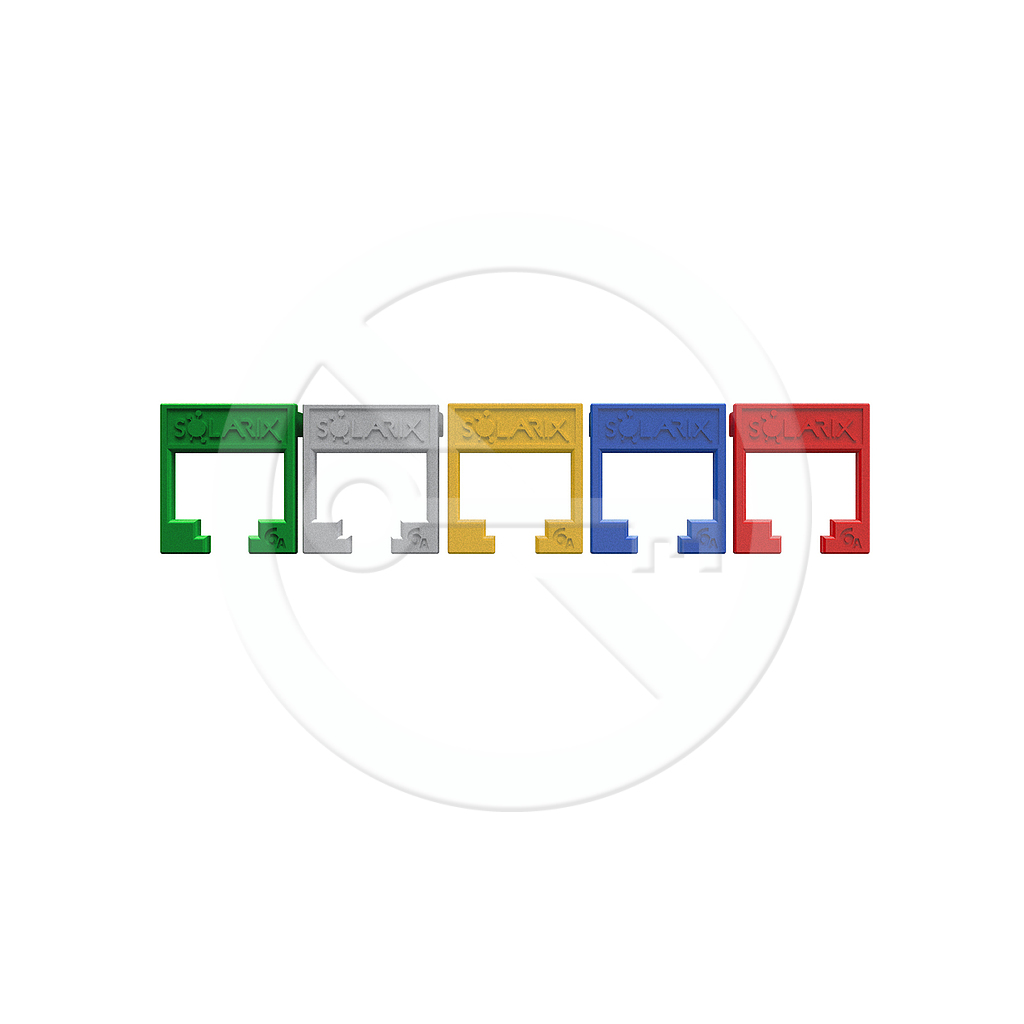

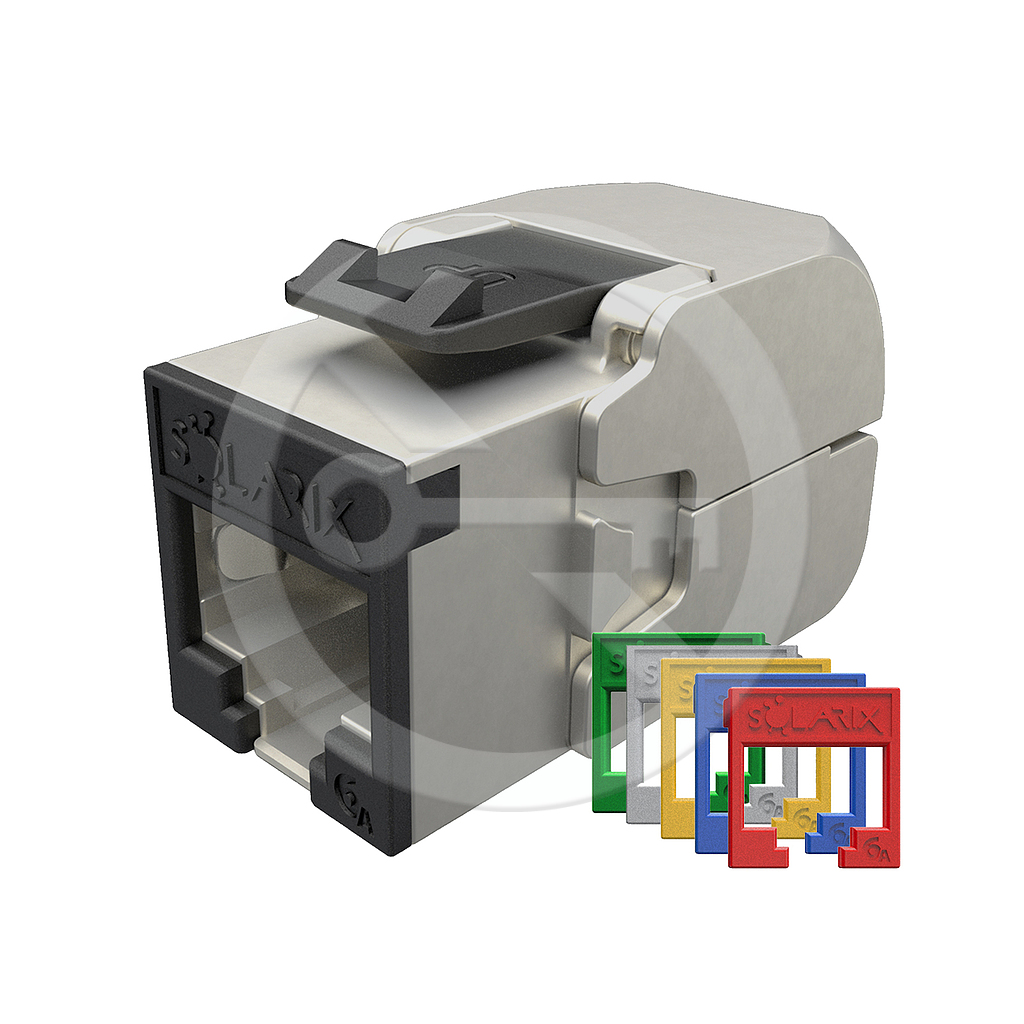

- For better port identification and easier management in the rack, it is possible to choose the colour of the front module of the keystone thanks to its unique RAL FIT system
- A black module is available as default, there are also modules with patch cable colours in the packaging – i.e. red, blue, yellow, green, and grey
- The electrical performance of the keystone has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program, including the 4PPoE standard (i.e. IEEE 802.3bt)
Video demonstrating the installation of shielded Solarix toolless keystones with colored modules
- Category: CAT6A
- Highest Supported Protocol: 10GBASE-T and lower
- Shielded: Yes,
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: toolless
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: black (inner parts) and silver (metal body),
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
- Packaging: 1 pc, plastic bag
- Packaging Size (height x width x depth): 145 mm x 90 mm x 20 mm
- Master packaging: 280 pcs; carton box,
- Master packaging size (height x width x depth): 230 mm x 515 mm x 400 mm
Datasheets
- EN datasheet keystone Solarix SXKJ-10G-STP-RAL-SA (406.7 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (285.97 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN certificate component level SXKJ-10G-STP-xxx-SA/SXKJ-10G-STP-BK-NA (302.22 KB, pdf)
- EN Installation Guide: How to install Solarix components (190.92 KB, pdf)
- EN Installation guide: how to install Solarix RAL keystones (353.19 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
