Keystone Solarix CAT6 UTP RJ45 toolless SXKJ-6-UTP-RAL-SA, RAL FIT modules, SECURE CAP
Brand:
Solarix
Warranty period:
5 years
Order code:
25286806
Unit of measurement (UoM):
piece
Minimum order quantity (MOQ):
1
Compact HD toolless unshielded keystone CAT6 with RAL FIT colour modules and new SECURE CAP cover with Component Level and 4PPoE certification.
3,63 EUR excluding VAT
Info about product:
+420 533 338 803
- Quality unshielded category 6/Class E keystone
- Designed for high-speed ethernet protocols, including 2.5GBASE-T and 5GBASE-T
- Very easy toolless installation

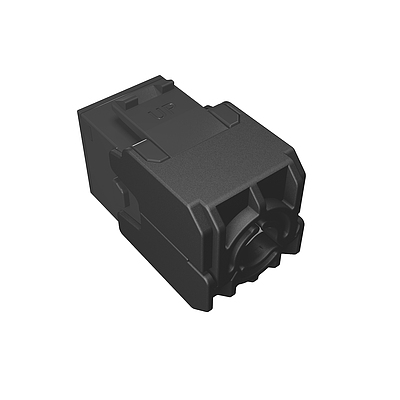

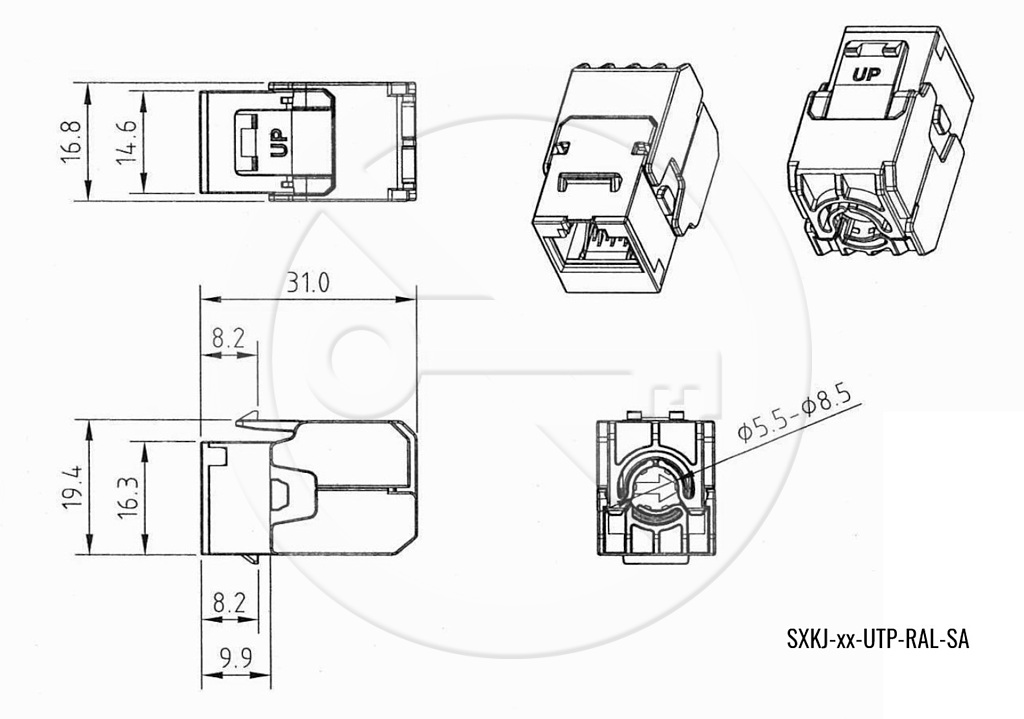

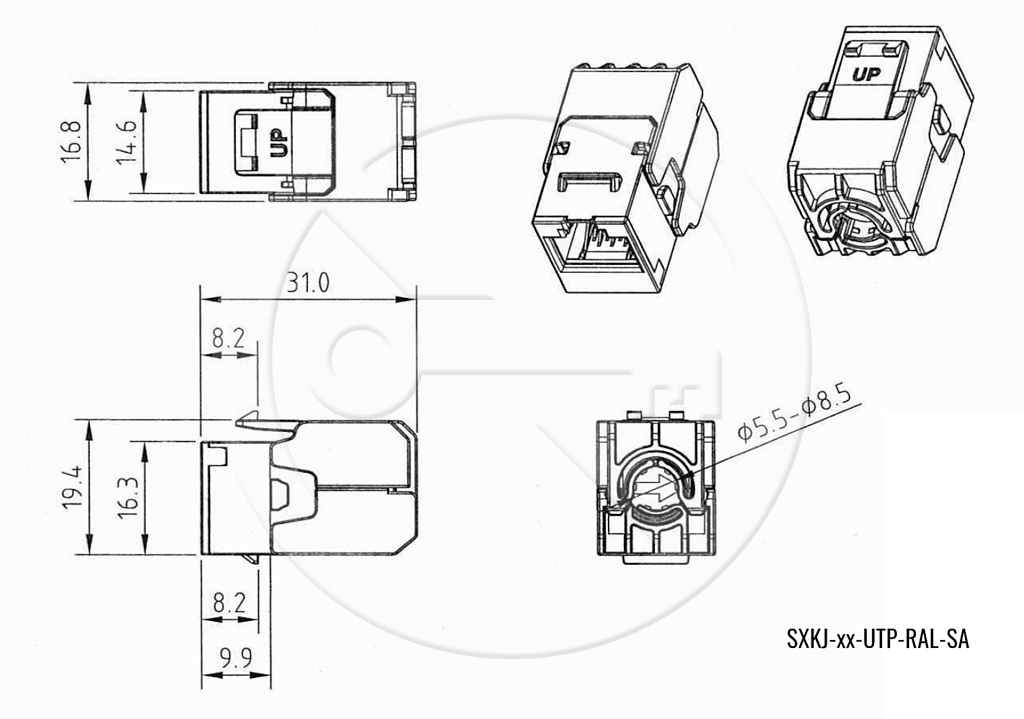

- The shortened COMPACT HD keystone design is suitable for even the most demanding applications, including modular high-density patch panels and outlets (keystone depth is only 31.0 mm)

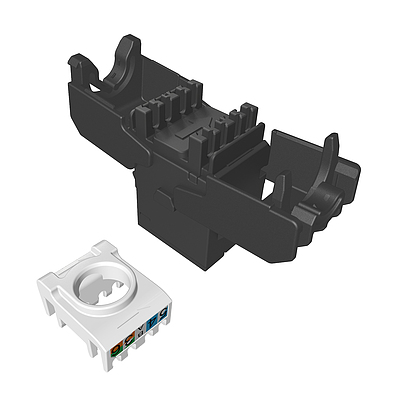

- The newly developed SECURE CAP includes an integrated cable stopping feature as well as the T568A and T568B colour wiring schemes
- The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards

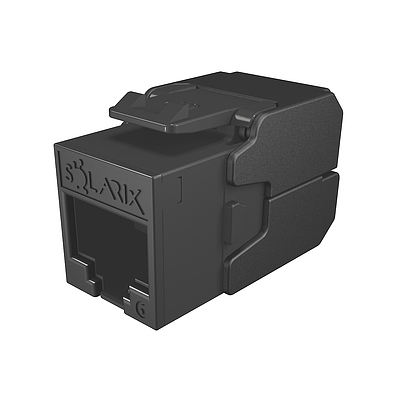

- The colour of the keystone is black

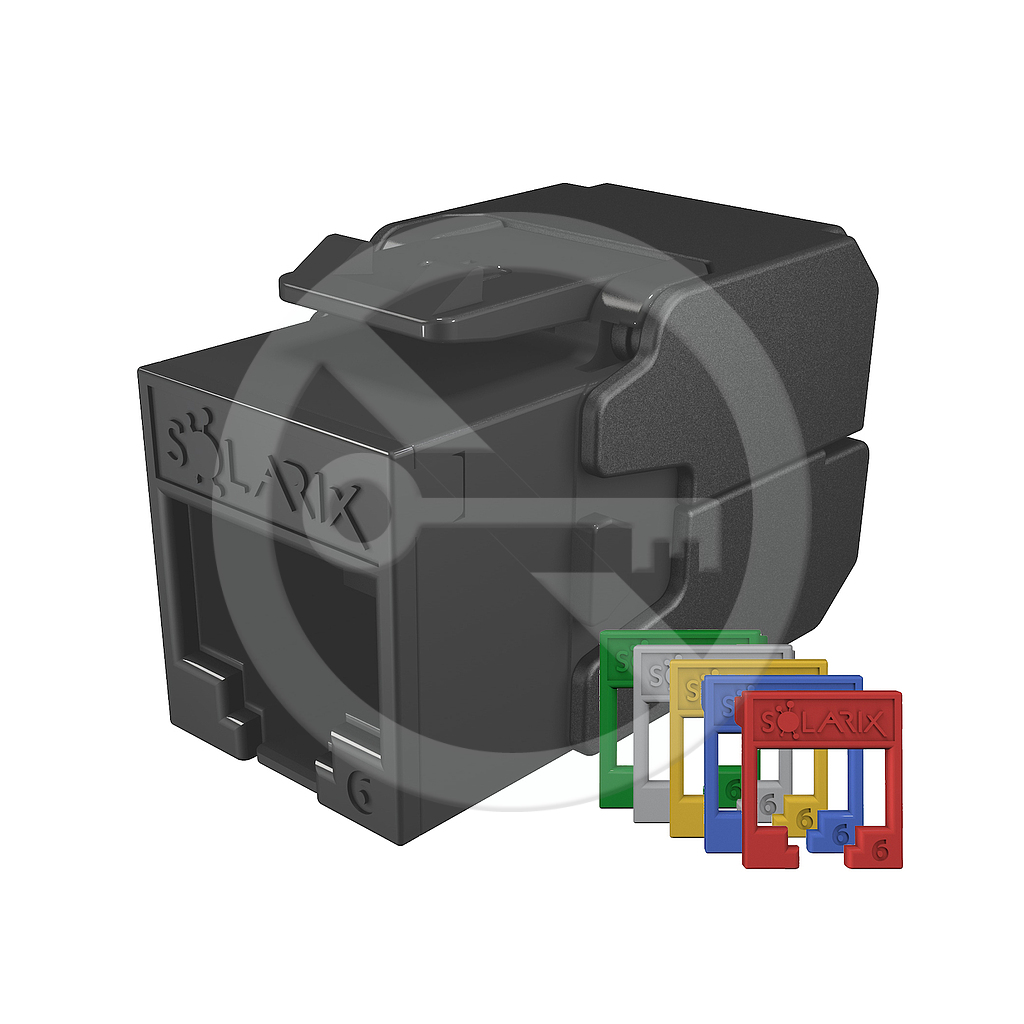

- For better port identification and easier management in the rack, it is possible to choose the colour of the front module of the keystone thanks to its unique RAL FIT system

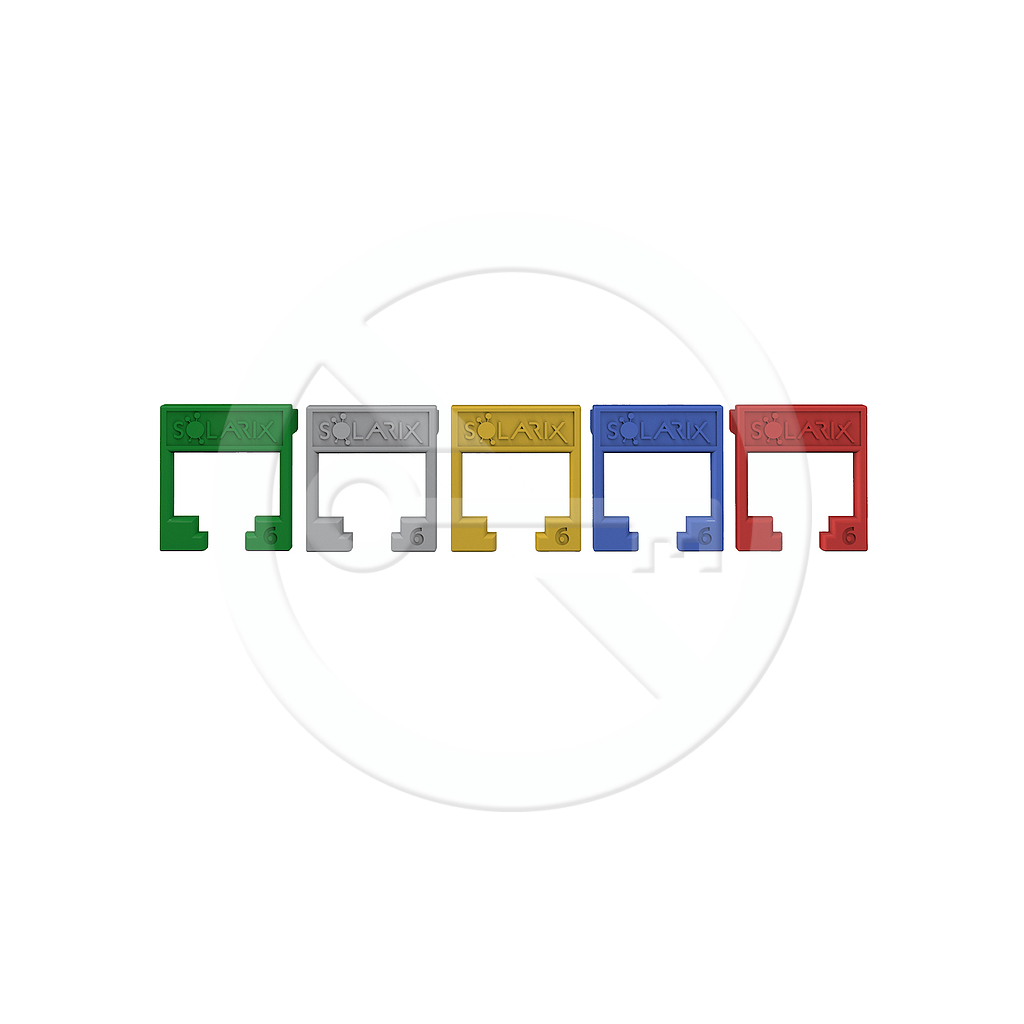

- A black module is available as default, there are also modules with patch cable colours in the packaging – i.e. red, blue, yellow, green, and grey
- The electrical performance of the keystone has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program, including the 4PPoE standard (i.e. IEEE 802.3bt)
Video demonstrating the installation of unshielded Solarix toolless keystones with colored modules
- Category: CAT6
- Highest Supported Protocol: 2.5G/5GBASE-T and lower
- Shielded: No
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: toolless
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: Black
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
- Packaging: 1 pc, plastic bag
- Packaging Size (height x width x depth): 145 mm x 90 mm x 20 mm
- Master packaging: 400 pcs; carton box,
- Master packaging size (height x width x depth): 230 mm x 515 mm x 400 mm
Datasheets
- EN datasheet keystone Solarix SXKJ-6-UTP-RAL-SA (364.52 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN certificate component level SXKJ-6-UTP-xx-SA/SXKJ-6-UTP-BK-NA (329.32 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
