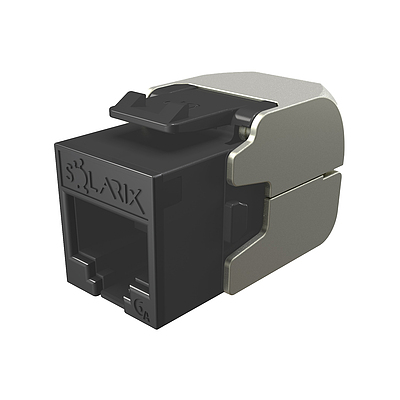

10G keystone Solarix CAT6A UTP toolless SXKJ-10G-UTP-RAL-SA, RAL FIT modules, Component Level and 4PPoE

NEW PRODUCT

Brand: Solarix

Guarantee period: 5 years

Order code: 25286906

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Quality unshielded category 6A keystone with excellent 360° Alien CrossTalk protection called CROSSTALK PROTECT, Component Level and 4PPoE certification.

4,81 EUR ecluding VAT

Info about product:

+420 533 338 803

Pavel Radkovský

Quality unshielded category 6A/Class E_A keystone with excellent 360° Alien CrossTalk protection called CROSSTALK PROTECT
Designed for high-speed ethernet protocols, including 10GBASE-T
Very easy toolless installation

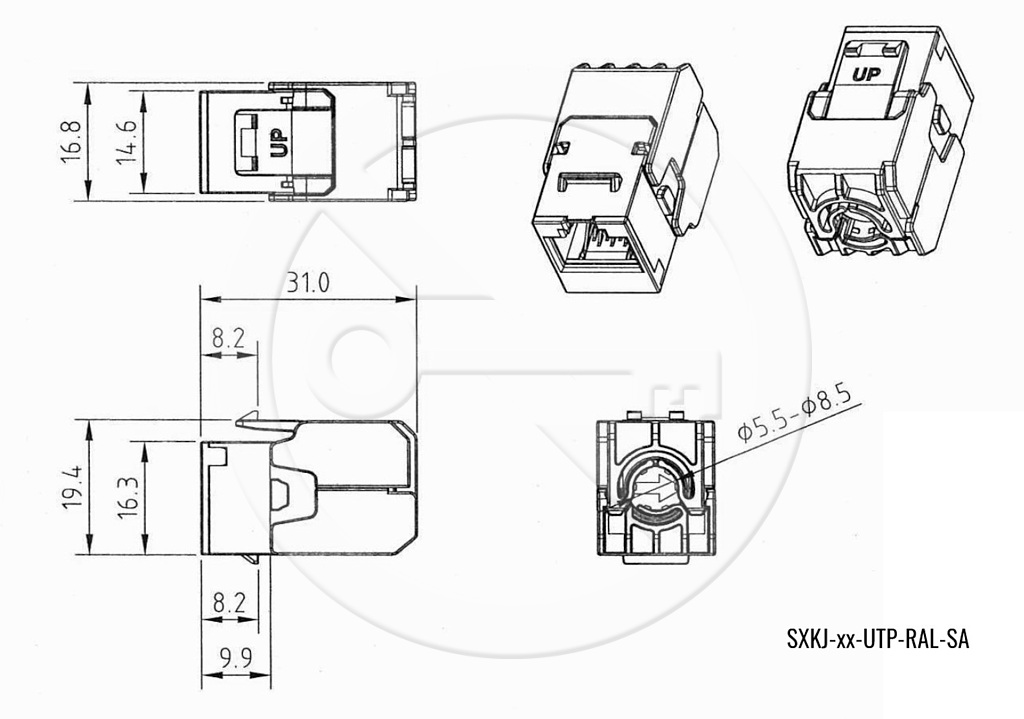

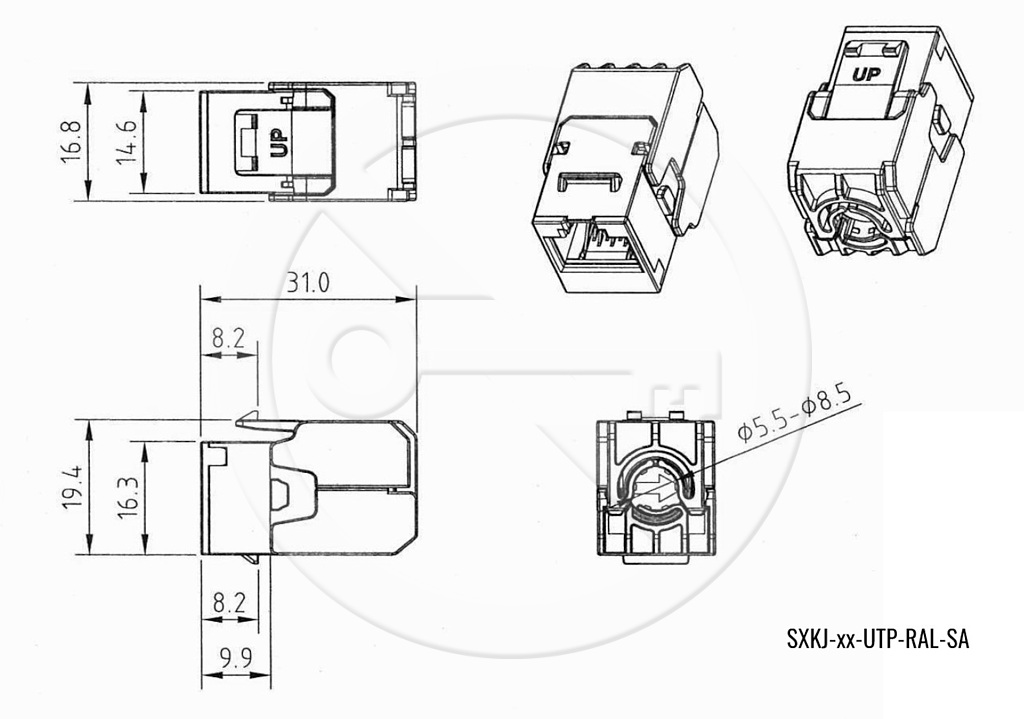

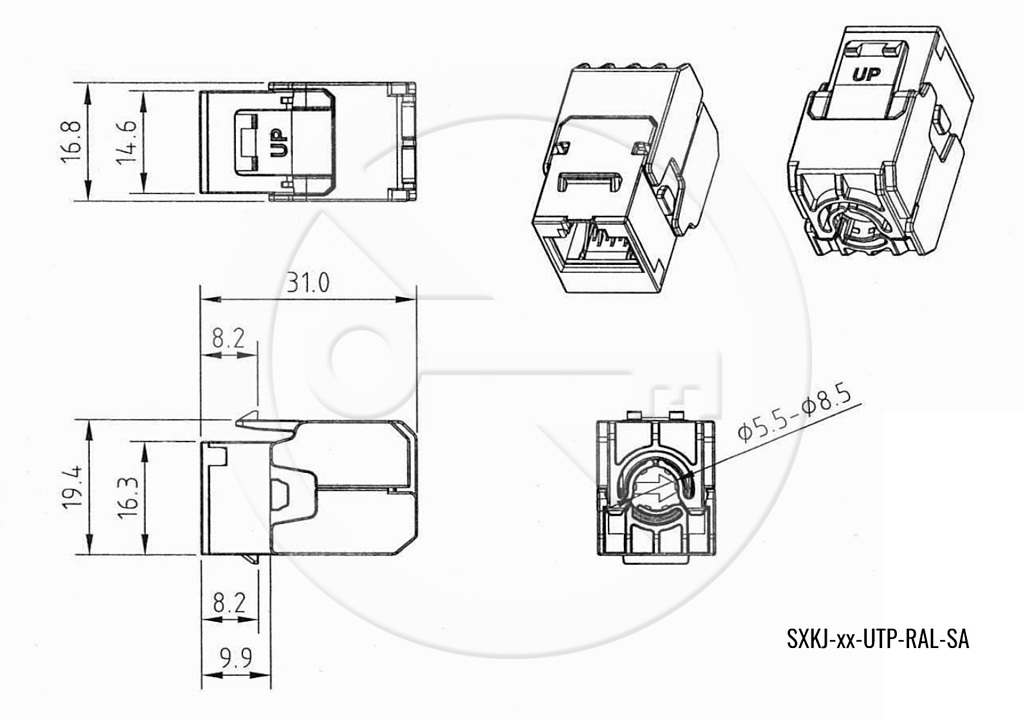

The shortened COMPACT HD keystone design is suitable for even the most demanding applications, including modular high-density patch panels and outlets (keystone depth is only 31.0 mm)

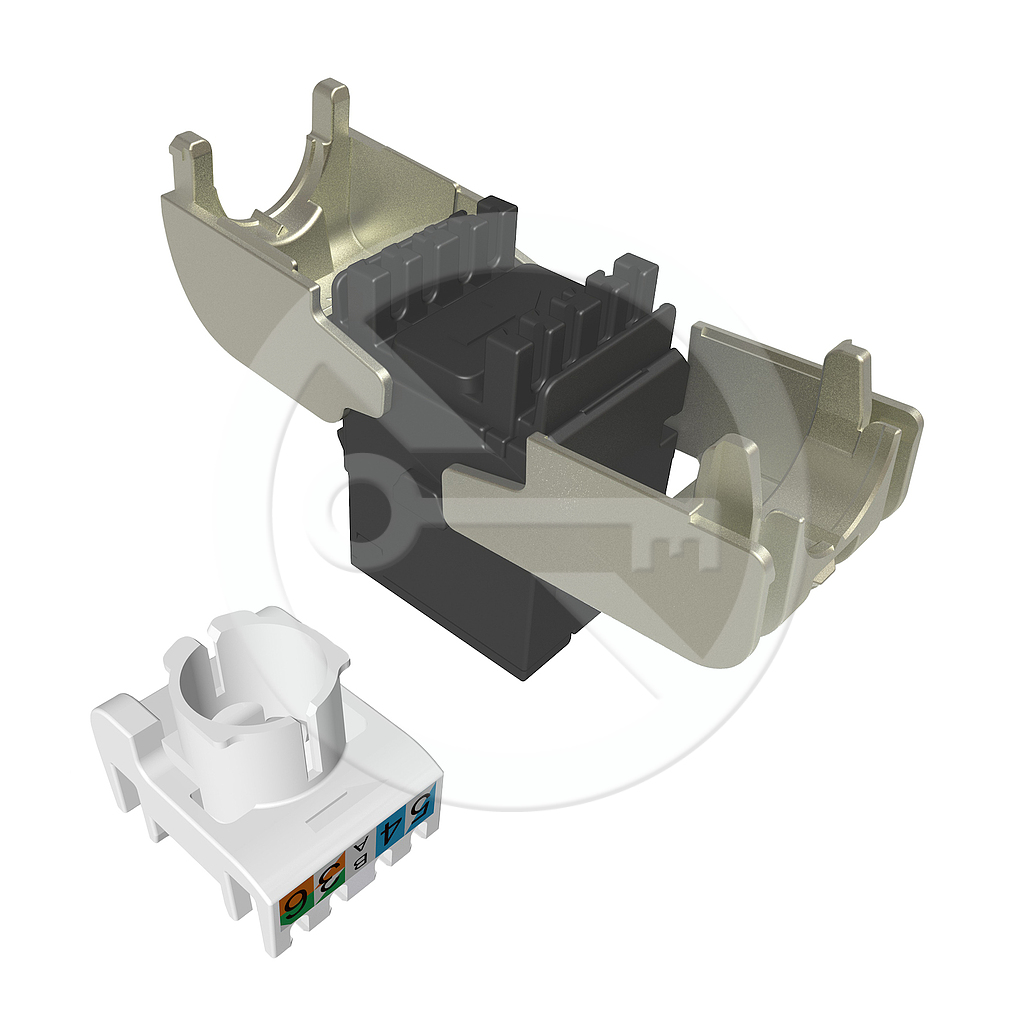

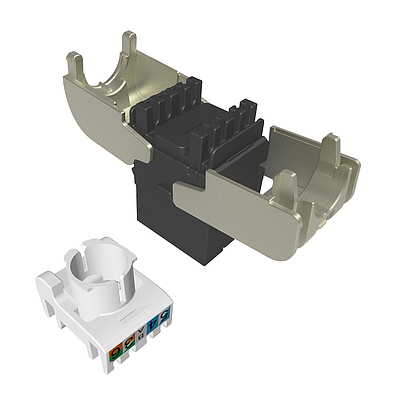

The newly developed SECURE CAP includes an integrated cable stopping feature as well as the T568A and T568B colour wiring schemes
The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards

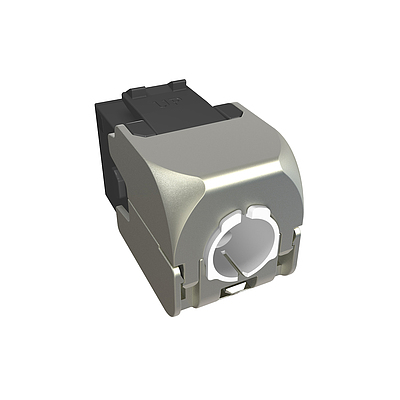

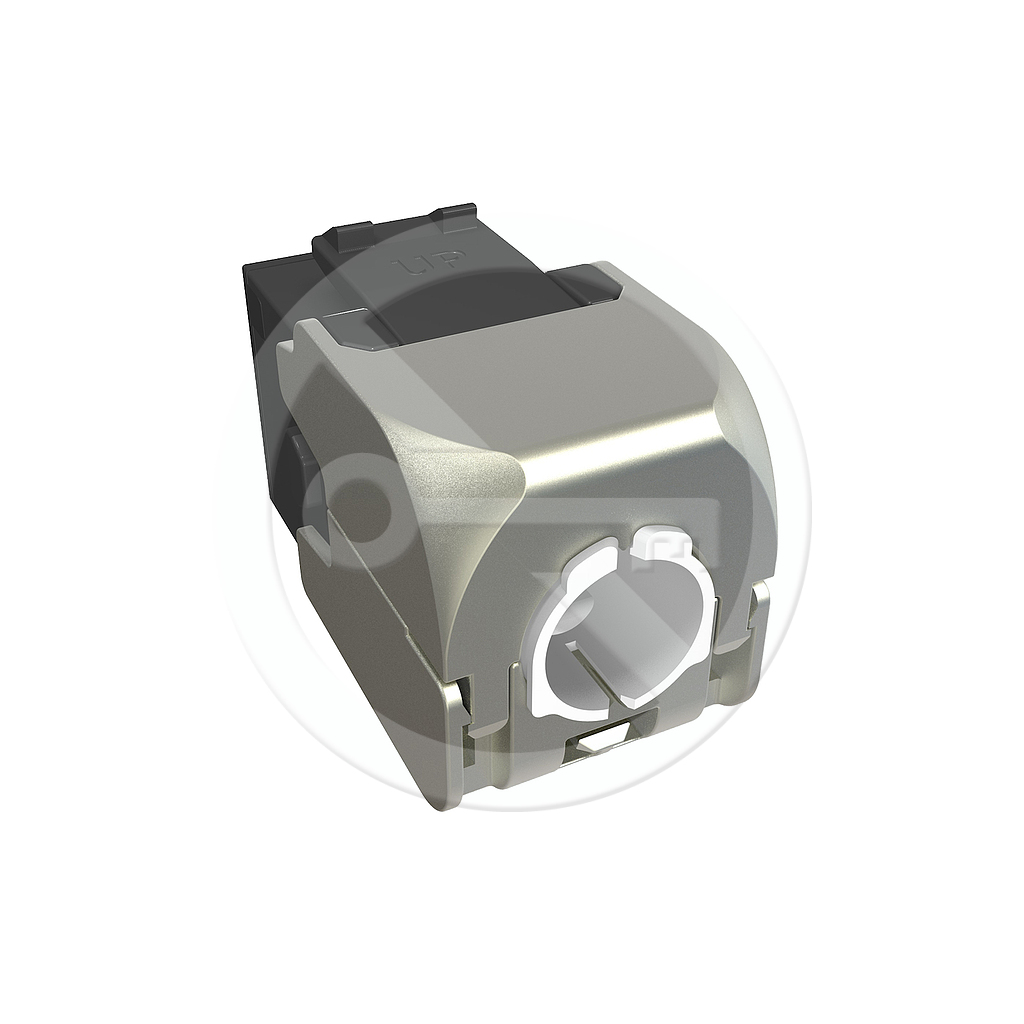

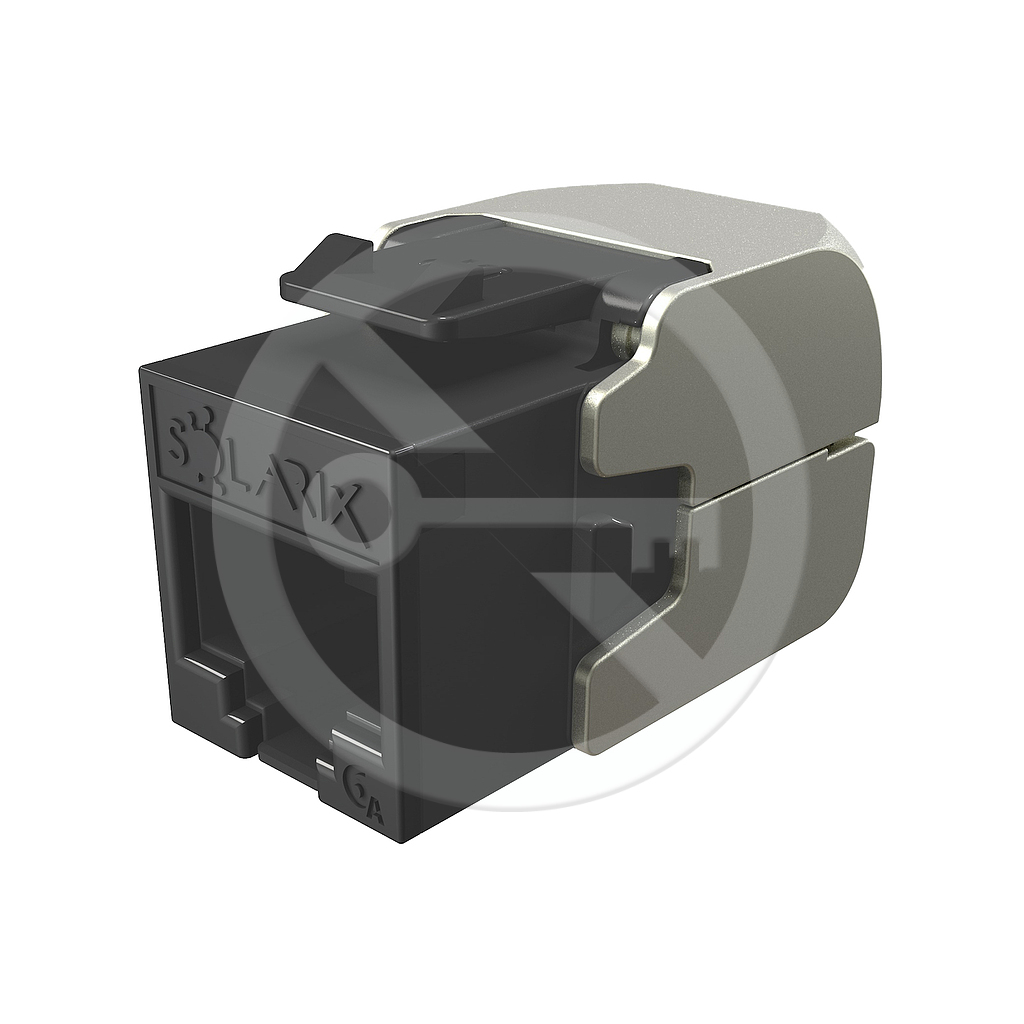

The colour of the keystone is black (inner and front parts) and silver (metal back part)

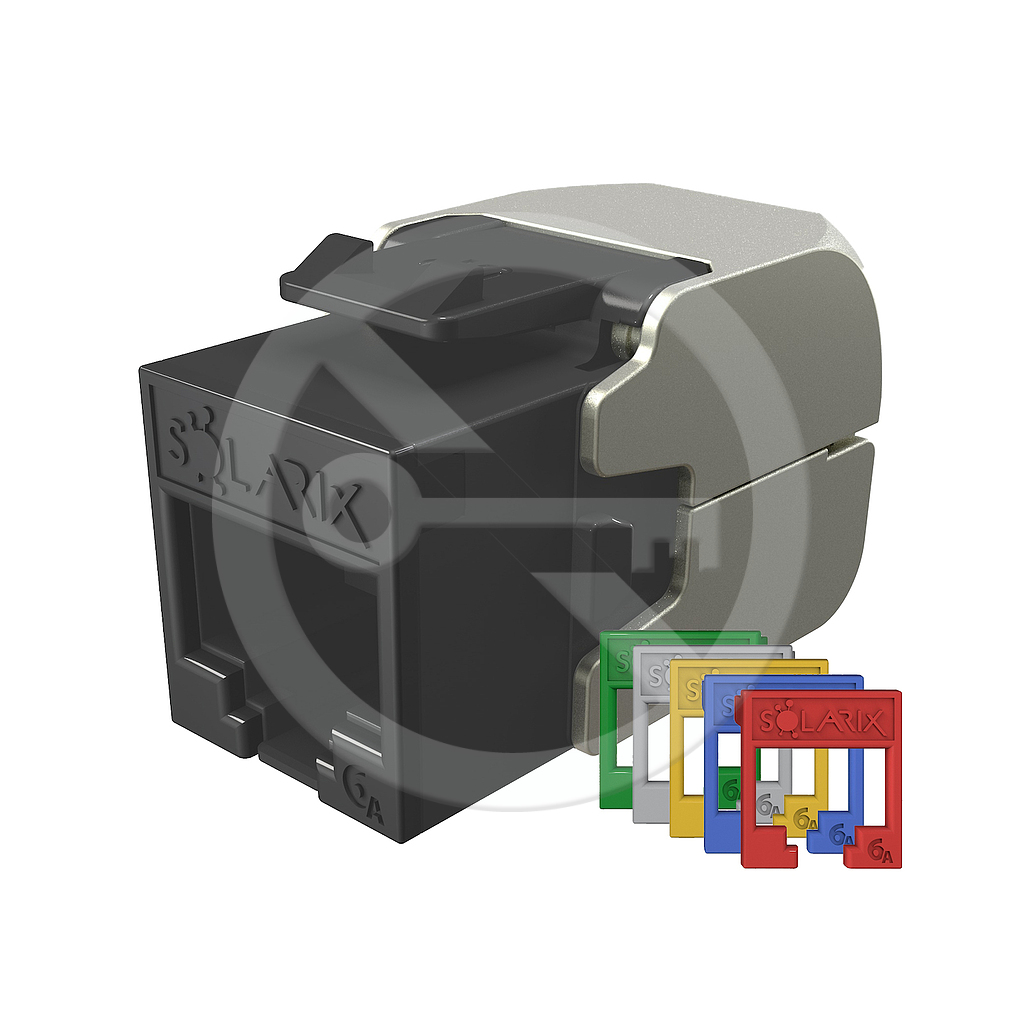

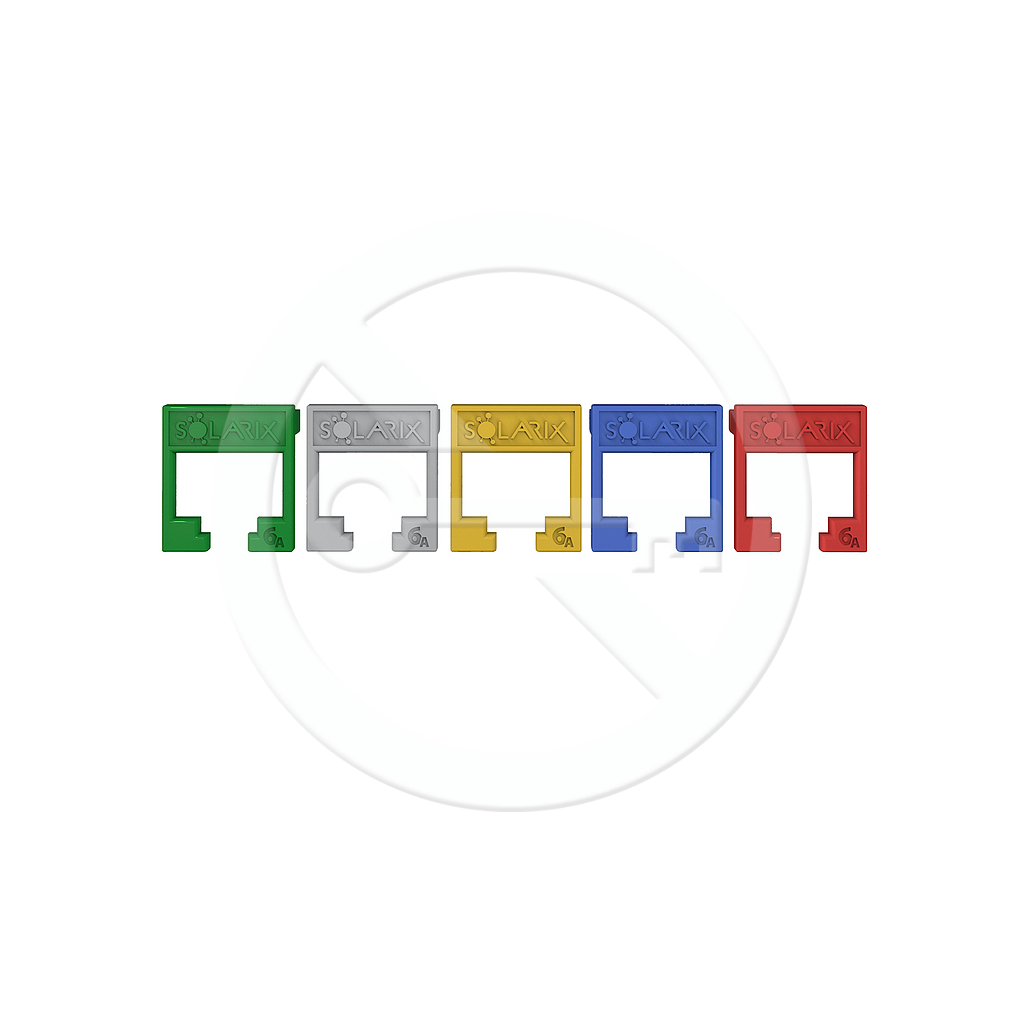

For better port identification and easier management in the rack, it is possible to choose the colour of the front module of the keystone thanks to its unique RAL FIT system

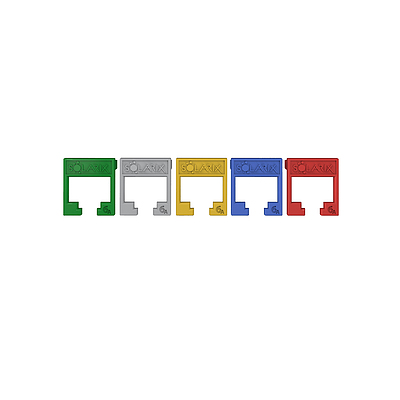

A black module is available as default, there are also modules with patch cable colours in the packaging – i.e. red, blue, yellow, green, and grey
The electrical performance of the keystone has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program, including the 4PPoE standard (i.e. IEEE 802.3bt)

Category: CAT6A
Highest Supported Protocol: 10GBASE-T and lower
Shielded: No,
Min. Port Life: 1000 cycles
Contact Plating: 50 µ gold
Termination Module: toolless
Conductor Size and Type: AWG 26 - 22, solid
Housing Material: FR acc. to UL94-0
Color: black (inner and front parts) and silver (metal back part),
Storage Temperature: -40 °C to 70 °C
Operational Temperature: -10 °C to 60 °C
Max. Operational Humidity: 93 %
