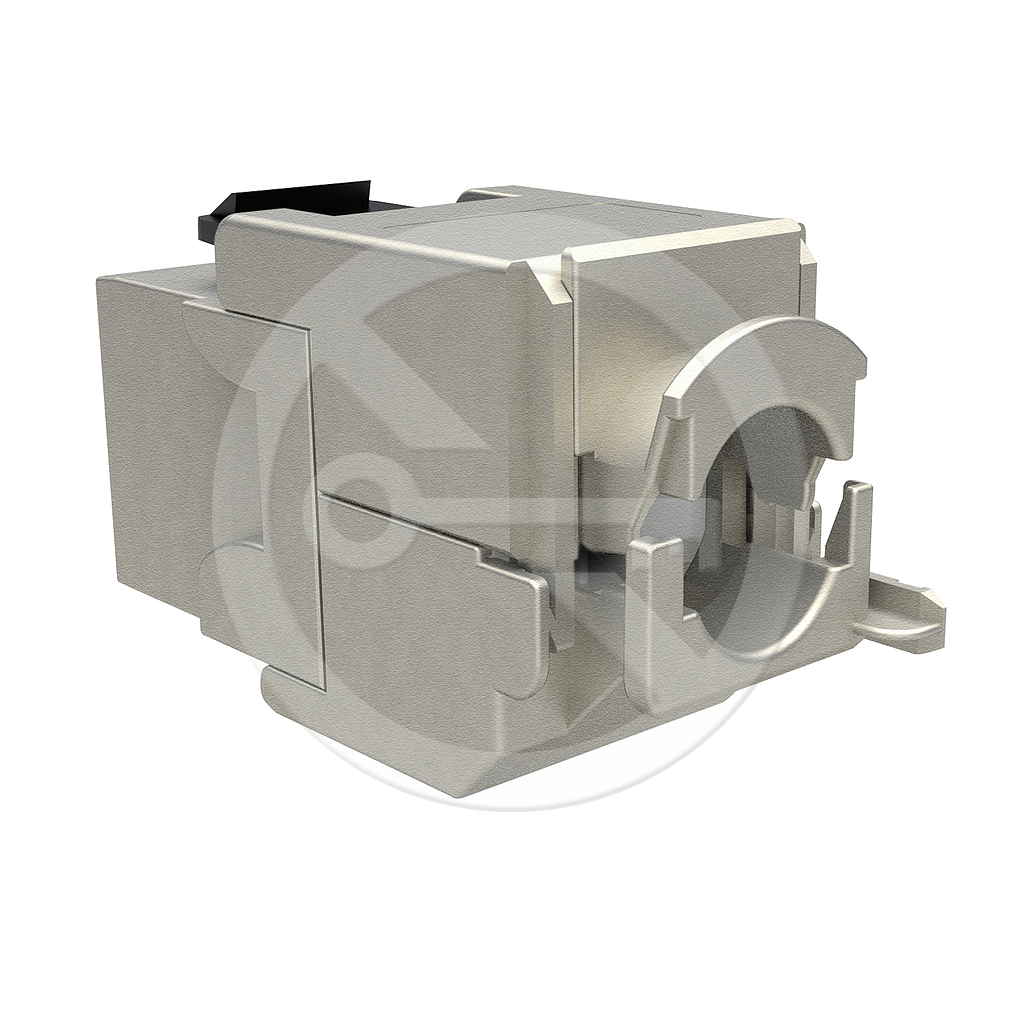

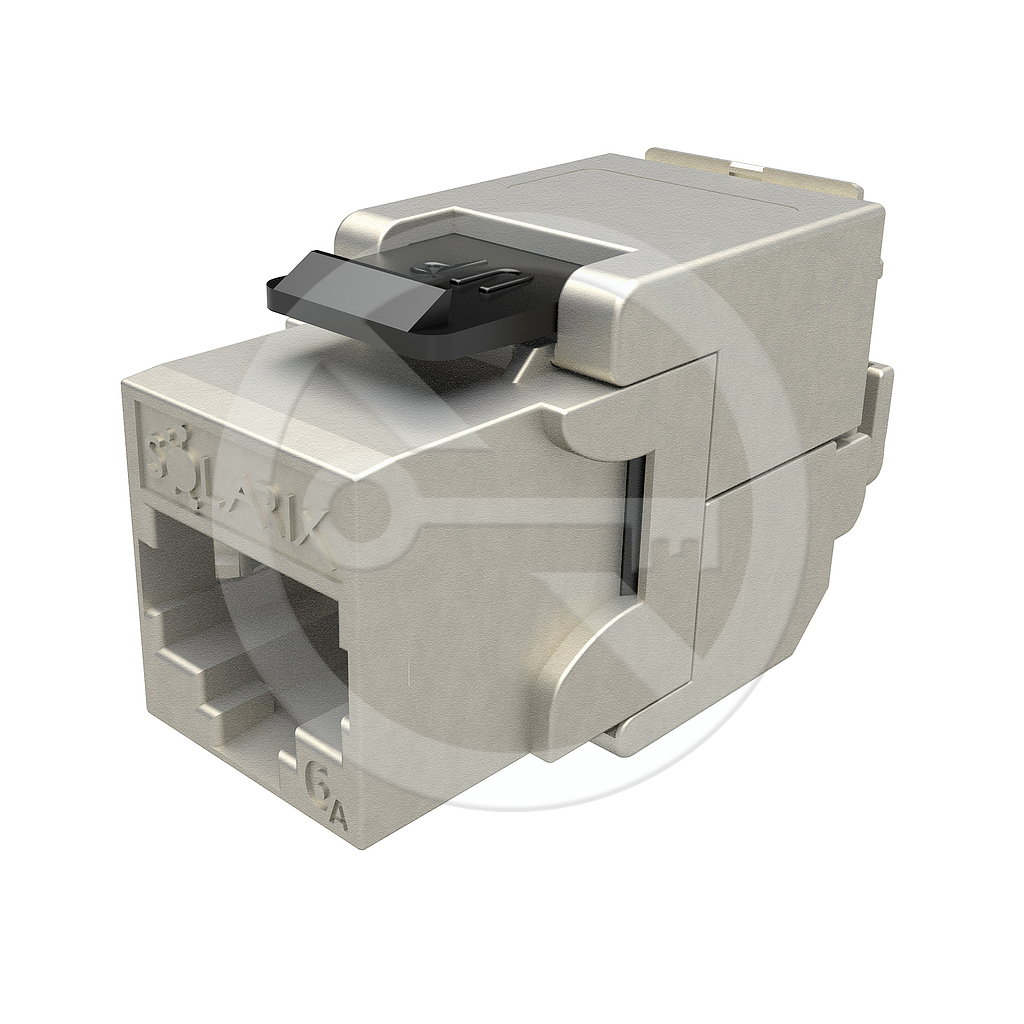

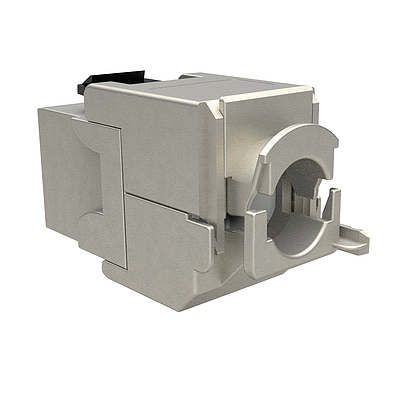

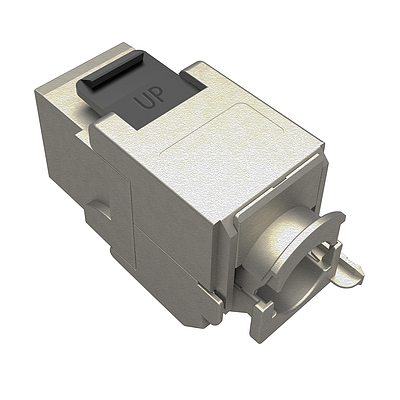

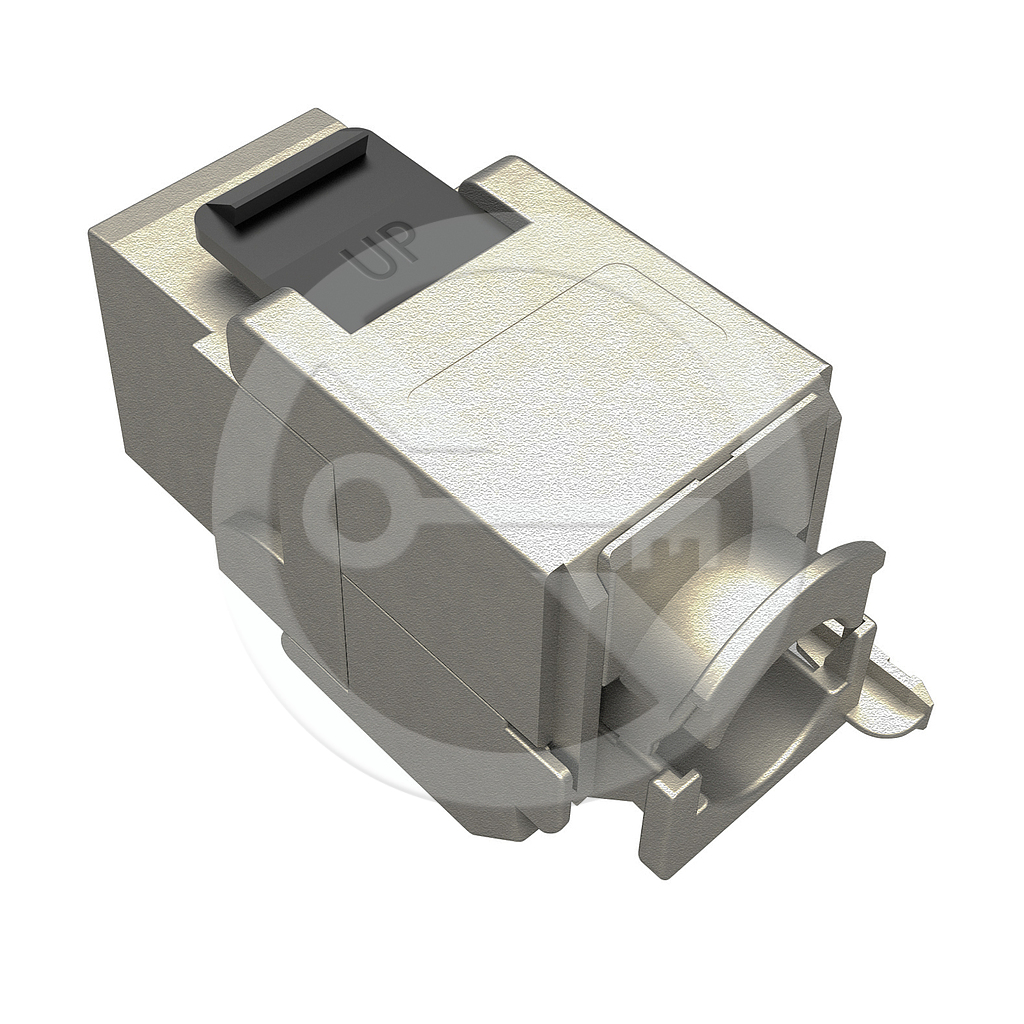

10G keystone Solarix CAT6A STP RJ45 toolless SXKJ-10G-STP-BK-SAComponent Level and 4PPoE certification
Brand:
Solarix
Guarantee period:
5 years
Order code:
25286902
Unit of measurement (UoM):
piece
Min. purchase amount (UoM):
1
Quality shielded category 6A RJ45 keystone with Component Level and 4PPoE certification.
5,26 EUR ecluding VAT
Info about product:
+420 533 338 803
- Quality shielded category 6A/Class EA keystone
- Designed for ethernet protocols, including 2.5GBASE-T, 5GBASE-T, and 10GBASE-T

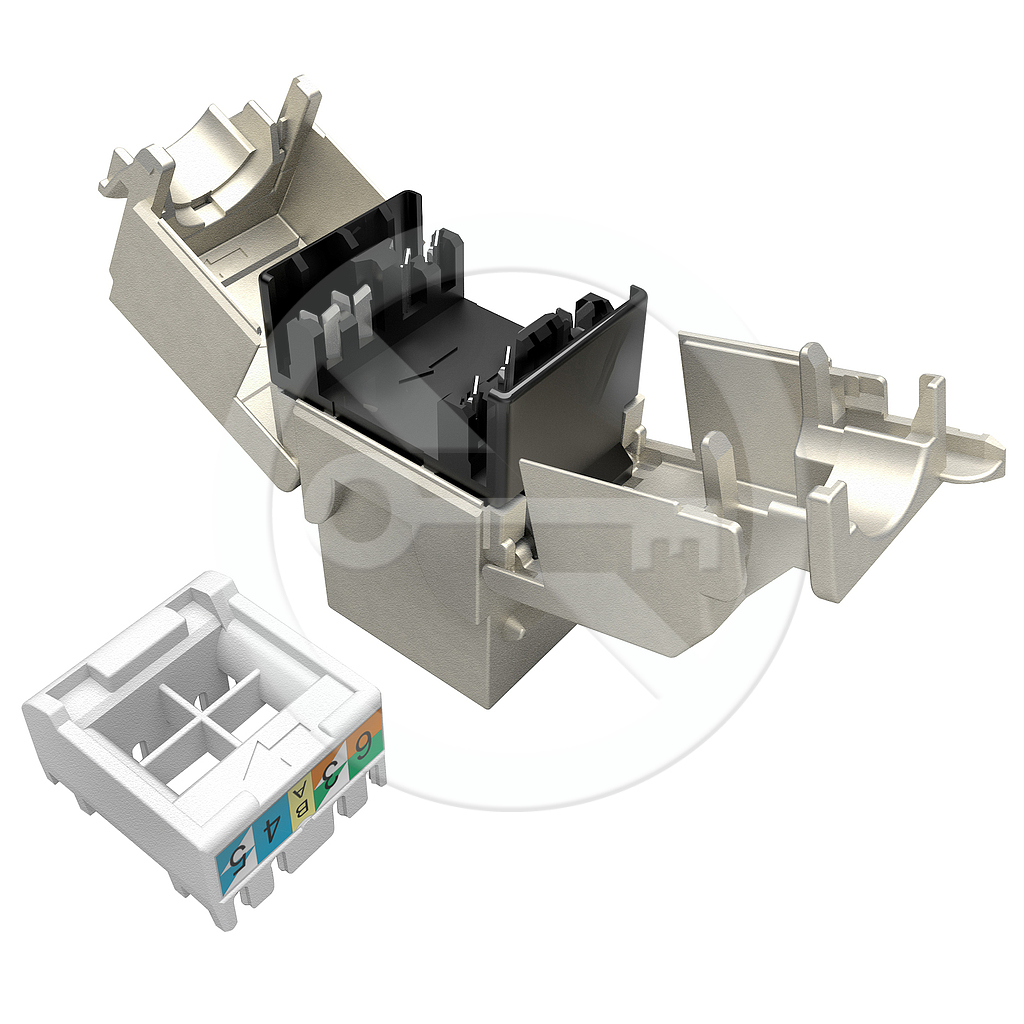

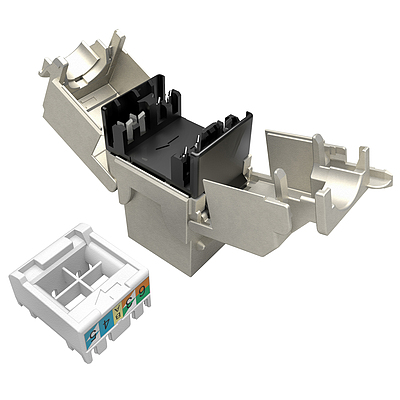

- Very easy toolless installation
- 50 µin gold contact plating
- The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards

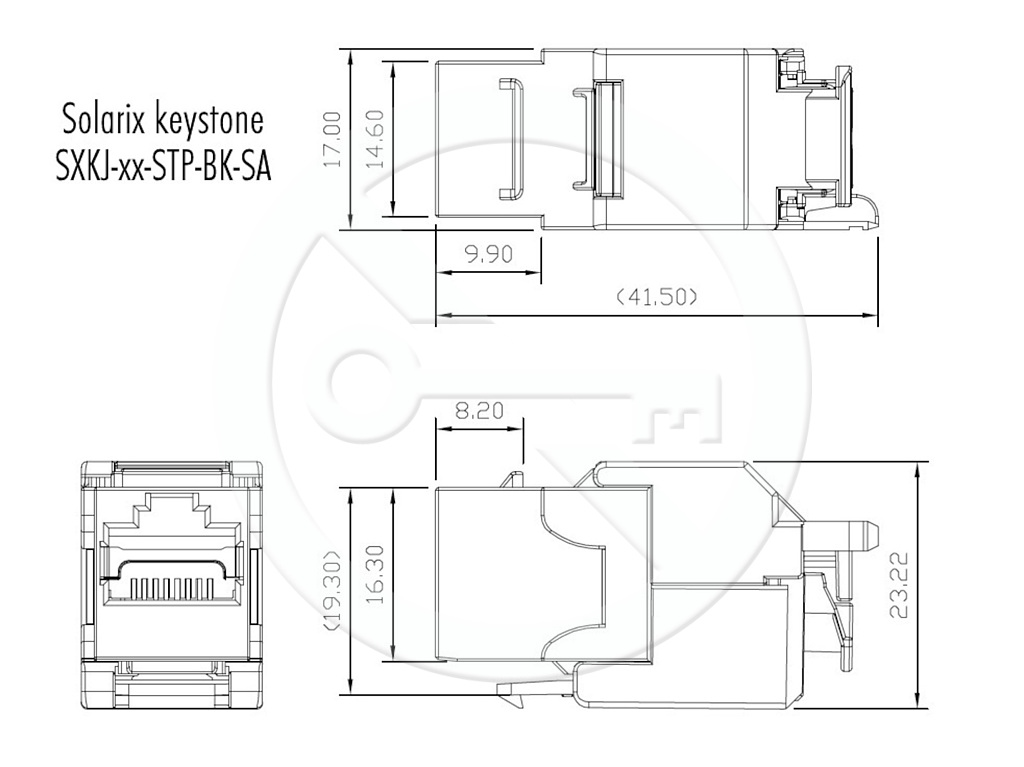

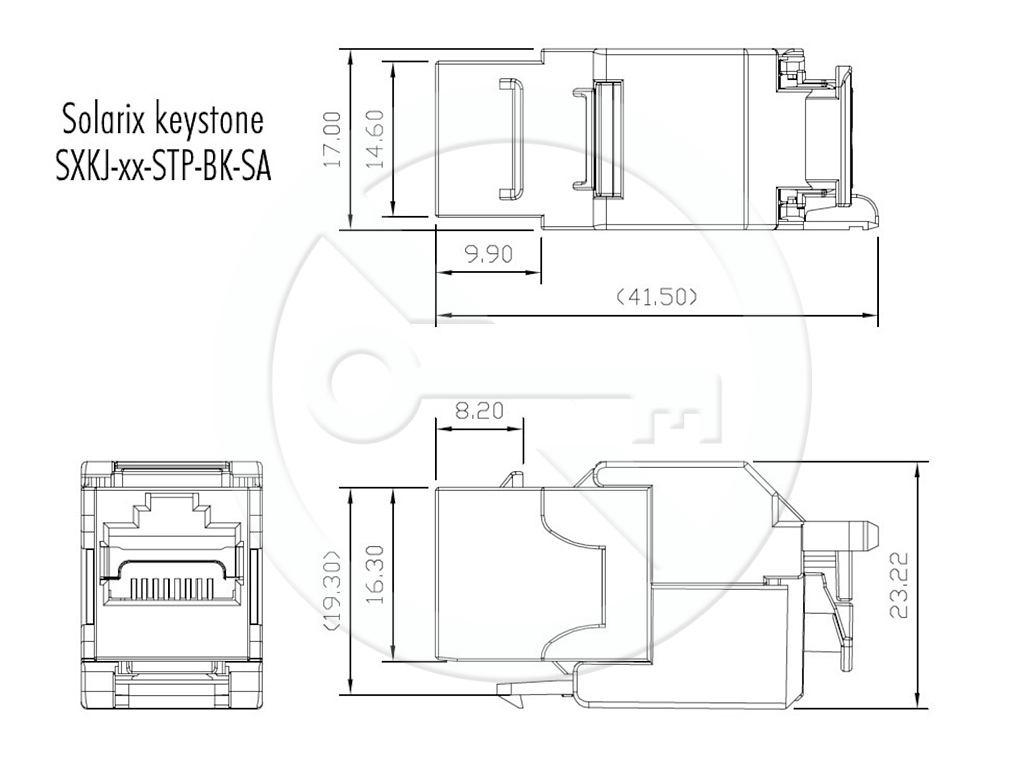

- Its form factor complies with the requirements of the EN 60603-7 specifications (i.e. the keystone is compatible with other manufacturers‘ modular outlets that meet this standard)
- The colour of the keystone is black (inner parts) and silver (metal body)
- Its electrical performance has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program, including the 4PPoE standard (i.e. IEEE 802.3bt)
- Category: CAT6A
- Highest Supported Protocol: 10GBASE-T and lower
- Shielded: Yes
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: toolless
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: black (inner parts) and silver (metal body),
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Datasheets
- EN datasheet keystone Solarix SXKJ-10G-STP-BK-SA (493.31 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN certificate component level SXKJ-10G-STP-xxx-SA/SXKJ-10G-STP-BK-NA (340.64 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
