Installation cable Solarix CAT5E UTP PE Fca outdoor 100m/box SXKD-5E-UTP-PE
Brand:
Solarix
Guarantee period:
5 years
Order code:
27724191
Unit of measurement (UoM):
box100m
Min. purchase amount (UoM):
1

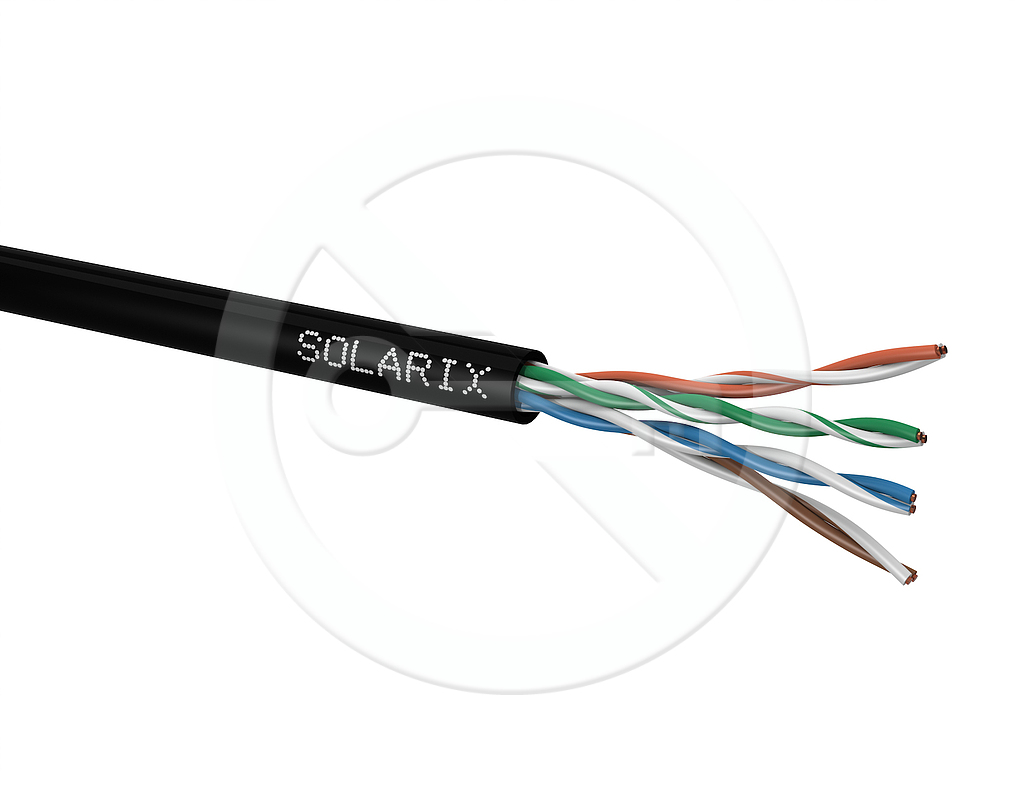

High quality unshielded category 5E installation cable for outdoor use, PE sheath with the Fca reaction to fire class, 100 m box.
55,50 EUR excluding VAT
Info about product:
+420 533 338 803

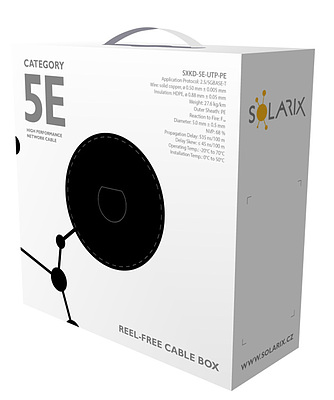

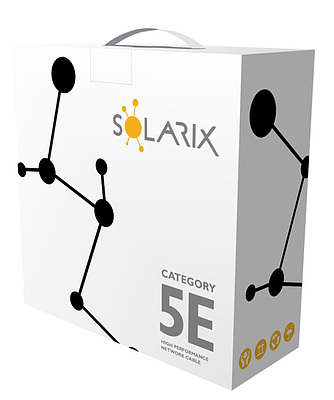

The Solarix SXKD-5E-UTP-PE installation cable is a reliable Category 5E outdoor unshielded cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The cable construction is U/UTP, with a UV-stable PE jacket, Fca reaction to fire class and IP67 protection. The cable conductors are made of high-quality copper wire with 99.97% copper purity. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. Like other Solarix cables, the SXKD-5E-UTP-PE cable is marked in 1 m increments from 0 to 100 m. The cable is supplied in a highly durable three-layer polished cardboard box (always color-coded according to cable type), which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters. This cable is not intended for permanent storage in water or soil without adequate protection.
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Shielded: No
- Bandwidth: 100 MHz
- Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm
- Insulation and Wire Diameter with Insulation: HDPE 0.88 mm
- Reaction to fire; Sheath: Fca; PE
- Colour: black RAL 9005
- Nominall Cable Diameter: 5.2 mm
- Weight: 27.6 kg/km
- NVP: 68 %
- Propagation Delay: 535 ns/100 m
- Delay Skew: ≤45 ns/100 m
- Storage Temperature: -20 °C to 70 °C
- Operational Temperature: -20 °C to 70 °C
- Installation Temperature: 0 °C to 50 °C
- Packaging: 100 m/box,
- Packaging Size (height x depth x width): 260 mm x 260 mm x 120 mm
- Number of Items on a Pallet: 128 boxes
Datasheets
- EN datasheet Solarix installation cable SXKD-5E-UTP-PE 100m (355.64 KB, pdf)
- CZ, EN, PL, SK DoP M106-SXKD-5E-UTP-PE-Fca-01 (232.82 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
