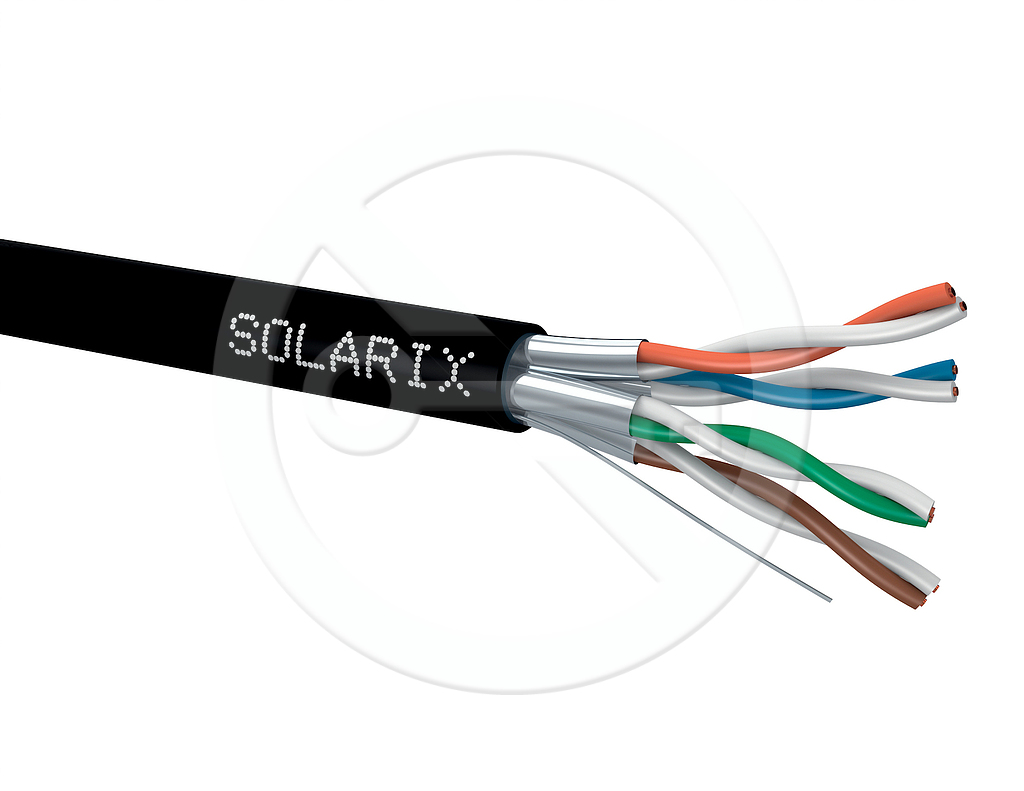

Installation cable Solarix CAT6A STP PE Fca 500m/reel SXKD-6A-STP-PE
Brand:
Solarix
Guarantee period:
5 years
Order code:
26000040
Unit of measurement (UoM):
reel 500m
Min. purchase amount (UoM):
1
High quality shielded category 6A installation cable for outdoor use, PE sheath with the Fca reaction to fire class, UV resistant, IP 67 ingress protection, 500 m reel.
440,50 EUR ecluding VAT
Info about product:
+420 533 338 803
The Solarix installation cable with the designation SXKD-6A-STP-PE is a high-quality Category 6A shielded cable designed for high-speed Ethernet protocols, including 10GBASE-T. The cable construction is U/FTP, with a UV-stable PE jacket, Fca reaction to fire class, and IP67 protection. The cable conductors are made of high-quality copper wire with 99.97% copper purity. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. Like other Solarix cables, the SXKD-6A-STP-PE cable is marked in 1 m increments from 0 to 500 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters. This cable is not intended for permanent storage in water or soil without adequate protection.
- Category: CAT6A
- Highest Supported Protocol: 10GBASE-T and lower
- Shielded: individual foil around each pair
- Bandwidth: 500 MHz
- Conductor Type and Size: copper wire 0.56 mm ± 0.005 mm, ,
- Insulation and Wire Diameter with Insulation: skin-foam-skin PE 1.33 mm,
- Reaction to fire; Sheath: Fca; PE
- Colour: black RAL 9005
- Nominall Cable Diameter: 7.3 mm,
- Weight: 46.2 kg/km,
- NVP: 75 %
- Propagation Delay: 480 ns/100 m
- Delay Skew: ≤45 ns/100 m
- Storage Temperature: -20 °C to 70 °C
- Operational Temperature: -20 °C to 70 °C
- Installation Temperature: 0 °C to 50 °C
- Packaging: 500 m/reel,
- Packaging Size (diameter x height): 380 mm x 390 mm
- Number of Items on a Pallet: 27 reels
Datasheets
- EN datasheet Solarix installation cable SXKD-6A-STP-PE (382.35 KB, pdf)
- CZ, EN, PL, SK DoP M305-SXKD-6A-STP-PE-Fca-01 (232.87 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
