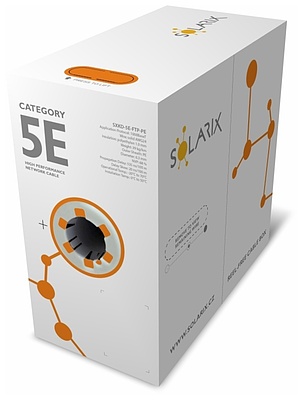

Installation cable Solarix CAT5E FTP PE Fcaoutdoor 305m/box SXKD-5E-FTP-PE
Brand:
Solarix
Warranty period:
5 years
Order code:
27655192
Unit of measurement (UoM):
box305m
Minimum order quantity (MOQ):
1
Transport Packaging (UoM):
30 (large pallet), 24 (small pallet)
High quality shielded category 5E installation cable for outdoor use, PE sheath with the Fca reaction to fire class, 305 m box.
194,59 EUR excluding VAT
Info about product:
+420 533 338 803

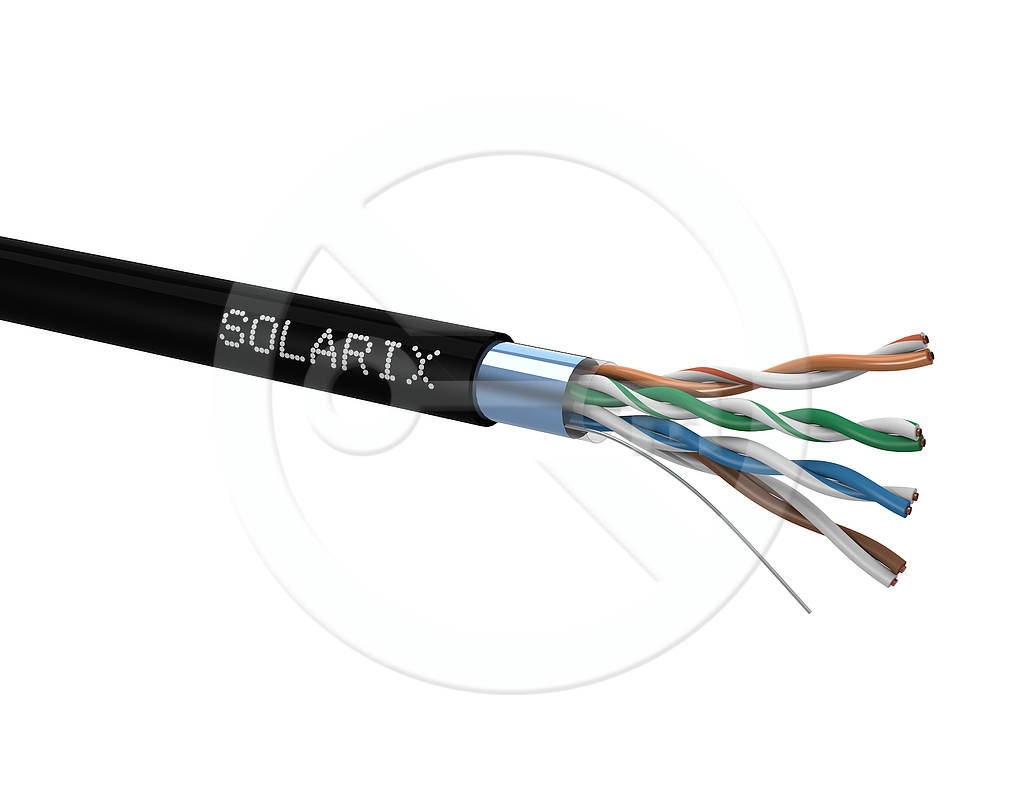

- High quality shielded category 5E/Class D installation cable for outdoor use
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T*
- F/UTP cable construction
- PE sheath with the Fca reaction to fire class, UV resistant, IP 67 ingress protection
- Cable conductors are made of high-quality copper wire with 99.97% purity
- The cable meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-E cabling standards
Solarixpedia: 10 principles how to install data cables
*) For the 2.5GBASE-T and 5GBASE-T protocols, the operability success and distance achieved may vary depending on the type and quality of installation, primarily depending on the influence of so-called Alien CrossTalk.
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Shielded: overall foil
- Bandwidth: 100 MHz
- Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm
- Insulation and Wire Diameter with Insulation: HDPE 1.0 mm
- Reaction to fire; Sheath: Fca; PE
- Colour: black RAL 9005
- Nominall Cable Diameter: 6.2 mm
- Weight: 34.8 kg/km
- NVP: 68 %
- Propagation Delay: 535 ns/100 m
- Delay Skew: ≤45 ns/100 m
- Storage Temperature: -20 °C to 70 °C
- Operational Temperature: -20 °C to 70 °C
- Installation Temperature: 0 °C to 50 °C
- Packaging: 305 m/box,
- Packaging Size (height x depth x width): 420 mm x 420 mm x 215 mm
- Number of Items on a Pallet: 30 boxes (large pallet), 24 boxes (small pallet)
Datasheets
- EN datasheet Solarix installation cable SXKD-5E-FTP-PE 305m (383.63 KB, pdf)
- CZ, EN, PL, SK DoP M107-SXKD-5E-FTP-PE-Fca-01 (232.77 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (285.97 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN Installation Guide: Calculating the segregation of power and data cables (428.84 KB, pdf)
- EN Installation Guide: How to install cables Solarix (172.92 KB, pdf)
- EN Installation Guide: How to install data cables directly under the plaster (88.42 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
- EN Solarixpedia: What you will find on the CPR label of Solarix cables (78.43 KB, pdf)
