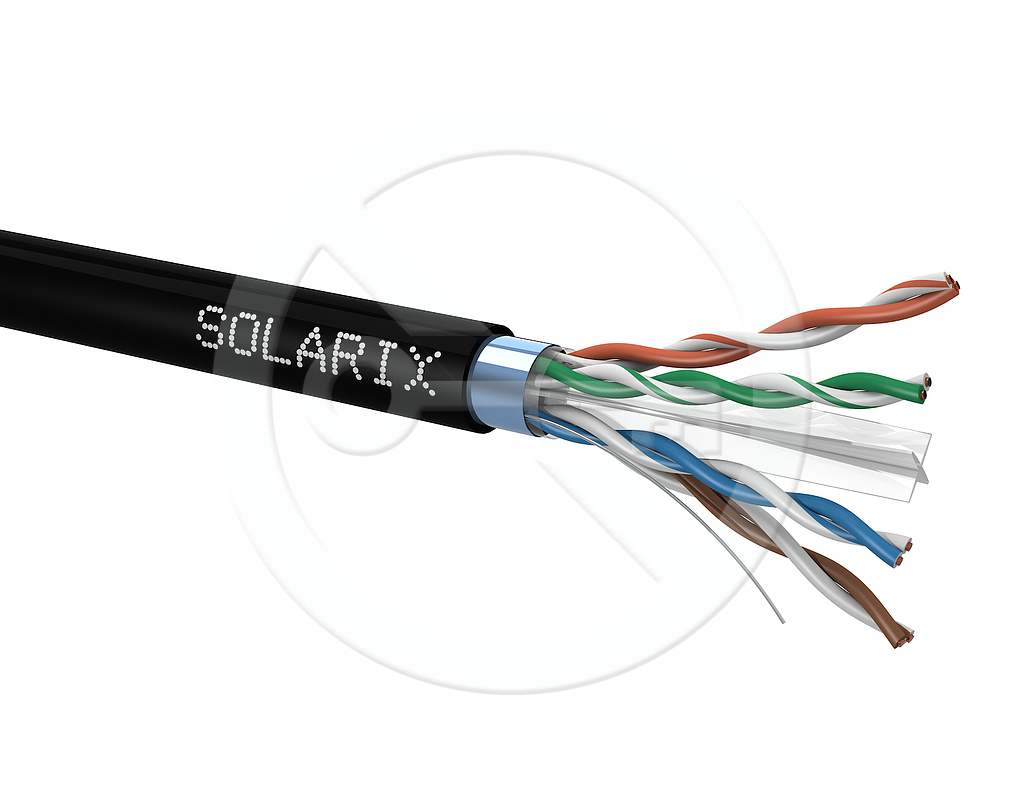

Installation cable Solarix CAT6 FTP PE F_ca outdoor 500m/reel SXKD-6-FTP-PE

Product Installation cable Solarix CAT6 FTP PE F<sub>ca</sub> outdoor 500m/reel SXKD-6-FTP-PE - Solarix - Solid Cable

Order code: 27655194

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): reel 500m

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 404,00 EUR

By product

Copper Cabling \ Solid Cable \ Category 6 \ Shielded

High quality shielded category 6 installation cable for outdoor use, PE sheath with the F_ca reaction to fire class, UV resistant, IP 67 ingress protection, 500 m reel.

recommend | print

Technical Parameters

Category: CAT6
Highest Supported Protocol: 2.5/5GBASE-T and lower
Shielded: overall foil
Bandwidth: 250 MHz
Conductor Type and Size: copper wire 0.565 mm ± 0.005 mm, ,
Insulation and Wire Diameter with Insulation: HDPE 1.12 mm,
Reaction to fire; Sheath: F_ca; PE
Colour: black RAL 9005
Nominall Cable Diameter: 7.4 mm,
Weight: 47.2 kg/km,
NVP: 69 %
Propagation Delay: 535 ns/100 m
Delay Skew: ≤45 ns/100 m
Storage Temperature: -20 °C to 60 °C
Operational Temperature: -20 °C to 60 °C
Installation Temperature: 0 °C to 50 °C
Packaging: 500 m/reel,
Packaging Size (diameter x height): 380 mm x 320 mm
Number of Items on a Pallet: 36 reels (large pallet), 27 reels (small pallet)

Product Description

The Solarix SXKD-6-FTP-PE installation cable is a reliable Category 6 outdoor shielded cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T. The cable construction is F/UTP with a plastic cross, which ensures maximum separation of pairs along the entire length of the cable. The sheath type is UV-stable PE with F_ca reaction to fire class and IP67 protection. The cable conductors are made of high-quality copper wire with 99.97% copper purity. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. Like other Solarix cables, the SXKD-6-FTP-PE cable is marked in 1 m increments from 0 to 500 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters. This cable is not intended for permanent installation in water or underground without appropriate protection.
