Installation cable Solarix CAT5E FTP PVC+PE Fca double jacket 305m/reel SXKD-5E-FTP-PVC+PE

Product Installation cable Solarix CAT5E FTP PVC+PE F<sub>ca</sub> double jacket 305m/reel SXKD-5E-FTP-PVC+PE - Solarix - Solid Cable

Order code: 27655197

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): reel 305m

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 223,26 EUR

reel305m
Product Installation cable Solarix CAT5E FTP PVC+PE F<sub>ca</sub> double jacket 305m/reel SXKD-5E-FTP-PVC+PE - Solarix - Solid Cable
Product Installation cable Solarix CAT5E FTP PVC+PE F<sub>ca</sub> double jacket 305m/reel SXKD-5E-FTP-PVC+PE - Solarix - Solid Cable
By product
Copper Cabling \ Solid Cable \ Category 5E \ Shielded

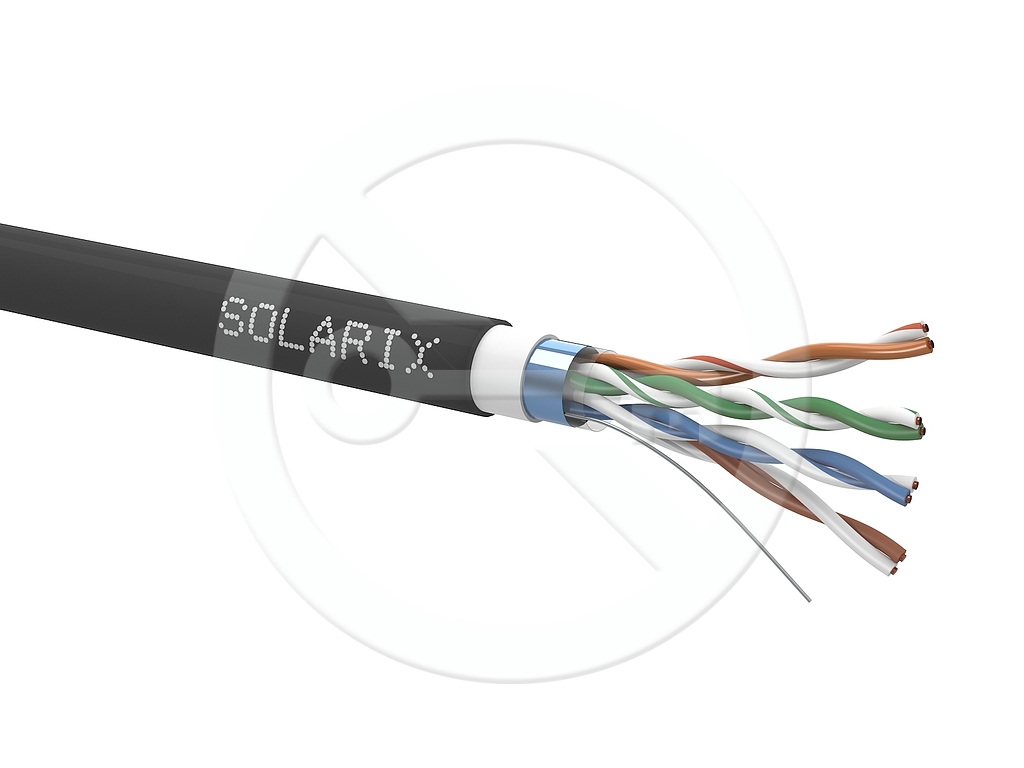

High quality shielded category 5E installation cable with double jacket for outdoor use and with Fcareaction to fire class, 305 m reel.
recommend | print
Technical Parameters
  • Category: CAT5E
  • Highest Supported Protocol: 2.5/5GBASE-T and lower
  • Shielded: overall foil
  • Bandwidth: 100 MHz
  • Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm, ,
  • Insulation and Wire Diameter with Insulation: HDPE 1.0 mm,
  • Reaction to fire; Sheath: Fca; PVC+PE
  • Colour: grey RAL 7035,
  • Nominall Cable Diameter: 7.4 mm,
  • Weight: 53.1 kg/km,
  • NVP: 68 %
  • Propagation Delay: 535 ns/100 m
  • Delay Skew: ≤45 ns/100 m
  • Storage Temperature: -20 °C to 70 °C
  • Operational Temperature: -20 °C to 70 °C
  • Installation Temperature: 0 °C to 50 °C
  • Packaging: 305 m/reel,
  • Packaging Size (diameter x height): 380 mm x 240 mm
  • Number of Items on a Pallet: 36 reels (large pallet), 27 reels (small pallet)
Product Description
The Solarix installation cable with the designation SXKD-5E-FTP-PVC+PE is a reliable Category 5E shielded cable with a double jacket, designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The cable construction is F/UTP, the sheath type is PVC (inner sheath) and UV-stable PE (outer sheath) with Fca reaction to fire class. The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. The cable is designed for more demanding installations, where the double PVC+PE sheath with a total thickness of 1.1 mm provides high protection against environmental influences. Like other Solarix cables, the SXKD-5E-FTP-PVC+PE cable is marked in 1 m increments from 0 to 305 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters. This cable is not intended for permanent storage in water or soil without adequate protection.
