Modular Plug 8p8c CAT6A Shielded for Solid Cable KRJS45/6ASLD

Product Modular Plug 8p8c CAT6A Shielded for Solid Cable KRJS45/6ASLD - Solarix - Plugs

Order code: 11238907

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 1,28 EUR

pc
Product Modular Plug 8p8c CAT6A Shielded for Solid Cable KRJS45/6ASLD - Solarix - Plugs
By product
Copper Cabling \ Plugs \ Category 6A \ Shielded

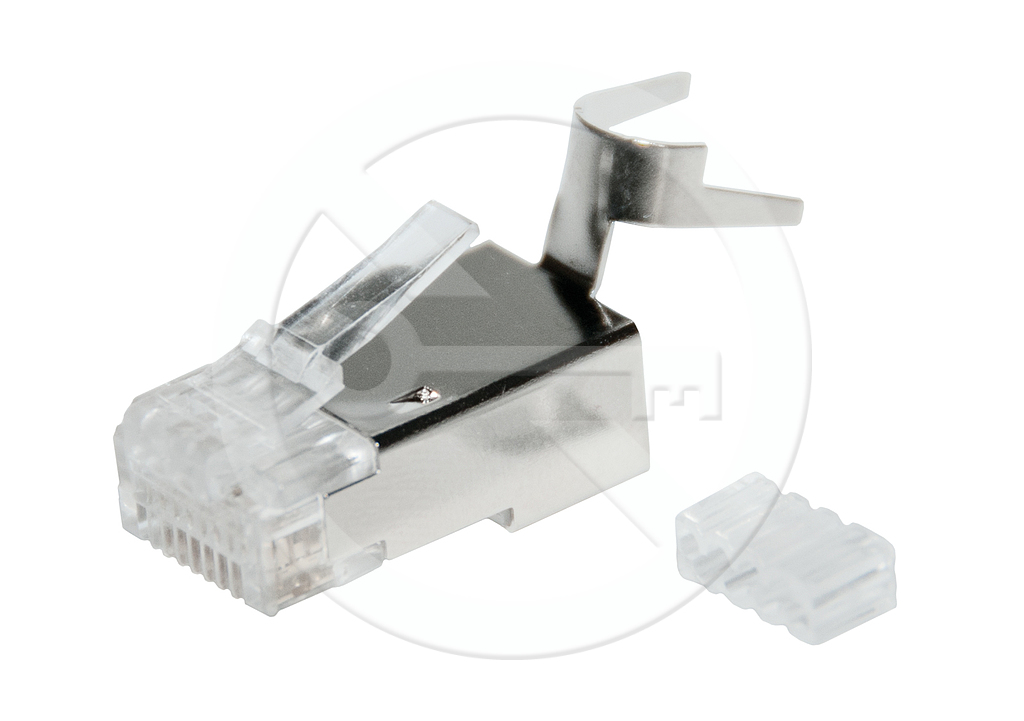

Shielded RJ45 8p8c connector. For wire conductor, round cable category 6A and category 7. With plug.
recommend | print
Product Description
These shielded Solarix RJ45 8p8c connectors with inserts are designed for cables with Category 6A and Category 7 wire conductors. The connectors are specially designed so that they can be easily crimped onto cables with thicker conductors (up to 0.57 mm in diameter) and thicker PE insulation (up to 1.50 mm in diameter). The maximum cable thickness can be up to 8.00 mm. The contacts of these Solarix Category 6A connectors are coated with 50 µ of gold. Please use HT-N3 or universal HT-EASY pliers to crimp these connectors. The connectors are packaged in sets of 100. Protective covers in gray RAL 7035 can be purchased separately for the connectors. These Solarix connectors easily meet all requirements defined in international standards ANSI/TIA 568, ISO/IEC 11801, and EN 50173 for Category 6A and Class EA cabling, including all the latest amendments.
