19" Patch Panel Solarix 24x RJ45 CAT6 UTP 350 MHz Black 1U SX24-6-UTP-BK
Brand:
Solarix
Guarantee period:
5 years
Order code:
24200024
Unit of measurement (UoM):
piece
Min. purchase amount (UoM):
1
Solarix Category 6 unshielded patch panel 24 ports, tested up to 350 MHz, black.
91,05 EUR ecluding VAT
Info about product:
+420 533 338 803

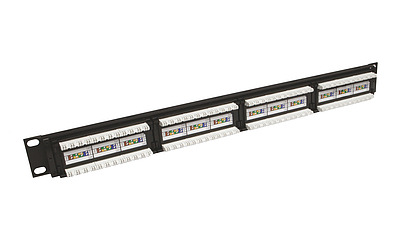

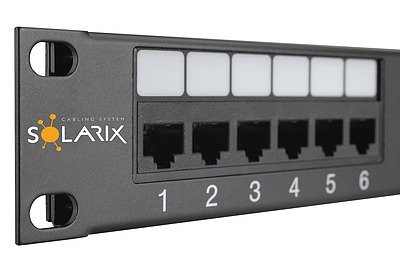

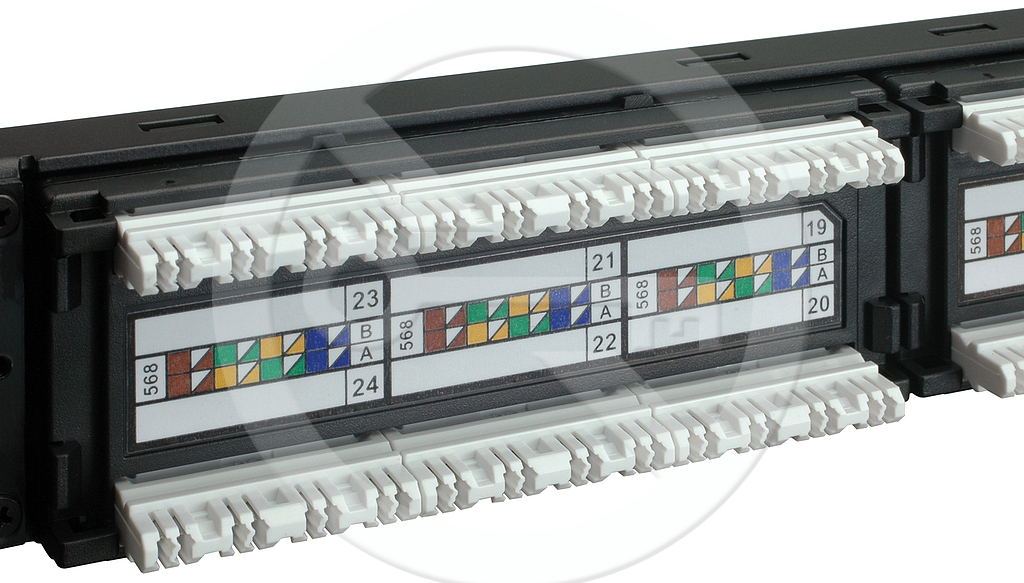

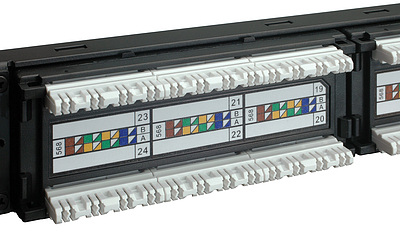

The Solarix patch panel with the designation SX24-6-UTP-BK is a high-quality Category 6 panel that meets the requirements for components of this category defined in the ANSI/TIA 568, ISO/IEC 11801, and EN 50173 standards for Category 6 and Class E cabling, including all the latest amendments. This panel is tested for bandwidth up to 350 MHz, exceeding the requirements specified for Category 6. The panel is supplied in a version with 24 RJ45 ports and is equipped with dual IDC 110/Krone terminal block modules. For easy data cable termination, the contacts on the terminal block are color-coded according to the type of connection, either T568A or T568B. The SX24-6-UTP-BK panel belongs to the Solarix Category 6 system component group and, like all components in this product line, is designed to provide maximum durability, excellent performance, reliability, and, above all, easy installation. The Solarix Category 6 patch panel is black and has a size of 1U in the data rack.
- Category: CAT6
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Number of Ports: 24
- Shielded: No
- Support Bar: No
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: 110/Krone 8p8c
- Min. Termination Module Life: 200 terminations
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: Black
- Unit Size: 1U
- Height: 44 mm
- Width: 484 mm
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Datasheets
- EN datasheet Solarix patch panel category 6 UTP 350 MHz (567.0 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
