Installation cable Solarix CAT6 UTP PVC E_ca 305m/box SXKD-6-UTP-PVC

Product Installation cable Solarix CAT6 UTP PVC E<sub>ca</sub> 305m/box SXKD-6-UTP-PVC - Solarix - Solid Cable

Order code: 26100001

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): box305m

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 175,38 EUR

High quality unshielded category 6 installation cable, PVC sheath with the E_ca reaction to fire class, 305 m box.

recommend | print

Technical Parameters

Category: CAT6
Highest Supported Protocol: 2.5/5GBASE-T and lower
Shielded: No
Bandwidth: 250 MHz
Conductor Type and Size: copper wire 0.55 mm ± 0.005 mm, ,
Insulation and Wire Diameter with Insulation: HDPE 0.98 mm,
Reaction to fire; Sheath: E_ca; PVC
Colour: grey RAL 7035
Nominall Cable Diameter: 6.1 mm,
Weight: 41.7 kg/km,
NVP: 69 %
Propagation Delay: 535 ns/100 m
Delay Skew: ≤45 ns/100 m
Storage Temperature: -20 °C to 60 °C
Operational Temperature: -20 °C to 60 °C
Installation Temperature: 0 °C to 50 °C
Packaging: 305 m/box,
Number of Items on a Pallet: 30 boxes (large pallet), 24 boxes (small pallet)

Product Description

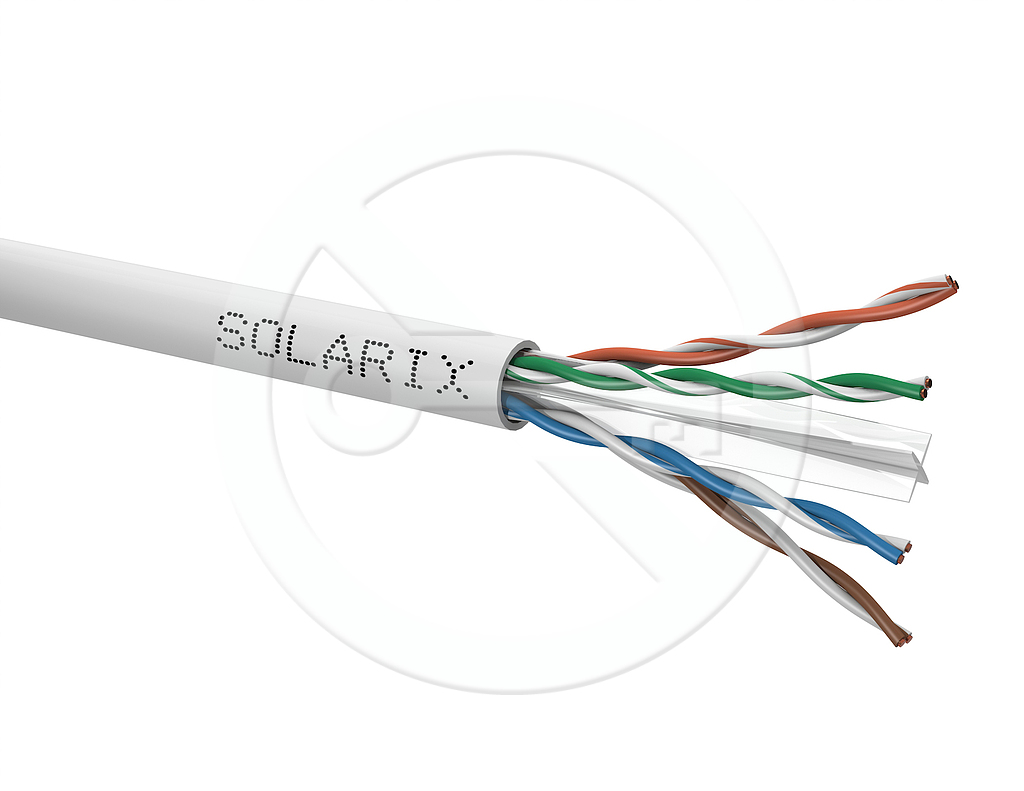

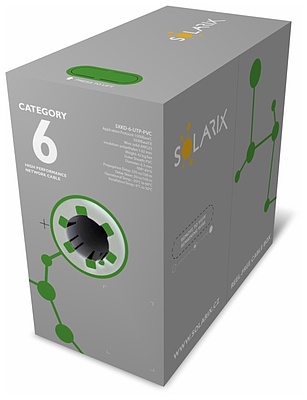

ATTENTION, new 100m box. The Solarix installation cable with the designation SXKD-6-UTP-PVC is a reliable unshielded Category 6 cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T. The cable construction is U/UTP with a plastic cross, which ensures maximum separation of pairs along the entire length of the cable. The sheath type is PVC with fire reaction class E_ca. The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. In accordance with CPR (EU Regulation No. 305/2011), the cable is tested by the independent laboratory FORCE TECHNOLOGY in the AVCP 3 property assessment system. Like other Solarix cables, the SXKD-6-UTP-PVC cable is marked in 1 m increments from 0 to 305 m. The cable is supplied in a highly durable three-layer polished cardboard box, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters.
