Installation cable Solarix CAT6 UTP PVC Eca 500m/reel SXKD-6-UTP-PVC
Brand:
Solarix
Guarantee period:
5 years
Order code:
26000001
Unit of measurement (UoM):
reel 500m
Min. purchase amount (UoM):
1
High quality unshielded category 6 installation cable, PVC sheath with the Eca reaction to fire class, 500 m reel.
285,50 EUR ecluding VAT
Info about product:
+420 533 338 803

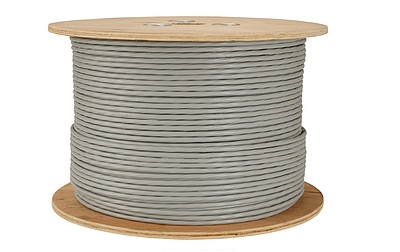

The Solarix SXKD-6-UTP-PVC installation cable is a reliable unshielded Category 6 cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T. The cable has a U/UTP construction with a plastic cross that ensures maximum separation of pairs along the entire length of the cable. The sheath type is PVC with Eca reaction to fire class. The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. In accordance with CPR (EU Regulation No. 305/2011), the cable is tested by the independent laboratory FORCE TECHNOLOGY in the AVCP 3 property assessment system. Like other Solarix cables, the SXKD-6-UTP-PVC cable is marked in 1 m increments from 0 to 500 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters.
- Category: CAT6
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Shielded: No
- Bandwidth: 250 MHz
- Conductor Type and Size: copper wire 0.55 mm ± 0.005 mm, ,
- Insulation and Wire Diameter with Insulation: HDPE 0.98 mm,
- Reaction to fire; Sheath: Eca; PVC
- Colour: grey RAL 7035
- Nominall Cable Diameter: 6.1 mm,
- Weight: 41.7 kg/km,
- NVP: 69 %
- Propagation Delay: 535 ns/100 m
- Delay Skew: ≤45 ns/100 m
- Storage Temperature: -20 °C to 60 °C
- Operational Temperature: -20 °C to 60 °C
- Installation Temperature: 0 °C to 50 °C
- Packaging: 500 m/reel,
- Packaging Size (diameter x height): 370 mm x 320 mm
- Number of Items on a Pallet: 36 reels (large pallet), 27 reels (small pallet)
Datasheets
- EN datasheet Solarix installation cable SXKD-6-UTP-PVC 500m (373.64 KB, pdf)
- CZ, EN, PL, SK DoP M201-SXKD-6-UTP-PVC-Eca-01 (233.52 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
