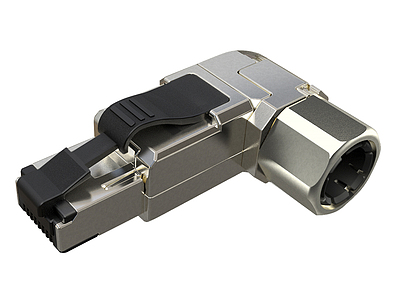

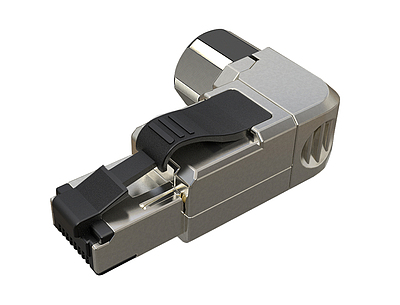

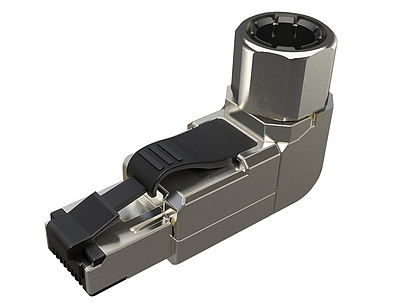

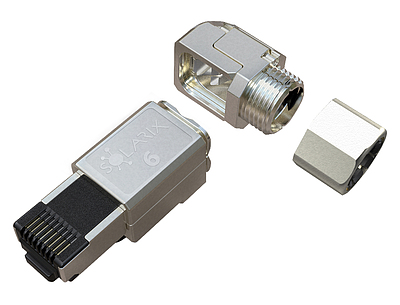

Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U

Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs

Order code: 11910011

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 11,13 EUR

pc
Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs
Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs
Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs
Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs
Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs
Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs
Product Universal MTPL 90° Plug RJ45 CAT6 STP Toolless SXRJ45-6-STP-BK-SA-U - Solarix - Plugs
By product
Copper Cabling \ Plugs \ Category 6 \ Shielded

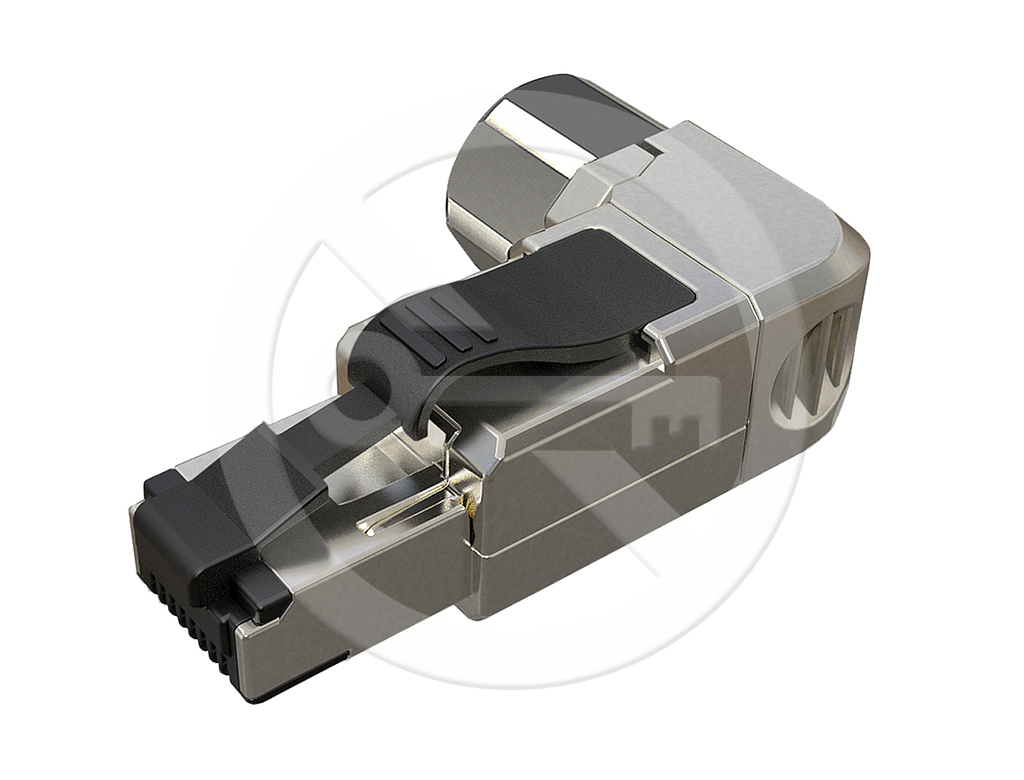

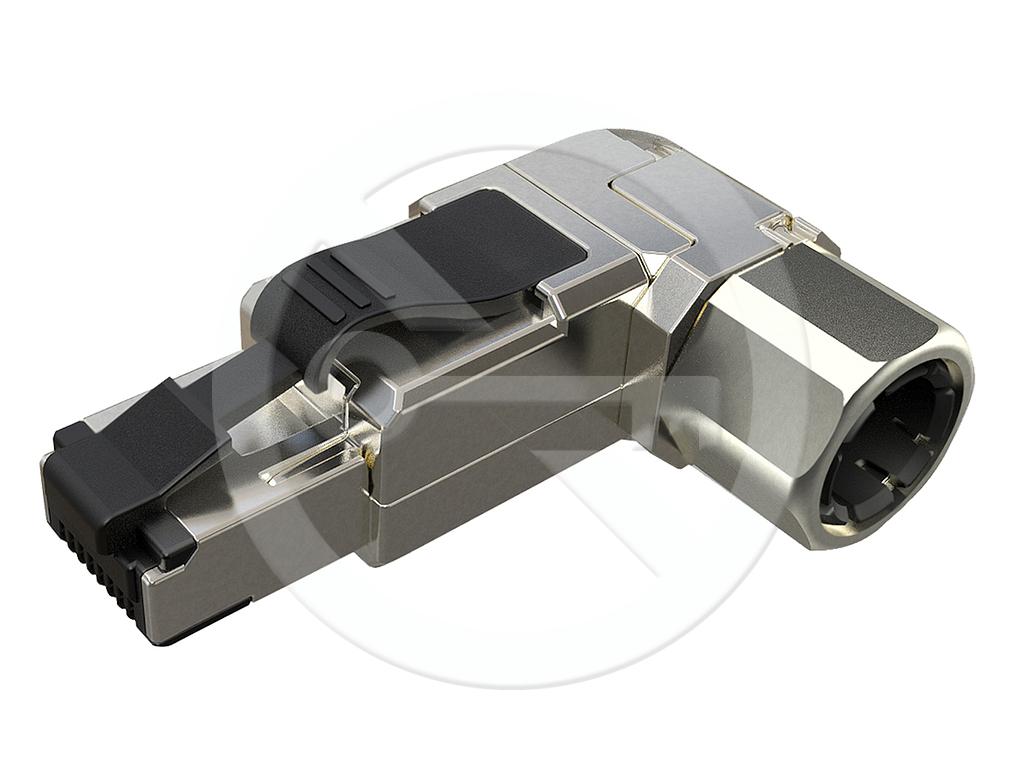

Robust and highly reliable category 6 angled plug. Designed for both solid and stranded wires, suitable for shielded and unshielded cables.
recommend | print
Product Description
  • Robust and highly reliable category 6/Class E angled plug
  • Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T

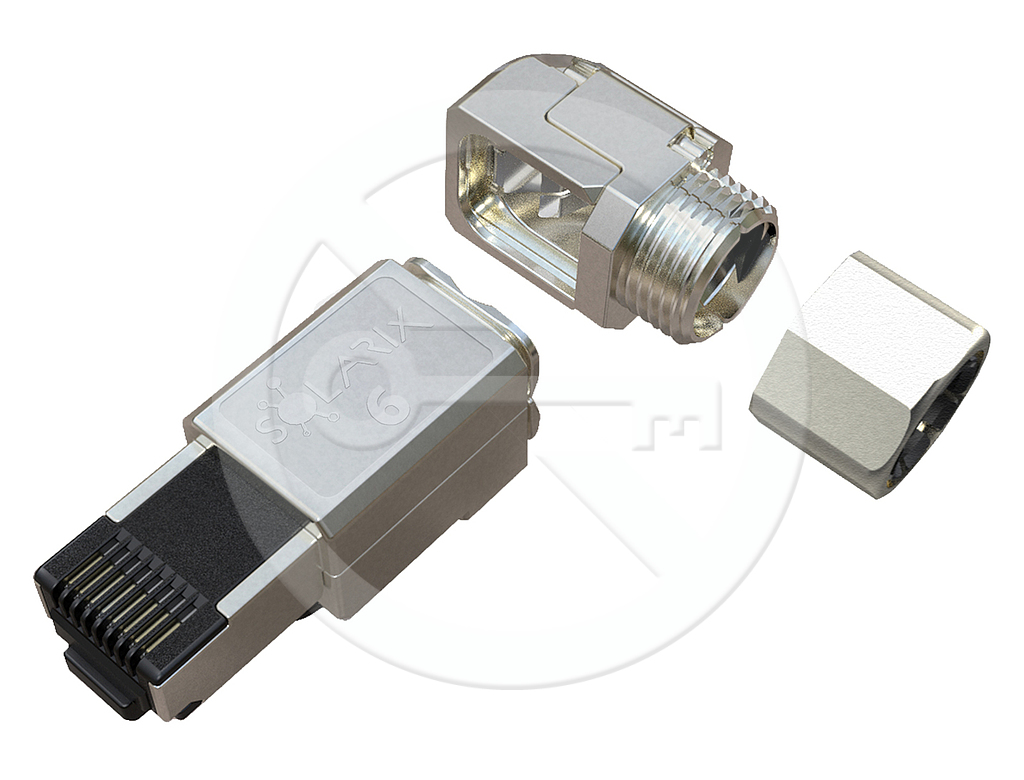

  • Very easy and quick installation, toolless termination, for both solid and stranded wires (AWG 26-23)

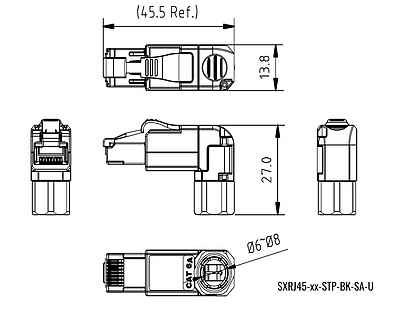

  • Designed for shielded cables from Ø 6.0 to Ø 8.0 mm with wires up to Ø 1.5 mm (incl. PE insulation)
  • 50 µin gold contact plating
  • The plug meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards and its performance is suitable for modular plug terminated link (MPTL)

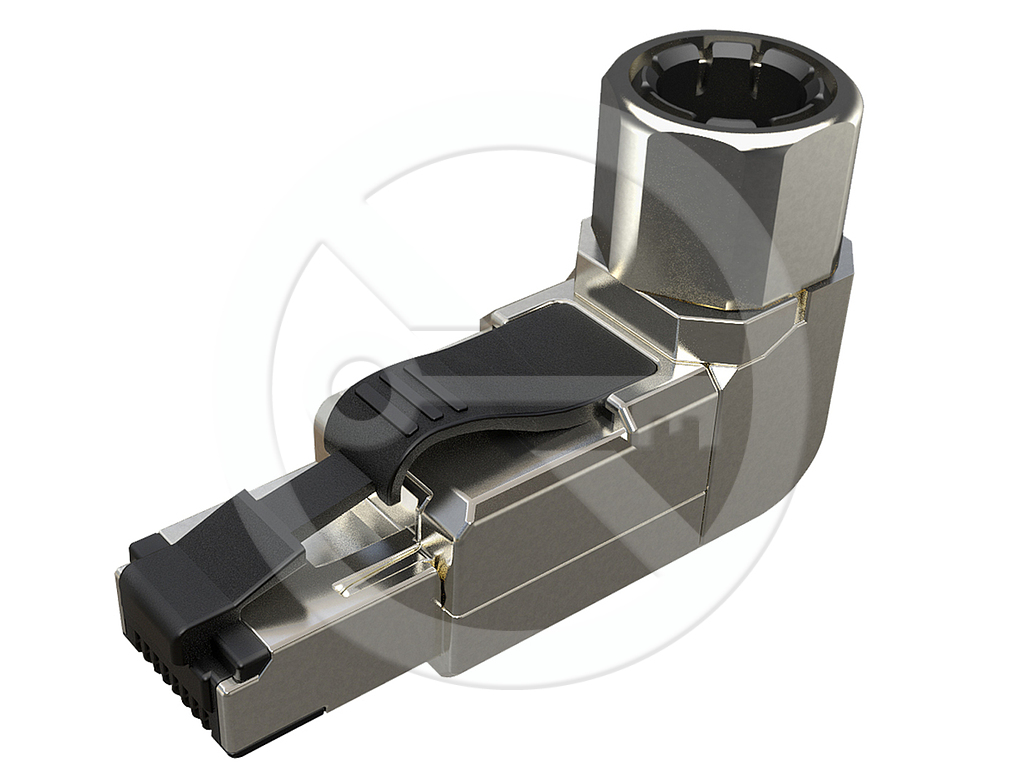

  • It is possible to install the terminated cable to 4 different directions at an angle of 90°
  • The colour of the plug is black (plastic parts) and silver (metal body)
