Installation cable Solarix CAT6A FFTP LSOH D_ca-s2,d2,a1 500m SXKD-6A-FFTP-LSOH

Product Installation cable Solarix CAT6A FFTP LSOH D<sub>ca</sub>-s2,d2,a1 500m SXKD-6A-FFTP-LSOH - Solarix - Solid Cable

Order code: 26000038

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): reel 500m

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 427,50 EUR

High quality double shielded category 6A installation cable, LSOH sheath with D_ca-s2,d2,a1 reaction to fire class 500 m reel.

recommend | print

Technical Parameters

Category: CAT6A
Highest Supported Protocol: 10GBASE-T and lower
Shielded: overall braid and individual foil around each pair,
Bandwidth: 500 MHz
Conductor Type and Size: copper wire 0.56 mm ± 0.005 mm, ,
Insulation and Wire Diameter with Insulation: skin-foam-skin PE 1.33 mm,
Reaction to fire; Sheath: D_ca-s2, d2, a1; LSOH
Colour: grey RAL 7035
Nominall Cable Diameter: 7.5 mm,
Weight: 54.1 kg/km,
NVP: 75 %
Propagation Delay: 480 ns/100 m
Delay Skew: ≤45 ns/100 m
Storage Temperature: -20 °C to 60 °C
Operational Temperature: -20 °C to 60 °C
Installation Temperature: 0 °C to 50 °C
Packaging: 500 m/reel,
Packaging Size (diameter x height): 380 mm x 390 mm
Number of Items on a Pallet: 27 reels

Product Description

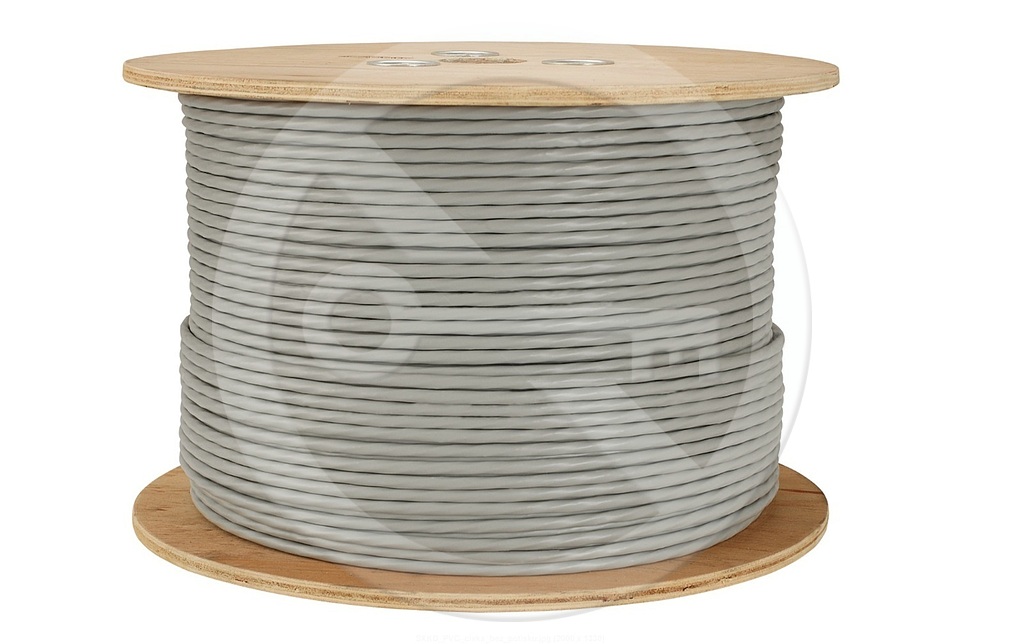

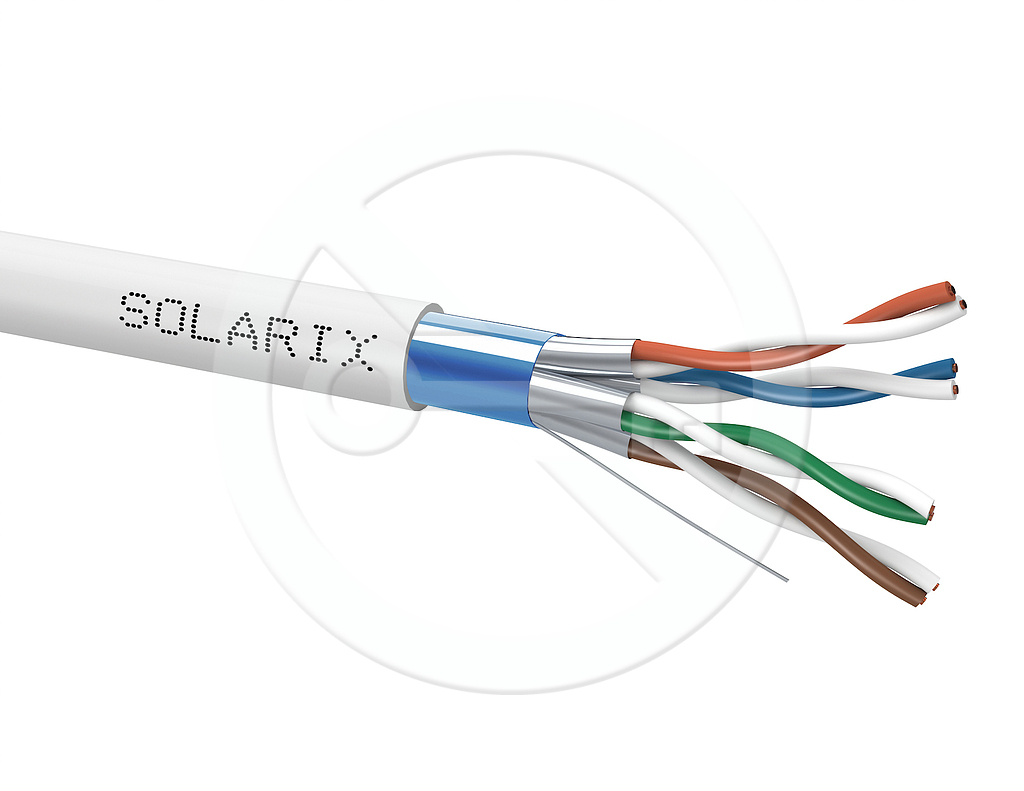

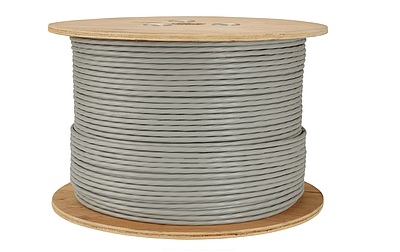

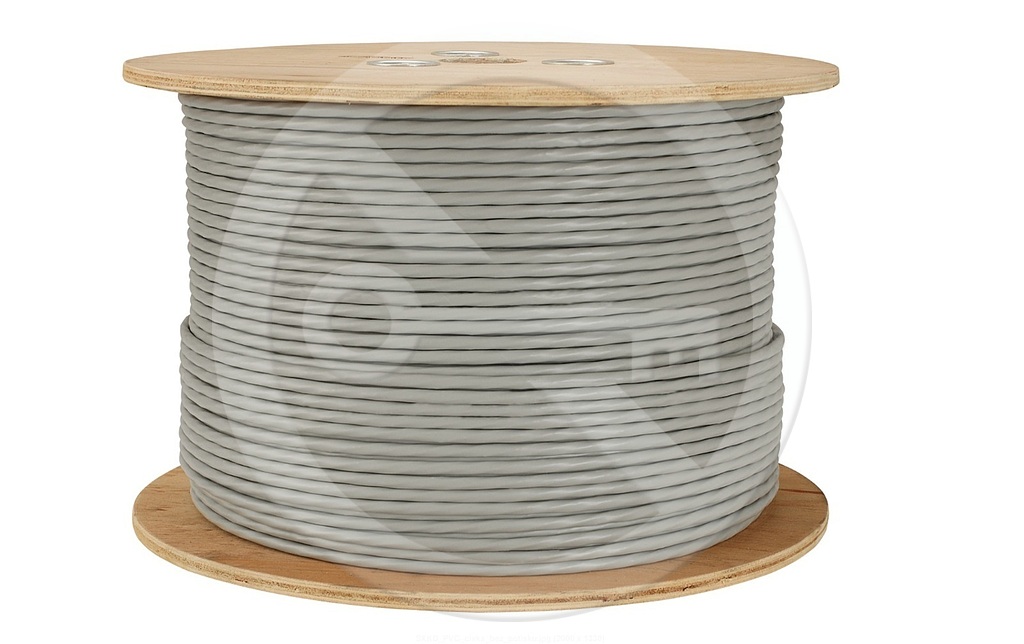

The Solarix installation cable with the designation SXKD-6A-FFTP-LSOH is a high-quality double-shielded Category 6A cable designed for high-speed Ethernet protocols, including 10GBASE-T. The cable construction is F/FTP, LSOH jacket type with fire reaction class D_ca-s2,d2,a1. The cable conductors are made of high-quality copper wire with 99.97% copper purity. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. In accordance with CPR (EU Regulation No. 305/2011), the cable is tested by the independent laboratory FORCE TECHNOLOGY in the AVCP 3 property assessment system. Like other Solarix cables, the SXKD-6A-FFTP-LSOH cable is marked in 1 m increments from 0 to 500 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters.
