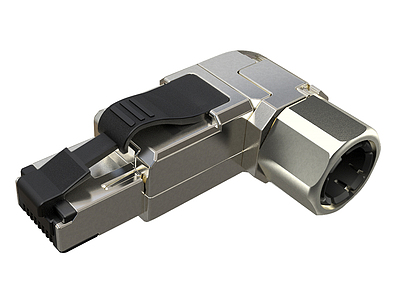

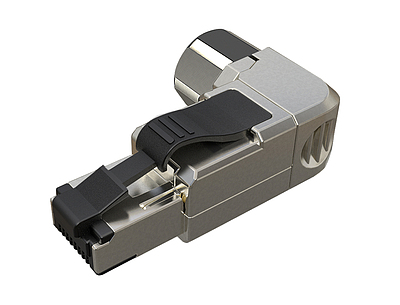

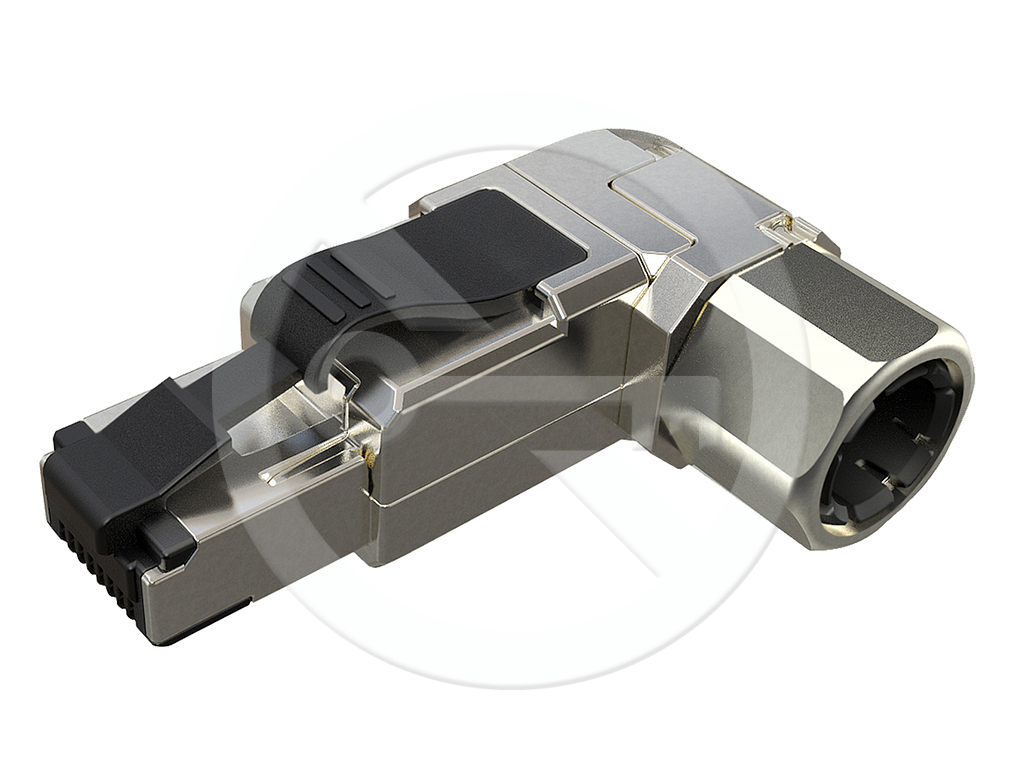

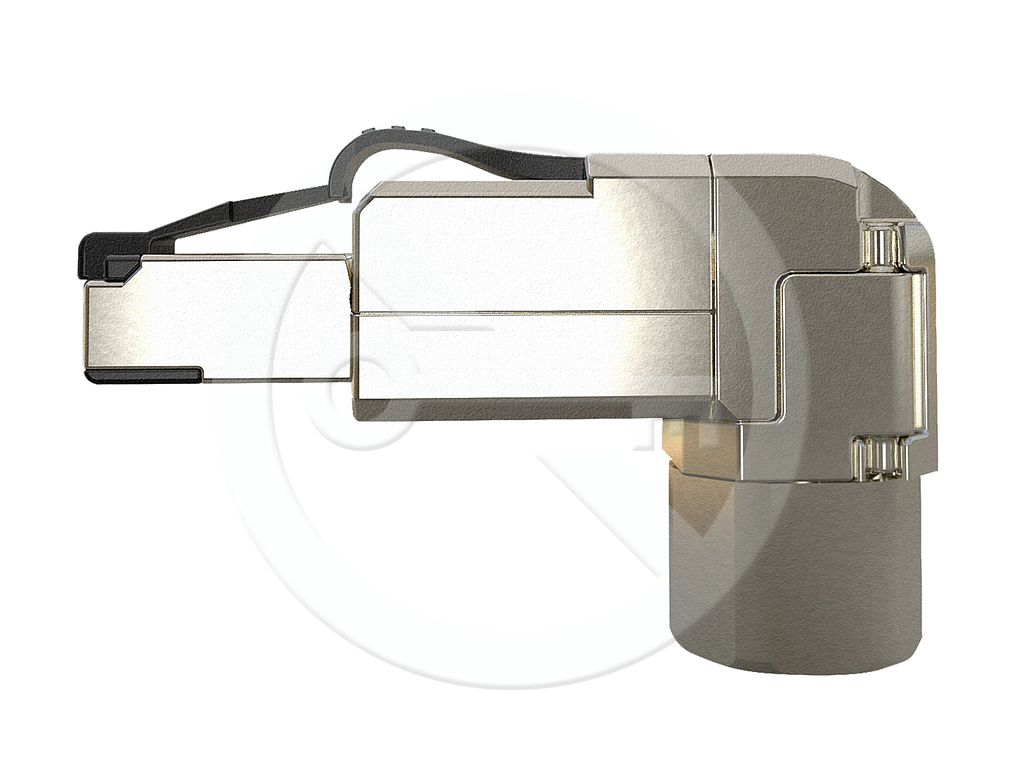

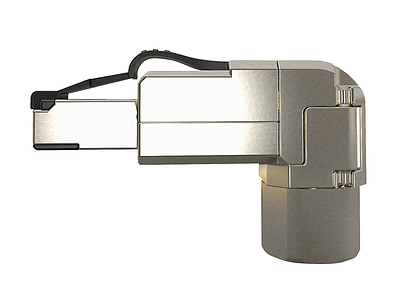

Universal MPTL 90° plug Solarix CAT6A STP RJ45 toolless SXRJ45-6A-STP-BK-SA-U
Brand:
Solarix
Guarantee period:
5 years
Order code:
11910012
Unit of measurement (UoM):
piece
Min. purchase amount (UoM):
1
Robust and highly reliable category 6A angled plug. Designed for both solid and stranded wires, suitable for shielded and unshielded cables.
12,81 EUR ecluding VAT
Info about product:
+420 533 338 803
- Robust and highly reliable category 6A/Class EA angled plug
- Designed for ethernet protocols, including 2.5GBASE-T, 5GBASE-T, and 10GBASE-T
- Very easy and quick installation, toolless termination, for both solid and stranded wires (AWG 26-23)

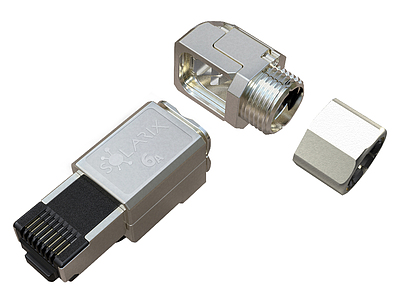

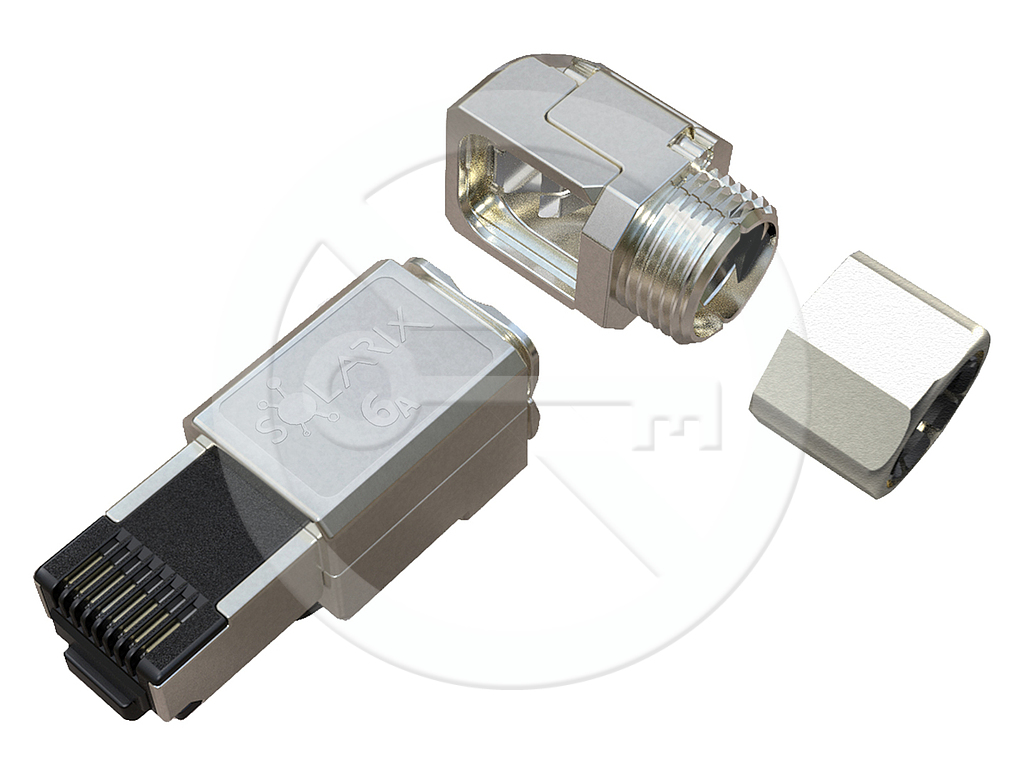

- Dismountable with easy reinstallation

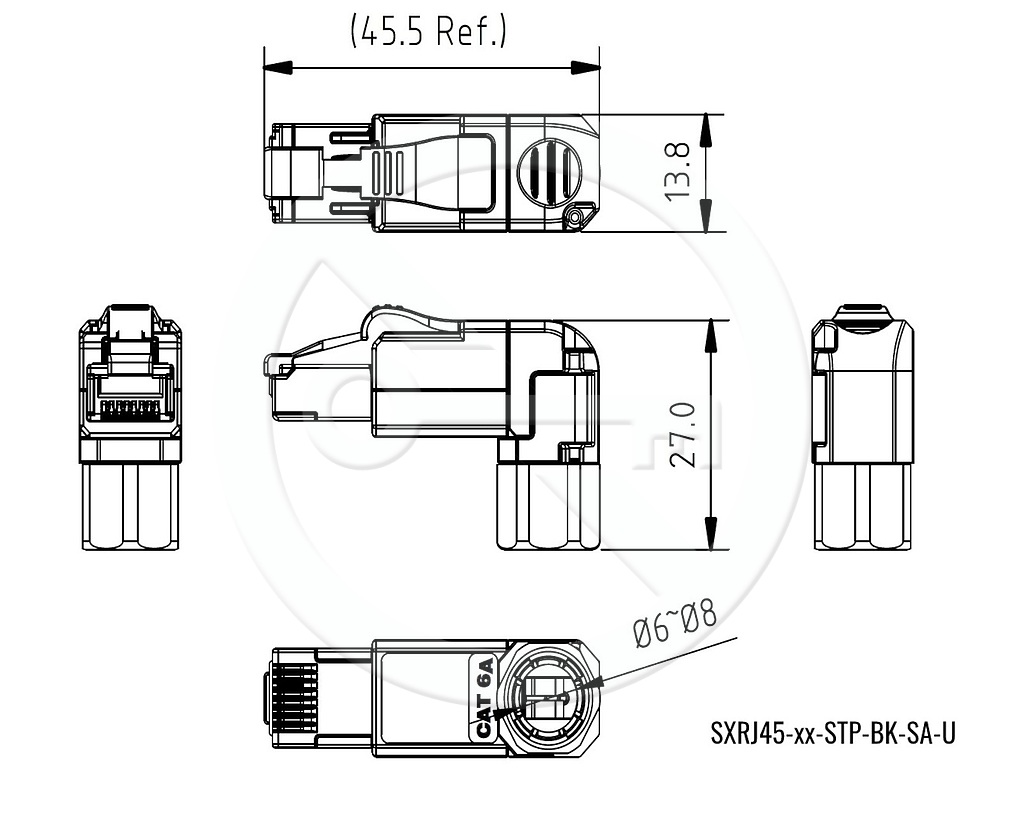

- Designed for shielded and unshielded cables up to Ø 8.0 mm with wires up to Ø 1.5 mm (incl. PE insulation)
- 50 µin gold contact plating
- The plug meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards and its performance is suitable for modular plug terminated link (MPTL)

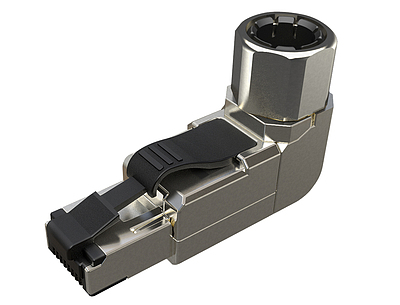

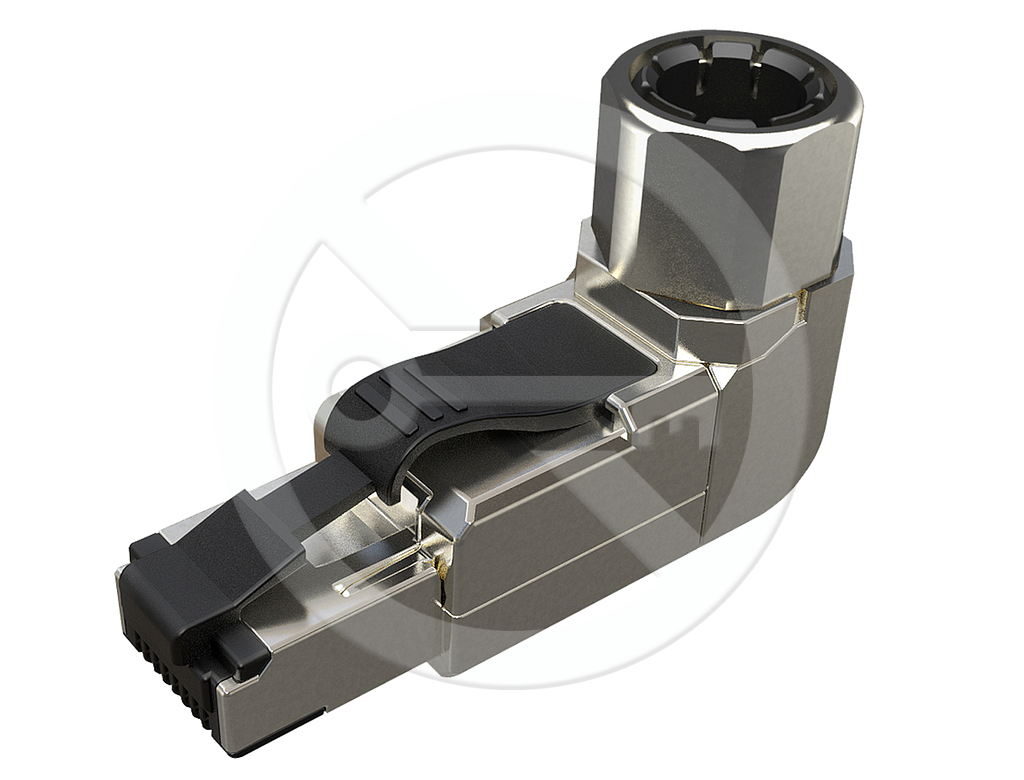

- It is possible to install the terminated cable to 4 different directions at an angle of 90°
- The colour of the plug is black (plastic parts) and silver (metal body)
Datasheets
- EN datasheet plug Solarix SXRJ45-6A-STP-BK-SA-U (728.18 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
