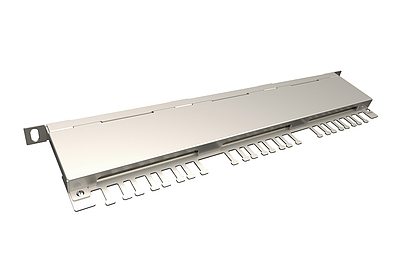

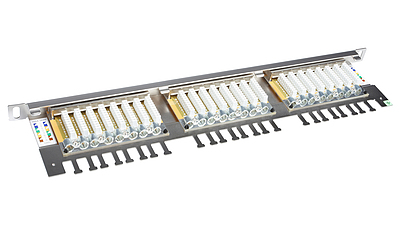

19" high-density patch panel Solarix 24x RJ45 CAT6 STP 0.5U SX24HD-6-STP-SL

Product 19" high-density patch panel Solarix 24x RJ45 CAT6 STP 0.5U SX24HD-6-STP-SL - Solarix - Patch Panels

Order code: 24000147

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): piece

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 130,18 EUR

pc
Product 19" high-density patch panel Solarix 24x RJ45 CAT6 STP 0.5U SX24HD-6-STP-SL - Solarix - Patch Panels
Product 19" high-density patch panel Solarix 24x RJ45 CAT6 STP 0.5U SX24HD-6-STP-SL - Solarix - Patch Panels
Product 19" high-density patch panel Solarix 24x RJ45 CAT6 STP 0.5U SX24HD-6-STP-SL - Solarix - Patch Panels
By product
Copper Cabling \ Patch Panels \ Category 6 \ Shielded
Quality 19" shielded high-density category 6 patch panel with management bar.
recommend | print
Technical Parameters
  • Category: CAT6
  • Highest Supported Protocol: 2.5/5GBASE-T and lower
  • Number of Ports: 24
  • Shielded: Yes
  • Support Bar: Yes
  • Min. Port Life: 1000 cycles
  • Contact Plating: 50 µ gold
  • Termination Module: 110/Krone 8p8c
  • Min. Termination Module Life: 200 terminations
  • Conductor Size and Type: AWG 26 - 22, solid
  • Housing Material: FR acc. to UL94-0
  • Color: silver
  • Unit Size: 0.5U,
  • Height: 22 mm
  • Width: 484 mm
  • Depth: 101.5 mm
  • Storage Temperature: -40 °C to 70 °C
  • Operational Temperature: -10 °C to 60 °C
  • Max. Operational Humidity: 93 %
Product Description
Quality 19" shielded high-density category 6/Class E patch panel
Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T
With management bar
24 ports RJ45 with 50 µin gold contact plating
Dual IDC termination block 110/Krone type (both T568A and T568B wiring)
The patch panel meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
The colour of the patch panel is silver
0.5U size (i.e. two HD patch panels easily fit into 1U position)
