Installation cable Solarix CAT5E FTP PE Fca self-supporting 305m/reel SXKD-5E-FTP-PE-SAM

Product Installation cable Solarix CAT5E FTP PE F<sub>ca</sub> self-supporting 305m/reel SXKD-5E-FTP-PE-SAM - Solarix - Solid Cable

Order code: 27655195

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): reel 305m

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 223,26 EUR

reel305m
Product Installation cable Solarix CAT5E FTP PE F<sub>ca</sub> self-supporting 305m/reel SXKD-5E-FTP-PE-SAM - Solarix - Solid Cable
Product Installation cable Solarix CAT5E FTP PE F<sub>ca</sub> self-supporting 305m/reel SXKD-5E-FTP-PE-SAM - Solarix - Solid Cable
By product
Copper Cabling \ Solid Cable \ Category 5E \ Shielded
High quality shielded category 5E installation cable for outdoor use, self-supporting, PE sheath with the Fca reaction to fire class, 305 m reel.
recommend | print
Technical Parameters
  • Category: CAT5E
  • Highest Supported Protocol: 2.5/5GBASE-T and lower
  • Shielded: overall foil
  • Bandwidth: 100 MHz
  • Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm, ,
  • Insulation and Wire Diameter with Insulation: HDPE 1.0 mm,
  • Reaction to fire; Sheath: Fca; PE
  • Colour: black RAL 9005
  • Nominall Cable Diameter: 6.4 mm + 2.6 mm, ,
  • Weight: 50.5 kg/km,
  • NVP: 68 %
  • Propagation Delay: 535 ns/100 m
  • Delay Skew: ≤45 ns/100 m
  • Storage Temperature: -20 °C to 70 °C
  • Operational Temperature: -20 °C to 70 °C
  • Installation Temperature: 0 °C to 50 °C
  • Packaging: 305 m/reel,
  • Packaging Size (diameter x height): 370 mm x 320 mm
  • Number of Items on a Pallet: 36 reels (large pallet), 27 reels (small pallet)
Product Description

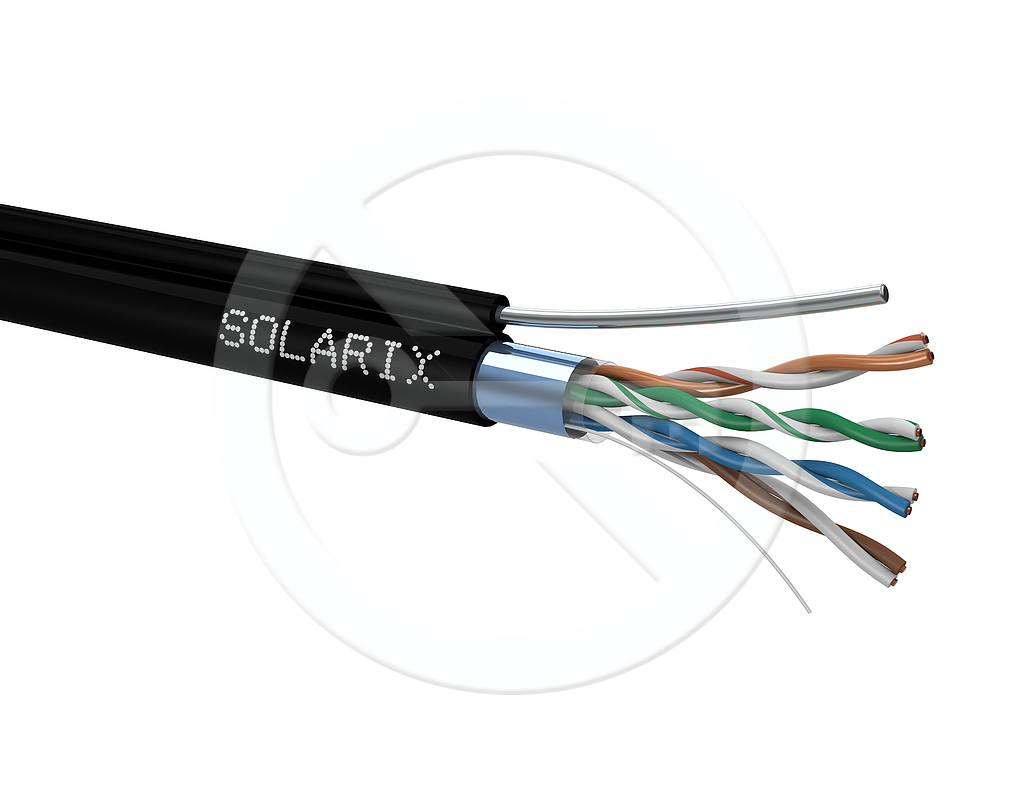

The Solarix SXKD-5E-FTP-PE-SAM installation cable is a reliable Category 5E outdoor shielded cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The cable has an F/UTP construction and is equipped with a supporting steel wire located in separate insulation, which allows this cable to be used as self-supporting up to a distance of 70m. The sheath type is UV-stable PE with Fca reaction to fire class. The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. Like other Solarix cables, the SXKD-5E-FTP-PE-SAM cable is marked in 1 m increments from 0 to 305 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters. You can use the AC35L anchor to secure this cable.
