Installation cable Solarix CAT5E UTP PVC E_ca 1000m/reel SXKD-5E-UTP-PVC

Product Installation cable Solarix CAT5E UTP PVC E<sub>ca</sub> 1000m/reel SXKD-5E-UTP-PVC - Solarix - Solid Cable

Order code: 27655151

Brand: Solarix

Guarantee period: 5 years

Unit of measurement (UoM): reel 1000m

Min. purchase amount (UoM): 1

Delivery date: immediately

Recommended price excluding VAT: 418,00 EUR

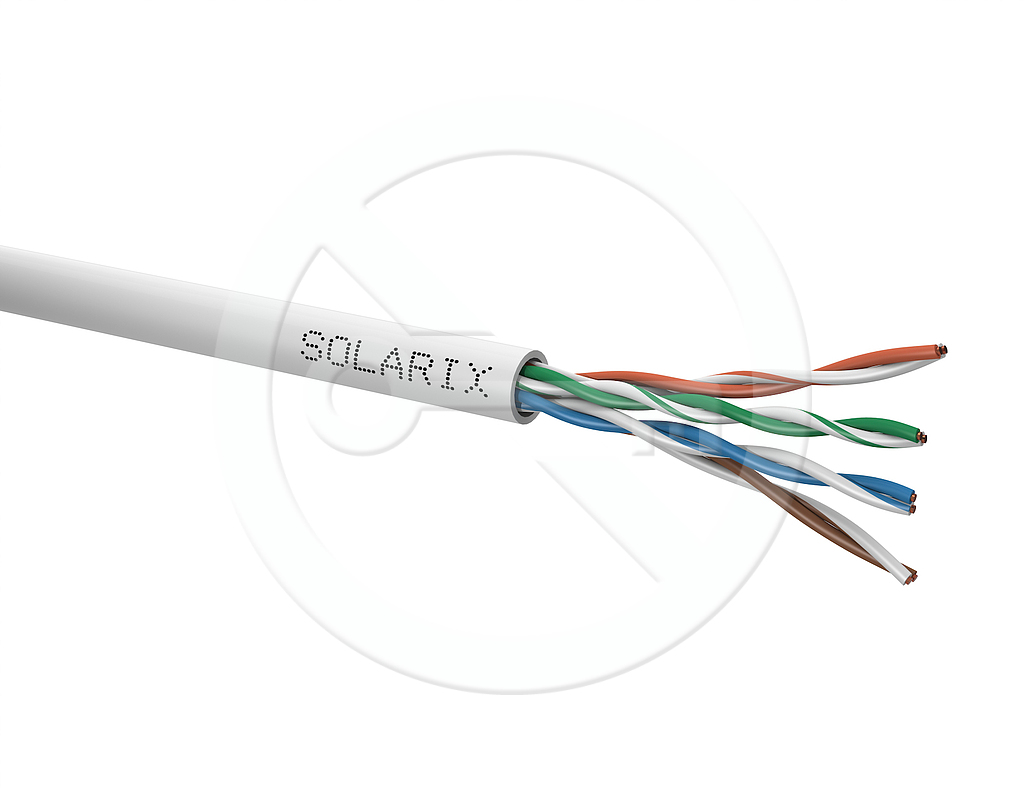

High quality unshielded category 5E installation cable, PVC sheath with the E_ca reaction to fire class, 1000 m reel.

recommend | print

Technical Parameters

Category: CAT5E
Highest Supported Protocol: 2.5/5GBASE-T and lower
Shielded: No
Bandwidth: 100 MHz
Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm, ,
Insulation and Wire Diameter with Insulation: HDPE 0.88 mm,
Reaction to fire; Sheath: E_ca; PVC
Colour: grey RAL 7035
Nominall Cable Diameter: 5.0 mm,
Weight: 29.2 kg/km,
NVP: 68 %
Propagation Delay: 535 ns/100 m
Delay Skew: ≤45 ns/100 m
Storage Temperature: -20 °C to 60 °C
Operational Temperature: -20 °C to 60 °C
Installation Temperature: 0 °C to 50 °C
Packaging: 1000 m/reel,
Packaging Size (diameter x height): 370 mm x 320 mm
Number of Items on a Pallet: 36 reels (large pallet), 27 reels (small pallet)

Product Description

The Solarix SXKD-5E-UTP-PVC installation cable is a reliable unshielded Category 5E cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The cable construction is U/UTP, PVC jacket type with E_ca fire reaction class. The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. In accordance with CPR (EU Regulation No. 305/2011), the cable is tested by the independent laboratory FORCE TECHNOLOGY in the AVCP 3 property assessment system. Like other Solarix cables, the SXKD-5E-UTP-PVC cable is marked in 1 m increments from 0 to 1000 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters.
