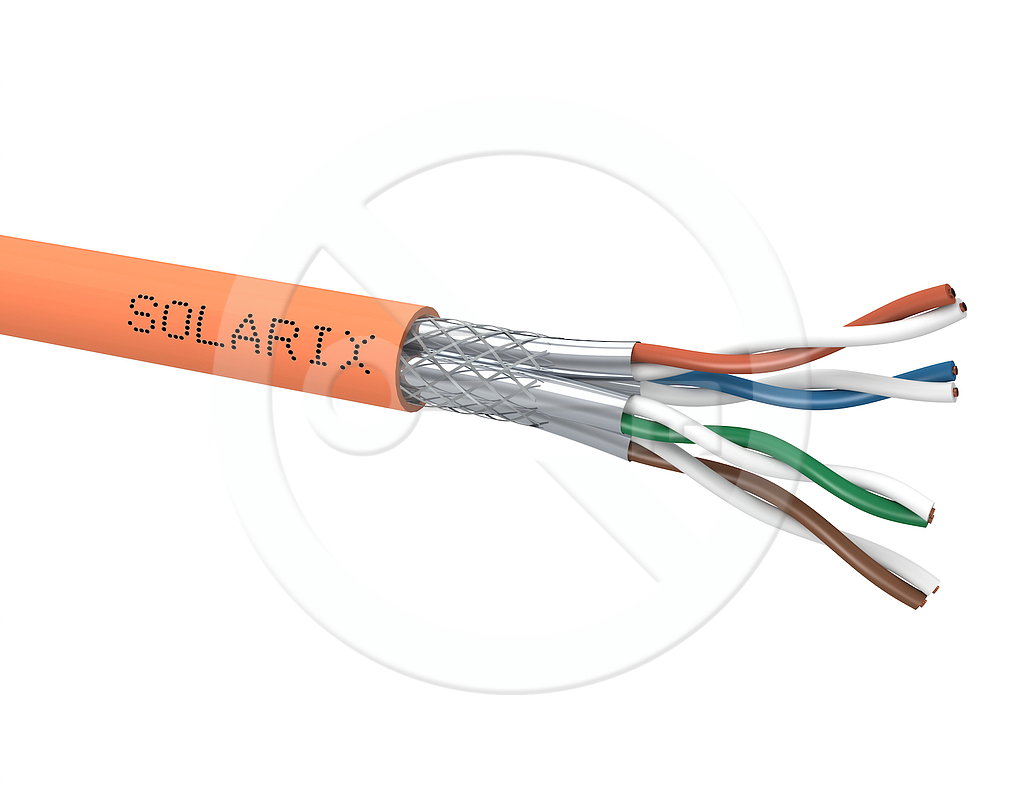

Installation cable Solarix CAT7 SSTP LSOHFR B2ca-s1,d1,a1 1000 MHz 500m/reel SXKD-7-SSTP-LSOHFR-B2ca
Brand:
Solarix
Warranty period:
5 years
Order code:
27000010
Unit of measurement (UoM):
reel 500m
Minimum order quantity (MOQ):
1
High quality double shielded category 7 installation cable tested up to 1 000 MHz, LSOHFR sheath with B2ca-s1,d1,a1 reaction to fire class, 500m. Compliant with EN 60332-3-22, Component Level certification.
601,50 EUR excluding VAT
Info about product:
+420 533 338 803
- High quality double shielded category 7/Class F installation cable tested up to 1000 MHz
- Designed for the 10GBASE-T high-speed ethernet protocol
- S/FTP cable construction
- Due to the double shielding excellent resistance to alien crosstalk
- LSOHFR sheath with B2ca-s1,d1,a1 reaction to fire class
- Compliant with EN 60332-3-22 and EN 60332-3-24
- Cable conductors are made of high-quality copper wire with 99.97% purity
- The cable meets the ISO/IEC 11801 and EN 50173 cabling standards
- Its electrical performance has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program
- As for the EU CPR regulation (i.e. no. 305/2011), the cable has been tested by the FORCE CERTIFICATION A/S laboratory in the AVCP 1+ system
Solarixpedia: 10 principles how to install data cables
- Category: CAT7
- Highest Supported Protocol: 10GBASE-T and lower
- Shielded: overall braid and individual foil around each pair
- Bandwidth: tested up to 1000 MHz
- Conductor Type and Size: copper wire 0.57 mm ± 0.005 mm
- Insulation and Wire Diameter with Insulation: skin-foam-skin PE 1.33 mm
- Reaction to fire; Sheath: B2ca-s1,d1,a1; LSOHFR
- Colour: orange RAL 2003
- Nominall Cable Diameter: 7.8 mm
- Weight: 58 kg/km
- NVP: 79 %
- Propagation Delay: 480 ns/100 m
- Delay Skew: ≤25 ns/100 m
- Storage Temperature: -20 °C to 60 °C
- Operational Temperature: -20 °C to 60 °C
- Installation Temperature: 0 °C to 50 °C
- Packaging: 500 m/reel,
- Packaging Size (diameter x height): 380 mm x 390 mm
- Number of Items on a Pallet: 27 reels
Datasheets
- EN datasheet Solarix installation cable SXKD-7-SSTP-LSOHFR-B2ca (421.74 KB, pdf)
- Certifikát ČSN EN 60332-3-22 instalační kabel SXKD-7-SSTP-LSOHFR-B2ca (531.96 KB, pdf)
- CZ, EN, PL, SK DoP M403-SXKD-7-SSTP-LSOHFR-B2ca-01 (233.8 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN certificate component level SXKD-7-SSTP-LSOH/LSOHFR-B2ca (171.66 KB, pdf)
- EN certificate of constancy of performance Solarix SXKD-7-SSTP-LSOHFR-B2ca (78.92 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
