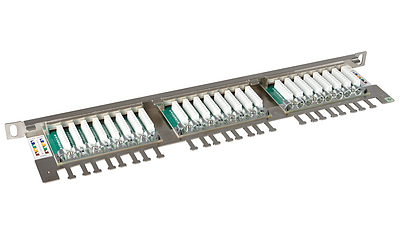

19" patch panel Solarix 24xRJ45 CAT5E STP 0,5U SX24HD-5E-STP-SL
Brand:
Solarix
Guarantee period:
5 years
Order code:
24000145
Unit of measurement (UoM):
piece
Min. purchase amount (UoM):
1
High-density 0,5U shielded patch panel CAT5E 24 ports with management bar.
79,79 EUR ecluding VAT
Info about product:
+420 533 338 803
- Quality 19" shielded high-density category 5E/Class D patch panel
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T

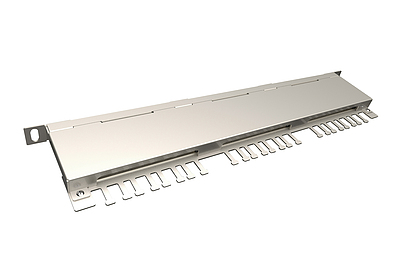

- With management bar
- 24 ports RJ45 with 50 µin gold contact plating
- Dual IDC termination block 110/Krone type (both T568A and T568B wiring)
- The patch panel meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
- The colour of the patch panel is silver
- 0.5U size (i.e. two HD patch panels easily fit into 1U position)
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Number of Ports: 24
- Shielded: Yes
- Support Bar: Yes
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: 110/Krone 8p8c
- Min. Termination Module Life: 200 terminations
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: silver
- Unit Size: 0.5U,
- Height: 22 mm
- Width: 484 mm
- Depth: 101.5 mm
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Datasheets
- EN datasheet Solarix patch panel SX24HD-5E-STP-SL (223.3 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN patch panels label map (644.45 KB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
