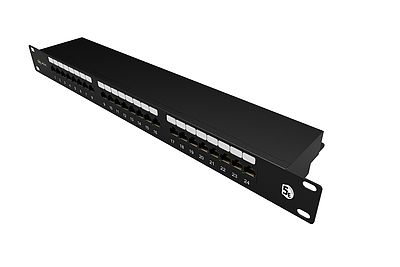

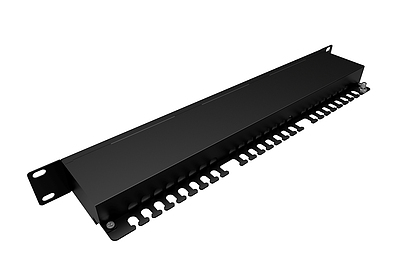

19" patch panel Solarix 24x RJ45 CAT5E STP 1U SX24-5E-STP-BK-N
|
Order code: 24000040 Brand: Solarix Guarantee period: 5 years Unit of measurement (UoM): piece Min. purchase amount (UoM): 1 Delivery date: immediately Recommended price excluding VAT: 69,25 EUR | |
|
|
By product
Shielded patch panel category 5E 24 ports, black.
Technical Parameters
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Number of Ports: 24
- Shielded: Yes
- Support Bar: Yes
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: 110/Krone 8p8c
- Min. Termination Module Life: 200 terminations
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: Black
- Unit Size: 1U
- Height: 44 mm
- Width: 484 mm
- Depth: 95 mm
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Product Description
- Quality 19" shielded category 5E/Class D patch panel
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T
- With management bar
- 24 ports RJ45 with 50 µin gold contact plating

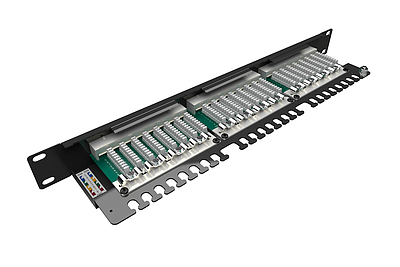

- Dual IDC termination block 110/Krone type (both T568A and T568B wiring)
- The patch panel meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
- The colour of the patch panel is black
- 1U size
