Installation cable Solarix CAT5E FTP PVC Eca 500m/reel SXKD-5E-FTP-PVC

Product Installation cable Solarix CAT5E FTP PVC E<sub>ca</sub> 500m/reel SXKD-5E-FTP-PVC - Solarix - Solid Cable
Brand: Solarix
Warranty period: 5 years
Order code: 27655144
Unit of measurement (UoM): reel 500m
Minimum order quantity (MOQ): 1
High quality shielded category 5E installation cable, PVC sheath with Eca reaction to fire class, 500 m reel, Component Level certification.
reel500m
Delivery: en route
Info about product:
+420 533 338 803

Product Description

Technical Parameters

Downloads


Any question?

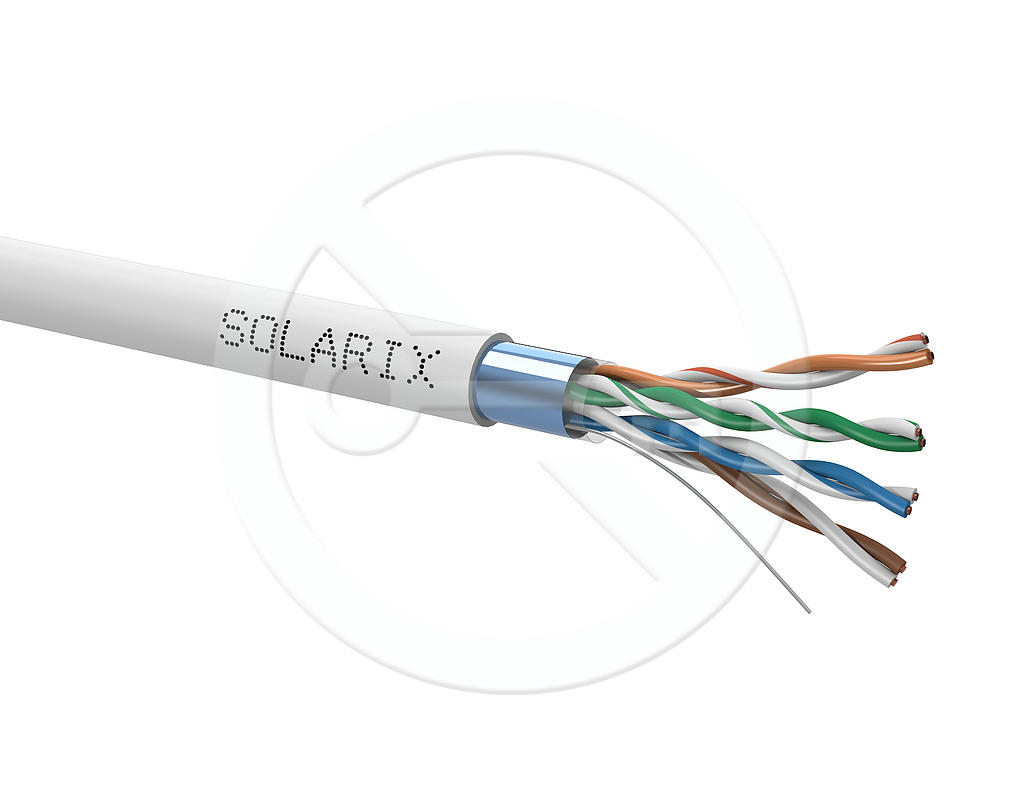

The Solarix SXKD-5E-FTP-PVC installation cable is a reliable Category 5E shielded cable designed for Ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The cable construction is F/UTP, PVC jacket type with Eca reaction to fire class. The cable conductors are made of high-quality copper wire with a copper purity of 99.97%. The cable easily meets the requirements of international standards ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D. The performance parameters of this cable have been tested by the independent testing laboratory FORCE TECHNOLOGY as part of the EC Verified program, at the highest level, known as Component Level. The certificate is available here on the website under the "Downloads" tab or directly on the FORCE laboratory website. In the case of CPR (EU Regulation No. 305/2011), the cable is tested by the independent FORCE TECHNOLOGY laboratory in the AVCP 3 property assessment system. Like other Solarix cables, the SXKD-5E-FTP-PVC cable is marked in 1 m increments from 0 to 500 m. The cable is supplied on a high-strength wooden reel, which contains all the necessary product information, including barcodes, production batch, description, and the most important technical parameters.
  • Category: CAT5E
  • Highest Supported Protocol: 2.5/5GBASE-T and lower
  • Shielded: overall foil
  • Bandwidth: 100 MHz
  • Conductor Type and Size: copper wire 0.50 mm ± 0.005 mm
  • Insulation and Wire Diameter with Insulation: HDPE 1.0 mm
  • Reaction to fire; Sheath: Eca; PVC
  • Colour: grey RAL 7035
  • Nominall Cable Diameter: 6.2 mm
  • Weight: 39.4 kg/km
  • NVP: 68 %
  • Propagation Delay: 535 ns/100 m
  • Delay Skew: ≤45 ns/100 m
  • Storage Temperature: -20 °C to 60 °C
  • Operational Temperature: -20 °C to 60 °C
  • Installation Temperature: 0 °C to 50 °C

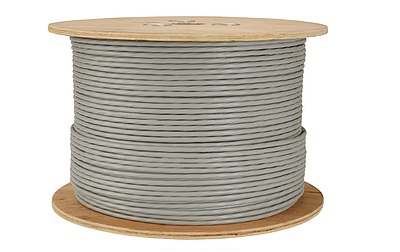

  • Packaging: 500 m/reel,
  • Packaging Size (diameter x height): 370 mm x 320 mm
  • Number of Items on a Pallet: 36 reels (large pallet), 27 reels (small pallet)
