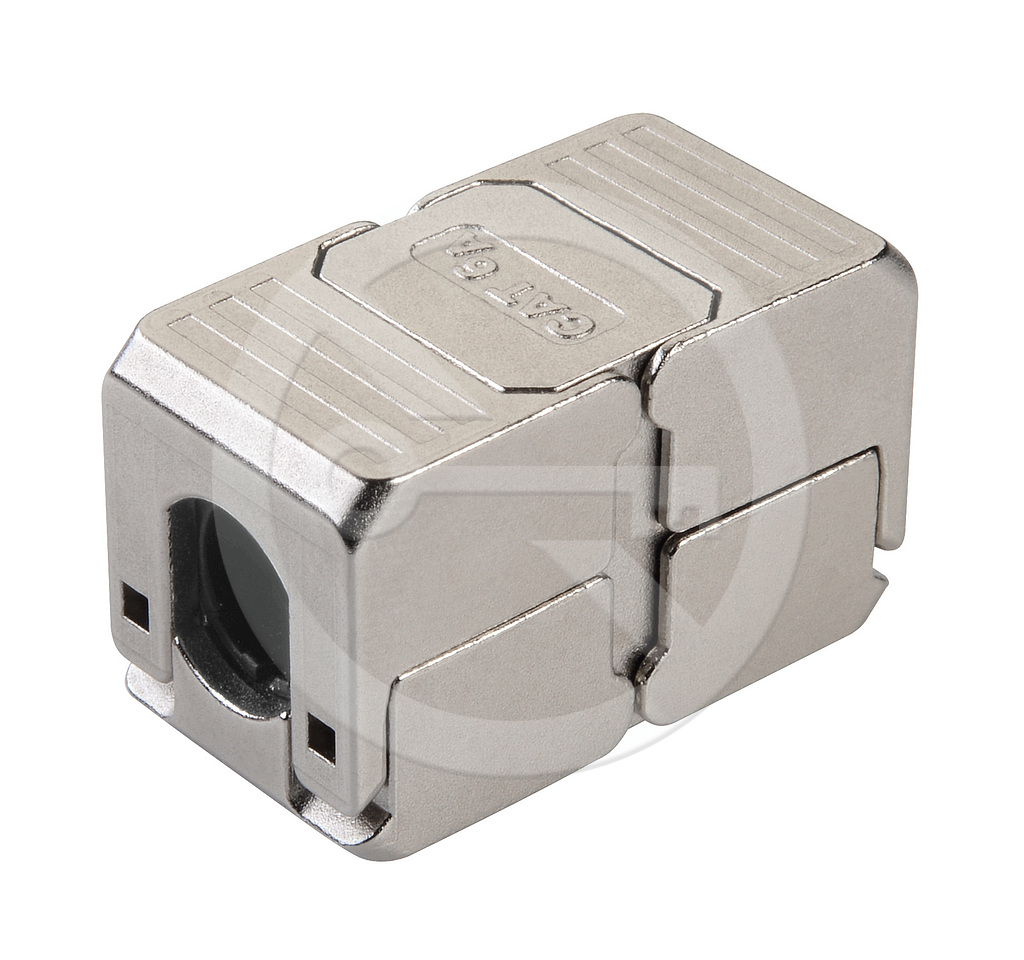

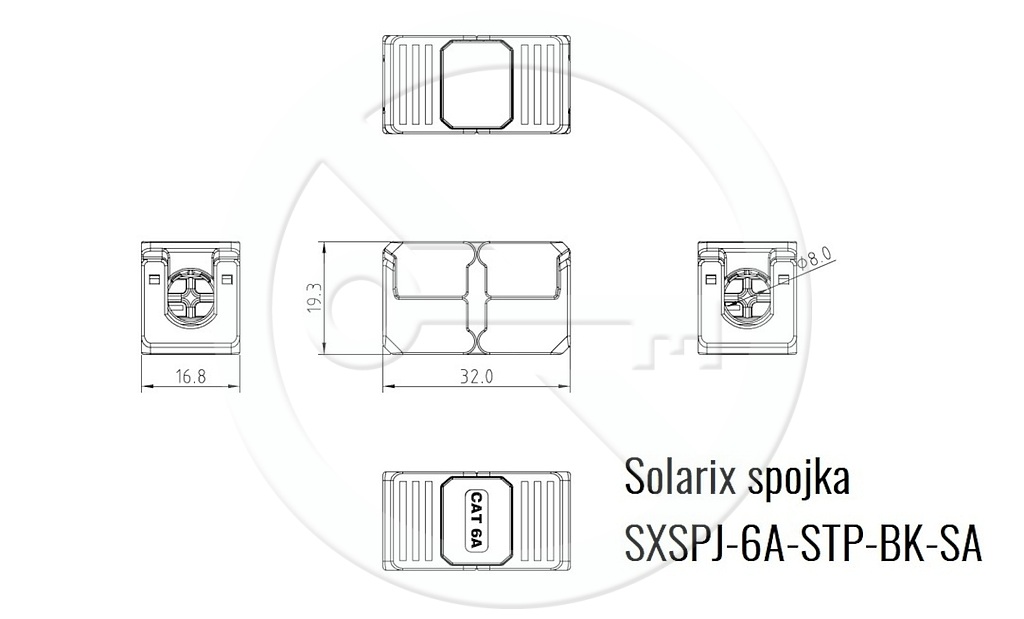

Coupler CAT6A STP toolless SXSPJ-6A-STP-BK-SA
Brand:
Solarix
Warranty period:
5 years
Order code:
13180100
Unit of measurement (UoM):
piece
Minimum order quantity (MOQ):
1
CAT6A toolless shielded coupler, very easy to install.
7,71 EUR excluding VAT
Info about product:
+420 533 338 803

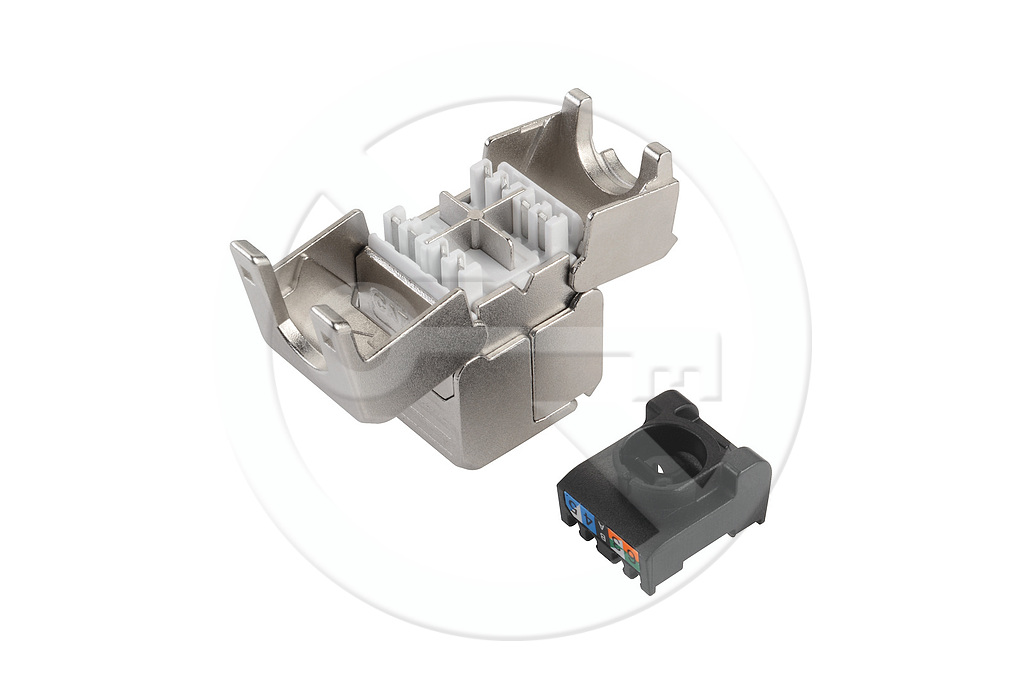

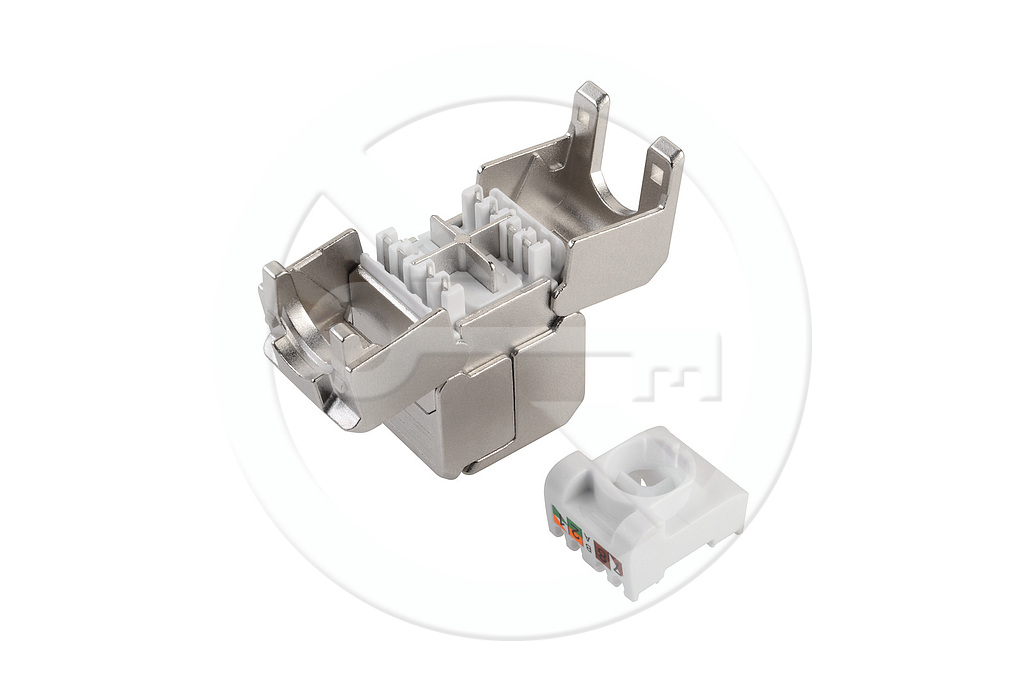

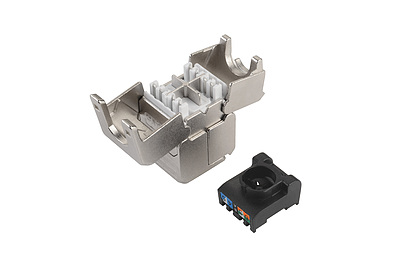

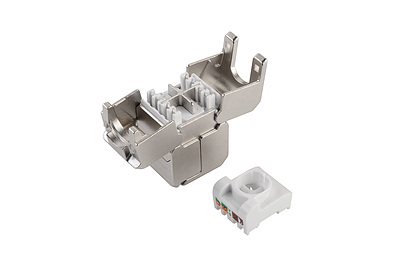

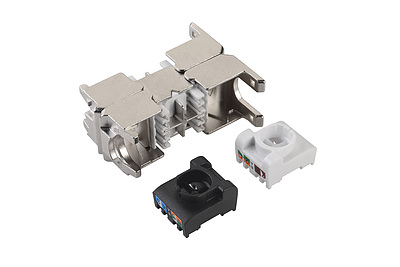

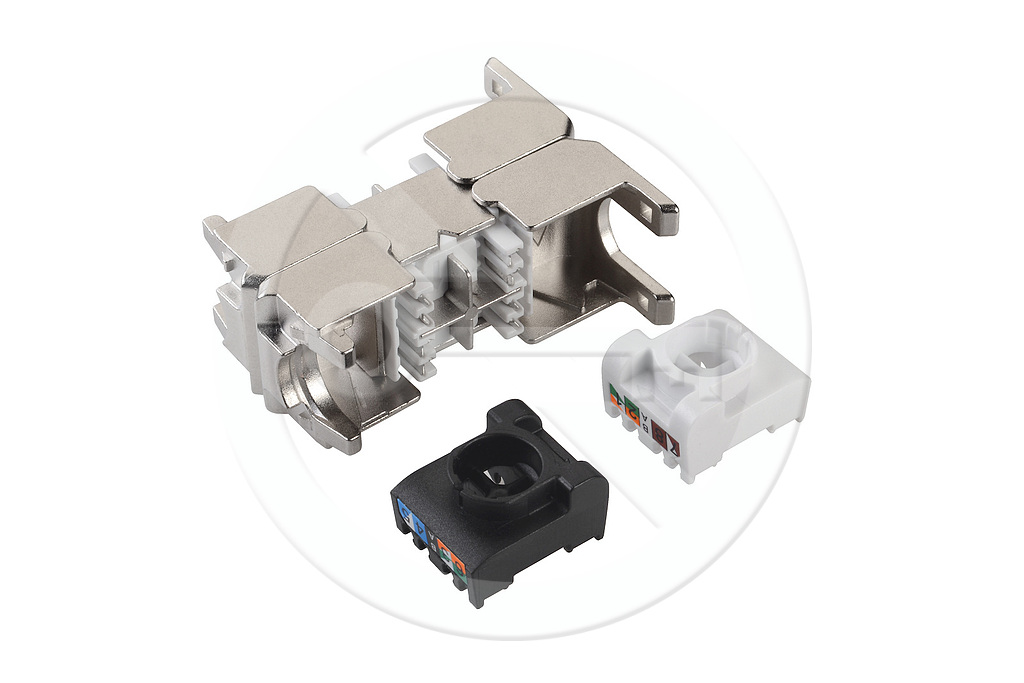

The Solarix SXSPJ-6A-STP-BK-SA coupler is a toolless, shielded Category 6A coupler that can be used for simple extension or connection of data cables. It is characterized by high reliability, long service life, and very easy installation. The toolless mechanism on this coupler is identical to the installation method used for Solarix toolless keystones. The coupler is also backward compatible with lower-category cables (i.e., CAT5E and CAT6).
- Category: CAT6A
- Highest Supported Protocol: 10GBASE-T
- Coupler Type: IDC/IDC
- Shielded: Yes
- Termination Module: toolless
- Conductor Size: AWG 24 - 22, solid
- Housing Material: FR acording to UL94-0
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Datasheets
- EN Datasheet Solarix Couplers and Junction boxes (405.85 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
