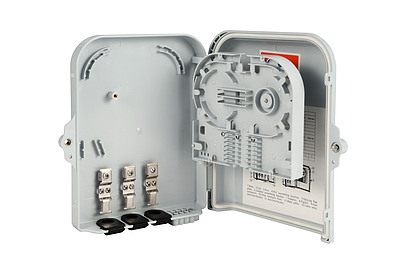

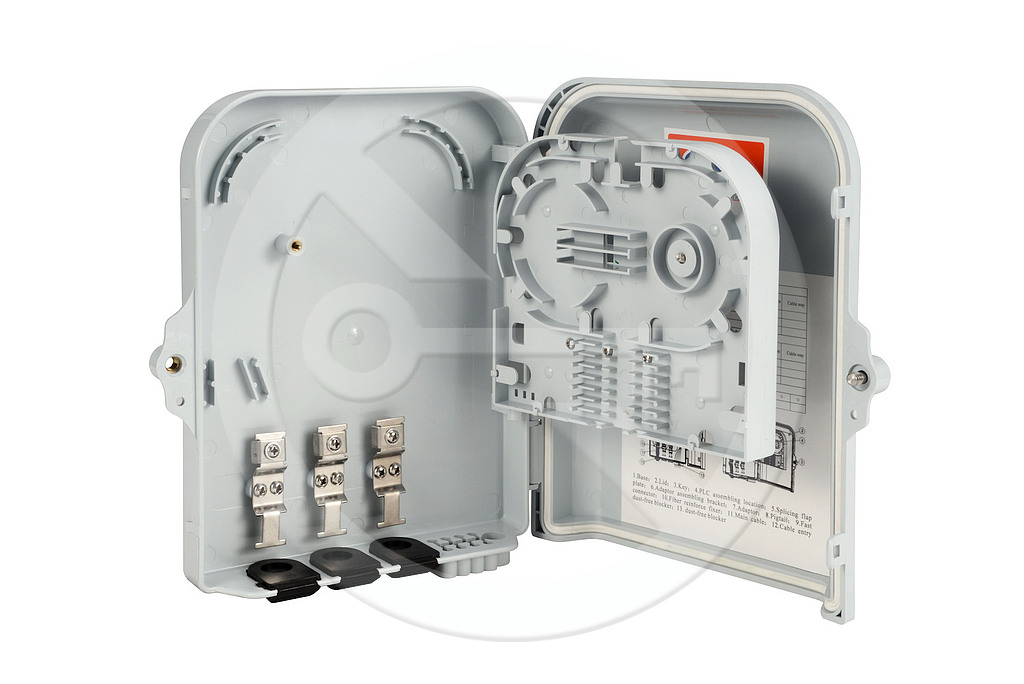

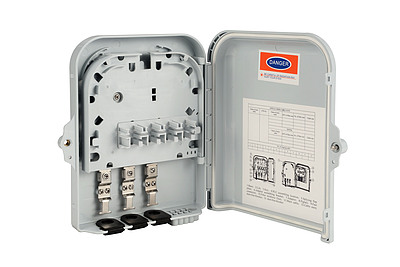

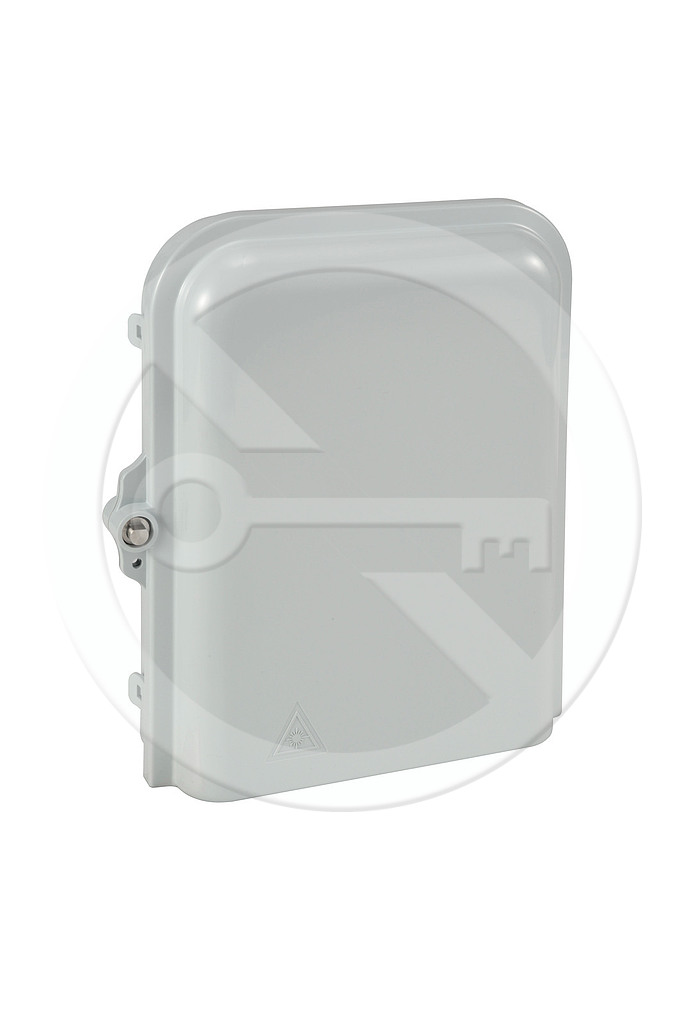

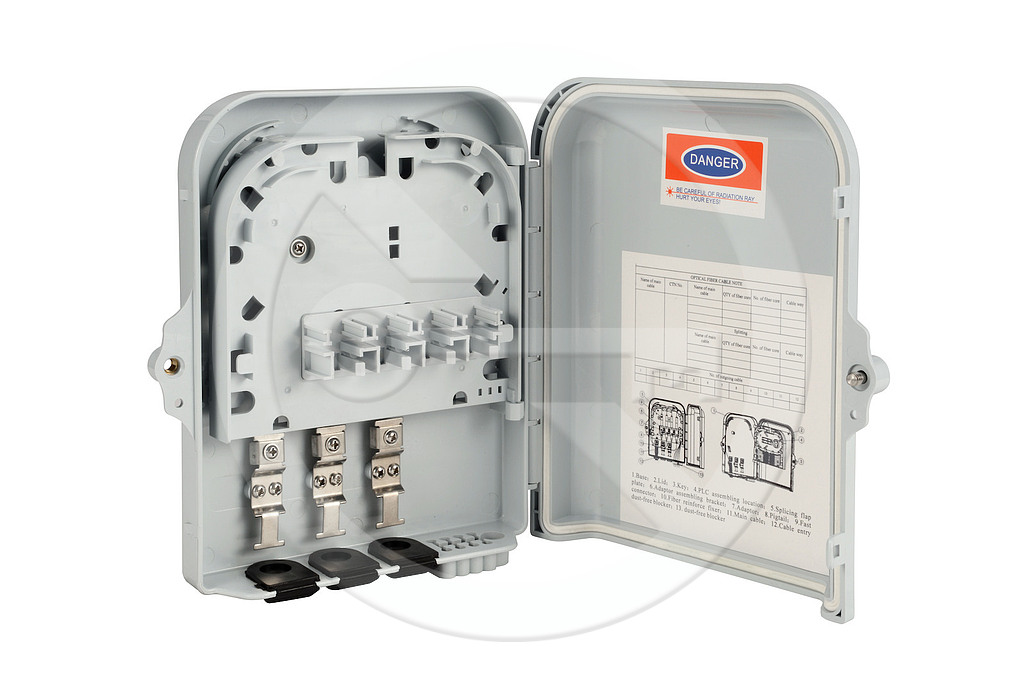

Fibre optic wall box 8f SXOB-SC-SX-8

The optical wall box is used to terminate fibre optic cables in outdoor and indoor installations. This optical box has a high degree of protection IP 65. The surface of the optical wall box is UV resistant. It can be mounted on a pole or using a mounting kit directly on the wall. The optical box allows up to 8 fibres to be
terminated in a combination of 8x SC simplex or 8x LC duplex or 8x E2000 adapters. It includes 3x cable entry with a mid-span rubber cap, which means that a continuously installed cable can be terminated without interrupting rest of the fibres. The output has 8 holes for patch cables, which are provided with a rubber cap plus an auxiliary opening for inserting/removing the connector of the patch cable. When the patch cable is placed, the rubber cap is removed and a plastic sleeve is used instead to seal the space between the patch cable jacket and the box opening. The optical box also includes a vertical flap cassette, ensuring easier access and handling of the pigtails. The box is lockable.

Package contains

• 10x plastic cable tie
• 3x metal cable tie
• 8x splice protectors 60 mm
• 8x plastic grommet for patch cables 1,8 – 3,0 mm
• 4x screw 4 x 40 mm
• 4x wall plug
• 1x plastic tube 4 x 30 mm
• 1x key
