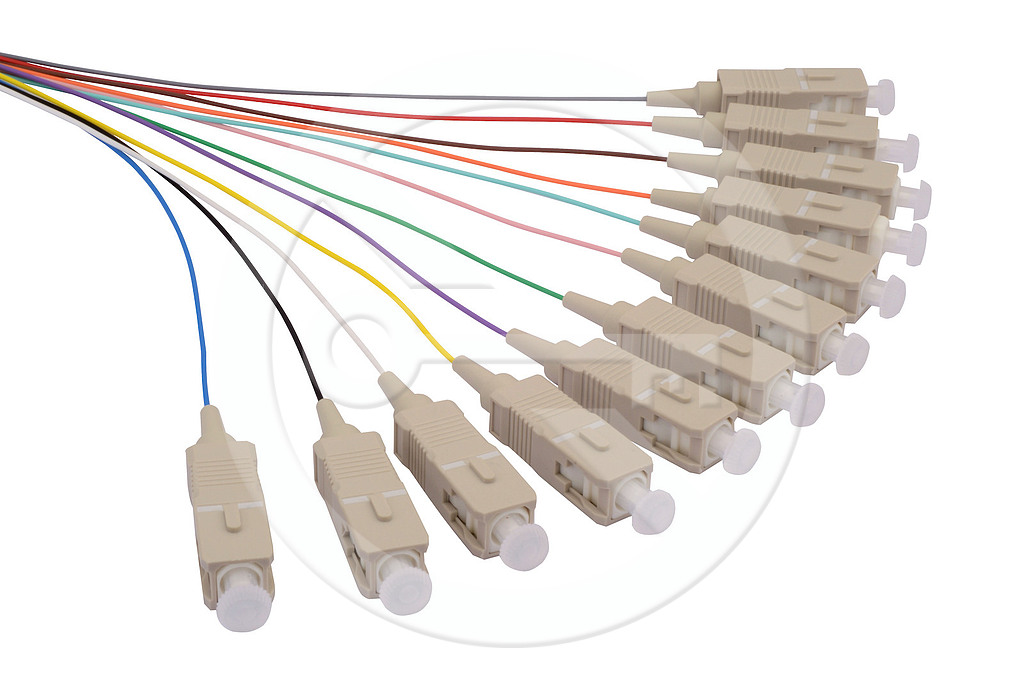

Pigtail 50/125 SCupc MM OM2 1.5m, 12pcs pack SXPI-SC-UPC-OM2-1.5M-12PCK
Brand:
Solarix
Warranty period:
5 years
Order code:
70222195
Unit of measurement (UoM):
piece
Minimum order quantity (MOQ):
1
An optical pigtail is a section of optical fiber fitted with a connector and is used to terminate an optical path in an optical cassette.
18,08 EUR excluding VAT
Info about product:
+420 533 338 834
Solarix fibre optic pigtails are designed for terminating optical fibres within various fibre optics patch panels and boxes. Their ferrules are of the UPC (ultra physical contact) type for both single mode and multimode pigtails or APC (angled physical contact) type for singlemode pigtails. Thanks to the color-coded secondary jacket insulation, it is possible to continue the color-coded fibers from the optical cables seamlessly, thereby improving the clarity of the fiber terminations all the way to the connectors mounted on the rear panel of the tray or optical box.
- Fibre Optic Connector: SC
- Grinding type: UPC
- Fiber size: 50/125 µm
- Fiber type: G.651.1
- Length: 1.5 m
- Max. return loss: >35 dB
- Max. insertion loss: <0.3 dB
- Connection / disconnection cycles: min. 1000 insertions
- Ferrule diameter: 1.25 mm
- Diameter of primary fiber protection: 250 µm
- Diameter of secondary fiber protection: 900 µm
- Operating temparature: -40 °C to +70 °C
- Storage temperature: -40 °C to +70 °C
Datasheets
- Datasheet Solarix SC-12 pigtails (447.4 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - fiber optics (240.29 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
