Drop wire "@" clamp for round DROP cable diameter 2-6mm
Brand:
OEM
Guarantee period:
2 years
Order code:
70900032
Unit of measurement (UoM):
piece
Min. purchase amount (UoM):
1
Dead-ending of round drop cable on poles and buildings.
2,41 EUR ecluding VAT
Info about product:
+420 533 338 834

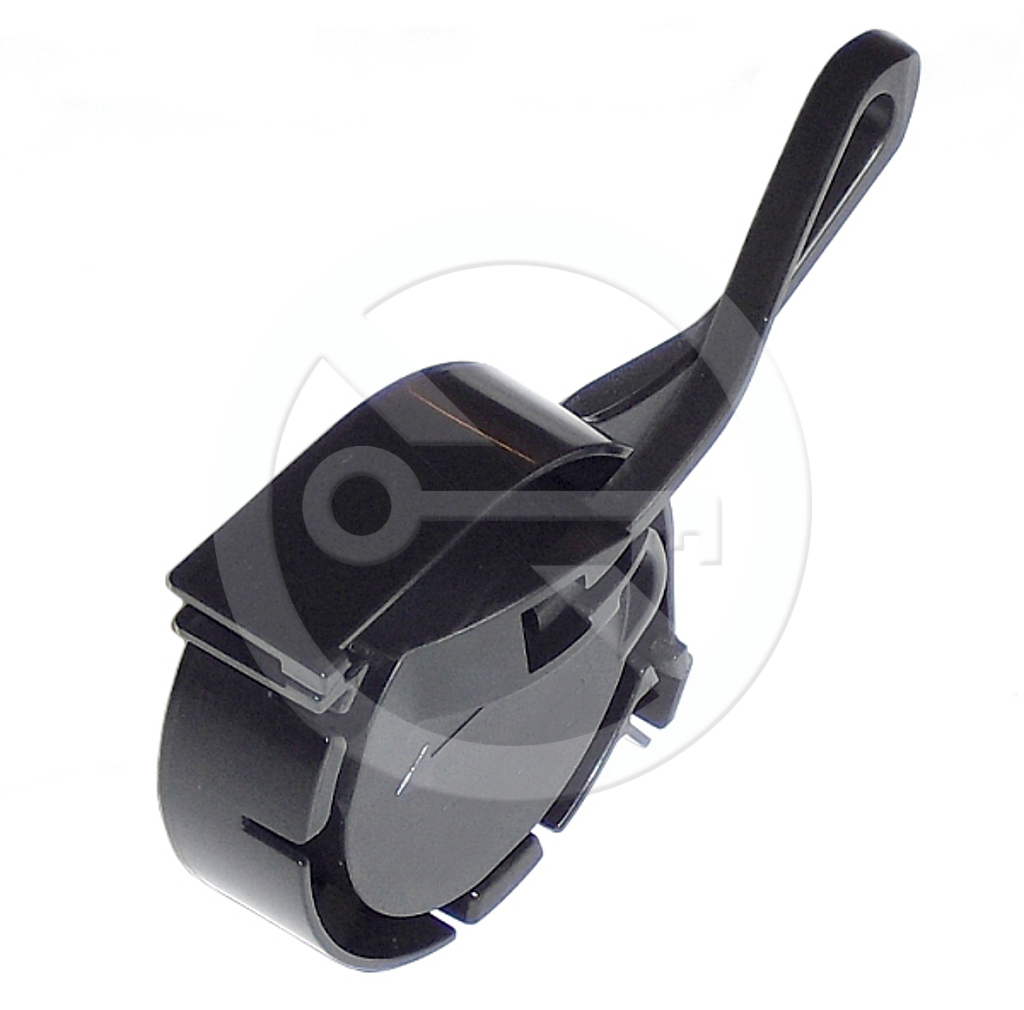

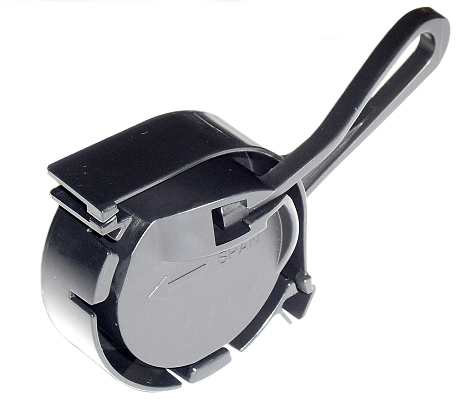

The drop wire clamp "@" is composed of a mandrelshaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon for a lifespan guarantee of min 25 years.
Features:
• Dead-ending of round drop cable on poles and buildings.
• Suspension of drop cable at intermediate poles by using 2 drop clamps.
• Capacity: Ø 2 to 6mm round cables.
• Min. failing load : 180 daN
Benefits:
Its unique patented design allows the dead-ending of the cable without any radial pressure on the cable outer sheath and on the fibres. This provides an extra protection of the drop cable.
Features:
• Dead-ending of round drop cable on poles and buildings.
• Suspension of drop cable at intermediate poles by using 2 drop clamps.
• Capacity: Ø 2 to 6mm round cables.
• Min. failing load : 180 daN
Benefits:
Its unique patented design allows the dead-ending of the cable without any radial pressure on the cable outer sheath and on the fibres. This provides an extra protection of the drop cable.
Datasheets
- EN datasheet "@" kotvy pro DROP kabel (766.83 KB, pdf)
