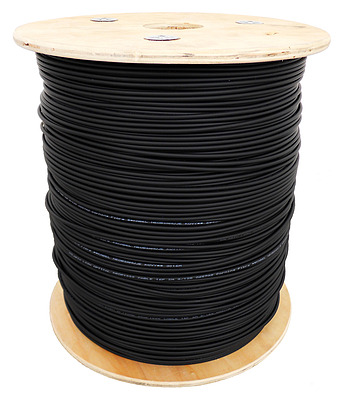

DROP1000 cable Solarix 24f 9/125 3.9mm LSOH Eca black SXKO-DROP-24-OS-LSOH
Brand:
Solarix
Warranty period:
5 years
Order code:
70291240
Unit of measurement (UoM):
meter
Minimum order quantity (MOQ):
1
Fibre optic cable Solarix DROP1000 with LSOH outer jacket, reaction to fire Eca 24 fibres SM 9/125.
1,18 EUR excluding VAT
Info about product:
+420 533 338 834
Solarix DROP fibre optic cables SXKO-DROP-OS-LSOH reaction to fire Eca are suitable for indoor and outdoor installations. The outer jackets of the cables LSOH are made of low smoke, and halogen free compound, which is also complemented by UV stable material. The fibre optic cable has a very high tensile strength of 1000 N. The fibres G.657.A1 OS1 have a high degree of flexibility, allowing excellent installation properties to be achieved in confined spaces and wherever there is a need for more separate joints.
Recommended clamp the „@“ mini for fibre optic DROP cable is optimised to fully respect the minimum bending radius of the cable. This ensures zero attenuation or takes negligible values. There is no deformation of the cable, nor does it shift the fibres inside the cable. Clamp design ensures easy and safe installation.
Recommended clamp the „@“ mini for fibre optic DROP cable is optimised to fully respect the minimum bending radius of the cable. This ensures zero attenuation or takes negligible values. There is no deformation of the cable, nor does it shift the fibres inside the cable. Clamp design ensures easy and safe installation.
- Type of Cable: [?] DROP
- Type of Fibre: [?] 9/125 µm
- Reaction to fire CPR: [?] Eca LSOH
- Type of Cable According to the Type of Secondary Coating: gel-free
- Operating Temperature: -20 °C to +60 °C
- Installation Temperature: -5 °C to +50 °C
- Storage Temperature: -20 °C to +60 °C
- Fiber specification: G.657.A1 OS1
- Attenuation at 1310nm: 0.35 - 0.40 dB/km
- Attenuation at 1550nm: 0.35 - 0.40 dB/km
- Cable diameter: 3.9 mm
- Cable weight (kg/km): 14.3 kg/km
- Short-term tensile strength: 1000 N
- Short-term pressure resistance: 1000 N/10 cm
- Minimum bend radius (short-term): 15x D cable
- Minimum bend radius (long-term): 10x D cable
Datasheets
- EN Datasheet Solarix DROP cables (405.13 KB, pdf)
- CZ, EN, PL, SK DoP F307-SXKO-DROP-24-OS-LSOH-Eca-01 (216.45 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - fiber optics (240.29 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - fiber optics (189.48 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - fiber optics (238.9 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN manual for @ MINI clamp for Solarix DROP cables (3.45 MB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
