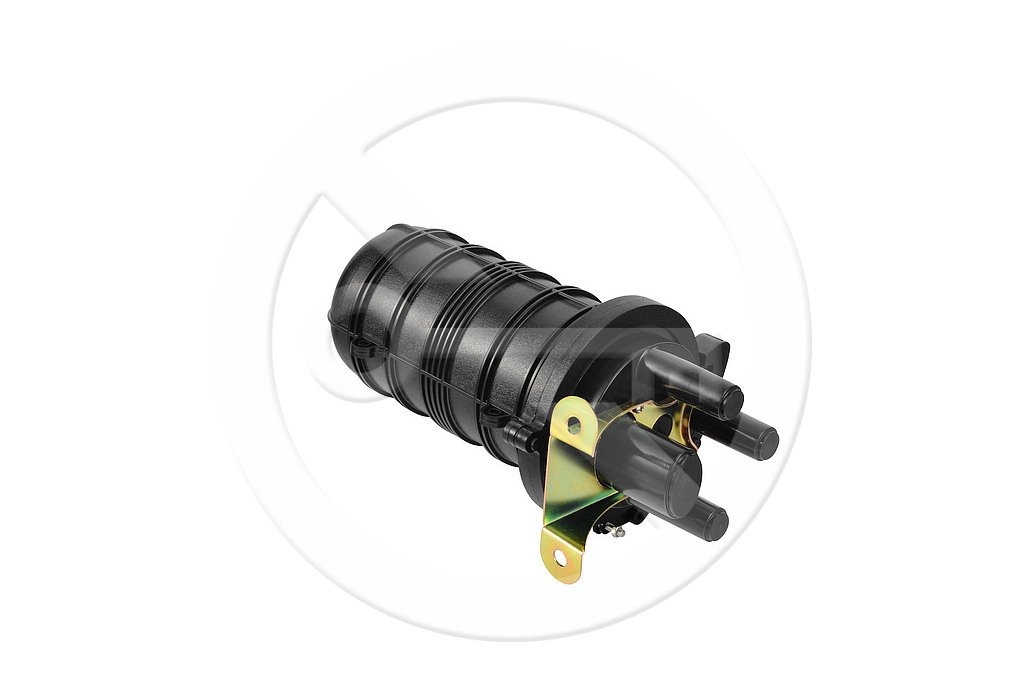

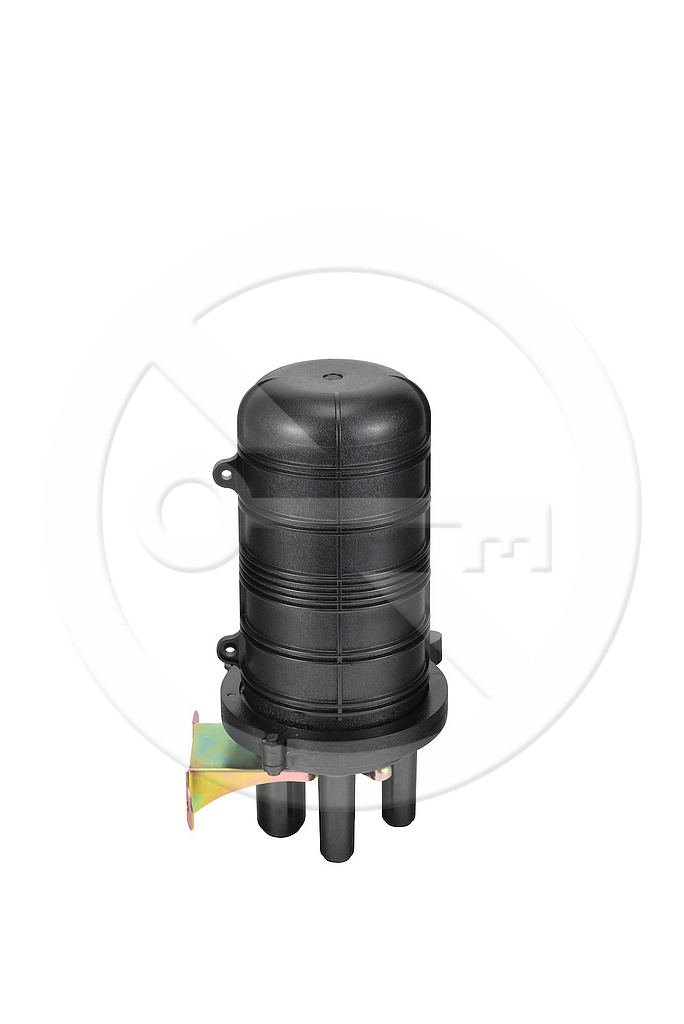

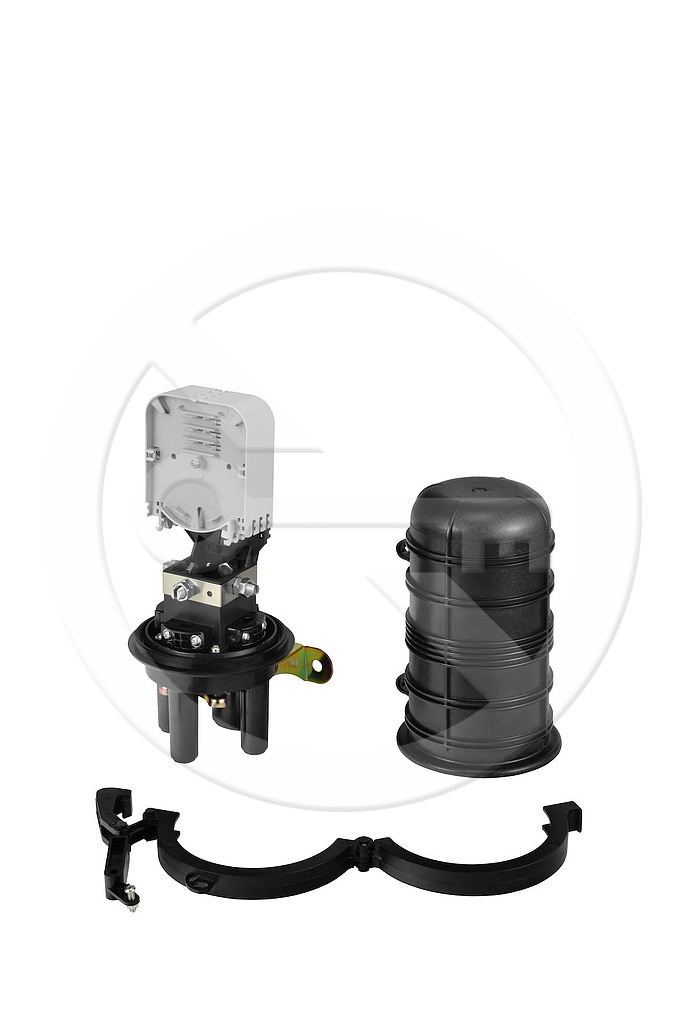

Fibre optic enclosure 48f SX-FOSC-D-48

Fibre optic enclosure is primarily suitable for the continuous termination of fibre optic cables. Thanks to the excellent anchoring system, it is possible to install it on power pole, street lighting or other fixation points. It is also possible to use it in duct mounted installations. The enclosure features a high degree of IP 68

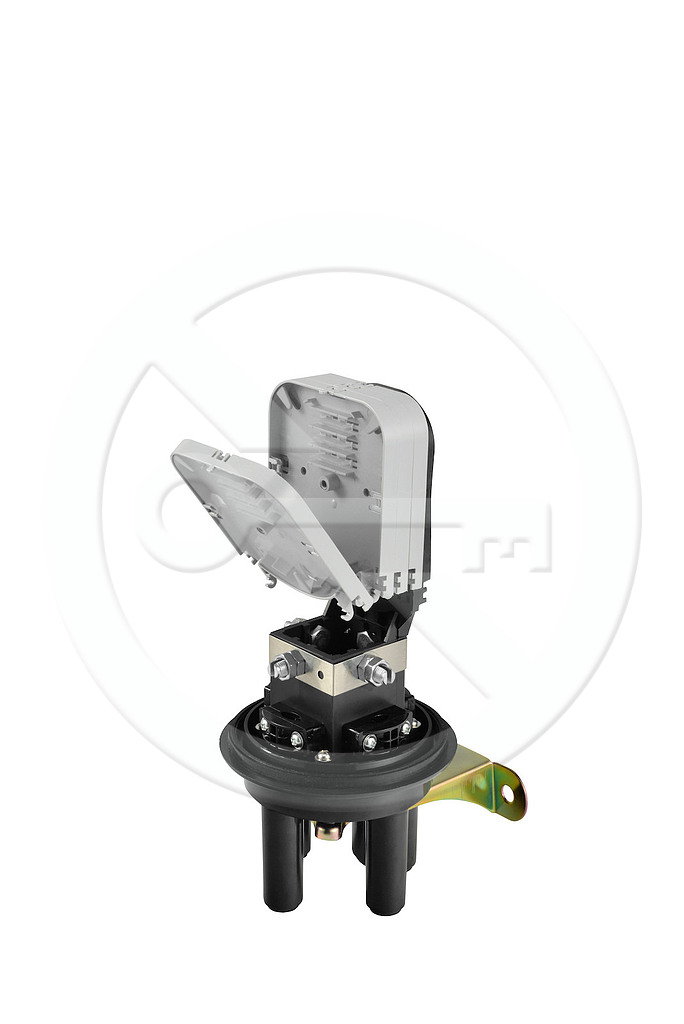

protection and is fully UV resistant. It includes a closable self-locking mechanism that safely protects internal components from external environmental influences. It has a total of 4 entry/exit holes, one of which is an oval profile and the remaining round profile. In the basic configuration, this enclosure contains only one splicing cassette for up to 12 fibres. The total capacity is 4 cassettes, allowing up to 48 fibres to be fitted.

Package contains
1x splicing cassette for up to 12 fibres including splice protectors

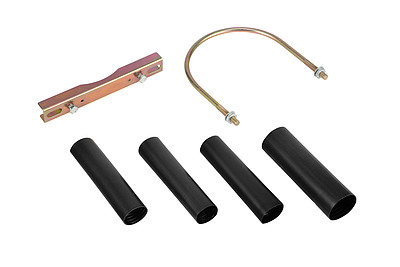

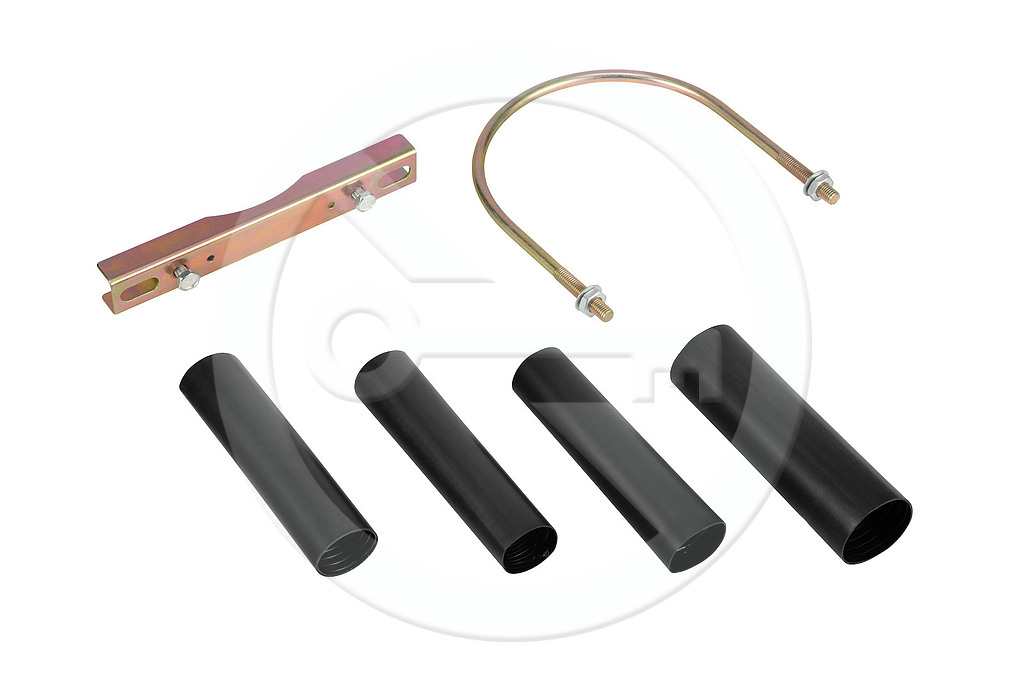

Anchor holder for pole installation with outer diameter 170 mm
3x heat shrink tube – round profile 35 x 150 mm
1x heat shrink tube – oval profile 45 x 150 mm
1x sandpaper 45 x 45 mm
1x label 1 – 12 (4 rows)
1x self stick aluminium foil 150 x 150 mm
1x earth wire
8x plastic tie
4x plastic cable tie
1x plastic hexagon key
Installation manual in Engish language
