Outdoor DUCT cable Solarix 12vl 9/125 HDPE Fca black SXKO-DUCT-12-OS-HDPE
Brand:
Solarix
Warranty period:
5 years
Order code:
70293129
Unit of measurement (UoM):
meter
Minimum order quantity (UoM):
1
Solarix outdoor optical DUCT cable, CLT construction with aramid yarn, FRP strength members, HDPE jacket, and Fca fire reaction class; 12 SM 9/125 fibers.
0,65 EUR excluding VAT
Info about product:
+420 533 338 834

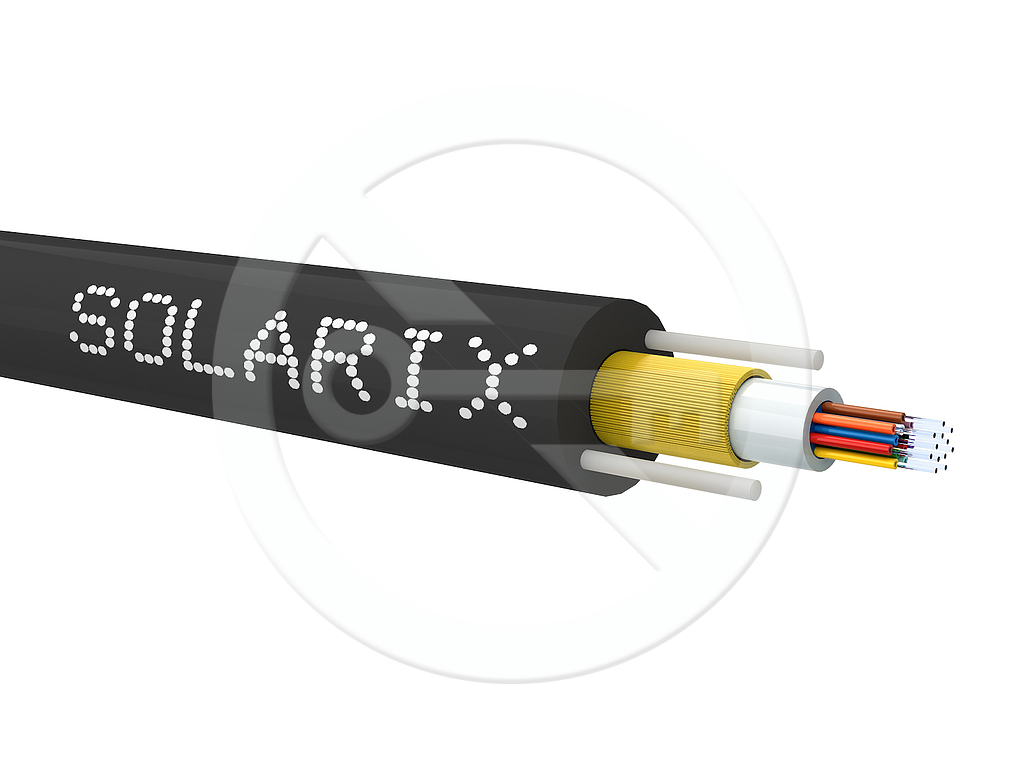

Solarix SXKO-DUCT-12-OS-HDPE is an outdoor optical DUCT cable with an Fca fire reaction class. The cable is ideal for installation in HDPE ducts or for aerial applications. The G.652.D fibers are housed in a gel-filled central tube, protecting them against water ingress. The cable features aramid yarn around the tube and two FRP strength members within the jacket to enhance mechanical durability. This optical cable contains no metal components and is fully dielectric.
- Type of Cable: [?] DUCT
- Type of Fibre: [?] 9/125 µm
- Reaction to fire CPR: [?] Fca HDPE
- Type of Cable According to the Type of Secondary Coating: gel-filled
- Type of Cable According to the Number of Tubes: CLT
- Operating Temperature: -20 °C až +70 °C
- Installation Temperature: -15 °C až +50 °C
- Storage Temperature: -40 °C až +70 °C
- Fiber specification: G.652.D OS2
- Attenuation at 1310nm: 0.36 dB/km
- Attenuation at 1550nm: 0.25 dB/km
- Cable diameter: 5.1 mm
- Cable weight (kg/km): 20.5 kg/km
- Short-term tensile strength: 400 N
- Minimum bend radius (short-term): 30x D cable
- Minimum bend radius (long-term): 15x D cable
Datasheets
- EN Datasheet Solarix DUCT singlemode (283.93 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - fiber optics (203.02 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - fiber optics (189.48 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - fiber optics (206.58 KB, pdf)
- Declaration of Performance PF509-SXKO-DUCT-12-OS-HDPE-Fca-01 (227.79 KB, pdf)
- EN Maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN Significant Solarix cabling installations (2.16 MB, pdf)
