Outdoor cable ADSS 4KN Solarix 12f 9/125 PE Fca black SXKO-ADSS-4KN-12-OS-PE-P
Brand:
Solarix
Warranty period:
5 years
Order code:
70282129
Unit of measurement (UoM):
meter
Minimum order quantity (MOQ):
1
Self-supporting outdoor ADSS cable, MLT construction, with PE jacket and Fca reaction to fire class 12 SM 9/125 fibers.
0,54 EUR excluding VAT
Info about product:
+420 533 338 834

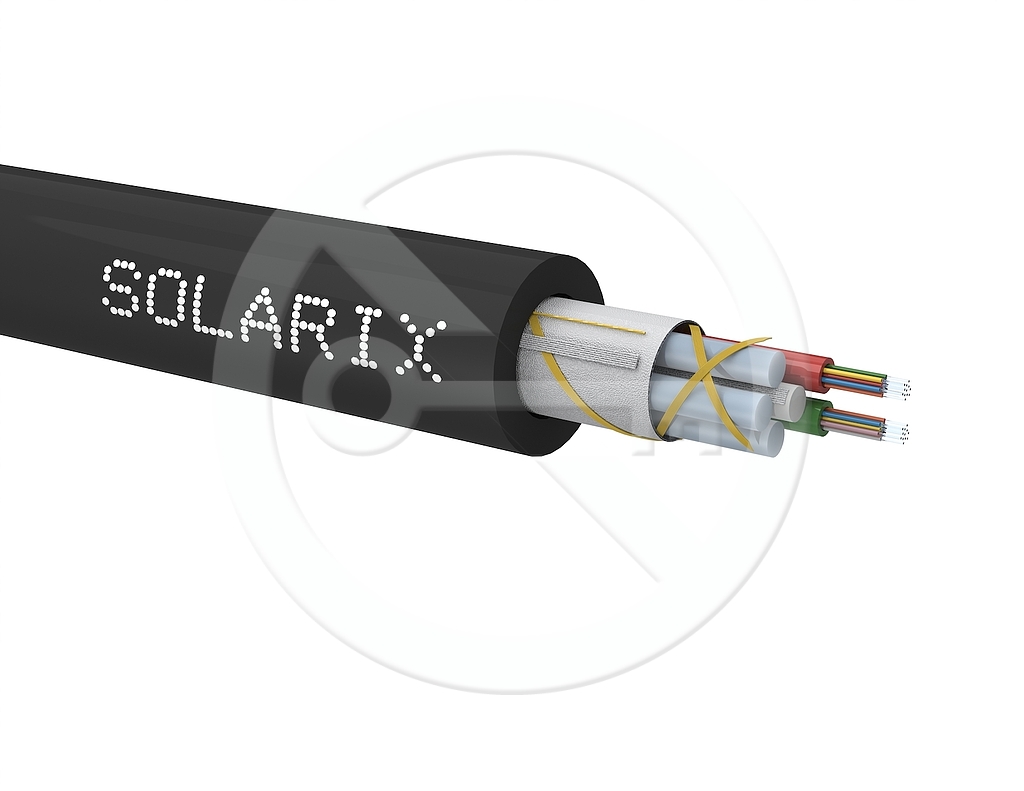

The Solarix SXKO-ADSS-4KN-OS-PE-P outdoor optical cable, with Fca reaction to fire class is suitable for outdoor installations thanks to its UV-stable PE jacket. The cable is self-supporting with a tensile strength of 4000 N and can be suspended without additional support elements. The fibers themselves are housed in a central gel-filled tube, which protects them from water ingress. They are arranged in groups of 6 fibers per tube. The optical cable contains no metallic components and is fully dielectric. The fiber itself is of the G.652.D type.
- Type of Cable: [?] self-supporting
- Type of Fibre: [?] 9/125 µm
- Reaction to fire CPR: [?] Fca HDPE
- Type of Cable According to the Type of Secondary Coating: gel-filled
- Type of Cable According to the Number of Tubes: MLT
- Operating Temperature: -40 °C to +70 °C
- Installation Temperature: -15 °C to +40 °C
- Storage Temperature: -40 °C to +70 °C
- Fiber specification: G.652.D
- Attenuation at 1310nm: 0.35 dB/km
- Attenuation at 1550nm: 0.21 dB/km
- Cable diameter: 12.5 mm
- Cable weight (kg/km): 108 kg/km
- Short-term tensile strength: 4000 N
- Short-term pressure resistance: 2000 N/100 mm
- Minimum bend radius (short-term): 15x D cable
- Minimum bend radius (long-term): 20x D cable
Certificates
- CZ, EN, PL, SK DoP F505-SXKO-ADSS-MLT-12-OS-PE-Fca-01 (233.66 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - fiber optics (240.29 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - fiber optics (189.48 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - fiber optics (238.9 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
