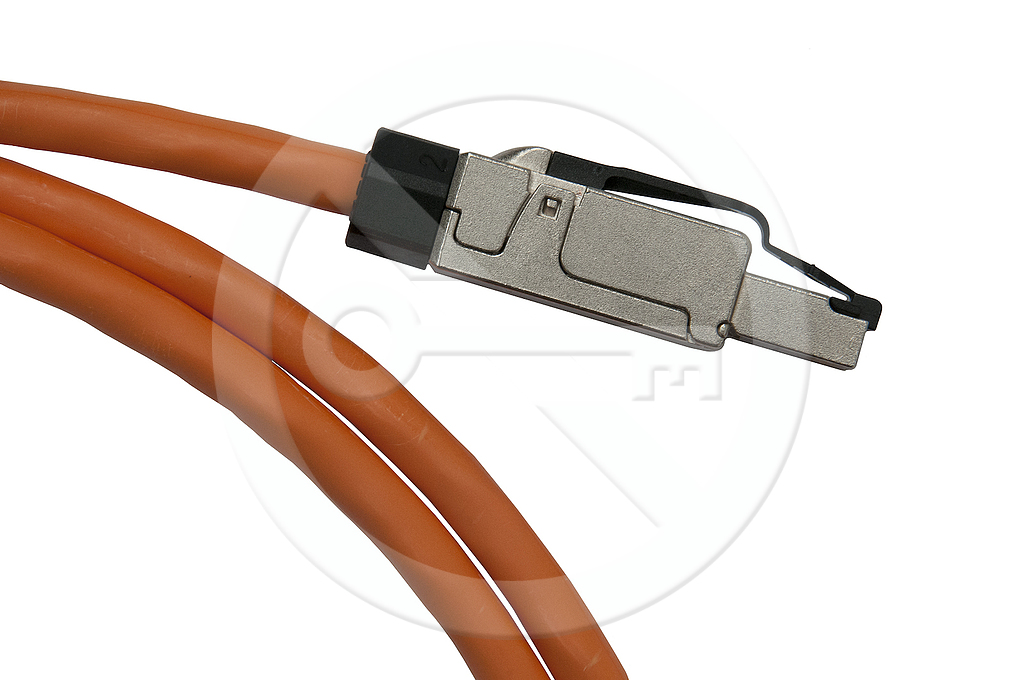

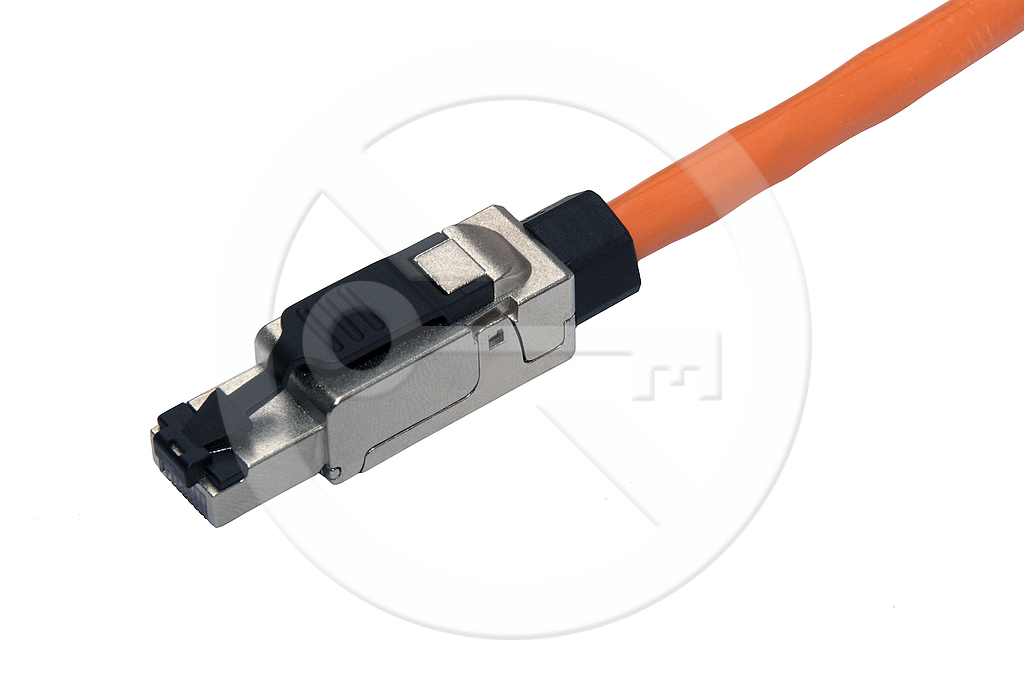

Universal MPTL plug Solarix CAT5E STP RJ45 toolless SXRJ45-5E-STP-BK-SA
Brand:
Solarix
Warranty period:
5 years
Order code:
11910000
Unit of measurement (UoM):
piece
Minimum order quantity (MOQ):
1
Robust and highly reliable category 5E plug. Designed for shielded cables, suitable for both solid and stranded wires.
6,53 EUR excluding VAT
Info about product:
+420 533 338 803
- Robust and highly reliable category 5E/Class D plug
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T*
- Very easy and quick installation, toolless termination, for both solid and stranded wires (AWG 26-23)

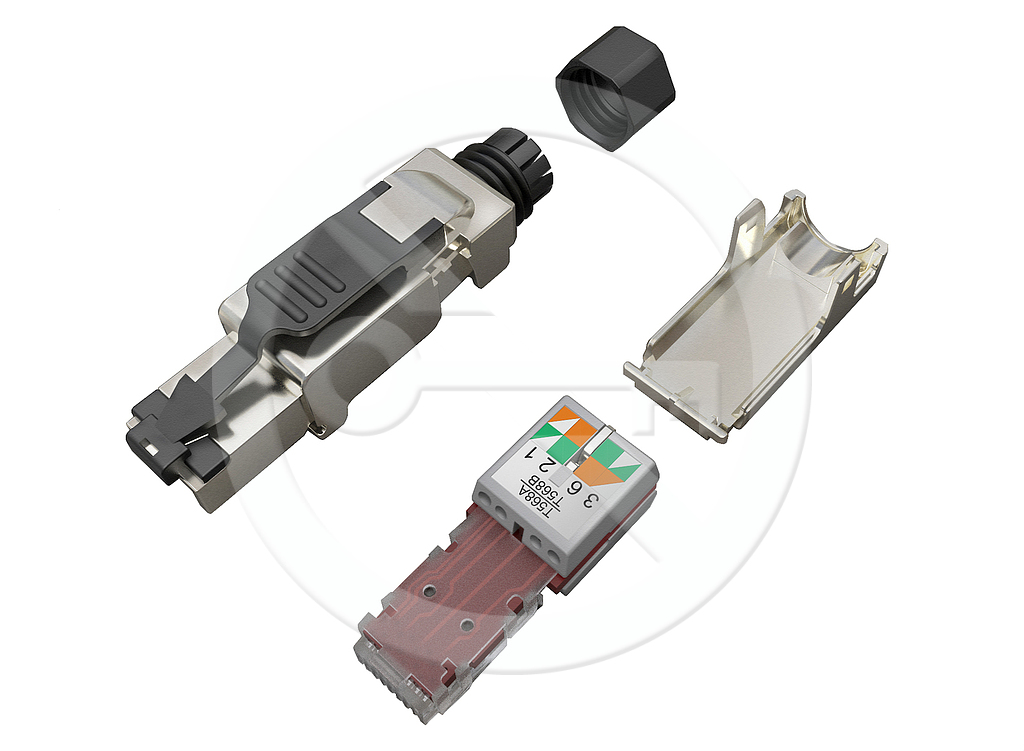

- Dismountable with easy reinstallation
- Designed for shielded and unshielded cables up to Ø 8.0 mm with wires up to Ø 1.5 mm (incl. PE insulation)
- 50 µin gold contact plating
- The plug meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards and its performance is suitable for modular plug terminated link (MPTL)
- The colour of the plug is black (plastic parts) and silver (metal body)
- Category: CAT5E
- Highest Supported Protocol: 2.5/5GBASE-T and lower
- Plug Type: RJ45 toolless
- Shilded: yes
- Wire Type: AWG 26 – 23
- Modular: yes
- Contact Positions: 8p8c
- Contacts Plating: 50 µ gold
- Storage Temperature: -25 °C to 70 °C
- Operational Temperature: -40 °C to 70 °C
- Max. Operational Humidity: 93 %
Datasheets
- EN datasheet plug Solarix SXRJ45-5E-STP-BK-SA (451.3 KB, pdf)
- CZ, EN, PL, SK Solarix DoC - copper (327.67 KB, pdf)
- CZ, EN, PL, SK Solarix REACH - copper (284.94 KB, pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (296.88 KB, pdf)
- EN maintenance and use of Solarix cabling (147.49 KB, pdf)
- EN significant installations of Solarix cabling (2.16 MB, pdf)
- EN profile structured cabling Solarix (4.08 MB, pdf)
