Order code: 25286811 Brand: Solarix Guarantee period: 5 years Unit of measurement (UoM): 24 kusů v balení Min. purchase amount (UoM): 1 Delivery date: immediately Recommended price excluding VAT: 76,75 EUR | |||
|
By product

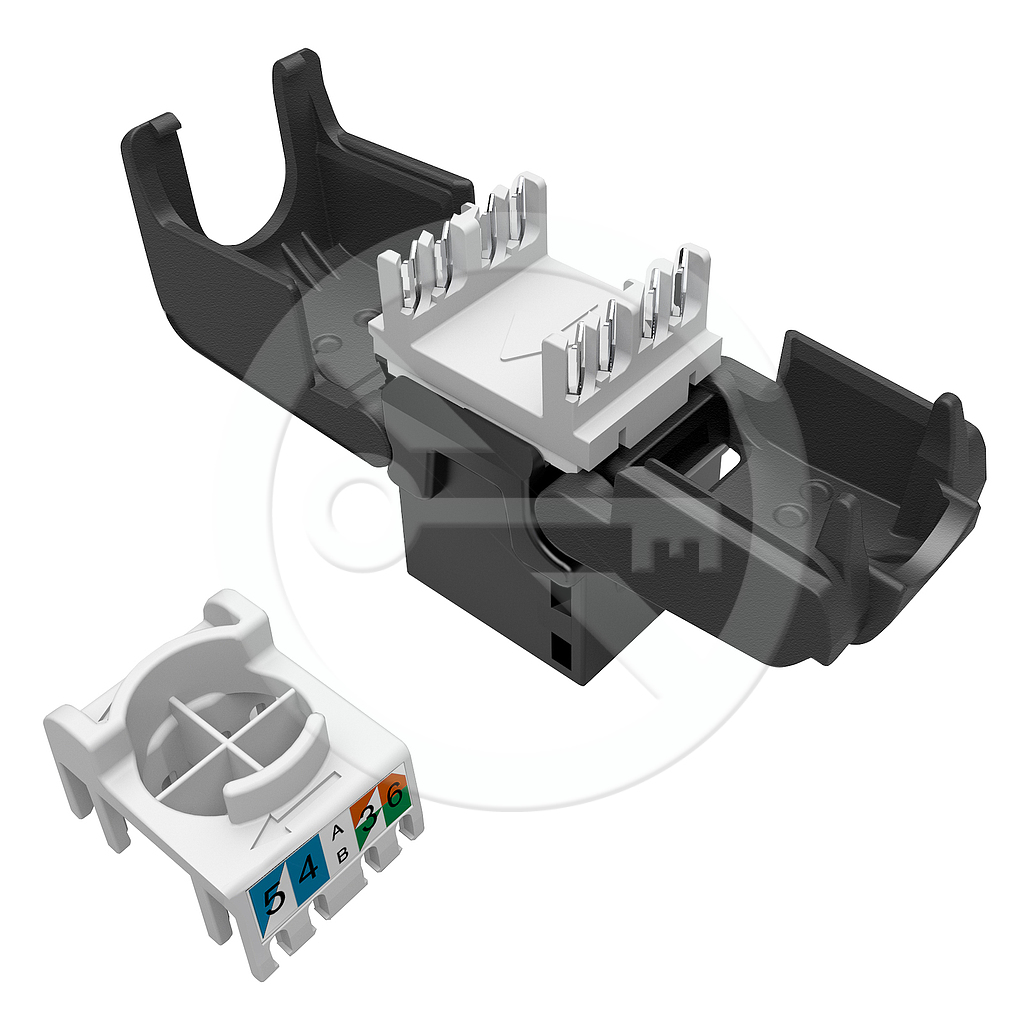

Multipack 24 pcs, quality unshielded CAT6 RJ45 keystone, black with Component Level and 4PPoE certification.
Technical Parameters
- Category: CAT6
- Highest Supported Protocol: 2.5G/5GBASE-T and lower
- Shielded: No
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: toolless
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: Black
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Product Description
- Quality unshielded category 6/Class E keystones
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T
- Very easy toolless installation
- 50 µin gold contact plating
- The keystones meet the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
- Their form factor complies with the requirements of the EN 60603-7 specifications (i.e. the keystones are compatible with other manufacturers‘ modular outlets that meet this standard)
- The colour of the keystones is black
- The multipack packaging significantly speeds up the installation of these Solarix keystones and also is more environmentally friendly (i.e. without any plastic packaging)
- The electrical performance of these keystones has been authorized by the FORCE TECHNOLOGY independent testing laboratory in the EC VERIFIED certification program, including the 4PPoE standard (i.e. IEEE 802.3bt)
Can't download a file?Technical support
If you are not able to download a file please right click on the download link and select "Save link as..". (Internet Explorer, FireFox) or a similar menu item depending on the browser you are using (it may differ in different browsers and versions).
Case study- EN significant installations of Solarix cabling (2.16 MB) download file (pdf)
- CZ, EN, PL, SK Solarix DoC - copper (345.56 KB) download file (pdf)
- CZ, EN, PL, SK Solarix REACH - copper (302.36 KB) download file (pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (333.0 KB) download file (pdf)
- EN certificate component level SXKJ-6-UTP-xx-SA/SXKJ-6-UTP-BK-NA (329.32 KB) download file (pdf)
- EN datasheet multipack keystone Solarix SXKJ-6-UTP-BK-SA (598.99 KB) download file (pdf)
- EN maintenance and use of Solarix cabling (147.49 KB) download file (pdf)
- DWG Solarix (8.9 MB) download file (zip)
- EN profile structured cabling Solarix (1.66 MB) download file (pdf)
