Order code: 25286802 Brand: Solarix Guarantee period: 5 years Unit of measurement (UoM): piece Min. purchase amount (UoM): 1 Delivery date: immediately Recommended price excluding VAT: 4,30 EUR | |||
|
By product

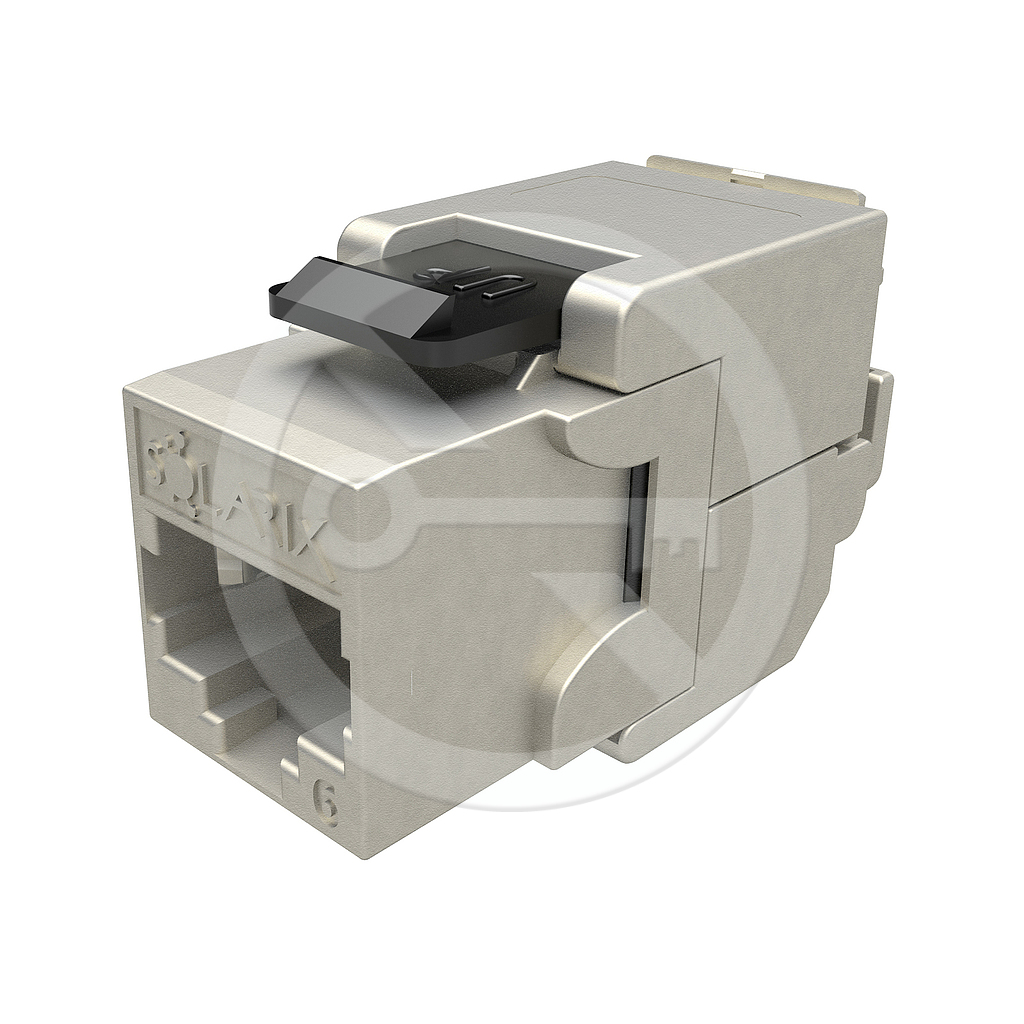

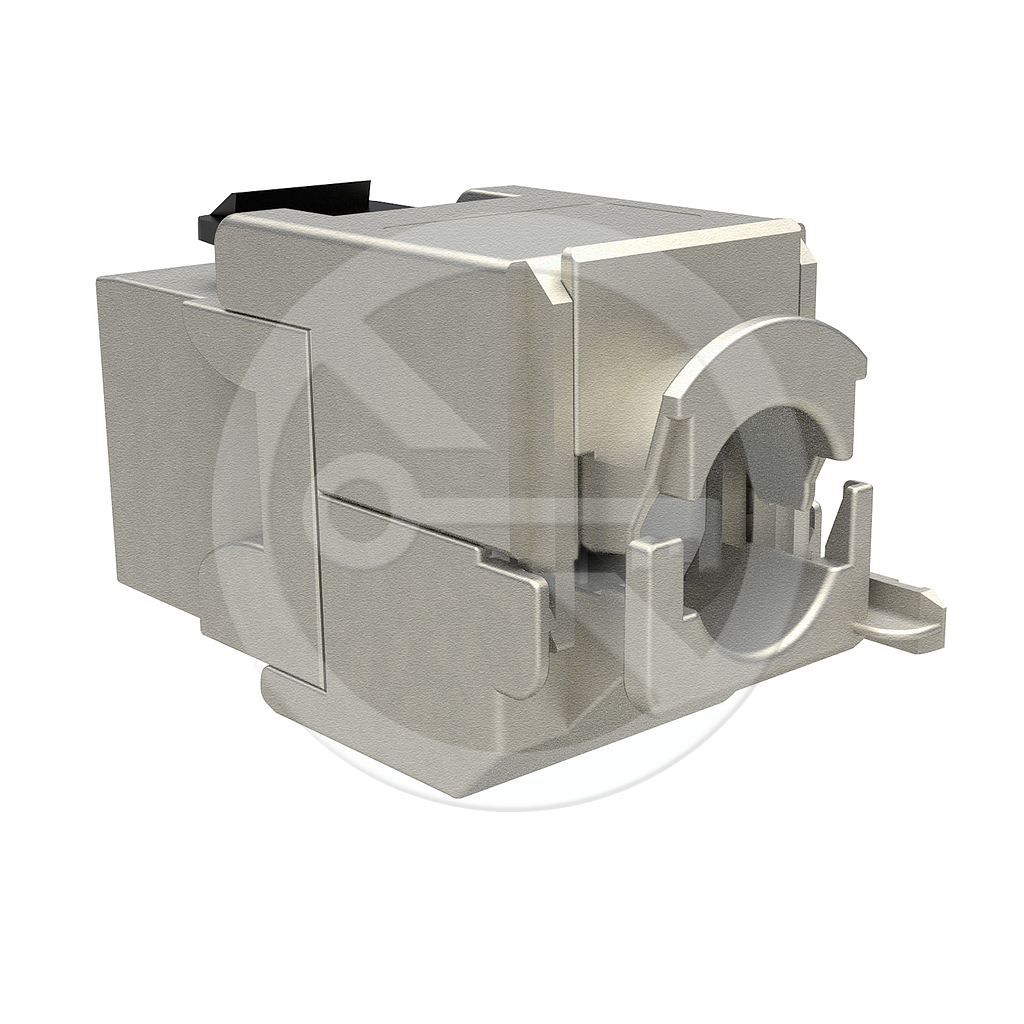

Shielded category 6 keystone toolless.
Technical Parameters
- Category: CAT6
- Highest Supported Protocol: 2.5G/5GBASE-T and lower
- Shielded: Yes
- Min. Port Life: 1000 cycles
- Contact Plating: 50 µ gold
- Termination Module: toolless
- Conductor Size and Type: AWG 26 - 22, solid
- Housing Material: FR acc. to UL94-0
- Color: black (inner parts) and silver (metal body),
- Storage Temperature: -40 °C to 70 °C
- Operational Temperature: -10 °C to 60 °C
- Max. Operational Humidity: 93 %
Product Description
- Quality shielded category 6/Class E keystone
- Designed for ethernet protocols, including 2.5GBASE-T and 5GBASE-T

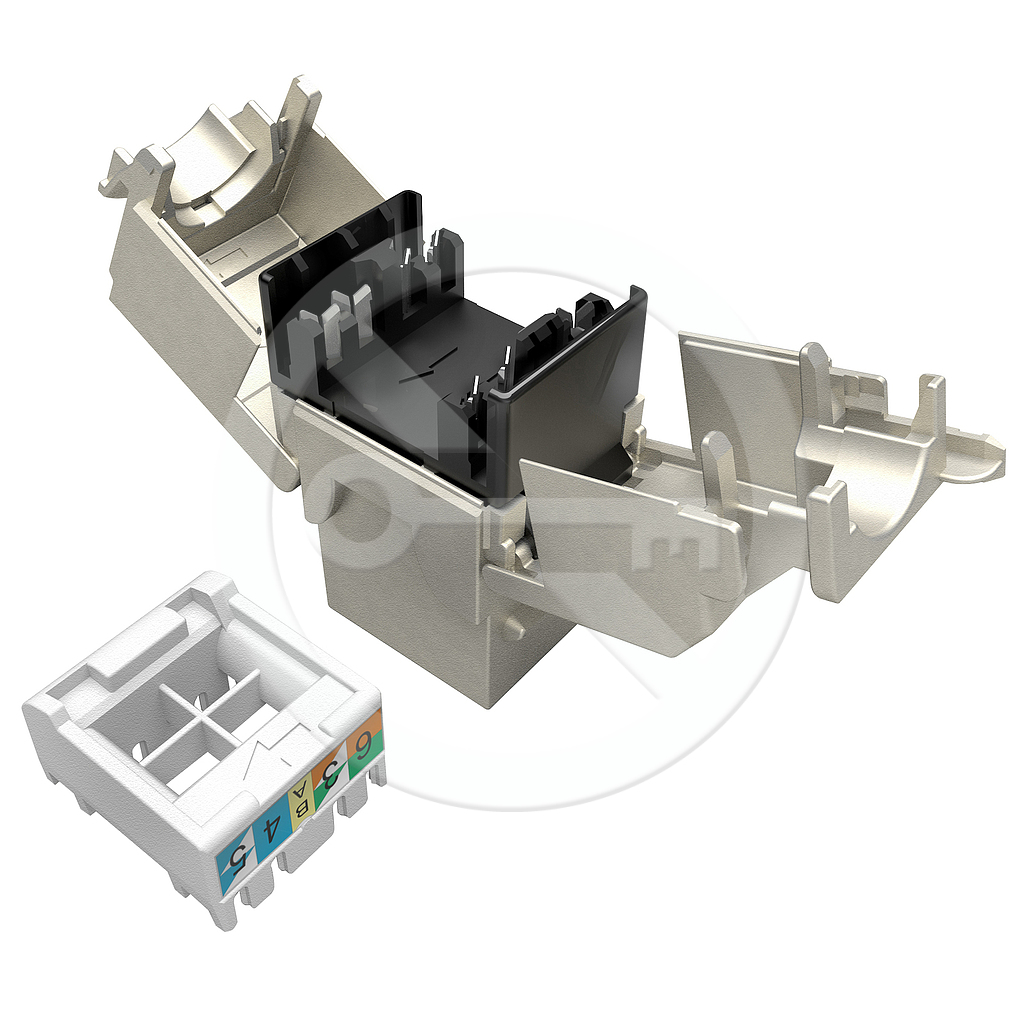

- Very easy toolless installation
- 50 µin gold contact plating
- The keystone meets the ISO/IEC 11801, EN 50173, and ANSI/TIA 568.2-D cabling standards
- Its form factor complies with the requirements of the EN 60603-7 specifications (i.e. the keystone is compatible with other manufacturers‘ modular outlets that meet this standard)
- The colour of the keystone is black (inner parts) and silver (metal body)
Can't download a file?Technical support
If you are not able to download a file please right click on the download link and select "Save link as..". (Internet Explorer, FireFox) or a similar menu item depending on the browser you are using (it may differ in different browsers and versions).
Case study- EN significant installations of Solarix cabling (2.16 MB) download file (pdf)
- CZ, EN, PL, SK Solarix DoC - copper (345.56 KB) download file (pdf)
- CZ, EN, PL, SK Solarix REACH - copper (302.36 KB) download file (pdf)
- CZ, EN, PL, SK Solarix RoHS - copper (333.0 KB) download file (pdf)
- EN datasheet keystone Solarix SXKJ-6-STP-BK-SA (551.65 KB) download file (pdf)
- EN maintenance and use of Solarix cabling (147.49 KB) download file (pdf)
- DWG Solarix (8.9 MB) download file (zip)
- EN profile structured cabling Solarix (1.66 MB) download file (pdf)
